Mounting position for gearmotors:
Degree of protection= IP55, Isoclass= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,
Hollow shaft= 50mm, Einbaulage M1-M6,
Engine speed= 4 pole, Ratio (i)= 40
, Torque = 1596 Nm,
Service factor (f.s.)= 1
. Terminal box = top (rotatable), Weight= 142 kg
, Color= RAL 5010 (gentian blue),
Temperature Sensor= 3 x PTC thermistors, Housing= Die-cast aluminum, Ball bearings= SKF, C & U or equivalent,

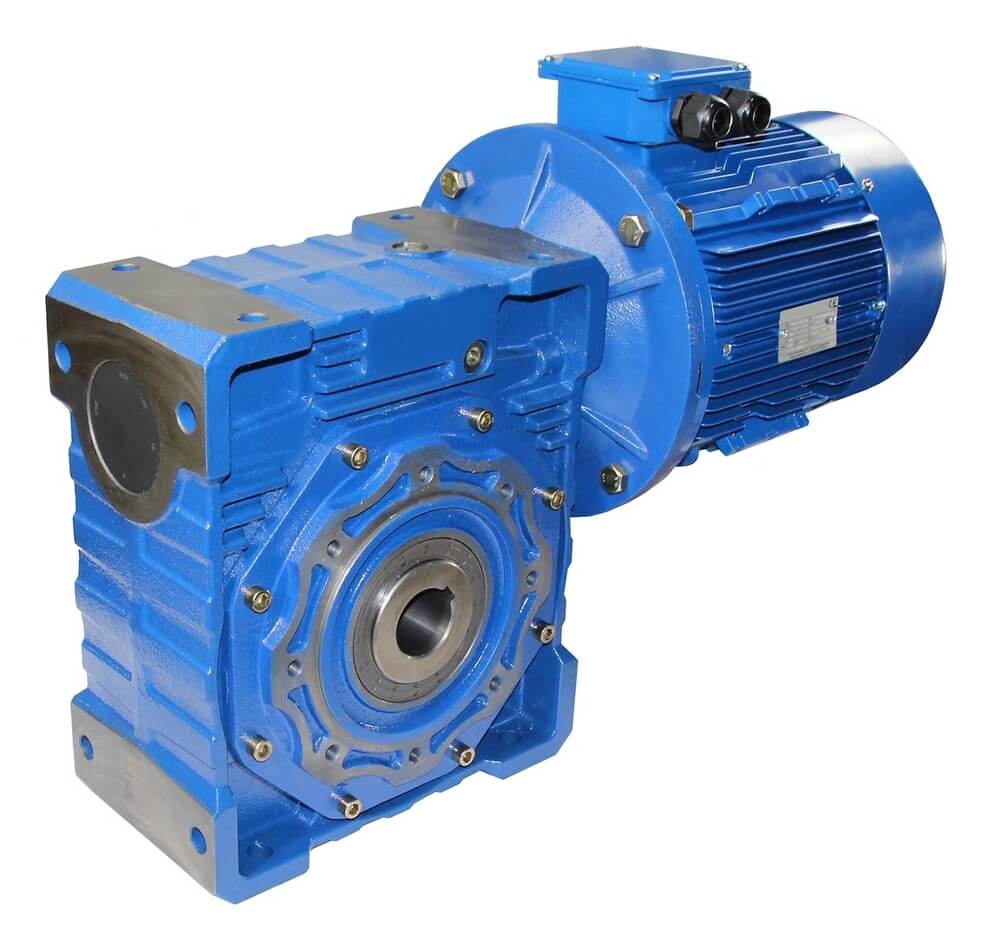

Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
carried out by qualified specialist personnel. For modifications or special designs please send inquiry.
All product photos are non-binding examples!
