SEVA-MV282-100L2-3.0kW-227Upm Helical geared motor
Delivery time ca. 36 Workdays
- Order number: A0282511100063A000T1
- Shipping fees: For articles and packaging
- For price view: Please log in under „My Account"
Helical geared motor (gearbox with IEC flange to the ac-motor), Voltage= 3 x 230/400 V-50... more
Product information "SEVA-MV282-100L2-3.0kW-227Upm Helical geared motor"

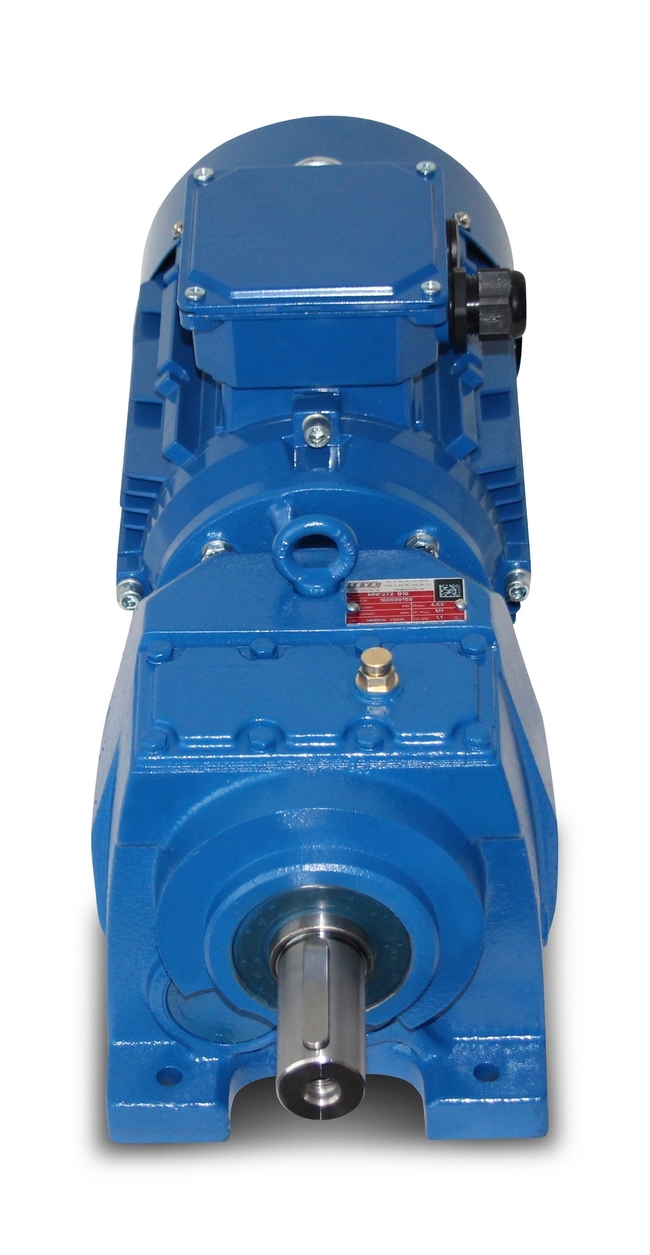

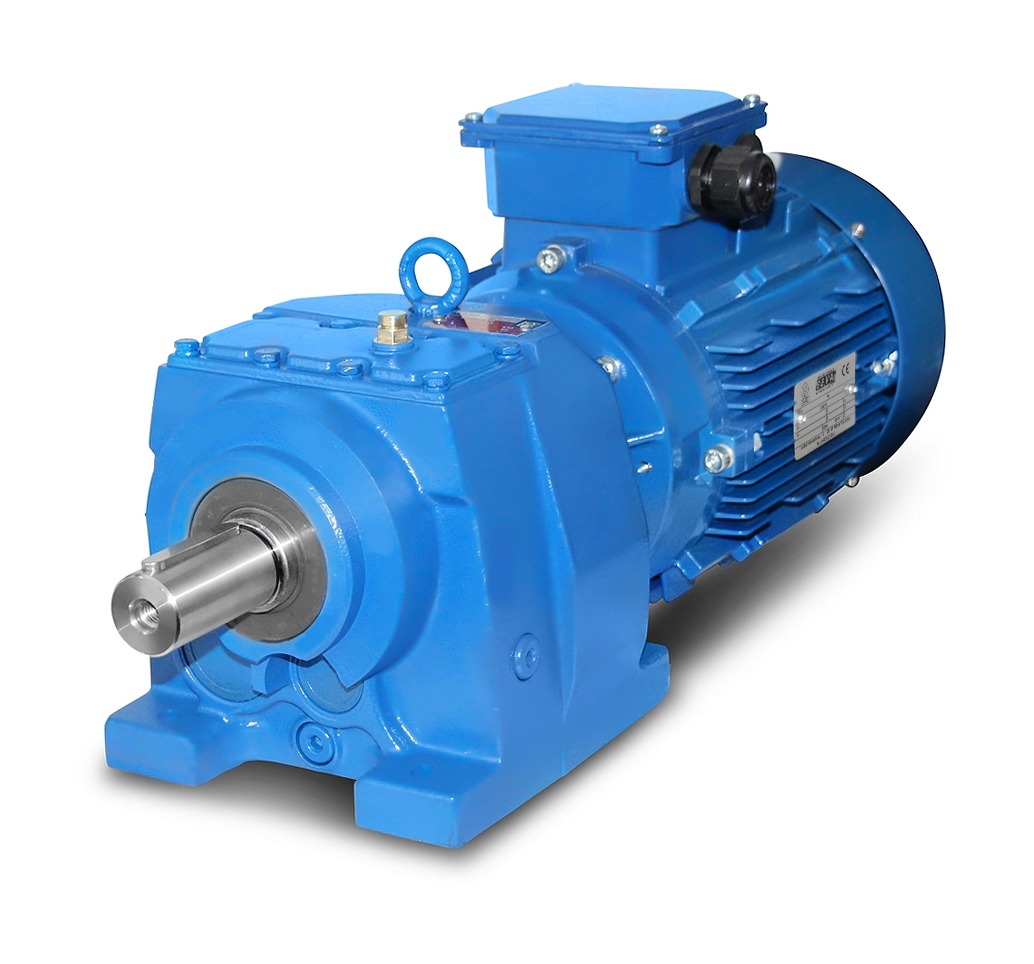

Helical geared motor (gearbox with IEC flange to the ac-motor),
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530). Frequency= 50/60 Hertz.
Power= 3.0 kW, Speed= 227 rpm, Ratio (i)= 6.25, Torque (M²)= 124 Nm, Service factor (fs)= 2.9.
Type = B3 (B5 for an extra charge), Shaft = 35mm x 70mm, Weight= 62.7kg, Paint= RAL5010.
Temperature sensor = 3 x PTC thermistors, Operating mode = S1 (100 % cdf), Terminal box= top (rotatable).
The helical gear is suitable for frequency converter operation and corresponds to the
IEC 60034-30: 2008. The gear motor can be operated in both directions and contains
an oil filling on delivery. All product photos are non-binding examples!
When ordering, please select the desired mounting position and design! !
Technical specifications:
-
SEVA- MV282 / MV283- Maßzeichnung / Drawing
-
SEVA- Elektromotor, 3,0 kW, 4 polig, Datenblatt / Data sheet
-
SEVA- MV282 / MV283- MX100- Step
-
SEVA- MV / NV- Betriebsanleitung
-
SEVA- MV / NV- Operation instructions
-
SEVA- Elektromotoren- Betriebsanleitung
-
SEVA- Electric motors- Operation instructions
-
SEVA- M Serie- Katalog / Catalog
