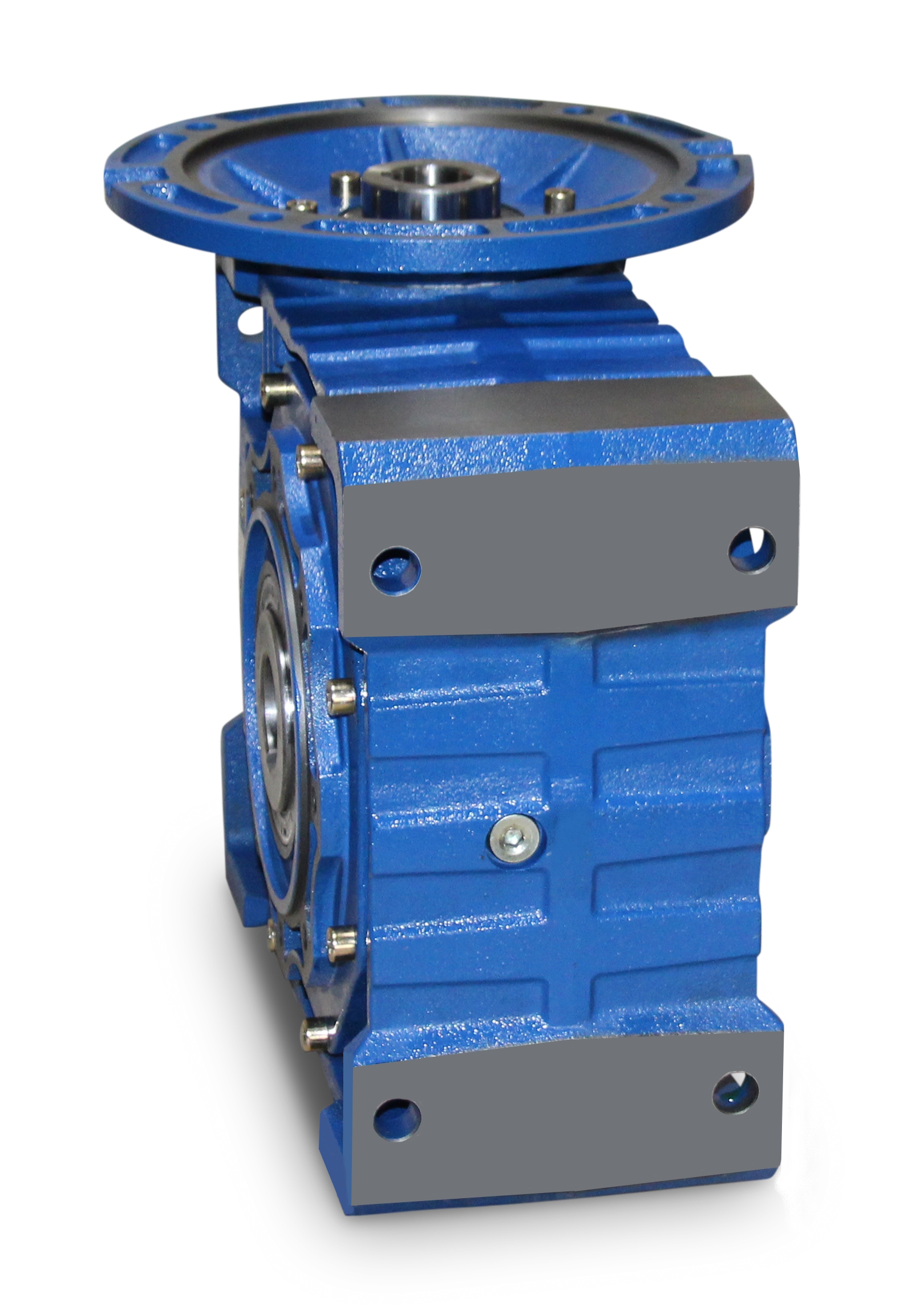

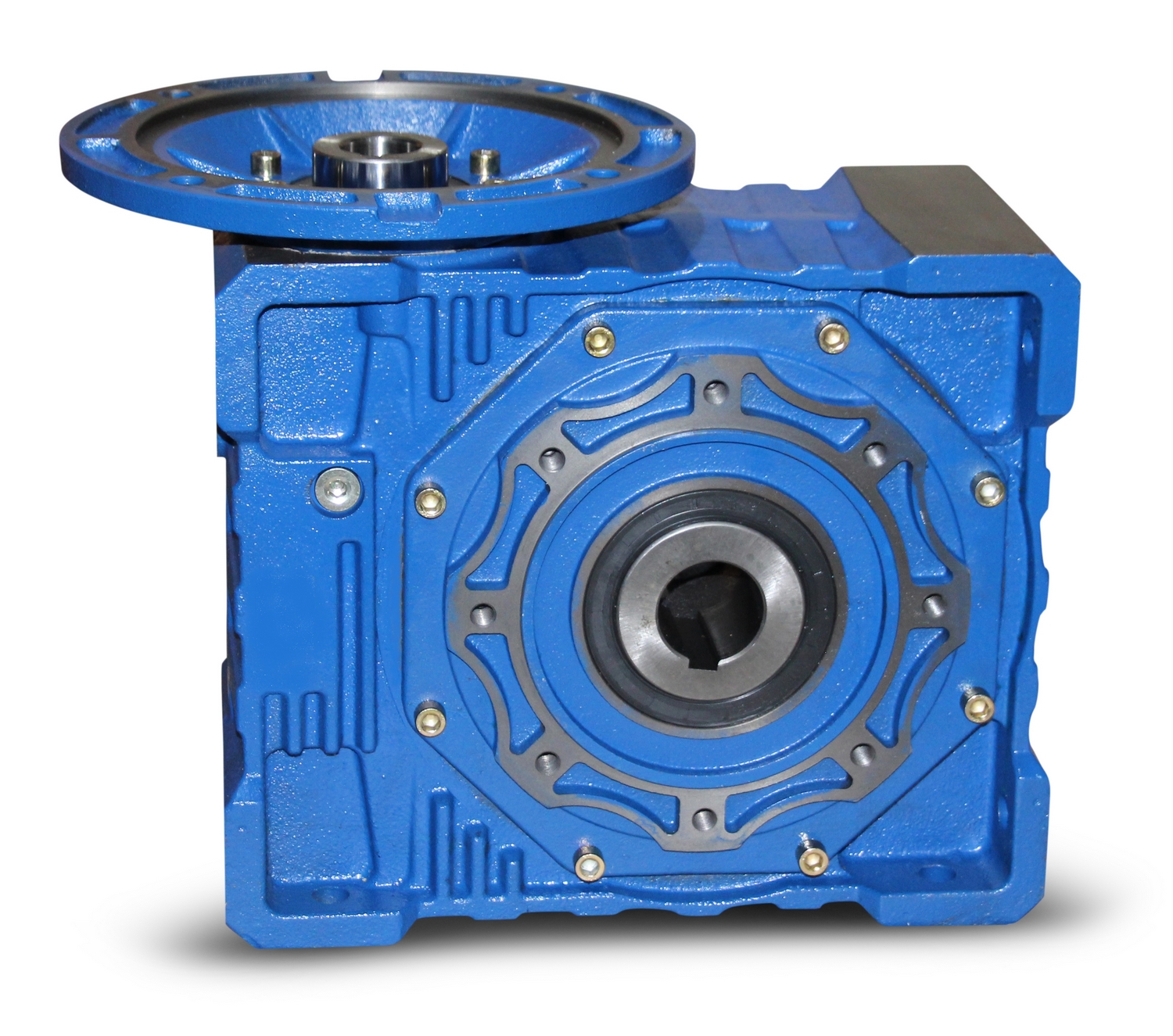

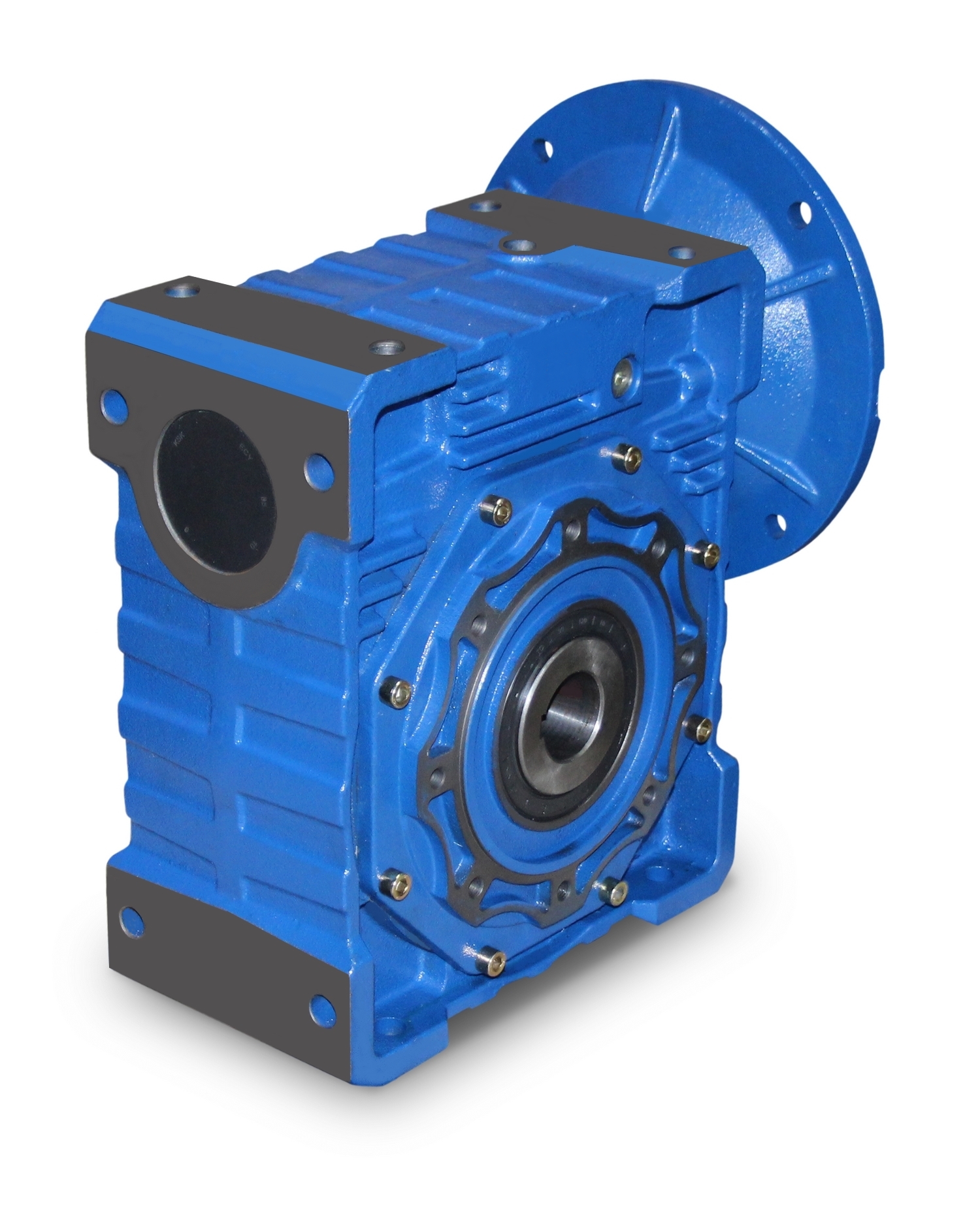

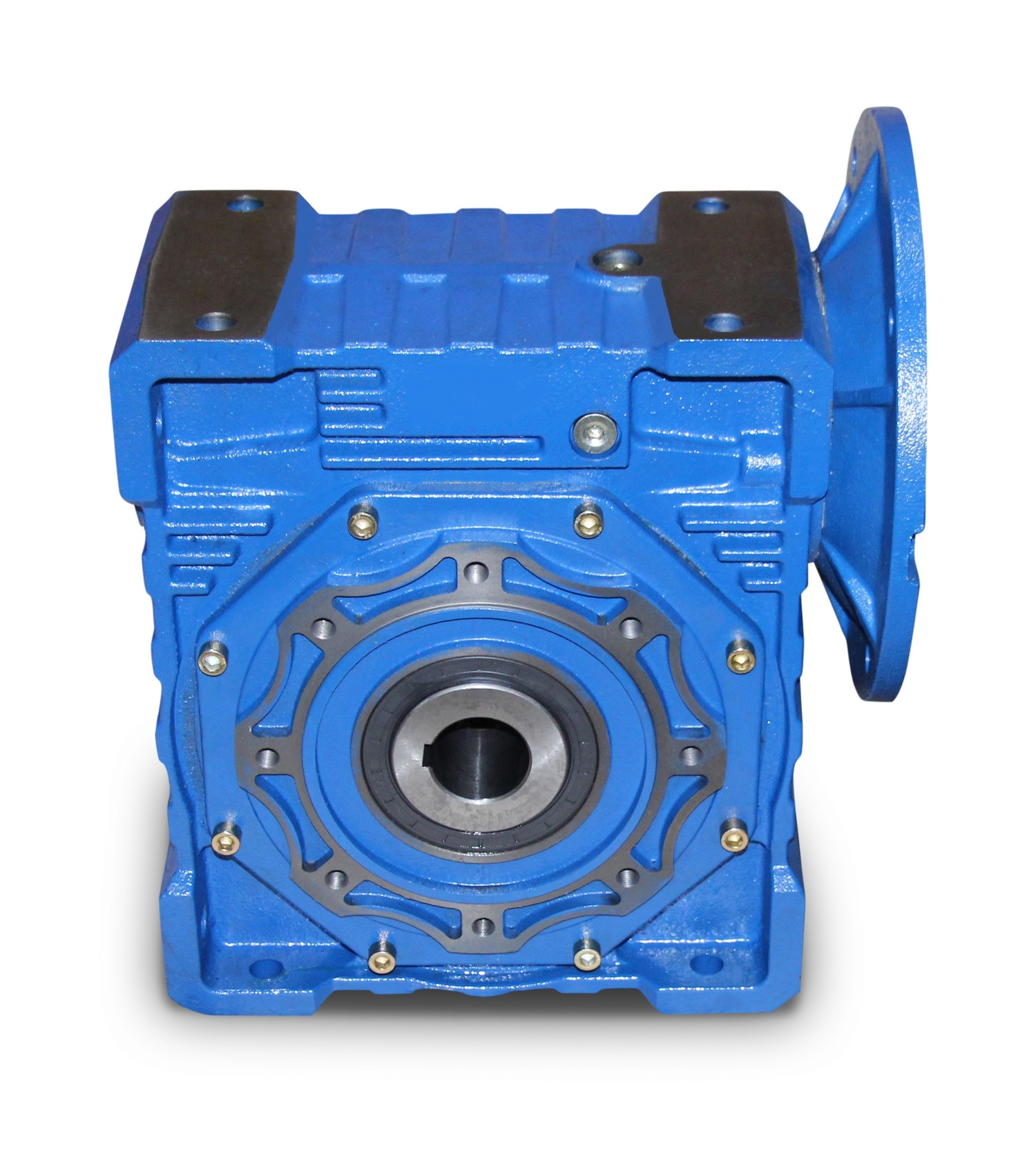

SEVA- Worm gearbox CMRV110 IEC100/112 i=25

Worm gearbox with IEC flange to the motor side,

Ratio (i)= 25, Hollow shaft= 42mm, suitable for

motors of the size 100/112 IEC-Input hollow shaft= 28 x 60mm,

IEC- Input flange= 160 x 110 x 130mm, , Weight= 35,0 kg,

Color= RAL 5010 (gentian blue). The geared motor can in

both directions of rotation are operated and contains one

Oil filling at delivery. All product photos are non-binding examples!

When ordering please select the desired installation position!
