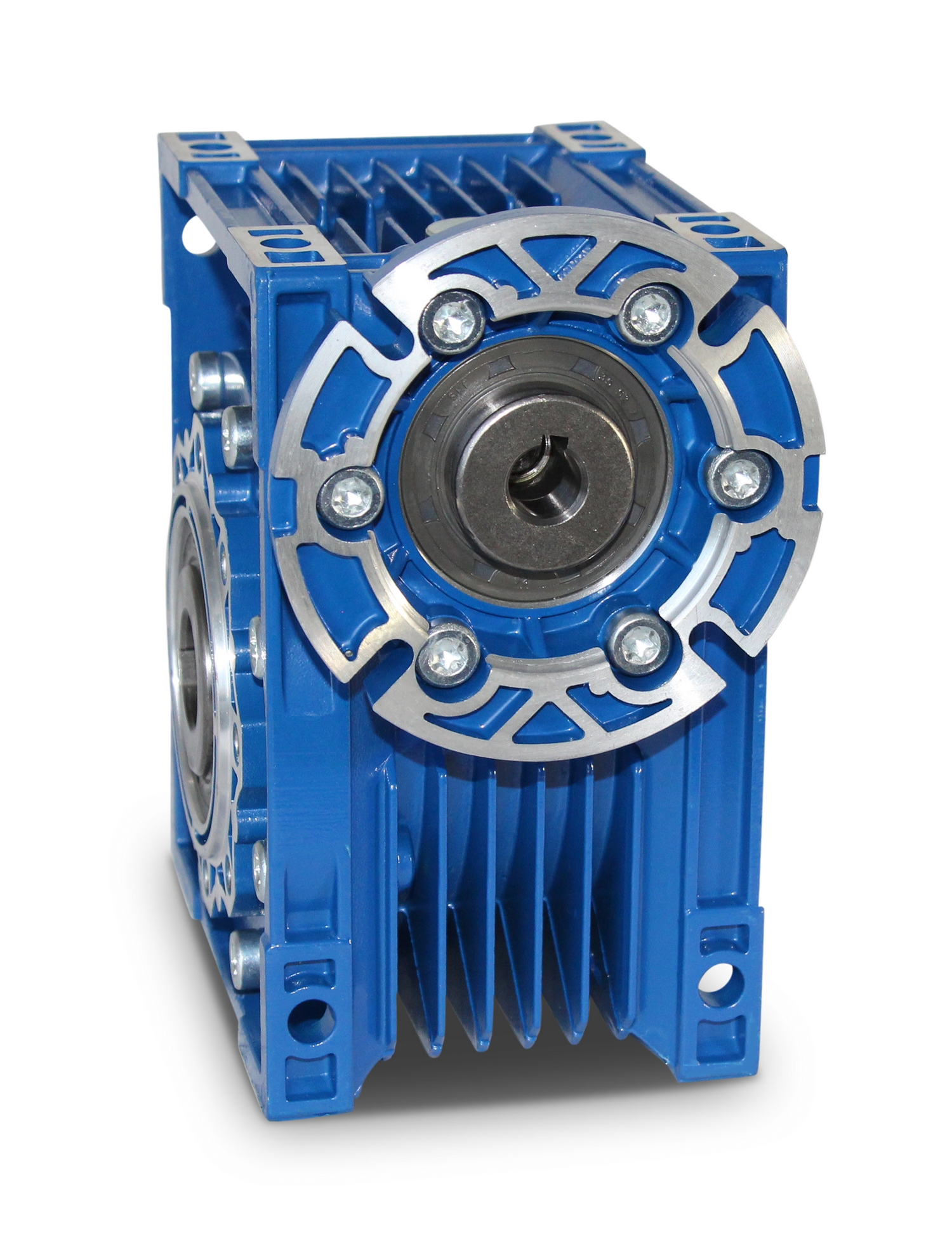

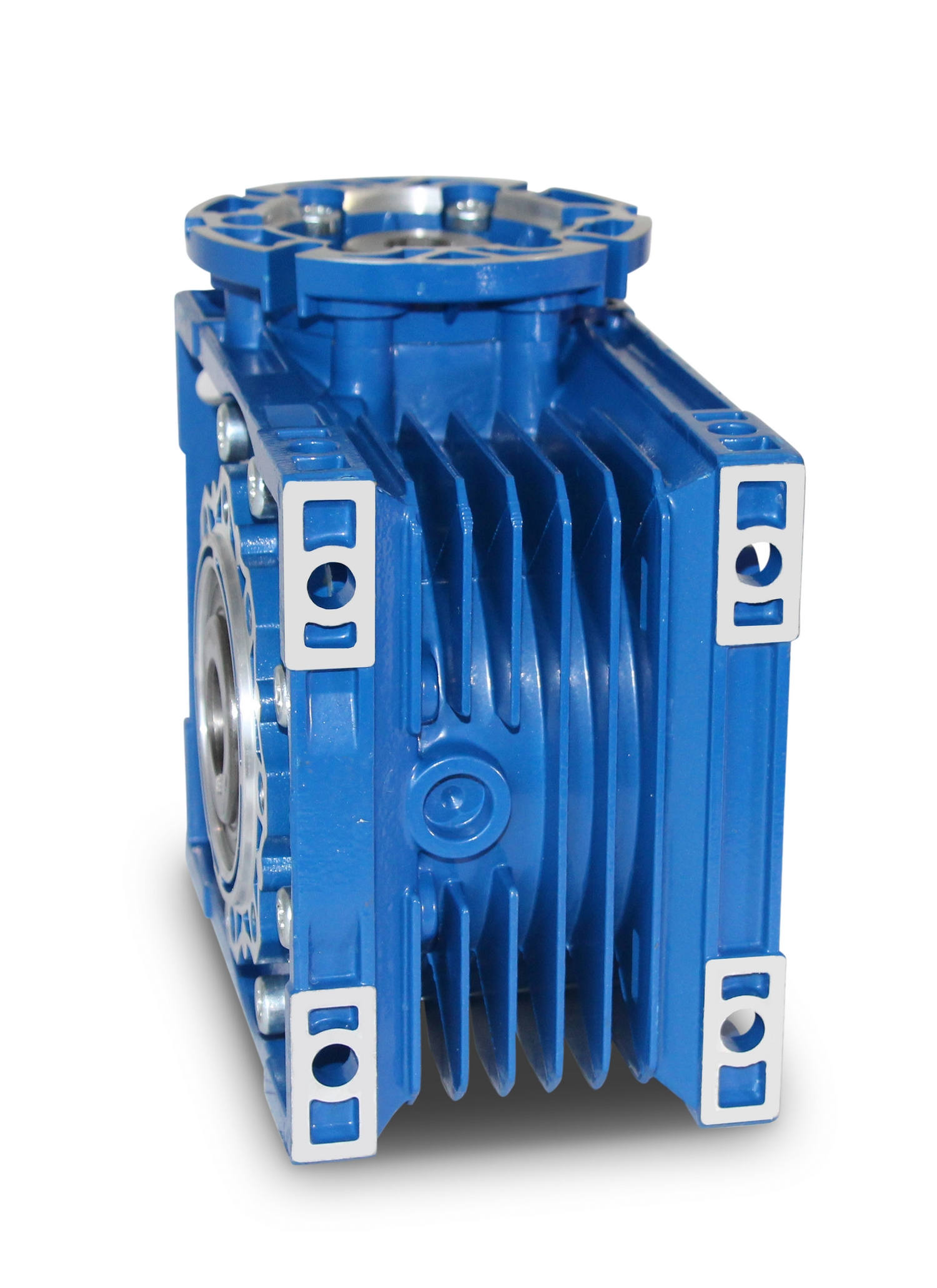

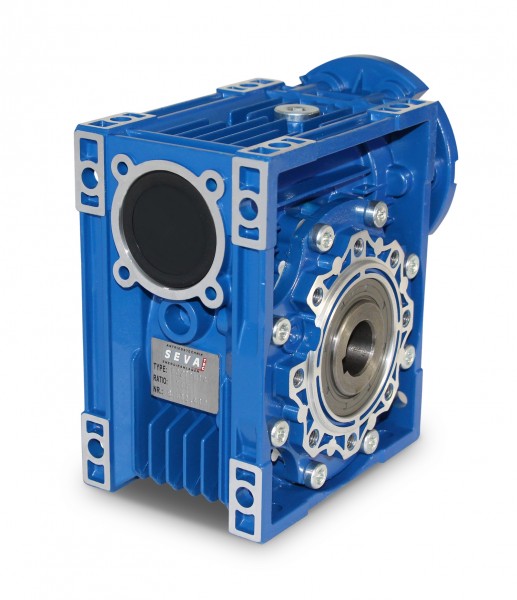

SEVA- Worm gearbox CMRV090 IEC100/112 i=25

Worm gearbox with IEC flange to the motor side,

Ratio (i)= 25, Hollow shaft= 35mm, IEC-Input hollow shaft= 28 x 60mm,

IEC-Input flange B14 = 160 x 110 x 130mm, suitable for motors of the size 100/112 B14

IEC-Input flange B5 = 250 x 180 x 215mm, suitable for motors of the size 100/112 B5

Weight= 13.0 kg, Color= RAL 5010 (gentian blue). The gearbox can rotate in both

directions operate and contains one Oil filling at delivery.

All product photos are non-binding examples!
