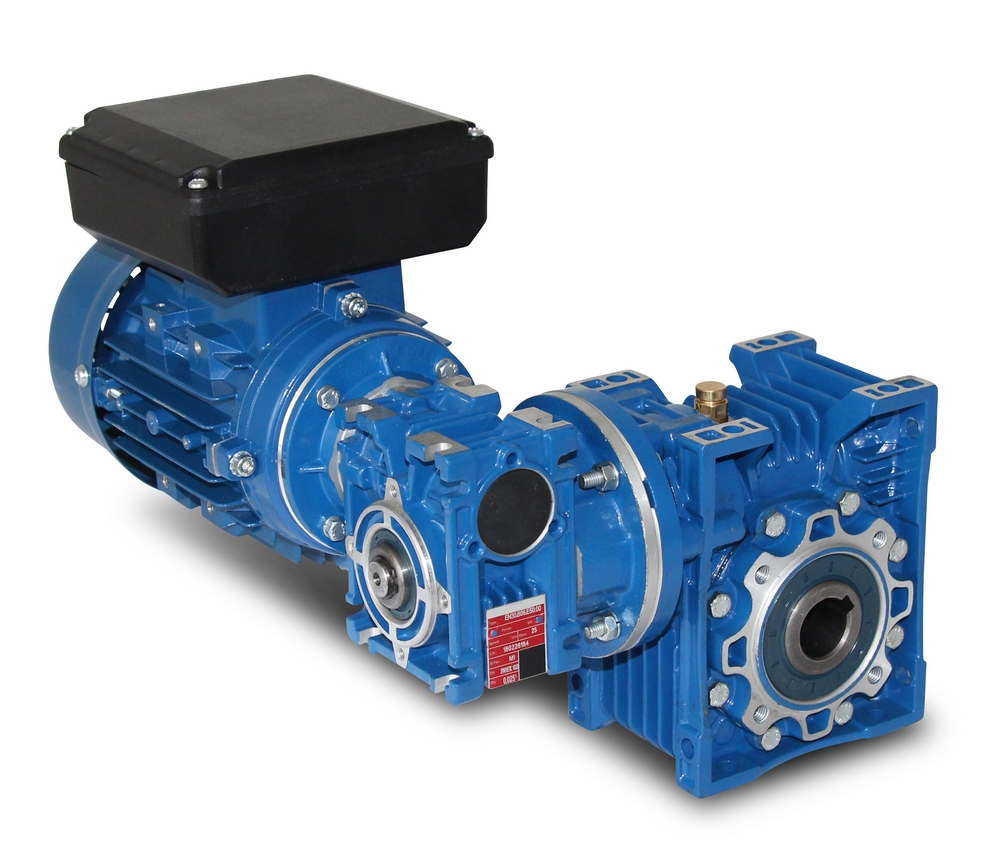

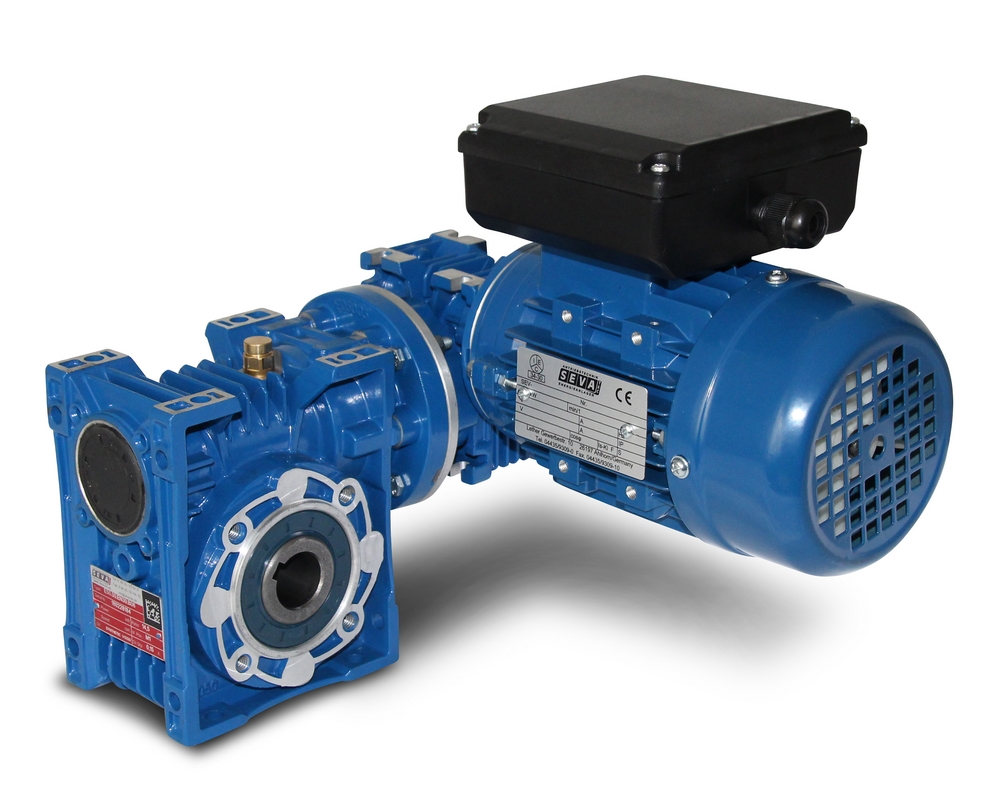

SEVA-SEVA-050-EN030 ML632 – 0.18 kW - 3.9 rpm- Grill gear motor

Grill motor as worm gear + 1-phase motor, Power= 0.18 kW,

Voltage= 1 x 230/400 V-50 Hz (± 5% according to VDE 0530), Degree of protection= IP55,

Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 3.9 rpm, Ratio (i)= 363,

Torque= 92 Nm, Service factor (fs)= 1.0, Hollow shaft= 25 mm. Weight= 10.2 kg,

Color= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC thermistors,

Housing= die-cast aluminum, Ball bearing= SKF, C & U or equivalent, Cooling= axial fan (plastic).

The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.

The geared motor can be operated in both directions and contains an oil filling on delivery.

All product photos are non-binding examples!
