SEVA- EV 063NV01 – 0.12 kW – 4.0 rpm- 400 V- Grill gear motor

SEVA- EV 063NV01 – 0.12 kW – 4.0 rpm- 400 V- Grill gear motor

Ready to ship today,
Delivery time appr. 1-3 workdays

Mounting position for gearmotors:

  • Y7020040630234
  • For articles and packaging
  • Bis zu 6 Wochen Lieferzeit.
  • Please log in under „My Account"
  • CMRV Serie ab Lager verfügbar.
Grill motor as worm gear + three-phase motor, Power= 0.25 KW, Voltage= 3 x 230/400 V-50 Hz,... more

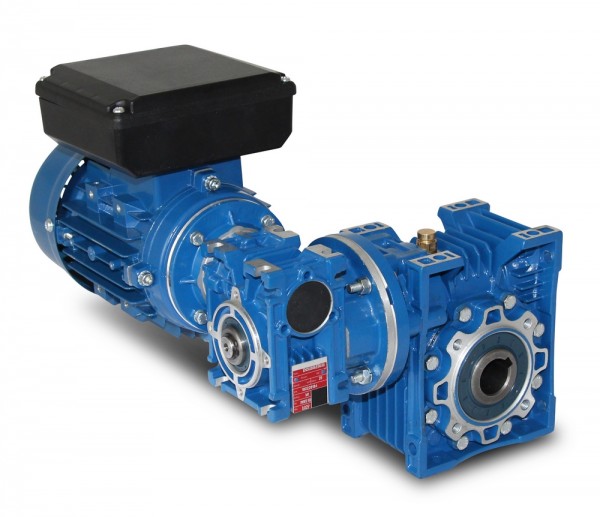

Product information "SEVA- EV 063NV01 – 0.12 kW – 4.0 rpm- 400 V- Grill gear motor"

Grill motor as worm gear + three-phase motor, Power= 0.25 KW,

Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Degree of protection= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf),

Speed (n²)= 4 rpm, Ratio (i)= 234, Torque= 148 Nm, Service factor (fs)= 1.2, Hollow shaft= 30 mm.

Weight= 15,0 kg, Color= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC thermistors,

Housing= die-cast aluminum, Ball bearing= SKF, C & U or equivalent, Cooling= axial fan (plastic).

The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.

The geared motor can be operated in both directions and contains an oil filling on delivery.

All product photos are non-binding examples!
