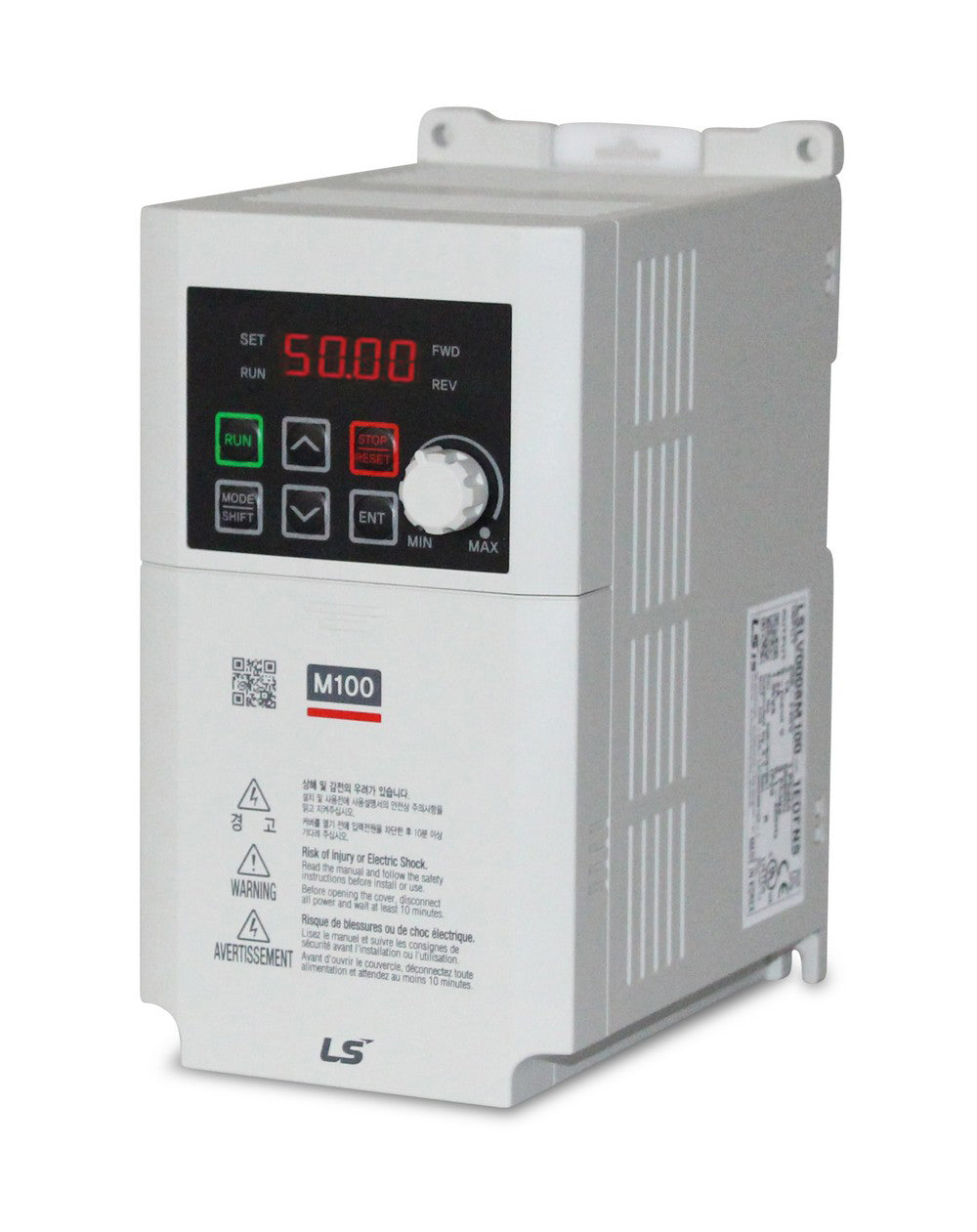

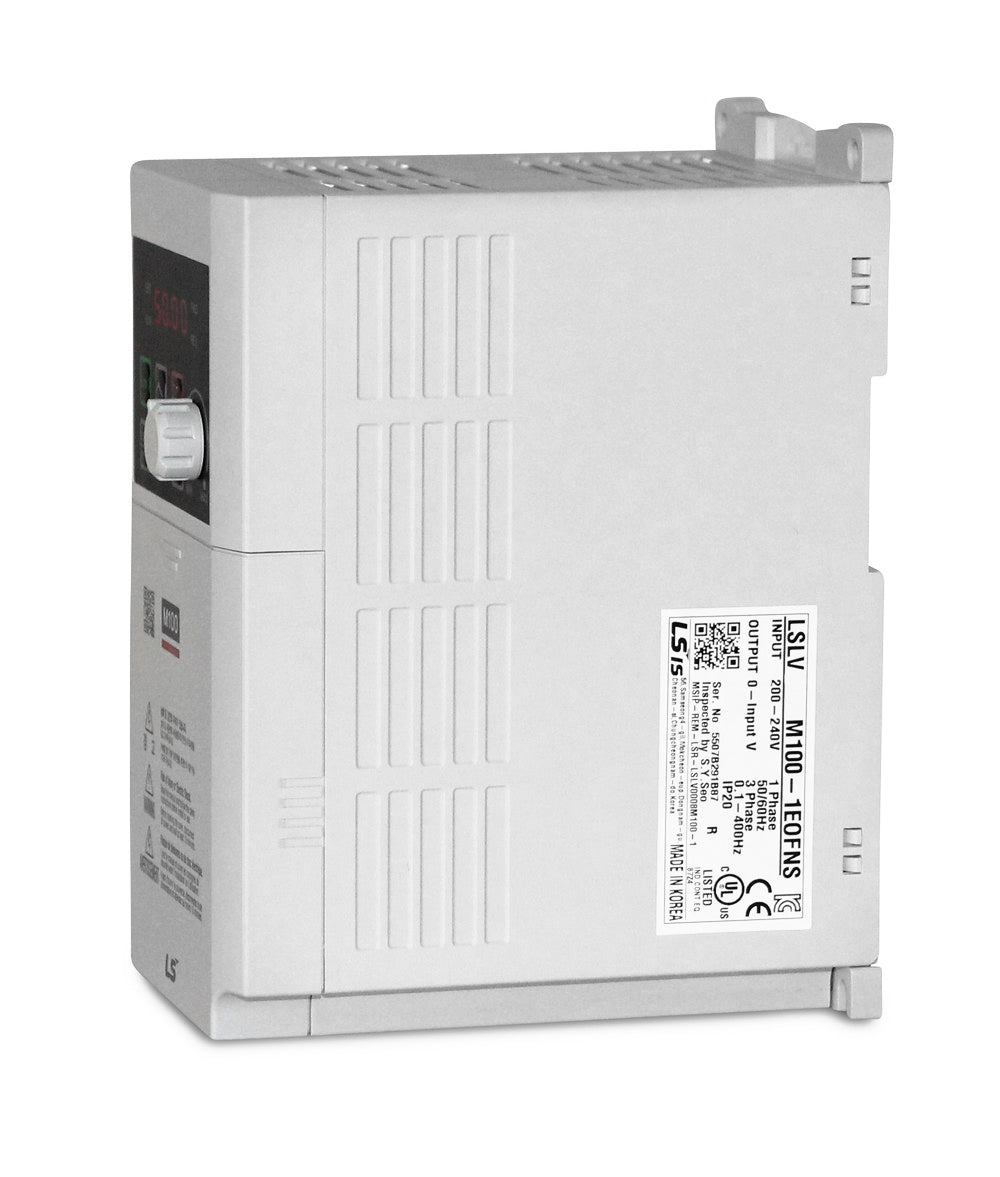

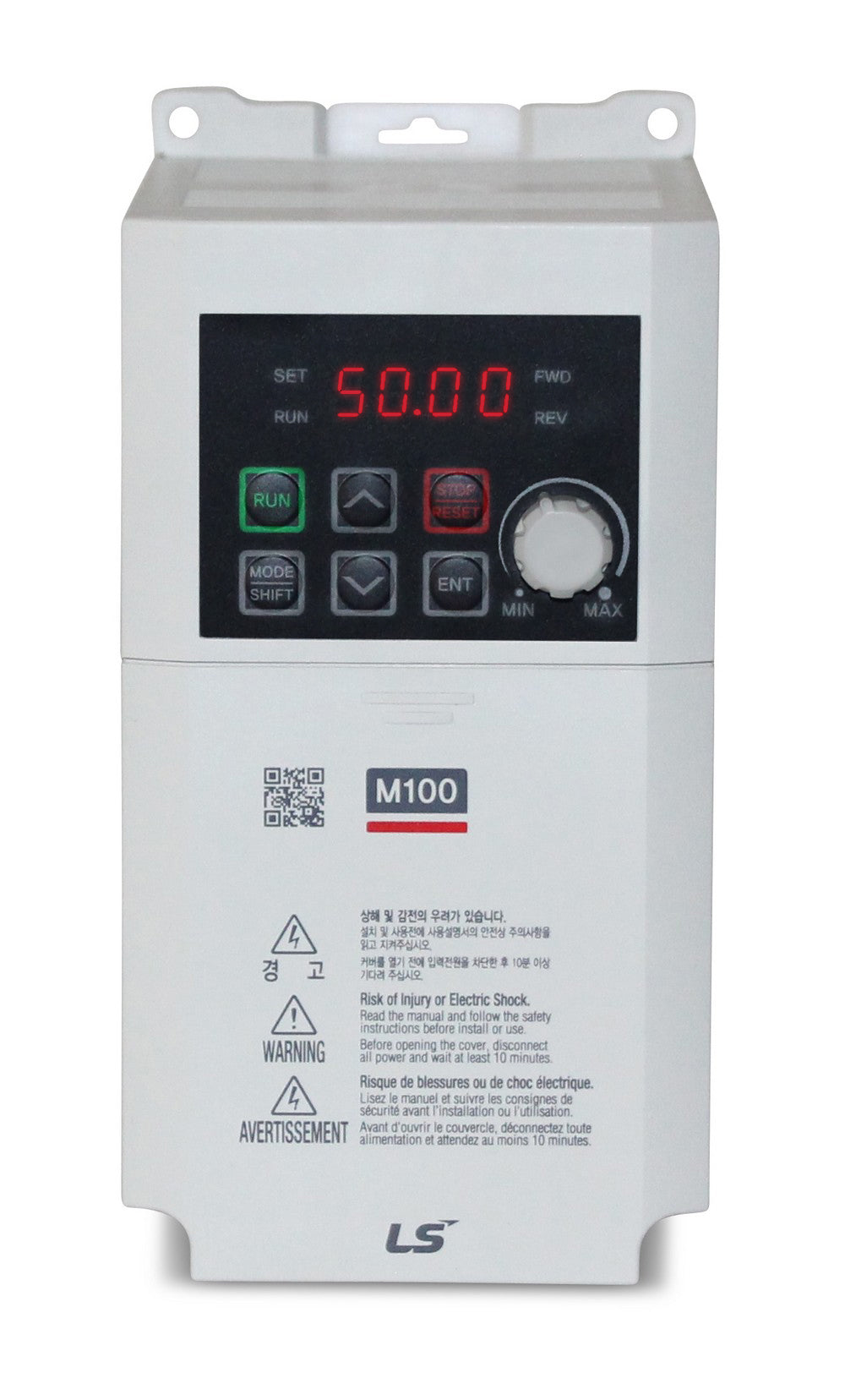

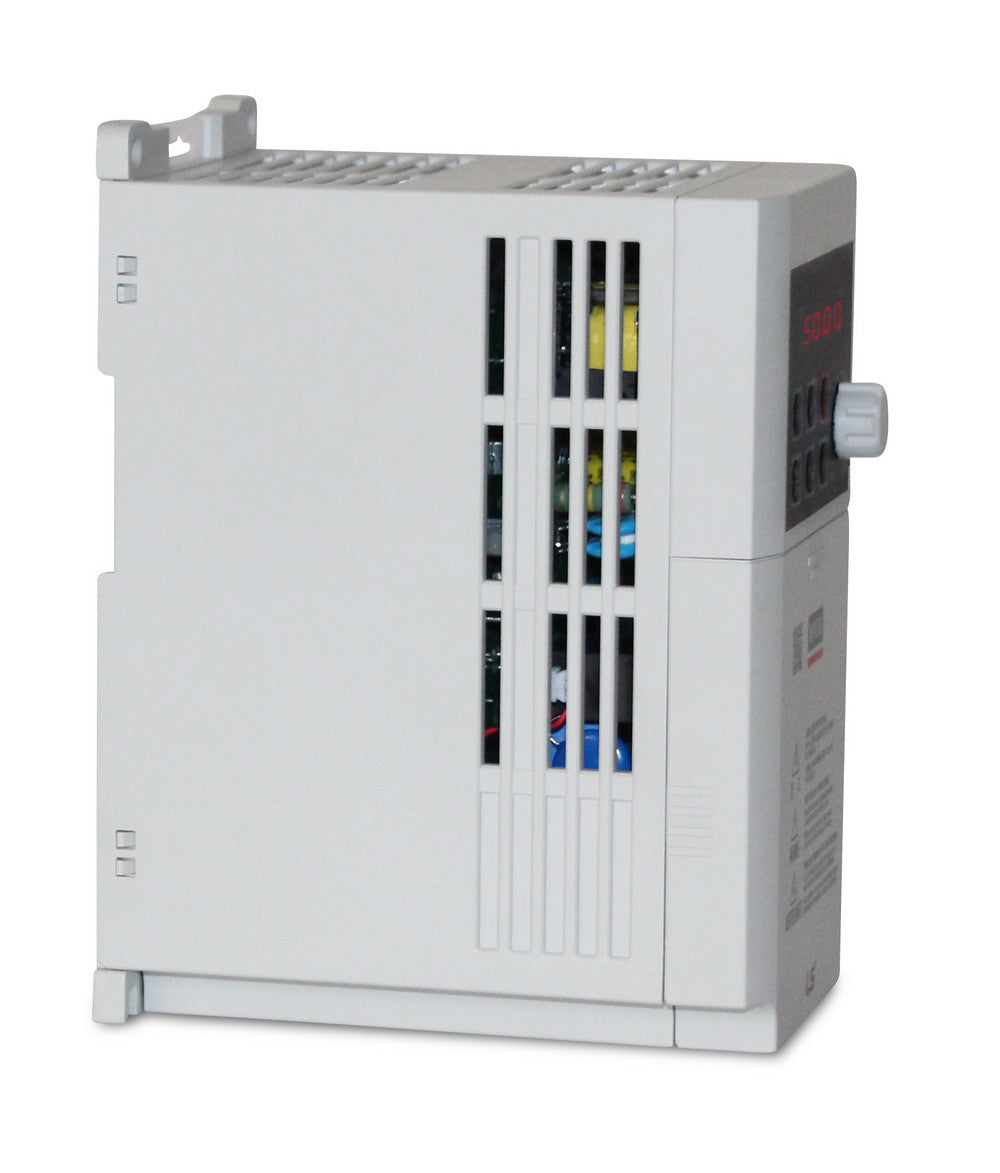

Frequency converter SEVA-LS 004M100
Key Features
- Frequency converter, 0.4 kW, 1 x 230V, 2.4A, IP20, integrated EMC filter - EMC filter C2 - Potentiometer for speed control - Mounting on mounting plates or DIN rails - Side-by-side installation possible (2mm distance between the frequency converters) - Easy connection via RJ45 port - Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V) - Brake chopper in 1.5kW and 2.2kW versions - Overload capacity 150% for 1 minute - Programming with DriveView7 operating software via RJ45 connection on the M100 (Advanced version only
- The standard version does not have an RJ45 interface
- Please select a version.)
- Excerpt from special functions: - DC braking - Jog operation - 3-wire operation - Dwell operation (time-based operation) - Slip compensation - PID control - Energy-saving mode - Speed search - Automatic restart.
Downloads
Eigenschaften
Wird geladen …
Wird geladen …
- €115,90 EUR
- €115,90 EUR
- Unit price
- per
* plus VAT plus shipping costs
SKU:
66430003
Payment Methods
Accesories
Wird geladen...
Description
xFrequency converter, 0.4 kW, 1 x 230V, 2.4A, IP20, integrated EMC filter
- EMC filter C2
- Potentiometer for speed control
- Mounting on mounting plates or DIN rails
- Side-by-side installation possible (2mm distance between the frequency converters)
- Easy connection via RJ45 port
- Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V)
- Brake chopper in 1.5kW and 2.2kW versions
- Overload capacity 150% for 1 minute
- Programming with DriveView7 operating software via RJ45 connection on the M100
(Advanced version only! The standard version does not have an RJ45 interface! Please select a version.)
Excerpt from special functions:
- DC braking
- Jog operation
- 3-wire operation
- Dwell operation (time-based operation)
- Slip compensation
- PID control
- Energy-saving mode
- Speed search
- Automatic restart
