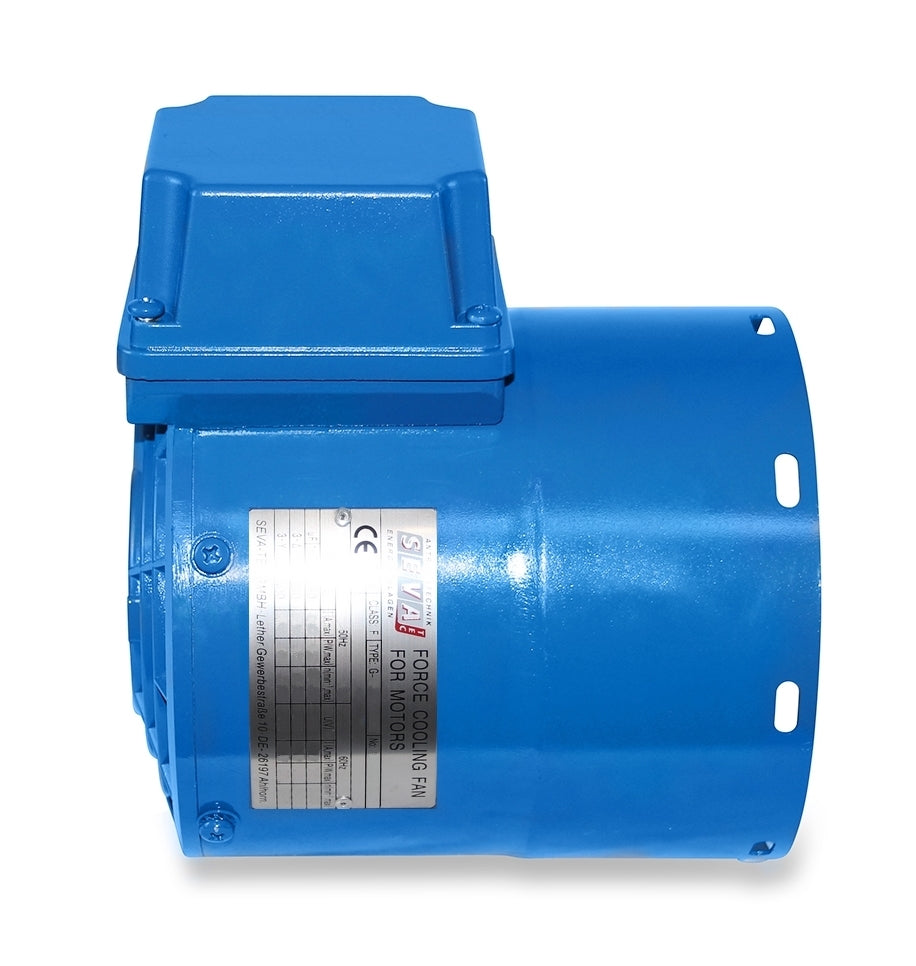

External fan unit size 100

Forced fan unit, motor size 100, insulation class F, protection class IP56, multi-voltage

1x230 V-50 Hz, 45 watts, 0.19 A, 2900 rpm, 142 m3/h, capacitor 3µF
1x240 V-60 Hz, 55 watts, 0.23 A, 3400 rpm, 142 m3/h, capacitor 3µF
3x230/400 V-50 Hz, 40 watts, 0.19 A/0.12 A, 2900 rpm, 142 m3/h
3x 254/460 V-60 Hz, 55 watts, 0.19/0.11 A, 3400 rpm, 142 m3/h
Paint finish RAL5010, total length 185 mm, inner diameter 197 mm

Weight: 3.7kg

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
