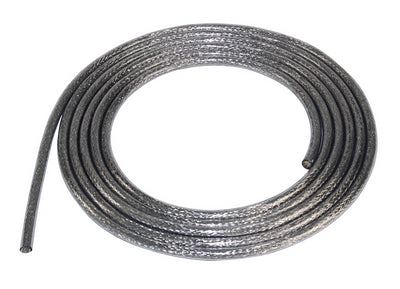

SEVA control cable shielded 7 x 1.0 mm²
Key Features
- Shielded control cable 7 x 1.0 mm², suitable for frequency converters CPR performance class: Eca, conductor material: Cu, bare Conductor class: Class 5 = fine-stranded, core insulation: PVC TI1 Stranding element: core, sheath material: PVC YM2 Sheath color: gray RAL 7001, flame retardancy: VDE 0482-332-1-2/IEC 60332-1-2 Maximum permissible conductor temperature: 70 °C Permissible external cable temperature when permanently installed: -40 - +70 °C Permissible cable external temperature, in motion -5 - +70 °C Bending radius, fixed: 6 x Ø, bending radius, moving: 20 x Ø Nominal voltage Uo: 300 V, Nominal voltage U: 500 V Wire marking: green-yellow + numbers Cable diameter approx
- Please select the cable length and features.
- All product photos are non-binding examples
- Technical changes reserved..
Downloads
Eigenschaften
Wird geladen …
Wird geladen …
- €8,56 EUR
- €8,56 EUR
- Unit price
- per
* plus VAT plus shipping costs
SKU:
E-YSLYCY-JZ_7x1.0.1.0
Payment Methods
Accesories
Wird geladen...
Description
xShielded control cable 7 x 1.0 mm², suitable for frequency converters
CPR performance class: Eca, conductor material: Cu, bare
Conductor class: Class 5 = fine-stranded, core insulation: PVC TI1
Stranding element: core, sheath material: PVC YM2
Sheath color: gray RAL 7001, flame retardancy: VDE 0482-332-1-2/IEC 60332-1-2
Maximum permissible conductor temperature: 70 °C
Permissible external cable temperature when permanently installed: -40 - +70 °C
Permissible cable external temperature, in motion -5 - +70 °C
Bending radius, fixed: 6 x Ø, bending radius, moving: 20 x Ø
Nominal voltage Uo: 300 V, Nominal voltage U: 500 V
Wire marking: green-yellow + numbers
Cable diameter approx. 10.1 mm
Please select the cable length and features.
All product photos are non-binding examples! Technical changes reserved.
