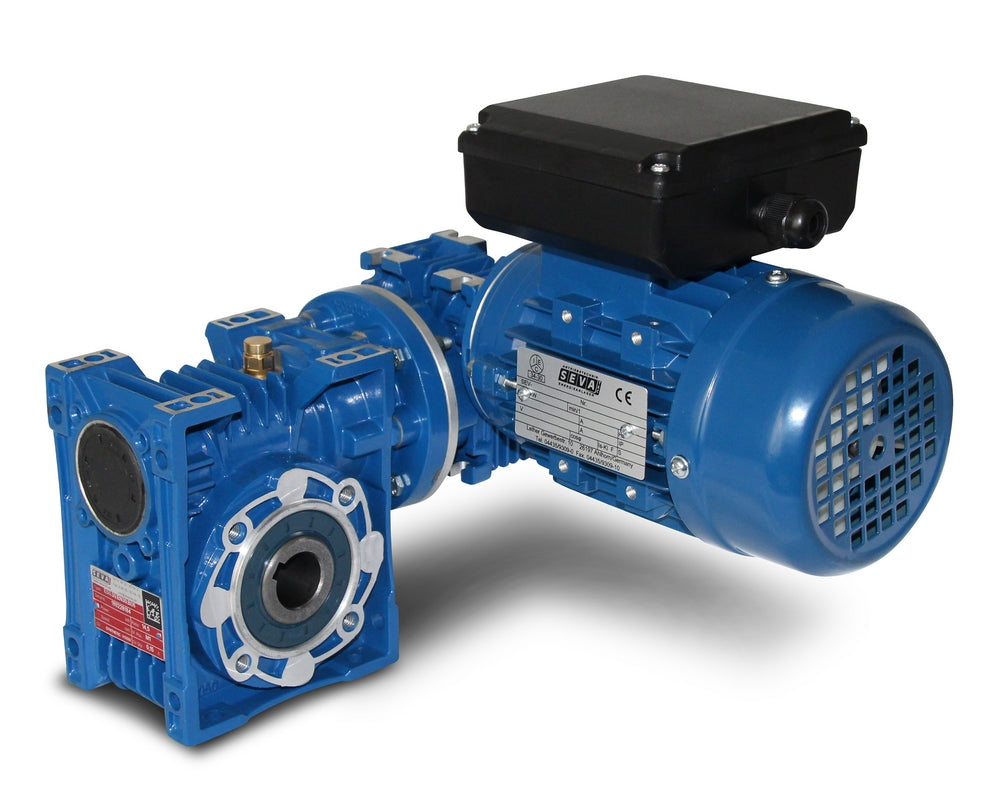

SEVA- EV 050-EN030 ML632-0.18 kW- 3.9 rpm 230 V grill motor M1

Grill motor as worm gear + single-phase motor, power = 0.18 kW,

Voltage= 1x 230V-50 Hz, (± 5% according to VDE 0530), Protection class= IP55, Insulation class= F (155°C),

Operating mode= S1- 100% ED, speed (n²)= 3.9 rpm, gear ratio (i)= 363, torque= 92 Nm,

Operating factor (fs) = 1.0, hollow shaft = 25 mm. Weight = 10.2 kg, color = RAL 5010 (gentian blue).

Temperature sensor= 1 x PTC thermistor, Housing= Die-cast aluminum, Ball bearings= SKF, C&U or equivalent,

Cooling: axial fan (plastic). The worm gear motor is suitable for frequency converter operation.

and complies with IEC 60034-30:2008. The geared motor can be operated in both directions of rotation and

Includes one oil fill upon delivery. All product photos are non-binding examples!
