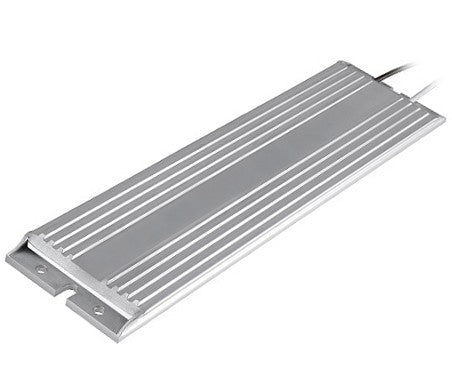

Braking Resistor│EMC Filter│External Fan

SEVA-tec GmbH is your specialist in the field of professional drive technology. The focus is on
three-phase motors, frequency inverters, and geared motors. You can order our drives as
energy-efficient motors in IE2/IE3 and also in IE4 upon request. Electric motors are often
required with specific requirements and corresponding accessories.
Here we are the ideal partner for you, because through our specialist staff in combination
with an extensive motor inventory and our own final assembly, we can offer you
a wide variety of motor variants.

Electronic Braking Devices

Electronic brakes are used to brake asynchronous machines with squirrel cage rotor design and
1Ph AC capacitor motors within 10 seconds after switching off.
For external mounting, brake switches are available for 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW, 5.5kW,
and 7.5kW motors.

PTC Thermistor Protection

The drives offered here are predominantly prepared for temperature monitoring with PTC sensors
(positive temperature coefficient). To use this monitoring, you need the appropriate PTC tripping device.

The Design and Terminal Box

The design of the motors is variable upon request. For heavy-duty electric motors, i.e., from
4kW to 90kW, the motor feet can be modified (the standard version, however,
has cast-on feet). Thus, a foot-mounted motor B3 can also be converted to a flange motor
B5 or to a foot/flange motor B3/B5. Another advantage is that
the drive can be converted to a terminal box position with TB-top, TB-left, TB-right, or even
TB-bottom.

Special Motor Designs

Here you can see a selection of various electric motor modifications:
- Frequency inverter assembly
- External fan
- Special voltage
- Country-specific frequency
- Protection class IP54, IP55, IP65, IP66
- UL/CSA with certificate
- Marine design
- Insulation class H
- Protection roof on fan cover
- Current-insulated ball bearings
- Extended cables
- Special coating
- PTC temperature sensor
- Bimetal
- PTC thermistor
- PT 100
- Bearing temperature monitoring
- Standstill heater
- Terminal box left/right/top
- Special flange
- Special shaft
- Second shaft end
- Aluminum/stainless steel fan blades
- Stainless steel screws (D 086 DMA)
- Rotary encoder
- Tachogenerator
- Incremental encoder
- NU bearing/fixed bearing
- Pre-tensioned bearing
- Regreasing device
- Special vibration quality
- Mounted motor switch
