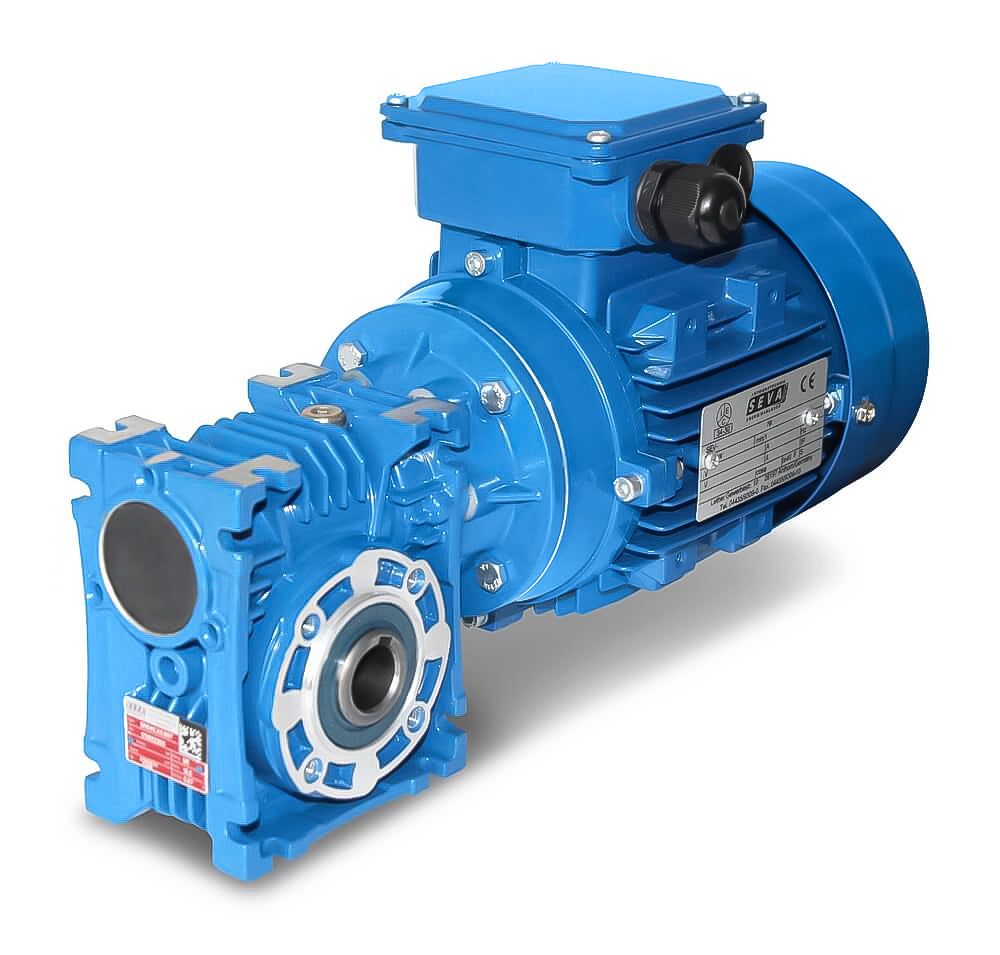

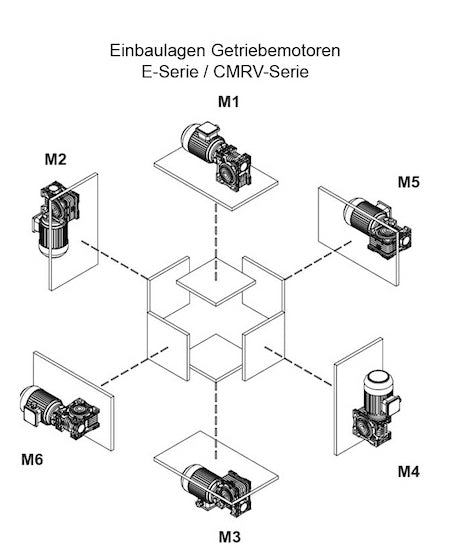

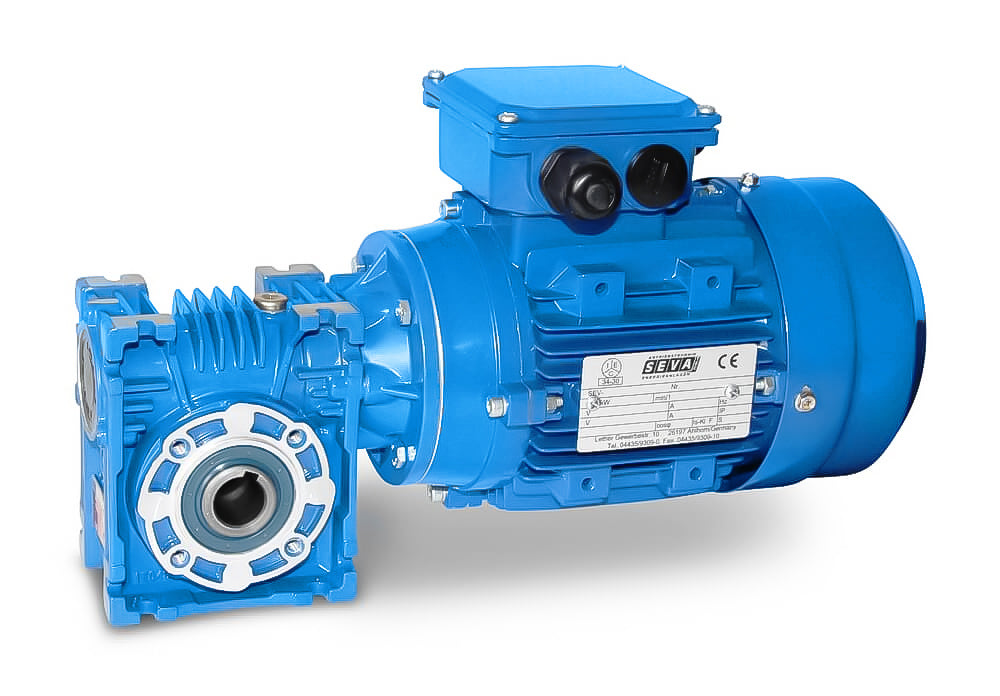

SEVA-EV 040-631-0.12 kW-85 rpm worm gear motor M1

Worm gear with three-phase motor, power= 0.12 kW, 85 rpm,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode= S1- 100% ED, Speed ​​(n²)= 85rpm,

Gear ratio (i)= 16, torque= 10Nm, service factor (fs)= 3.9, hollow shaft= 20mm.

Weight= 6.1kg, Color= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC thermistors,

Housing= die-cast aluminum, ball bearings= SKF, C&U or equivalent, cooling= axial fan (plastic).

The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

The gear motor can be operated in both directions of rotation and is filled with oil upon delivery.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified personnel only.

For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.
