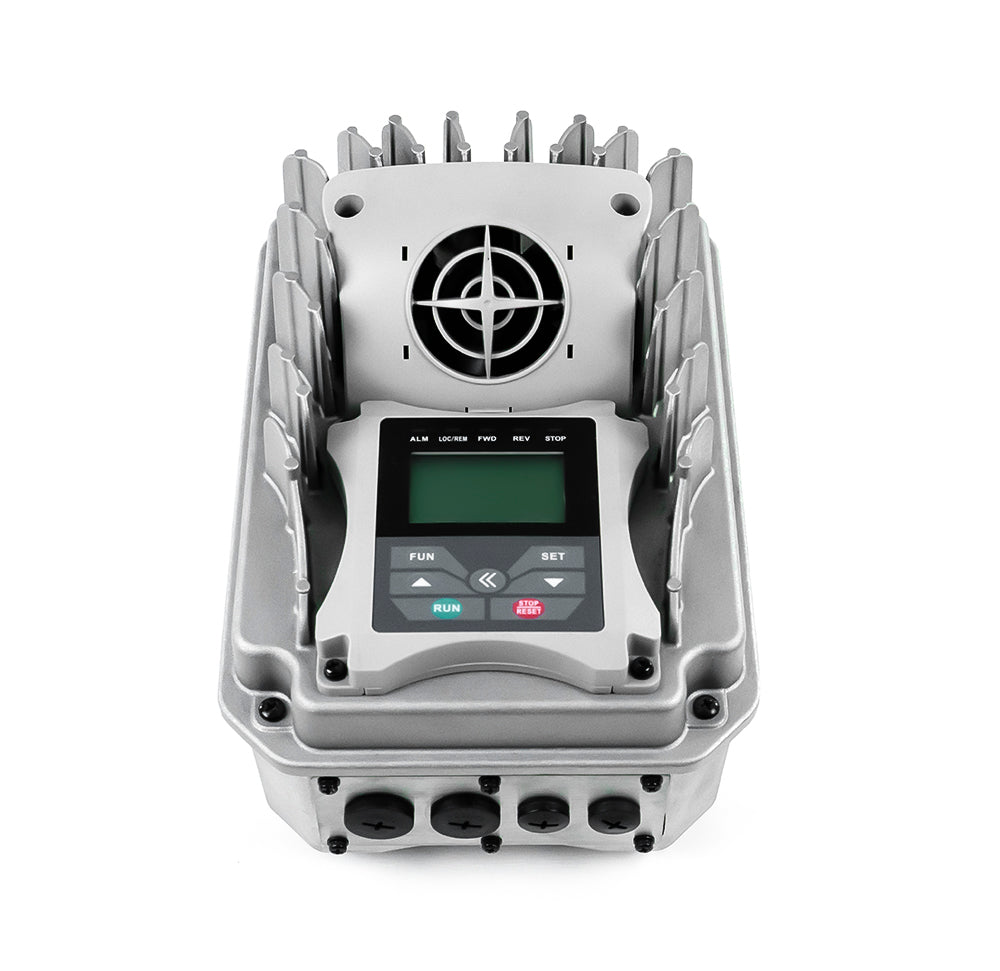

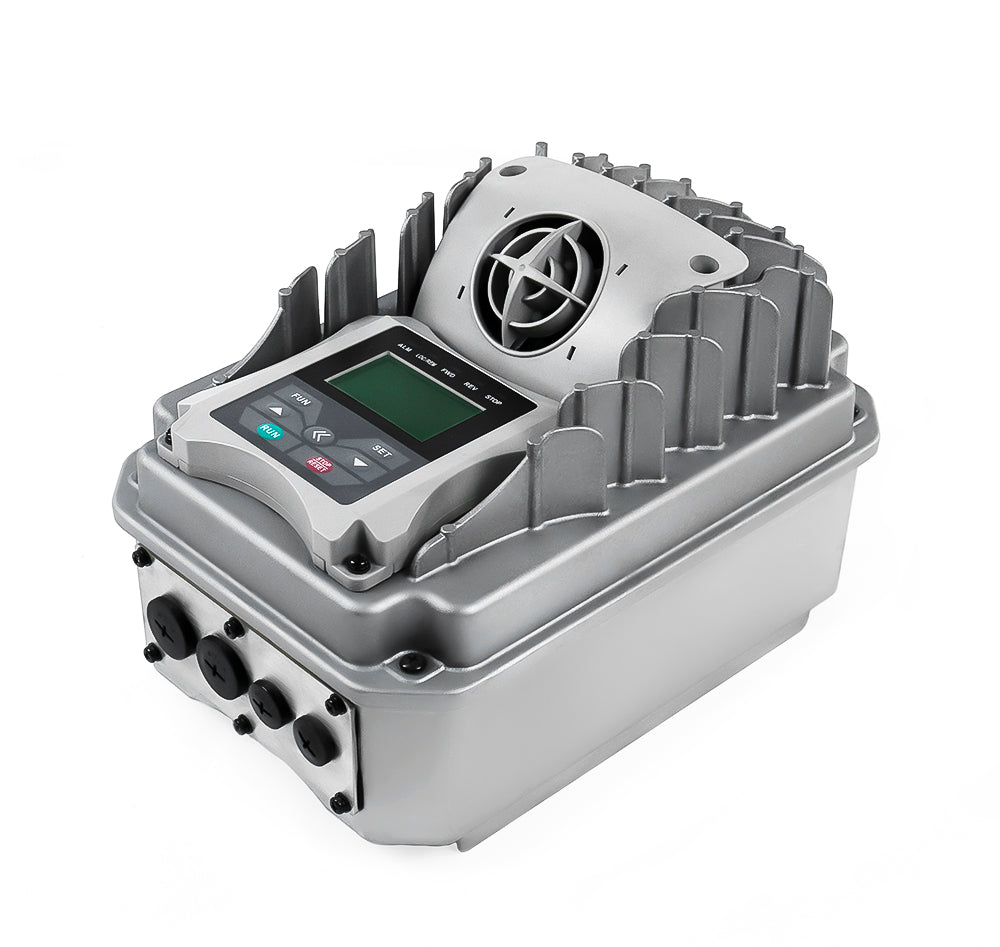

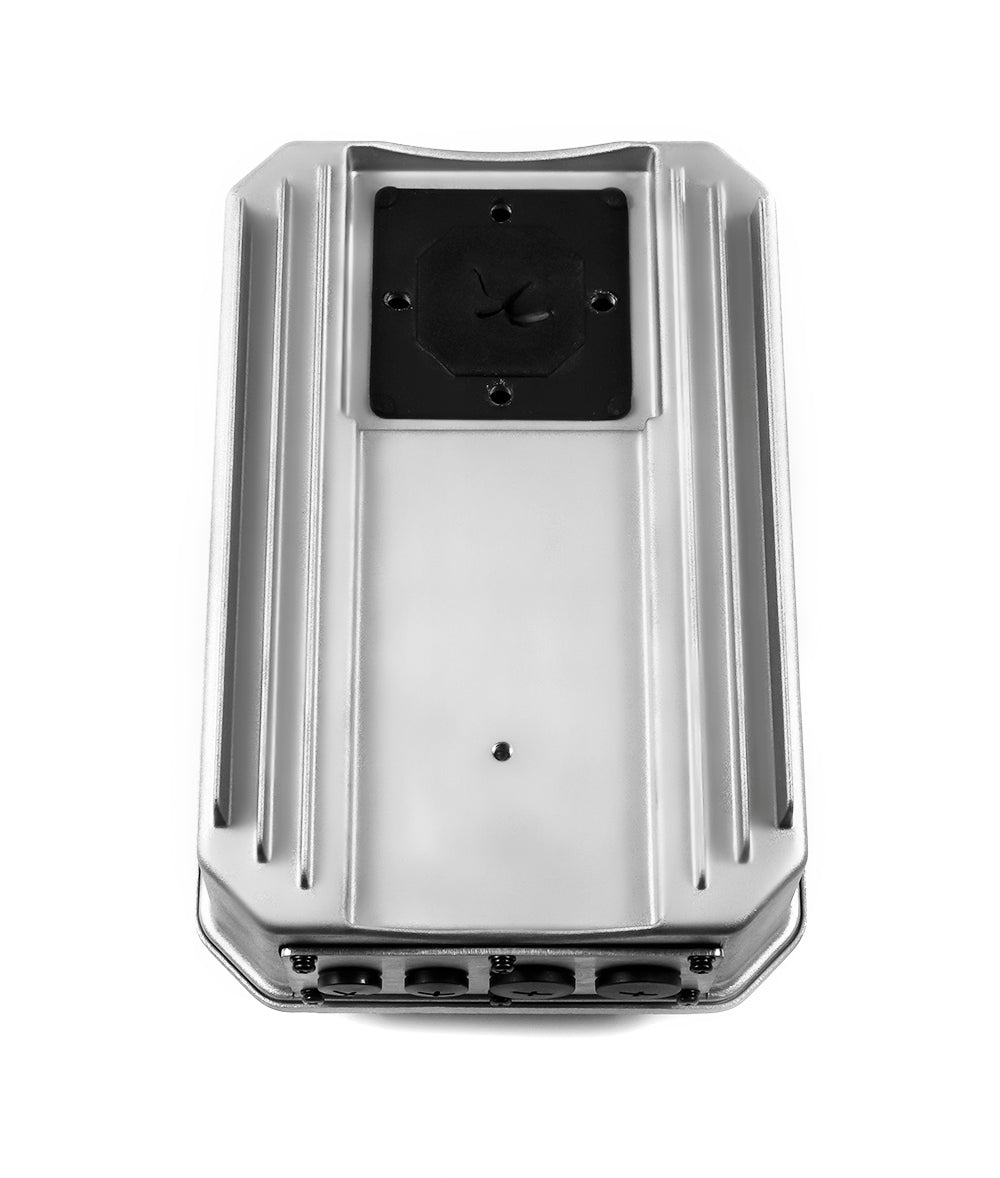

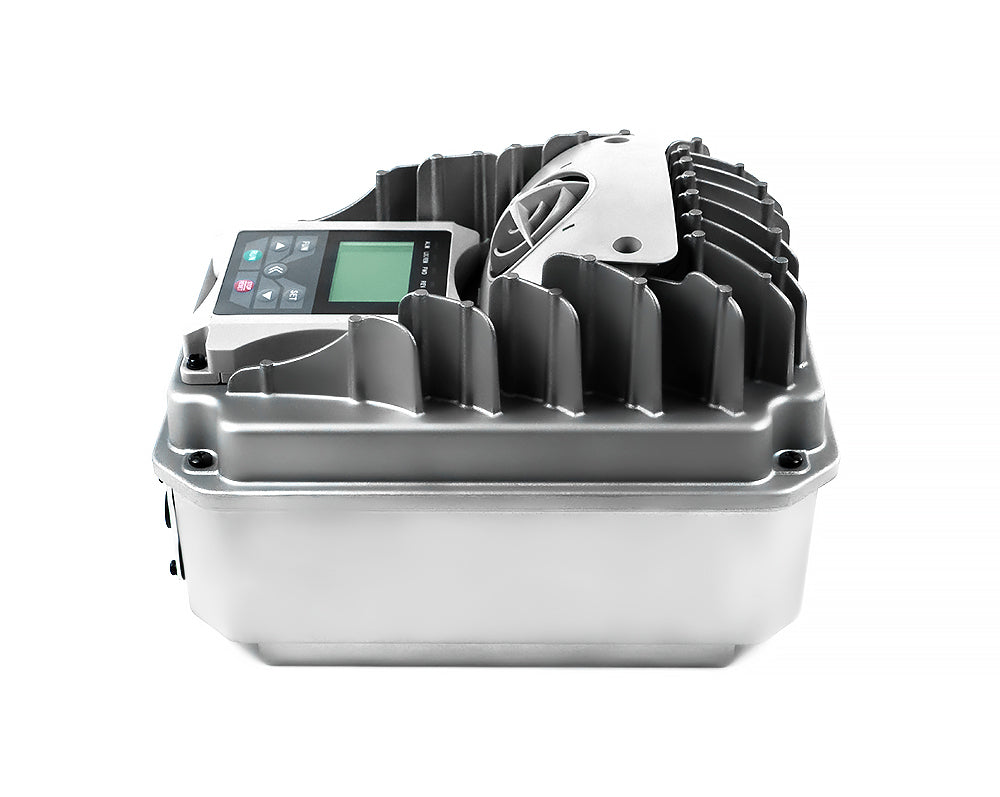

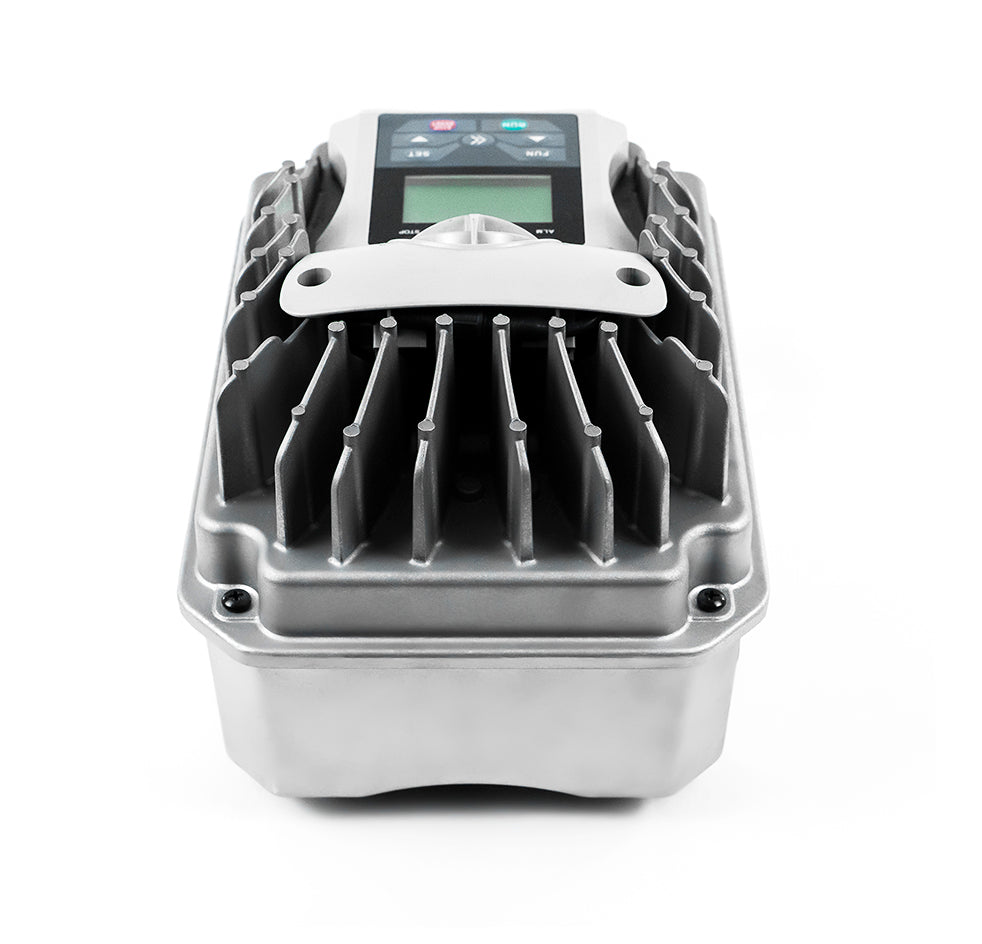

Frequency converter SMARTdrive SD400A-0400

Frequency converter, 3x 400V, SMARTdrive 4.0 kW

Power= 4.0 kW, Size= J2, Input voltage= 3 x 400V +10% (three-phase), Input frequency= 50/60 Hz,
Output frequency = 0-650 Hz, EMC filter = C3, protection class = IP66, dimensions = approx. 338mm x 228mm x 194mm,
Display= 4-line plain text LCD. Ideal control range= 5 - 60 Hz, with constant nominal torque.

Product information

DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.
Intelligent AUTOTUNING functions for quick and easy setup. Robust design, full metal housing,
Thermally decoupled from the motor, IP55/NEMA4, vibration-resistant (4G). Flexibly configurable 4-line LCD display.
Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, thus
Suitable for universal use, including retrofit PID controller. EMC filter installed as standard.
Optional C1 filter available with installation kit. Software tools for inverter control, programming, and diagnostics.
Parameter copy stick available. Compatible with globally applicable standards.

All product photos are non-binding examples! Technical changes reserved.
