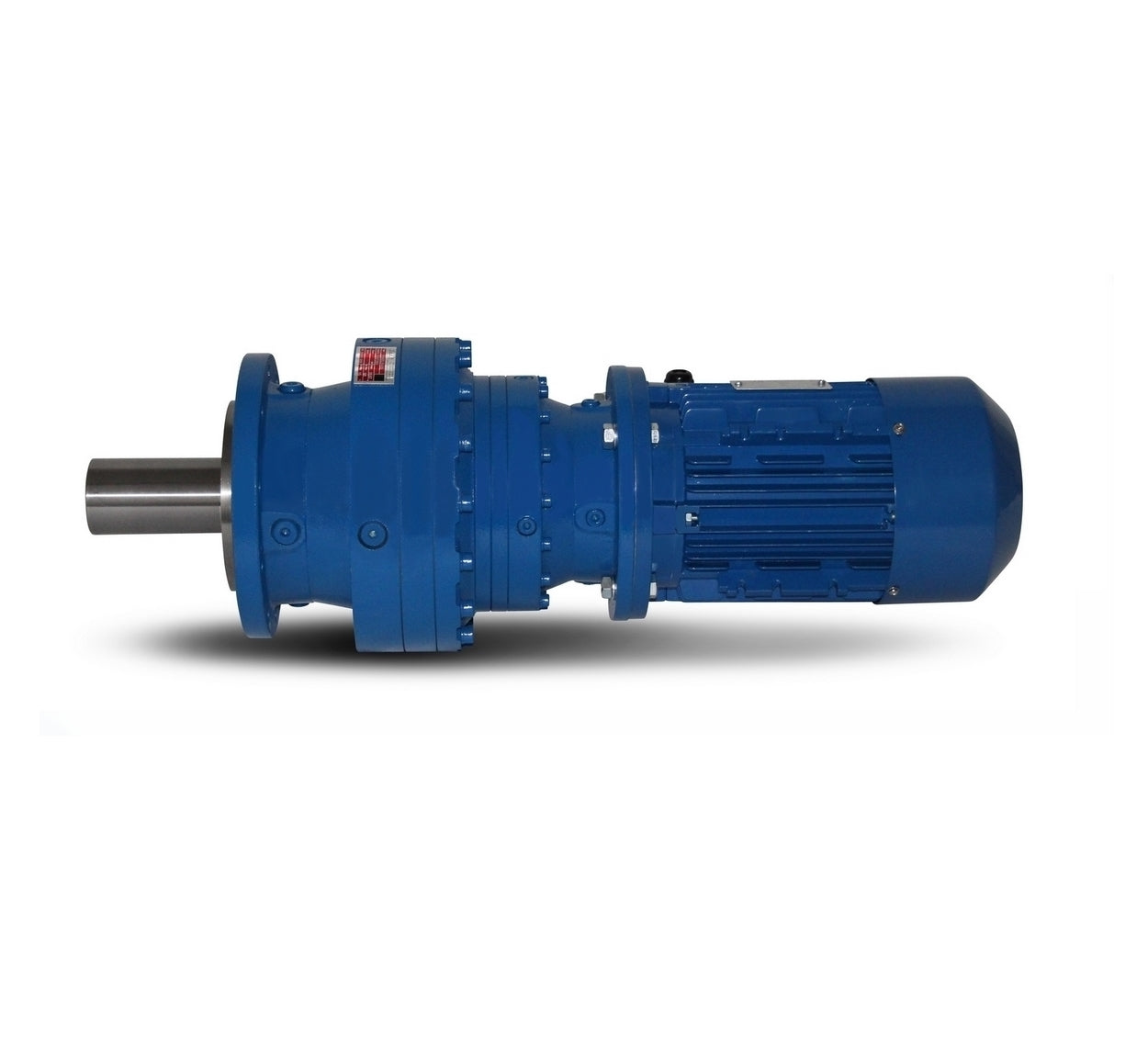

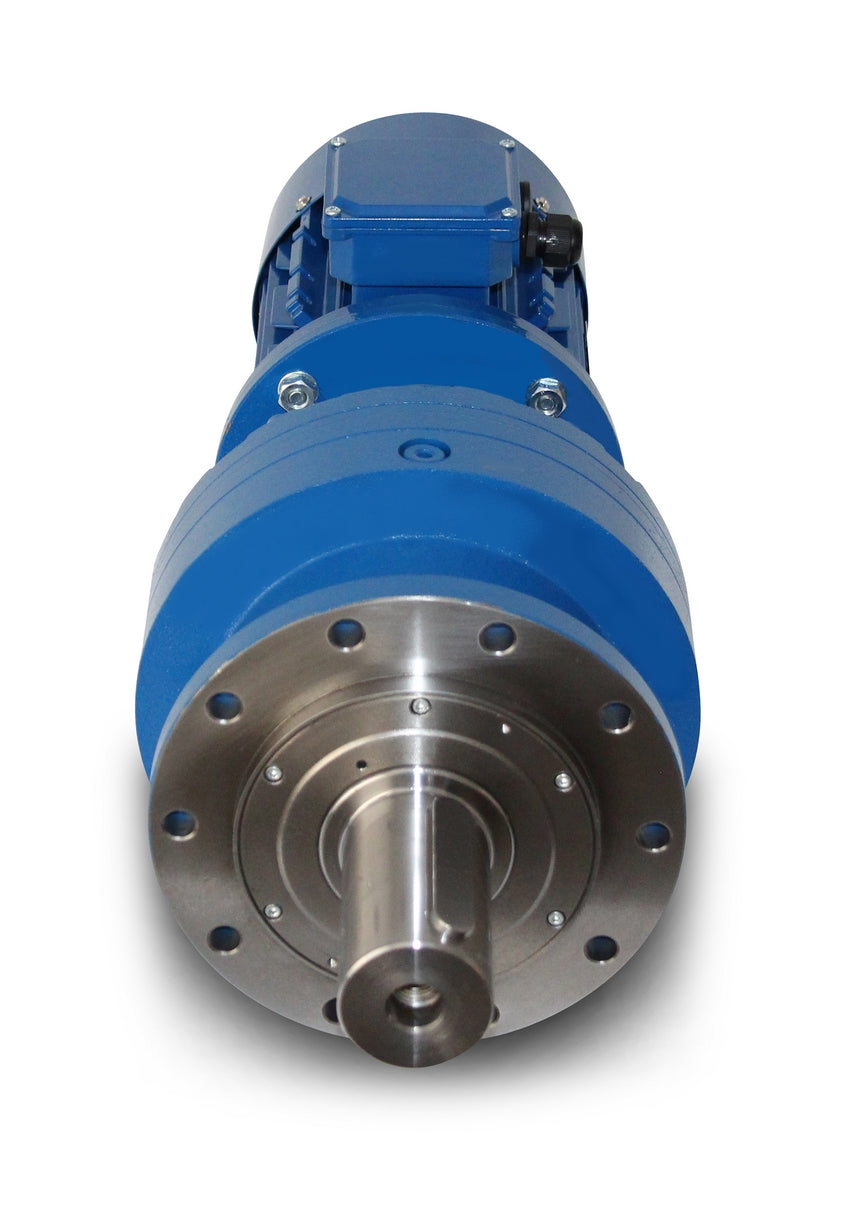

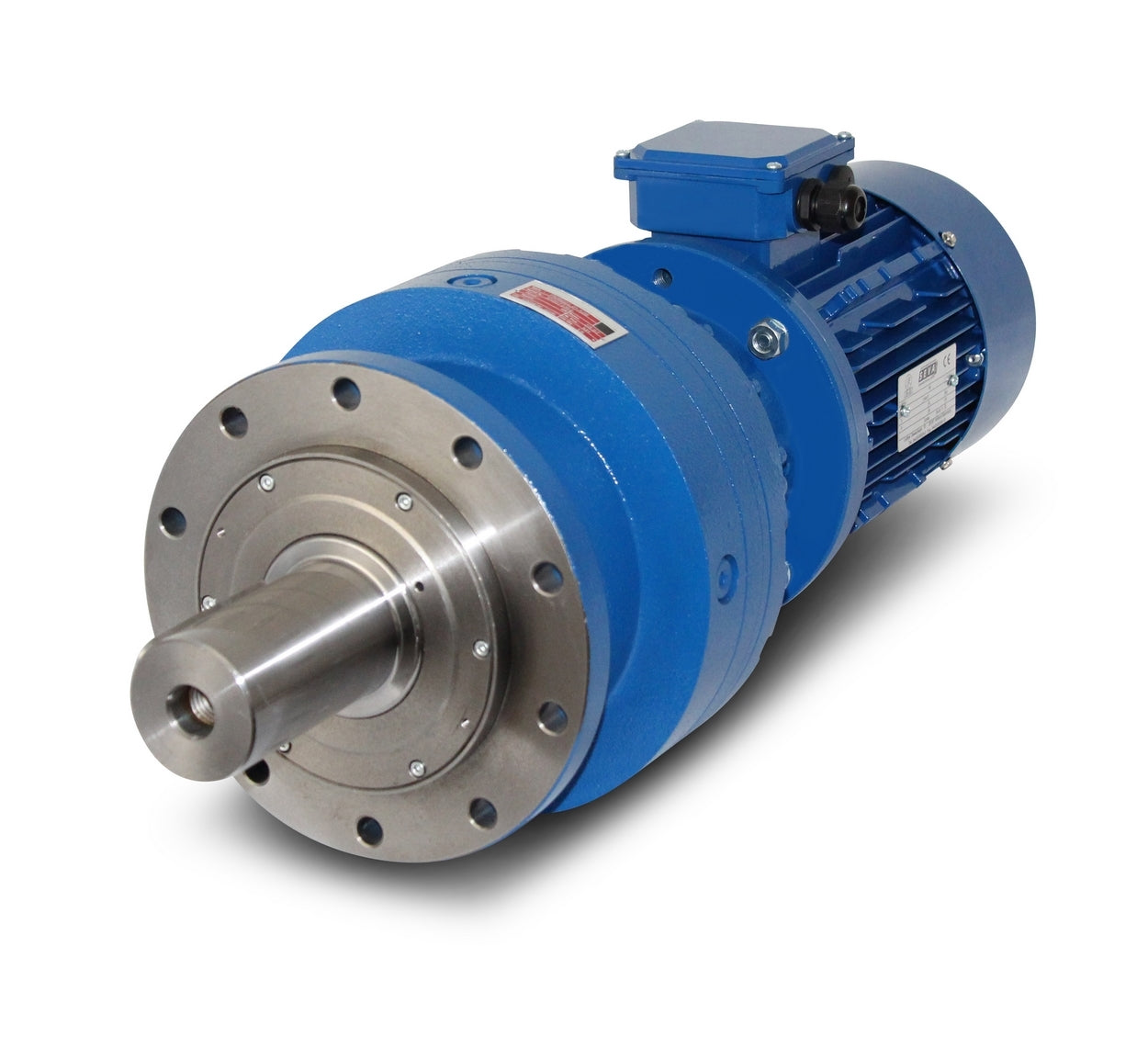

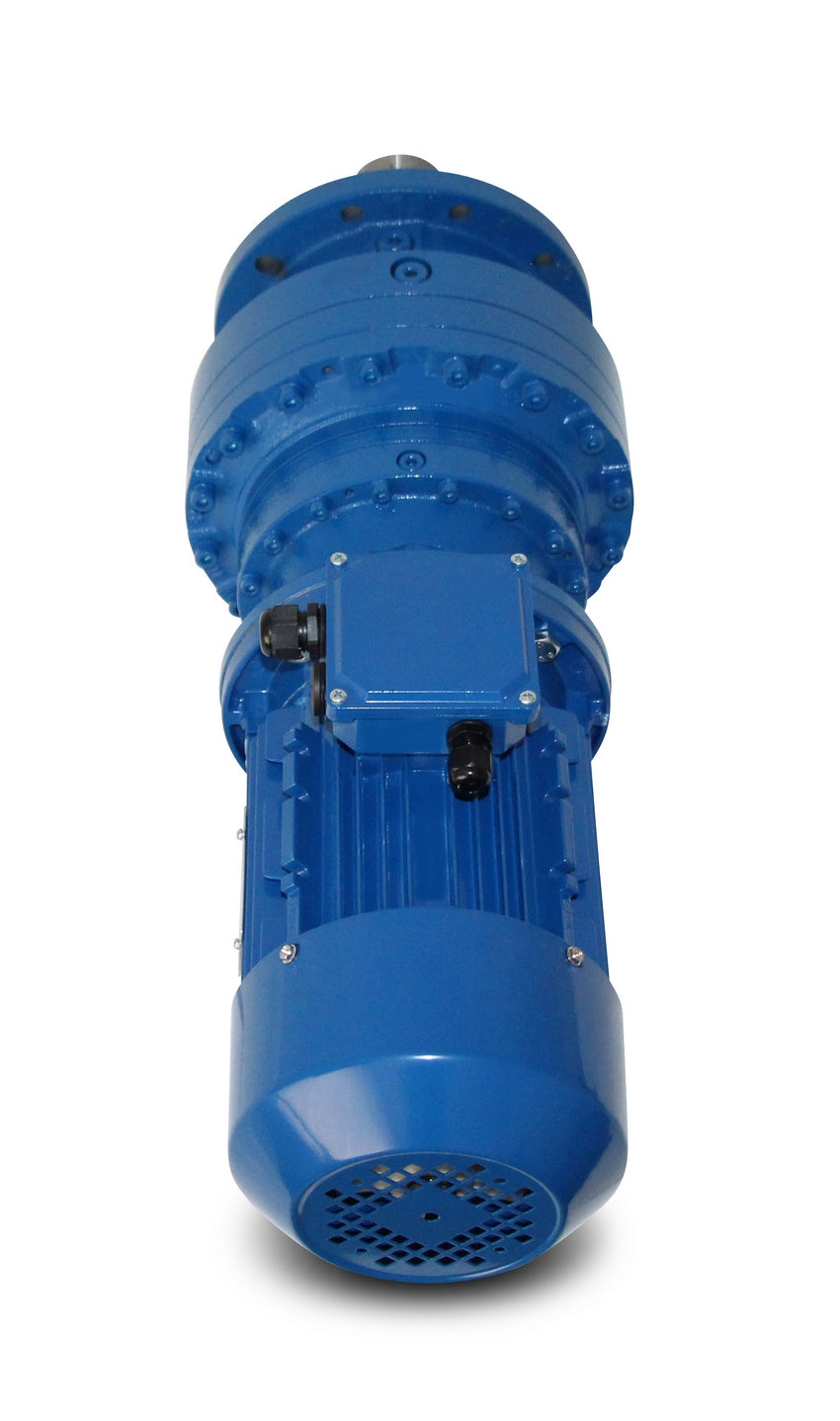

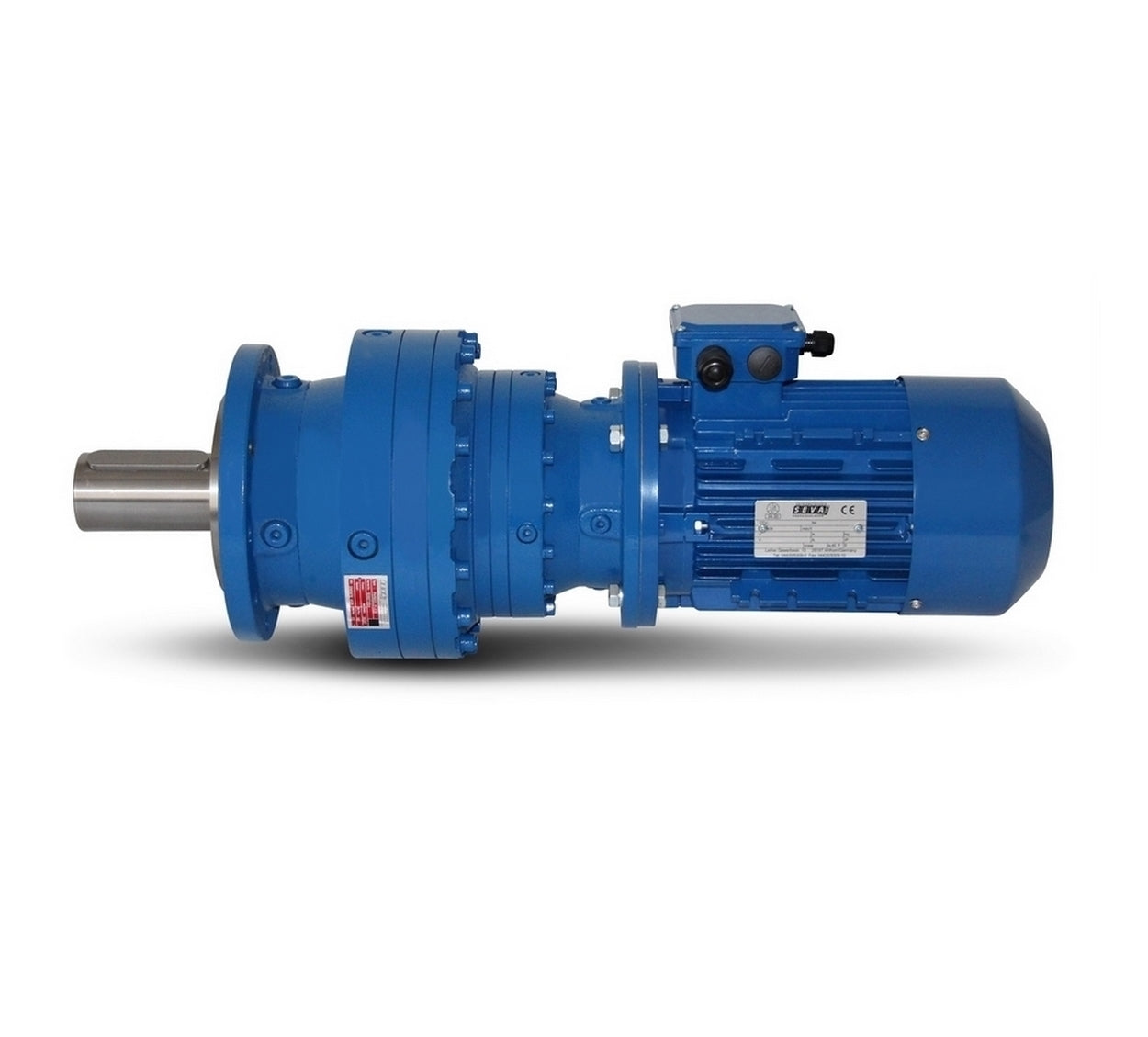

SEVA-PV2303L.01-160L-4-15 kW-12 rpm planetary gear motor

Planetary geared motor with IEC flange between gearbox and electric motor,

Voltage = 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.

Power= 15 kW, speed (n²)= 12 rpm, gear ratio (i)= 126.05, torque (M²)= 10719 Nm,

Operating factor (fs)= 1.0, design= B5, shaft= 90 mm x 170 mm, weight= 289 kg, color= RAL5010.

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

As is usual with planetary gears, attention must be paid to the temperature development during operation . In order to

To avoid overheating, it is necessary to clarify the application in advance.

Any heat sinks or heat exchangers required for this purpose are available on request.

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

The planetary gear can be operated in both directions and is filled with oil upon delivery.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified personnel only.

For modifications or special designs, please send an inquiry.

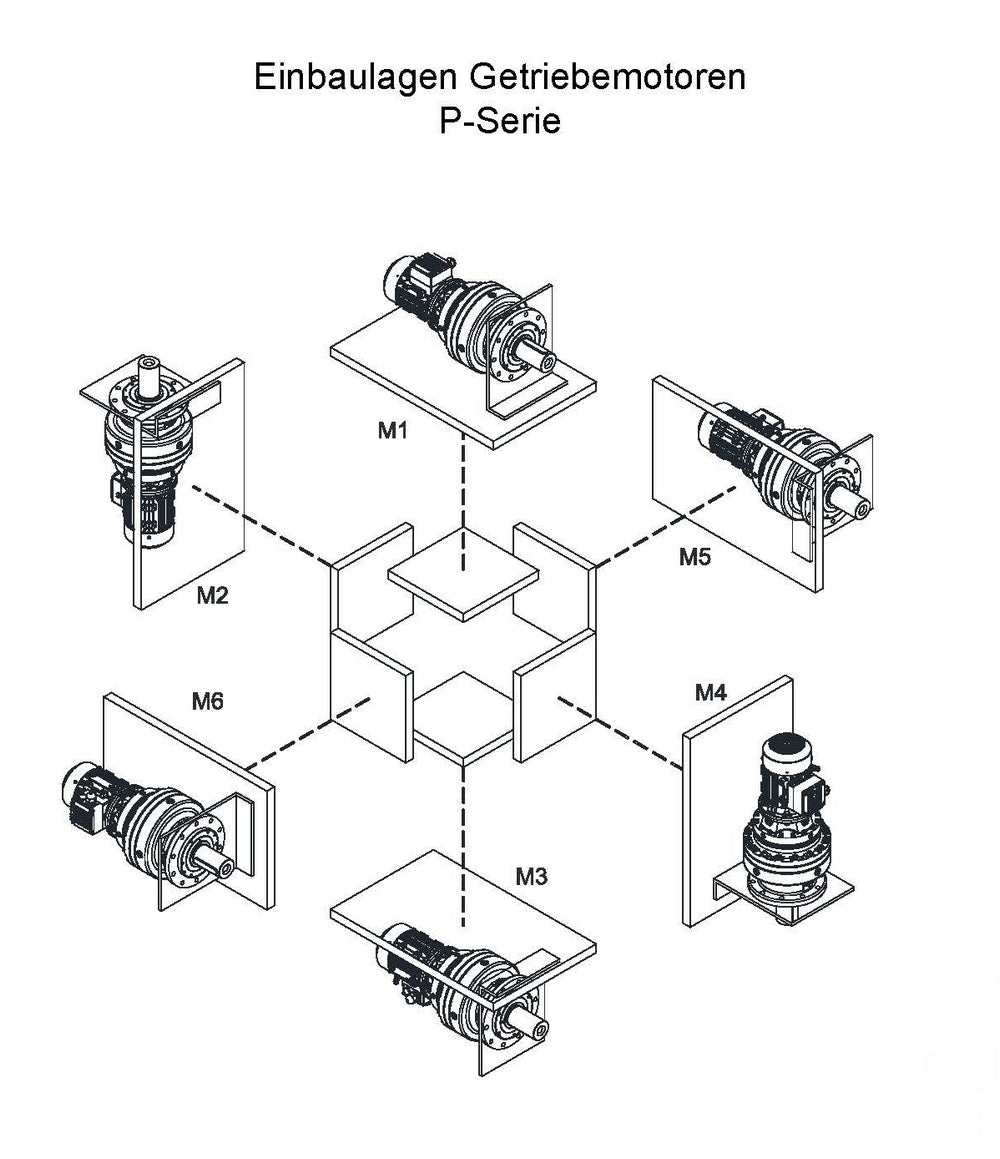

When ordering, please select the desired installation position.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
