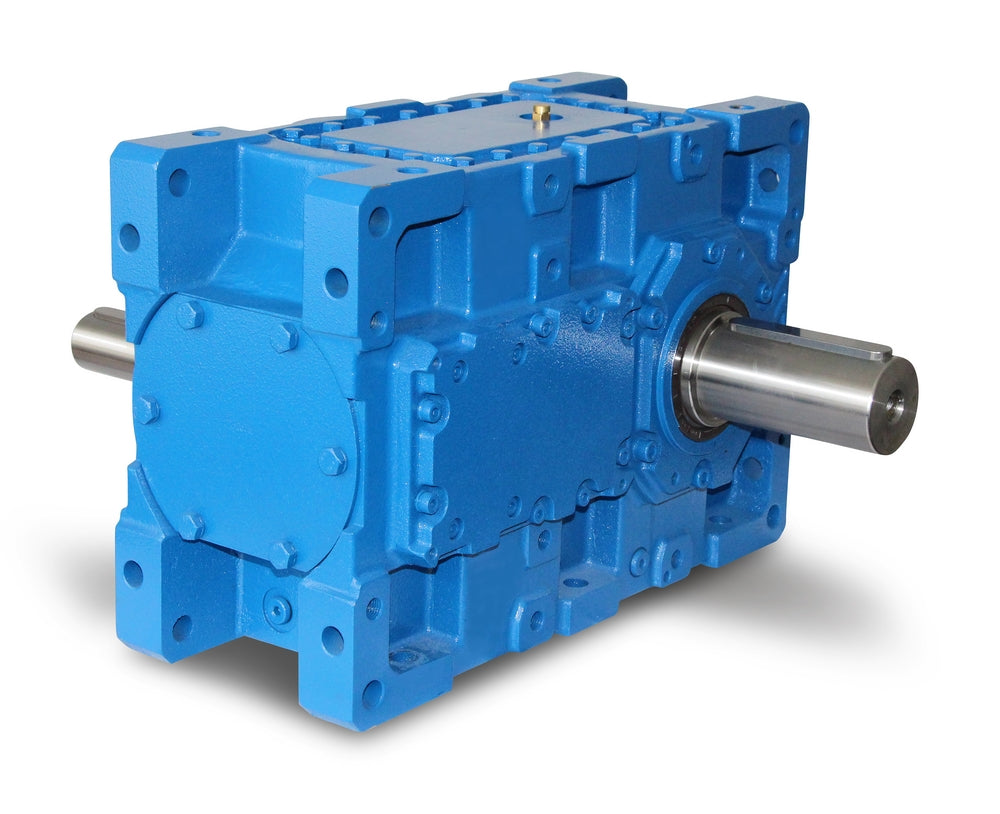

SEVA-HT1022 – 151rpm Horizontal Spur Gearbox

Horizontal spur gear with fixed input shaft ,

Speed ​​(n²)= 151 rpm, gear ratio (i)= 9.25, torque (M²)= 35200 Nm,

Rated power= 569 Nm, hollow shaft= 150 mm, weight= 940 kg, color= RAL5010,

Cooler option= none, ambient temperature= 20°C, permissible lateral forces= 117 kN.

As is usual with horizontal spur gear units, attention must be paid to the temperature development during operation . In order to

To avoid overheating, it is necessary to clarify the application in advance.

Any heat sinks or heat exchangers required for this purpose are available on request.

For modifications or special designs, please send an inquiry.

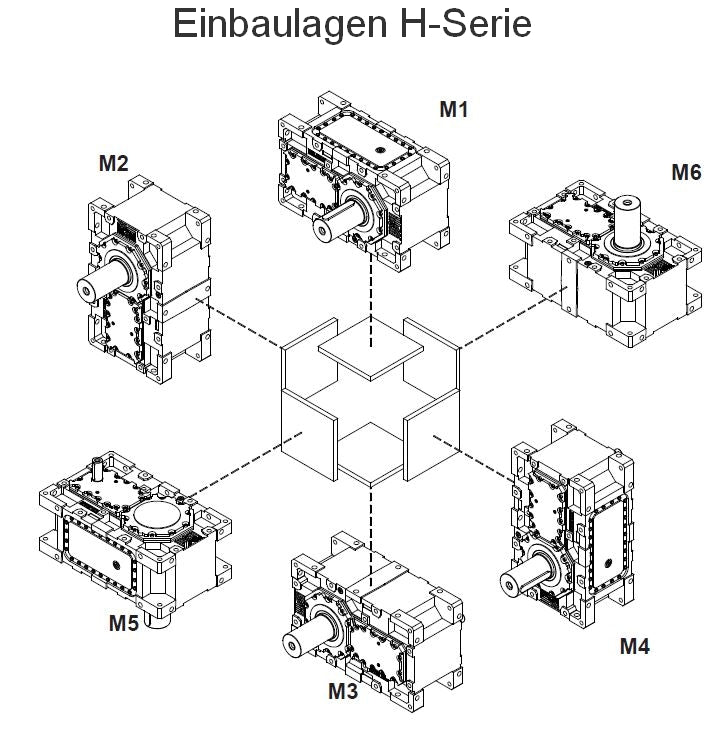

When ordering, please select the desired installation position.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
