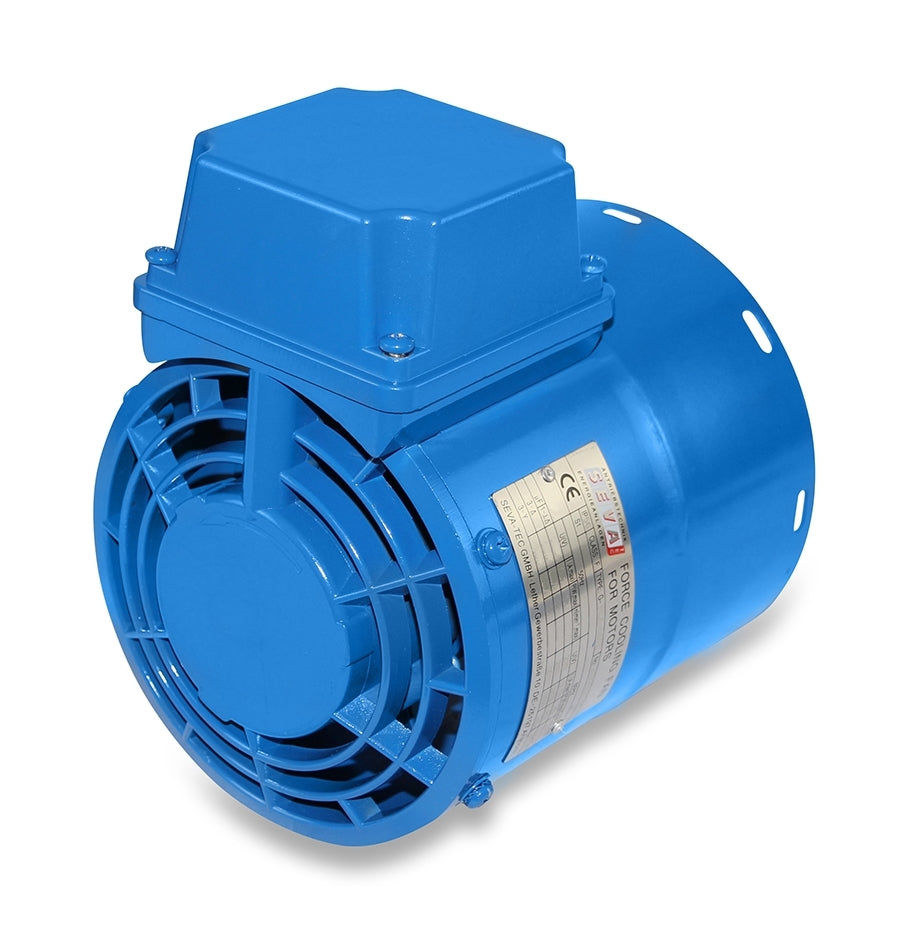

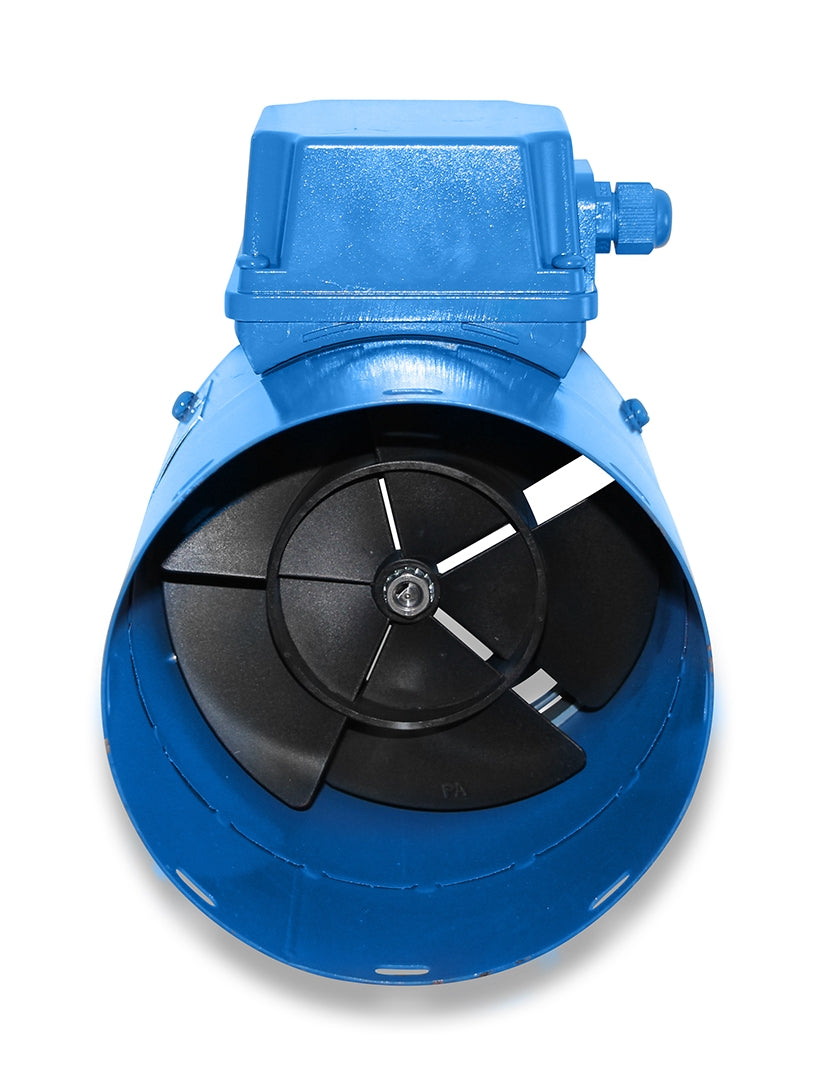

External fan unit size 71

Forced fan unit, motor size 71, insulation class F, protection class IP56, multi-voltage

1x230 V-50 Hz, 35 watts, 0.19 A, 2950 rpm, 52 m3/h, capacitor 3µF
1x240 V-60 Hz, 45 watts, 0.21 A, 3500 rpm, 52 m3/h, capacitor 3µF
3x230/400 V-50 Hz, 30 watts, 0.19 A/0.12 A, 2900 rpm, 52 m3/h
3x 254/460 V-60 Hz, 40 watts, 0.19/0.11, 3500 rpm, 52 m3/h
Paint finish RAL5010, total length 185 mm, inner diameter 136 mm

Weight: 2.7kg

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
