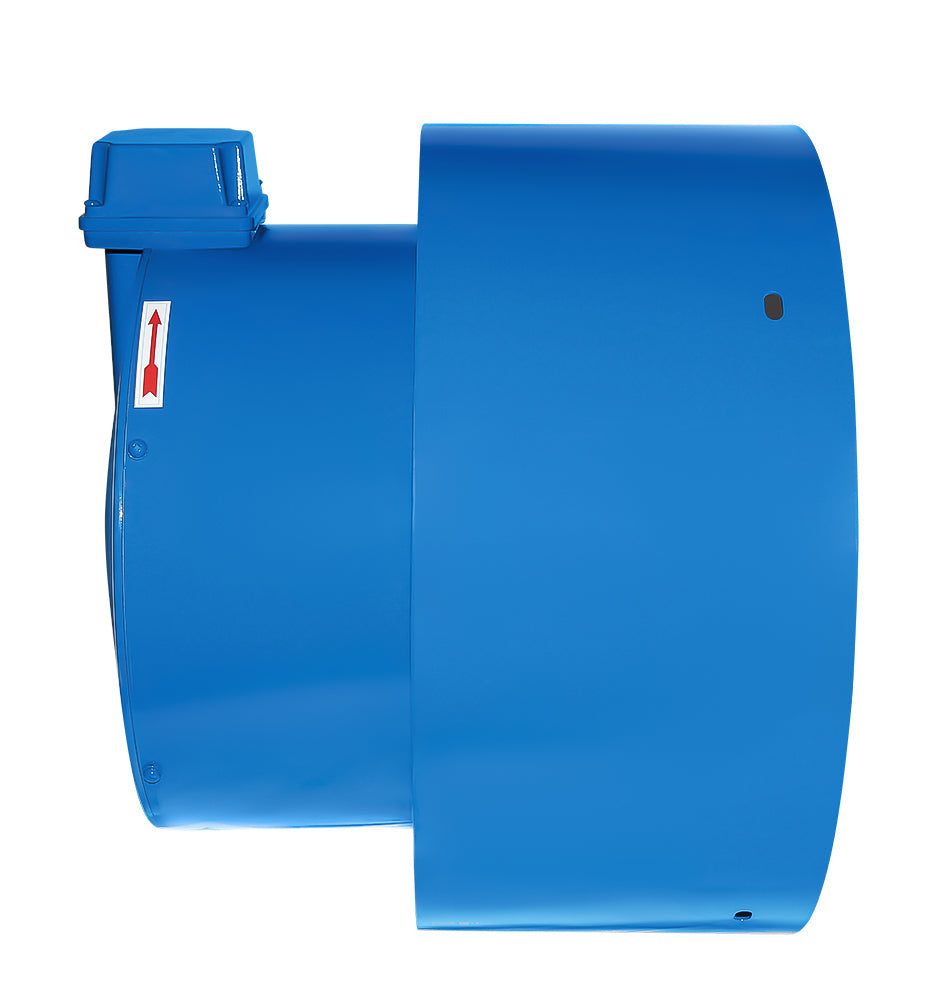

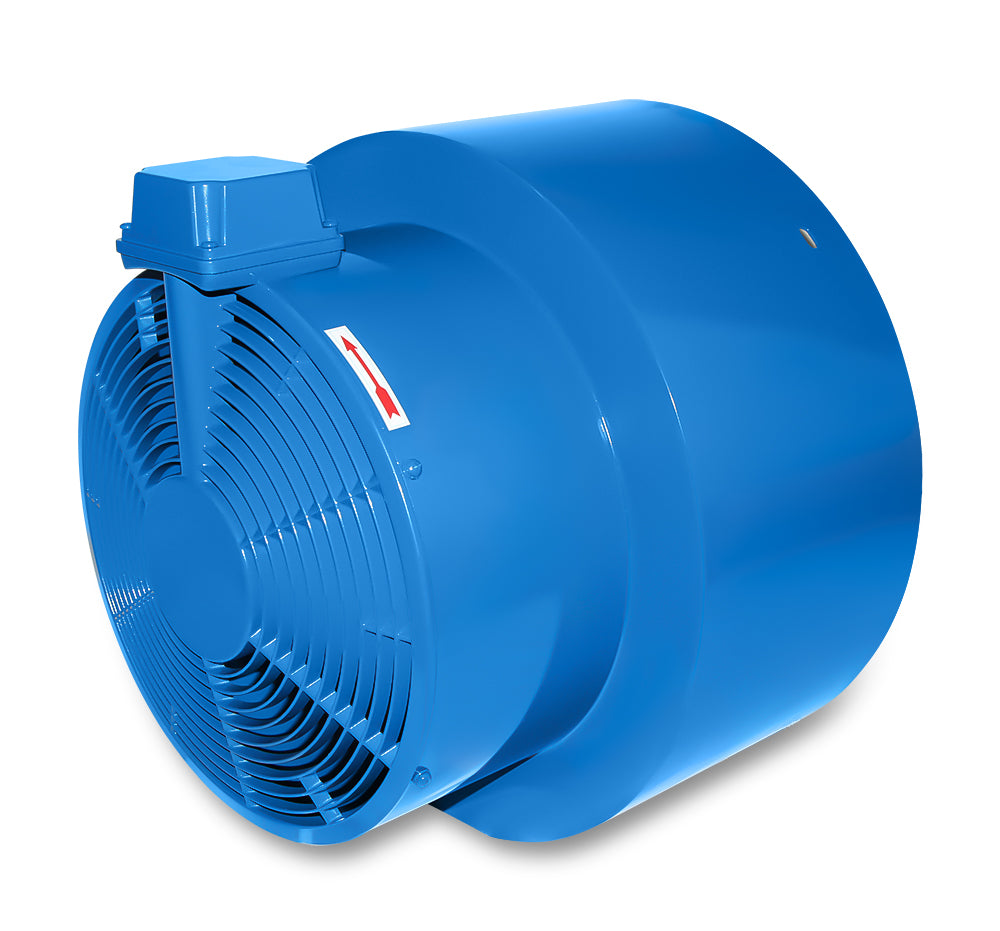

External fan unit size 315
Key Features
- Forced fan, forced fan unit, motor size 315 Insulation class F, protection class IP56, weight approx
- 36 kg, 2415 m³/h.
- 3x230/400 V-50/60 Hz, 0.255/0.3 Watt, 1.5/1.1 A, 1450/1680 rpm, Paint finish RAL5010, total length 570 mm, clearance 340 mm, inner diameter 678 mm

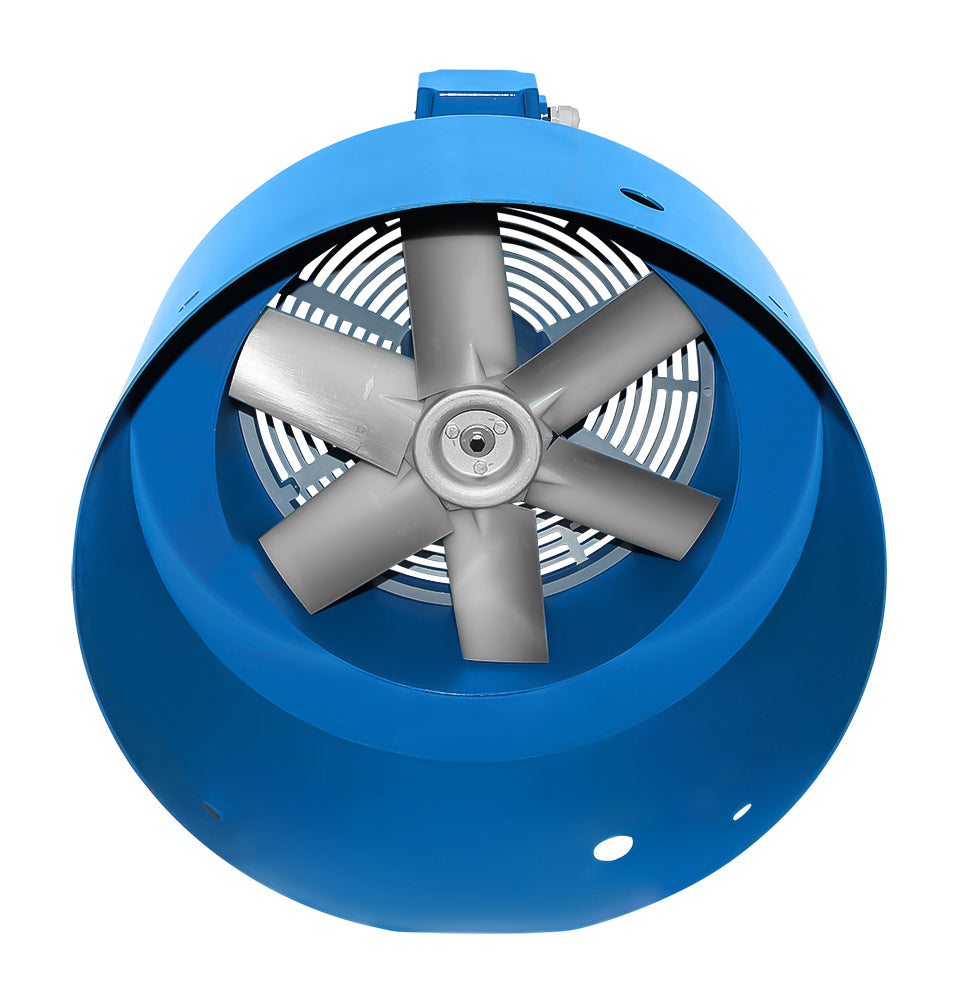

- To install the external fan, it is necessary to remove the fan cover and to remove the fan blade
- If an extension cannot be used, the shaft must be shortened
Downloads
Eigenschaften
Wird geladen …
Wird geladen …
- €480,50 EUR
- €480,50 EUR
- Unit price
- per
* plus VAT plus shipping costs
SKU:
FLA-G315
Payment Methods
Accesories
Wird geladen...
Description
xForced fan, forced fan unit, motor size 315
Insulation class F, protection class IP56, weight approx. 36 kg, 2415 m³/h.
3x230/400 V-50/60 Hz, 0.255/0.3 Watt, 1.5/1.1 A, 1450/1680 rpm,
Paint finish RAL5010, total length 570 mm, clearance 340 mm, inner diameter 678 mm
To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
