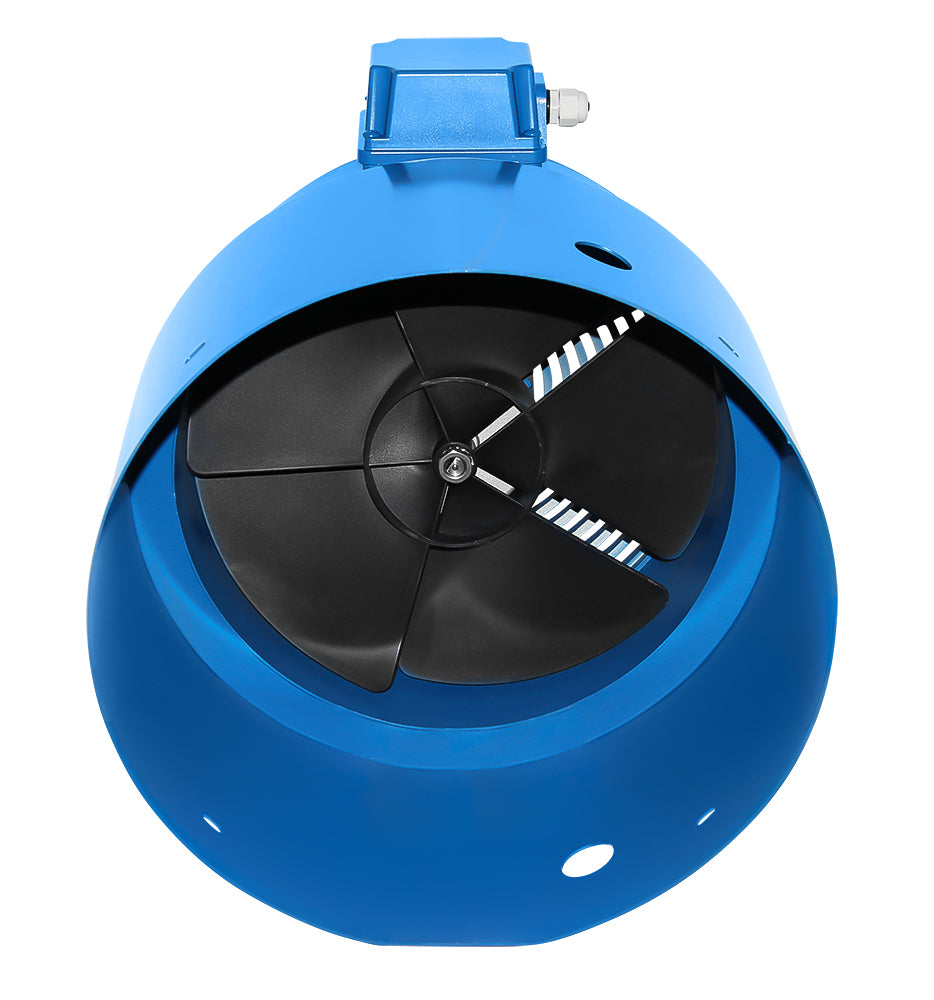

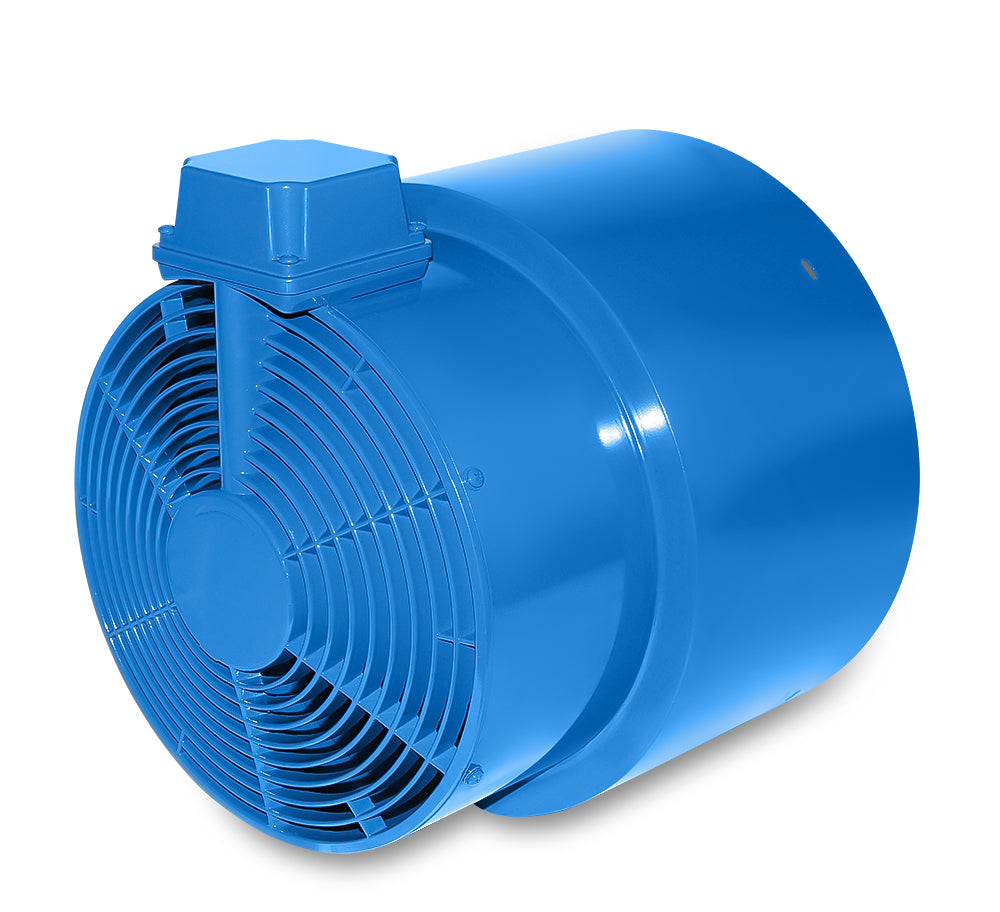

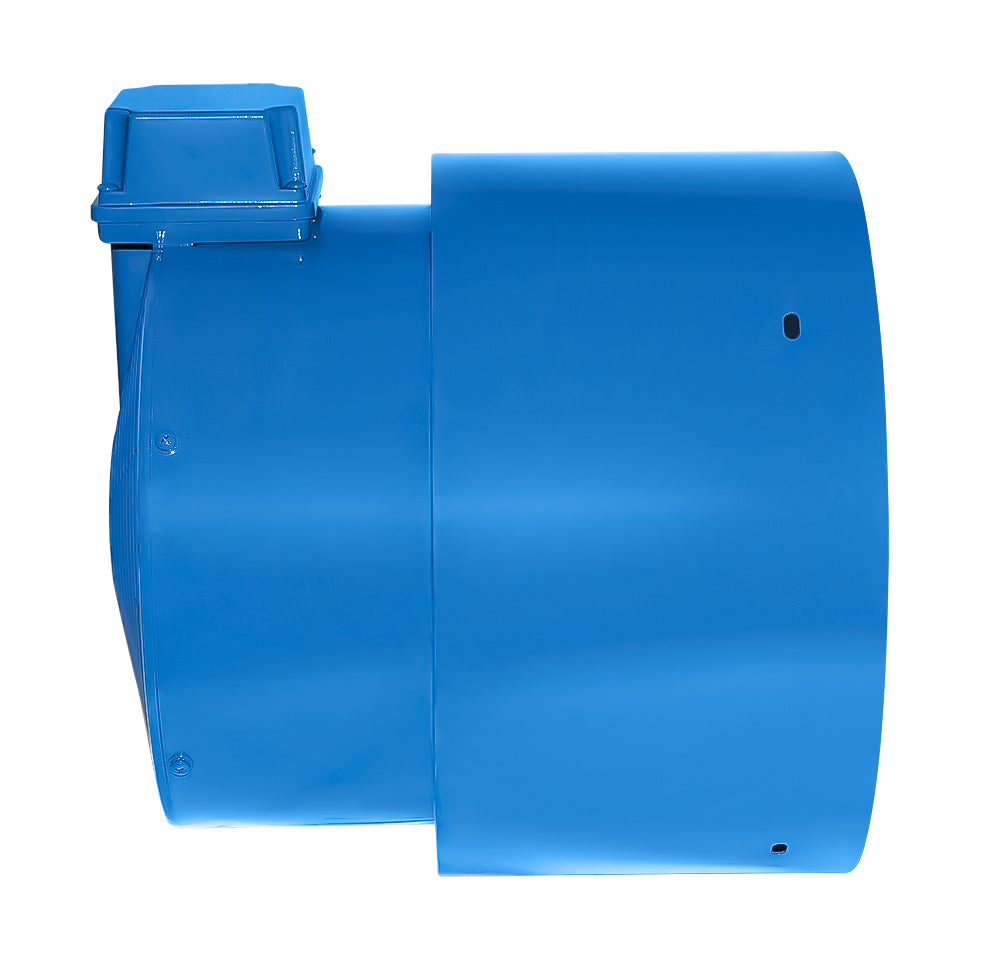

External fan unit size 225

Forced fan, forced fan unit, motor size 225

Insulation class F, protection class IP56, weight approx. 18 kg, multi-voltage.

3x230/400 V-50/60 Hz, 110/170 watts, 0.47/0.51 A, 1460/1730 rpm,
3x400 V-50/60 Hz, 110/170 watts, 0.27/0.3 A, 1460/1730 rpm,
Paint finish RAL5010, total length 408 mm, clearance 213 mm, inner diameter 456 mm

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
