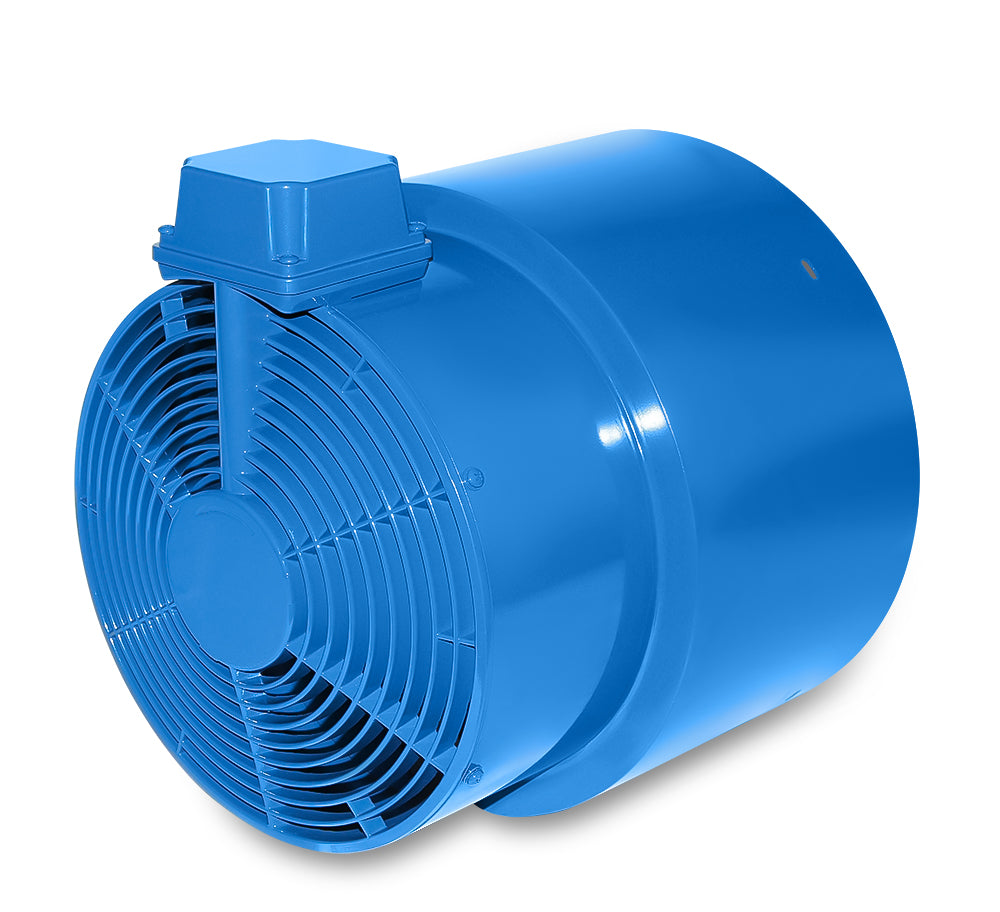

External fan unit size 200

Forced fan, forced fan unit, motor size 200

Insulation class F, protection class IP56, weight approx. 11 kg, multi-voltage.

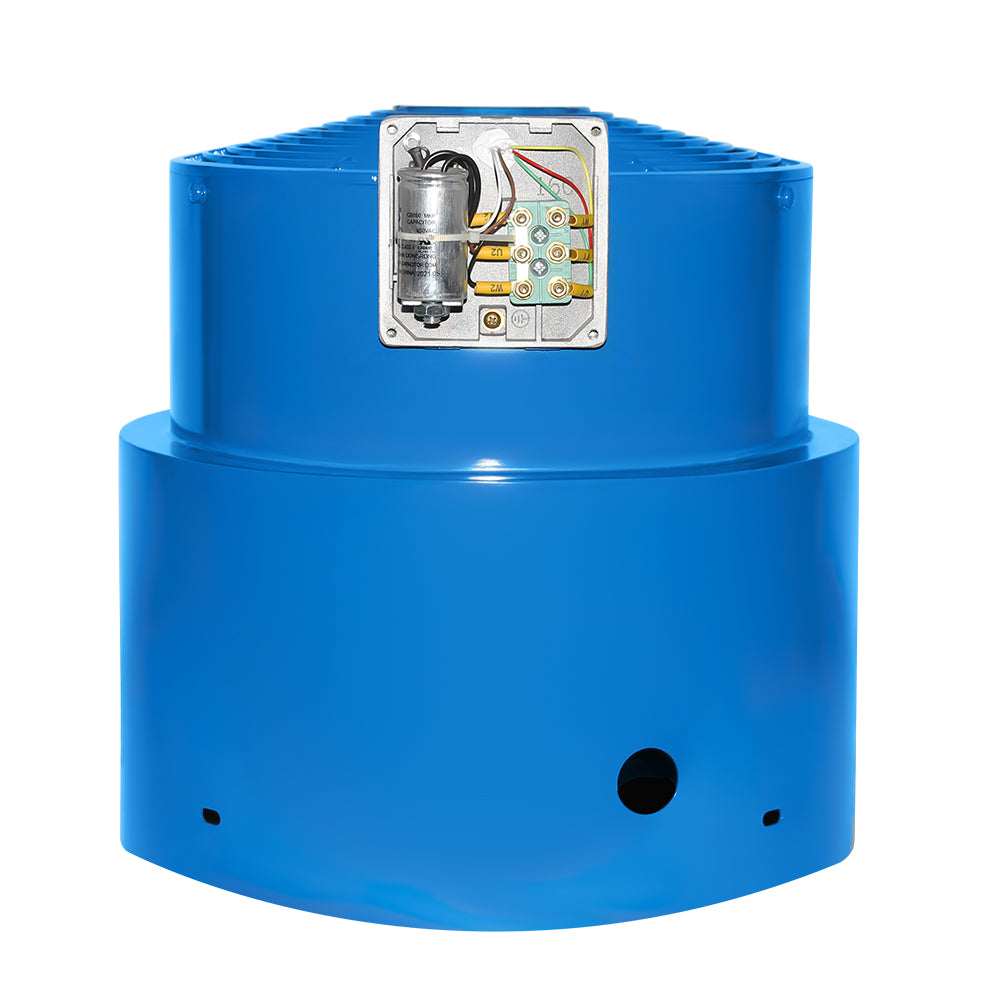

1x230 V-50/60 Hz, 165 watts, 0.69 A, 2800/3300 rpm, x m3/h, capacitor 6µF
3x230/400 V-50/60 Hz, 140/230 watts, 0.4/0.6 A, 2800/3300 rpm,
3x400 V-50/60 Hz, 140/230 watts, 0.23/0.36 A, 2800/3300 rpm,
Paint finish RAL5010, total length 342 mm, clearance 217 mm, inner diameter 396 mm

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
