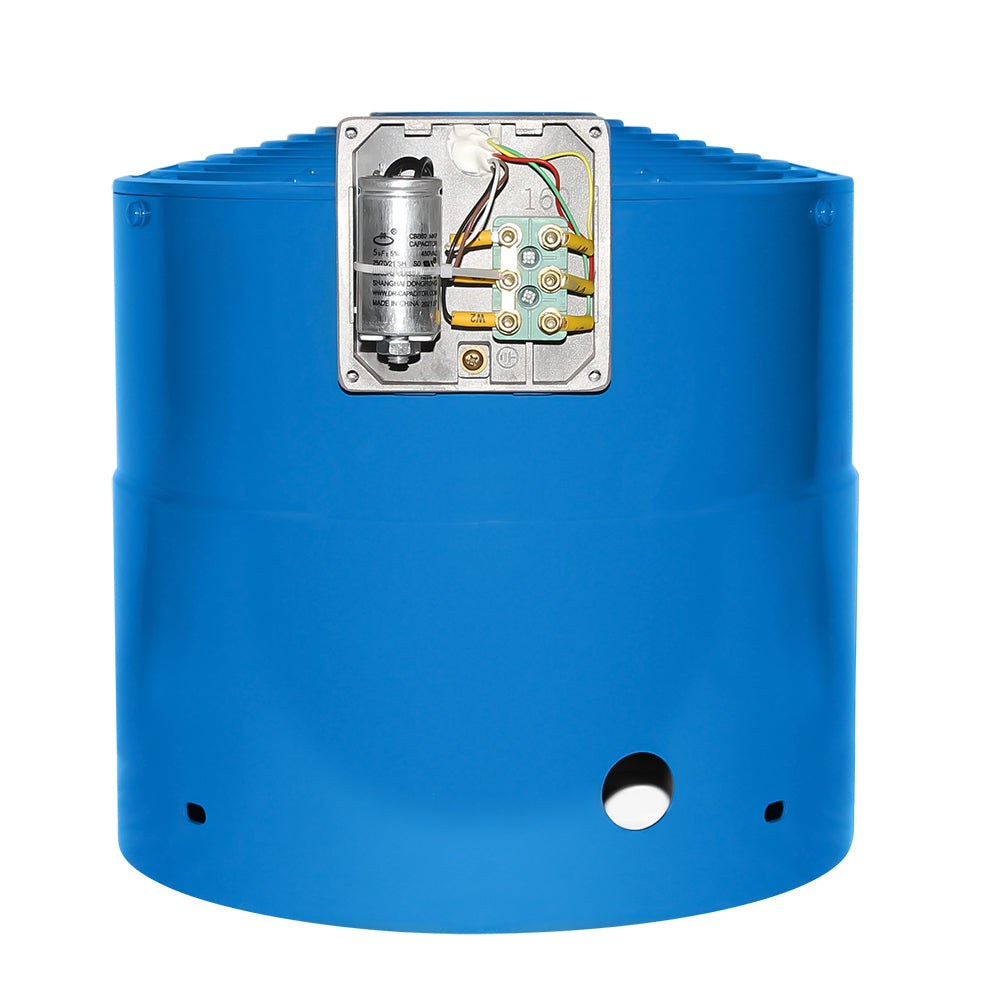

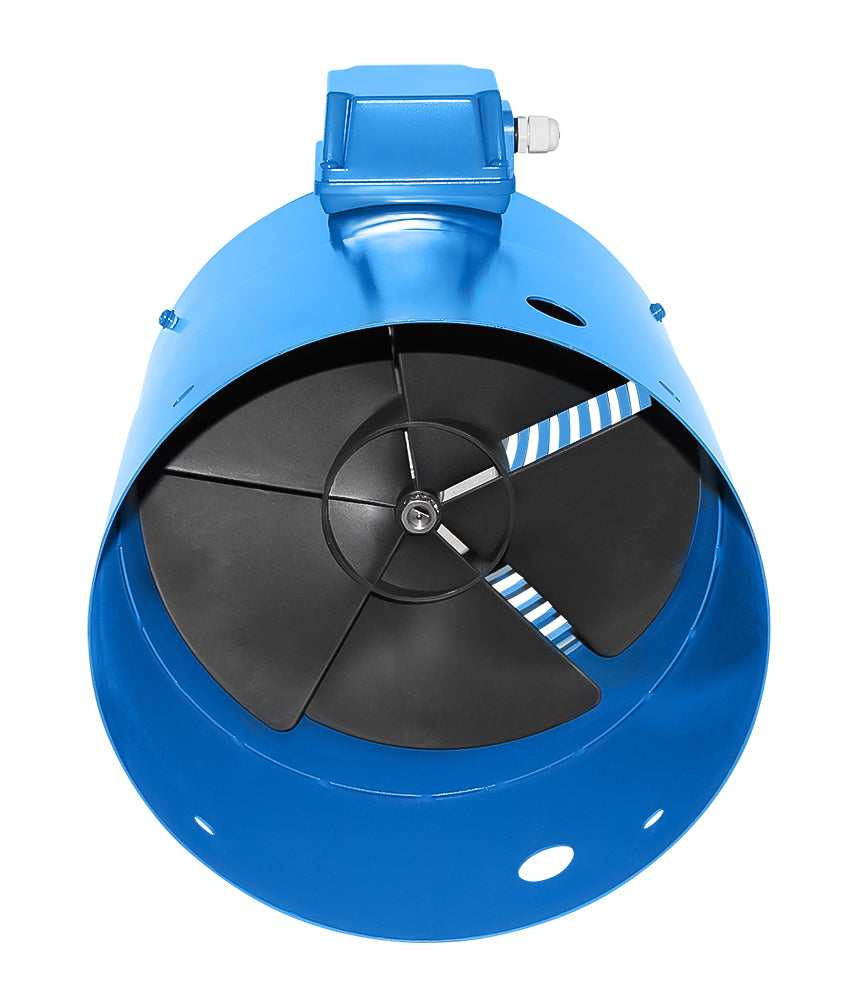

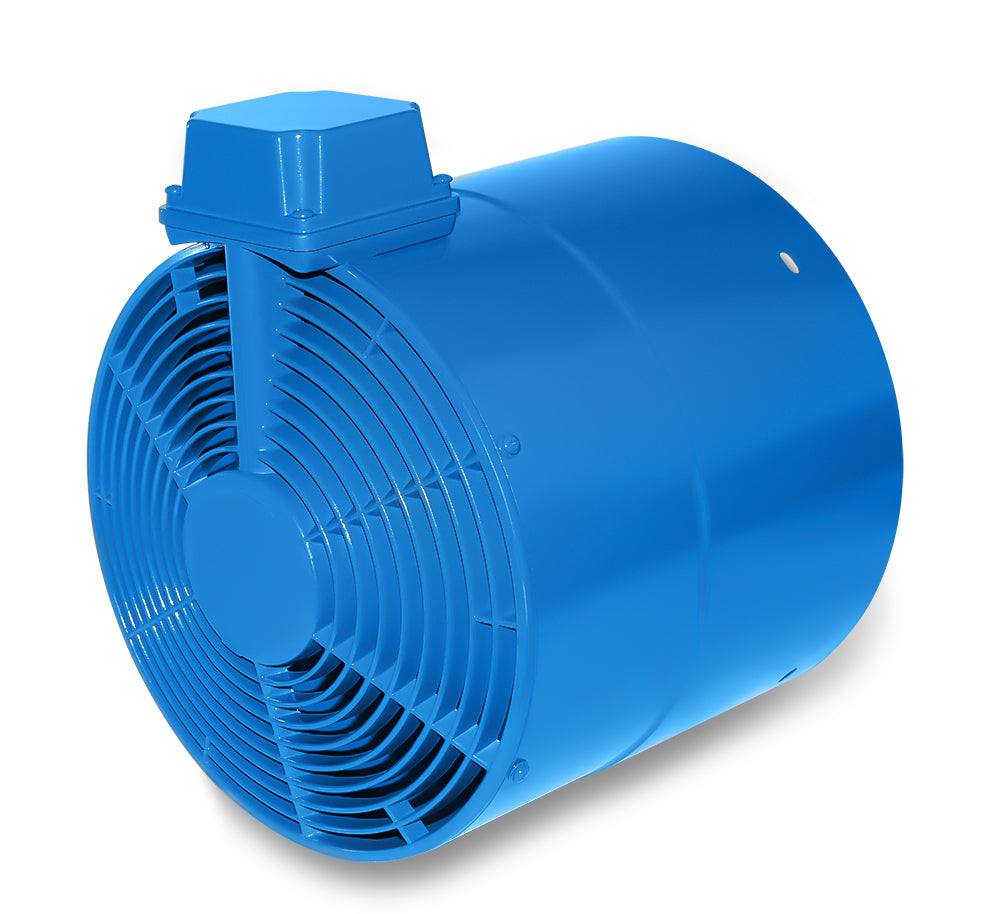

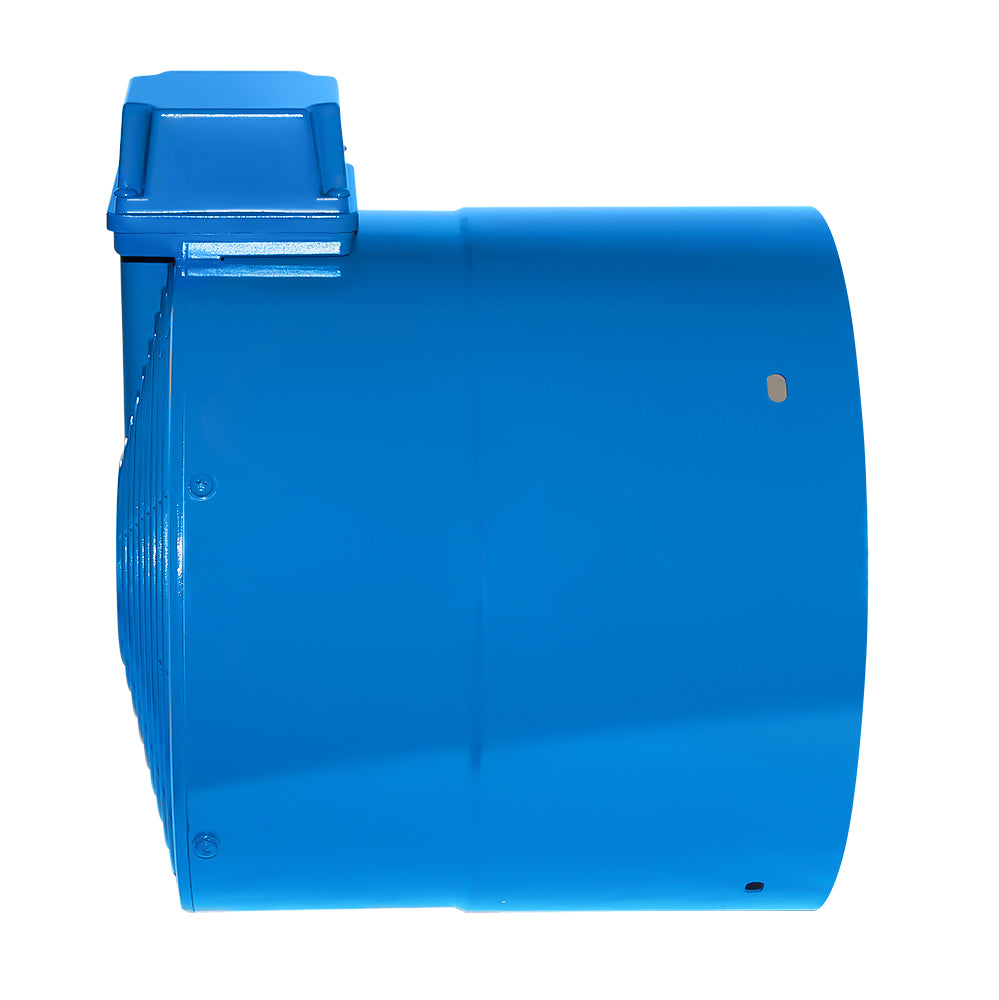

External fan unit size 160

Forced fan, forced fan unit, motor size 160

Insulation class F, protection class IP56, weight approx. 8 kg, multi-voltage.

1x230 V-50/60 Hz, 85 watts, 0.5/0.35 A, 1490/1730 rpm, x m3/h, capacitor 5µF
3x230/400 V-50/60 Hz, 95/90 watts, 0.62/0.55 A, 1490/1790 rpm,
3x400 V-50/60 Hz, 95/90 watts, 0.36/0.32 A, 1490/1750 rpm,
Paint finish RAL5010, total length 280 mm, clearance 155 mm, inner diameter 311 mm

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
