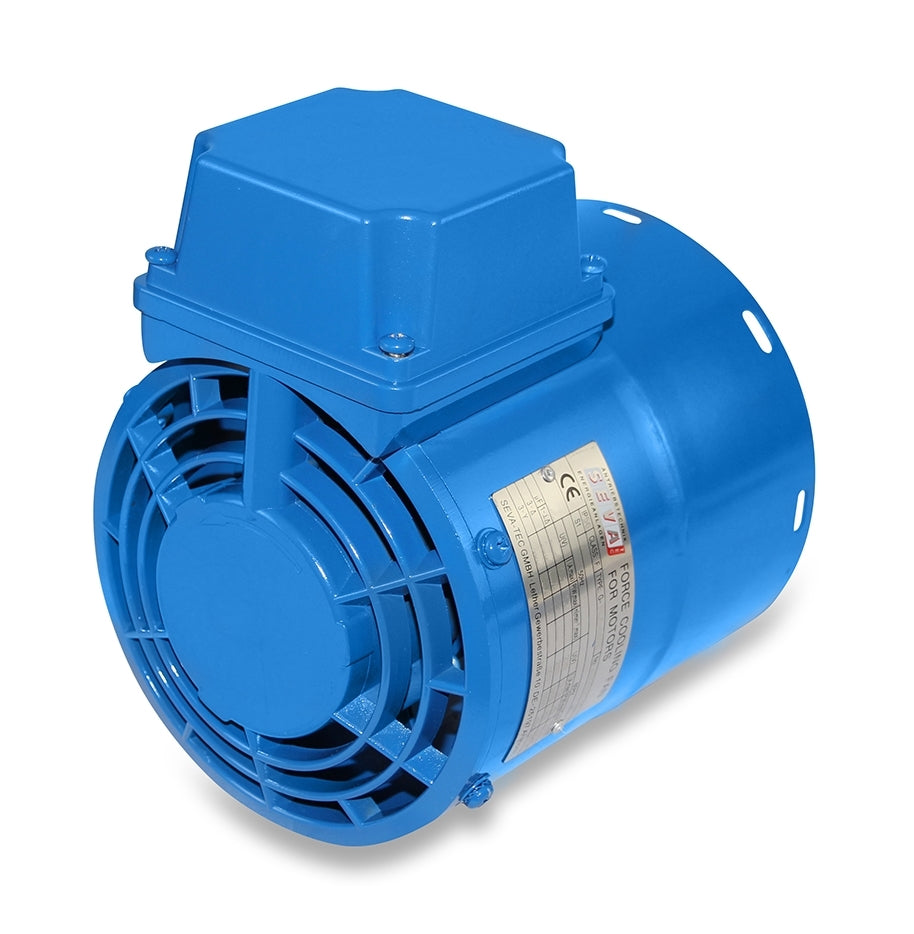

External fan unit size 132

Forced fan unit, motor size 132, insulation class F, protection class IP56, multi-voltage

1x230 V-50 Hz, 45 watts, 0.45 A, 1450 rpm, 337 m3/h, capacitor 3µF
1x240 V-60 Hz, 65 watts, 0.35 A, 1750 rpm, 337 m3/h, capacitor 3µF
3x230/400 V-50 Hz, 55 watts, 0.4 A/0.23 A, 1450 rpm, 337 m3/h
3x 254/460 V-60 Hz, 55 watts, 0.37/0.21 A, 1750 rpm, 337 m3/h
Paint finish RAL5010, total length 225 mm, inner diameter 256 mm

Weight: 3.7kg

To install the external fan, it is necessary to remove the fan cover and
to remove the fan blade. If an extension cannot be used,
the shaft must be shortened. When ordering with motor, the external fan can also be mounted
delivered. Please select the version.
