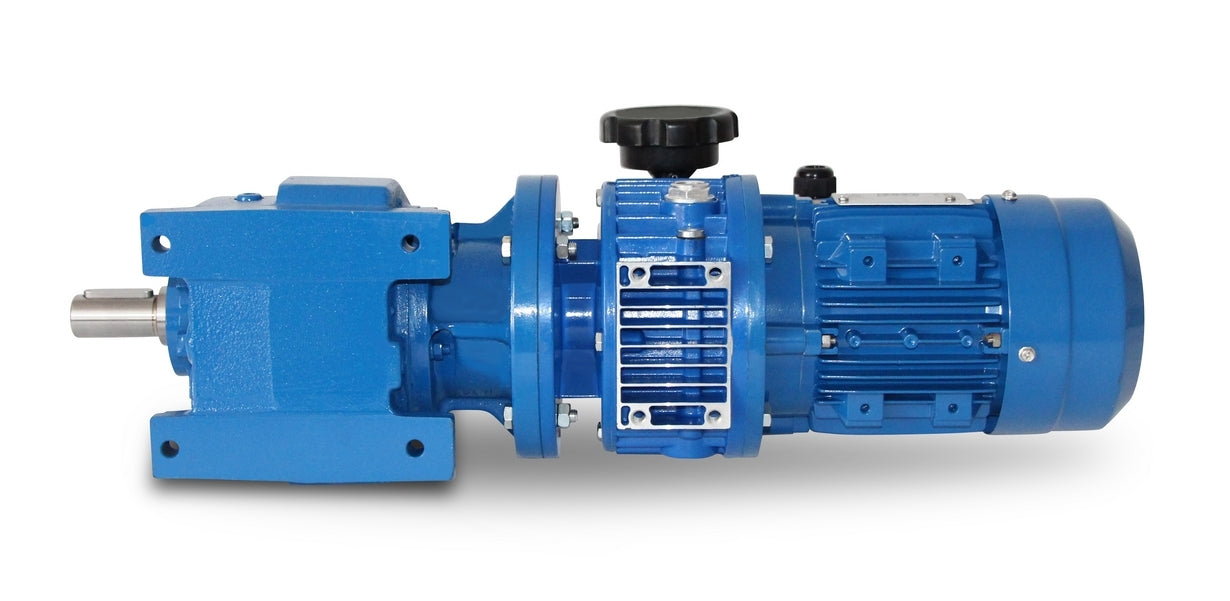

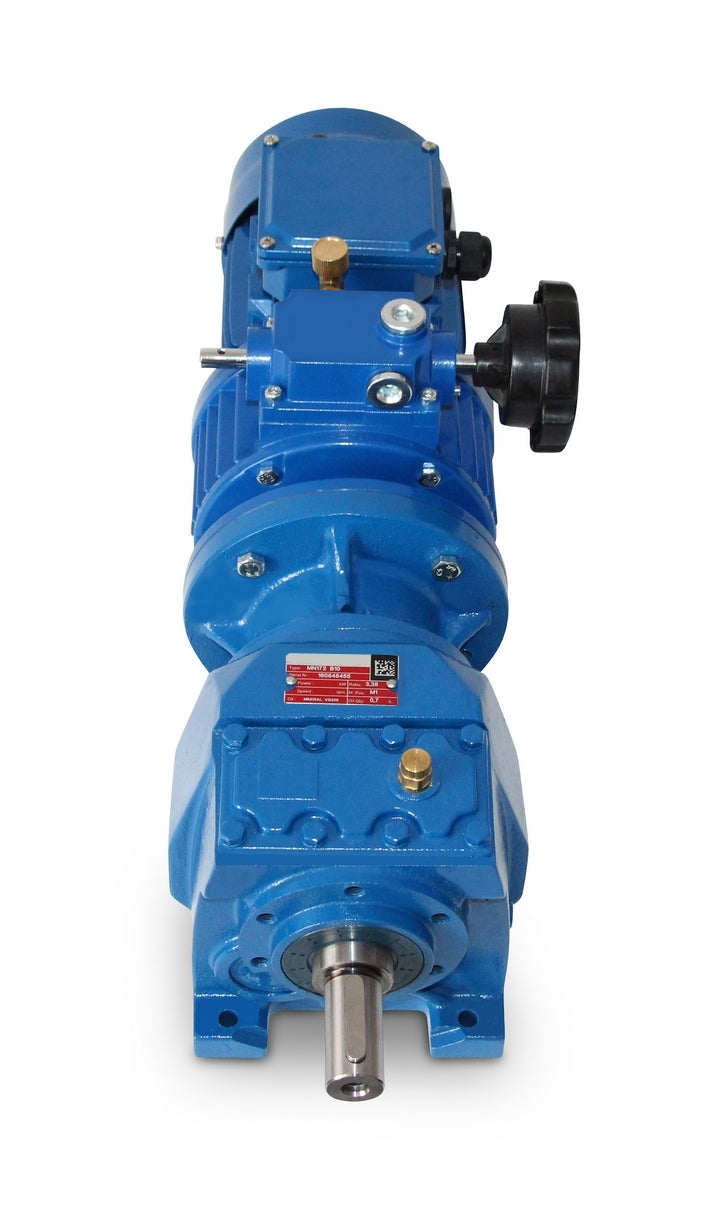

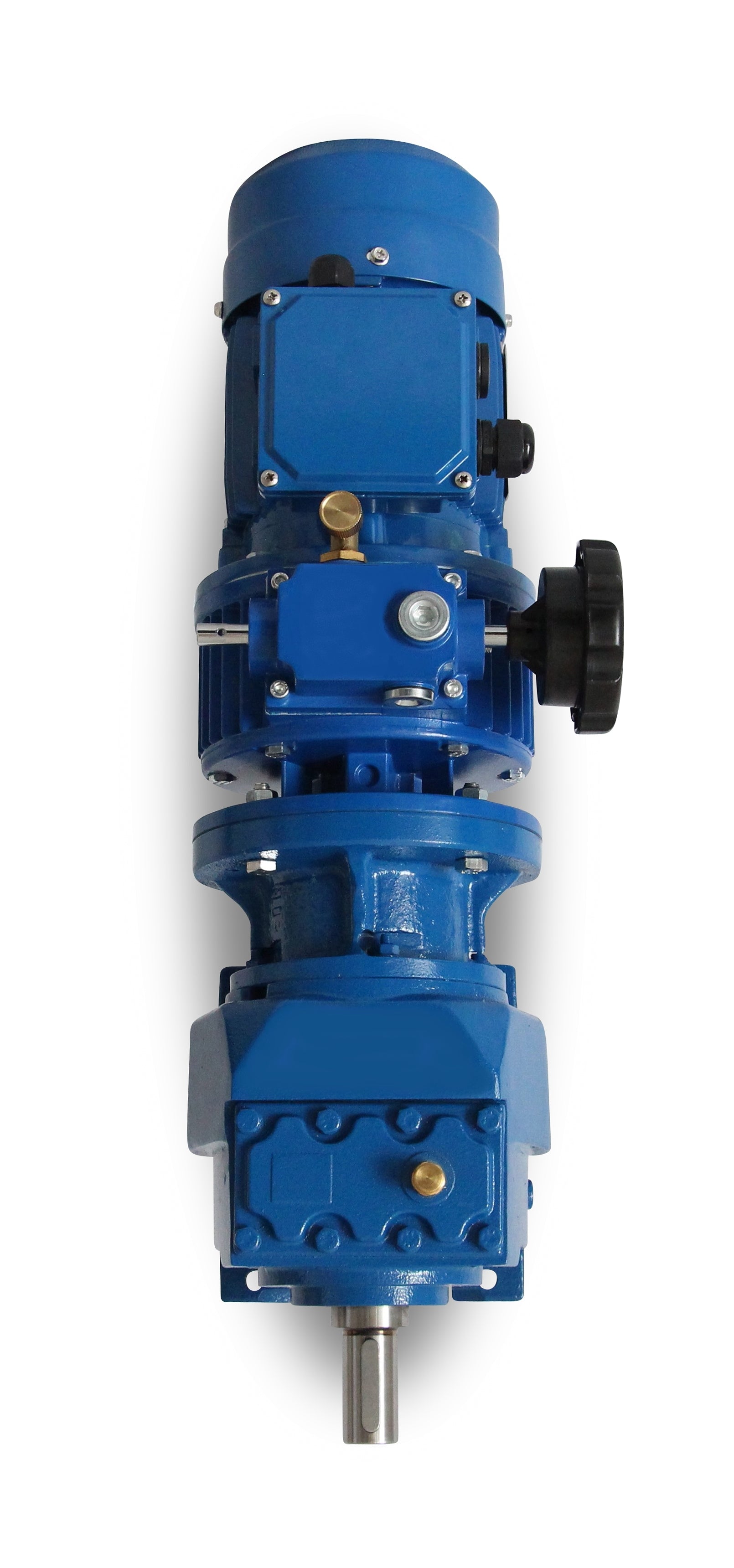

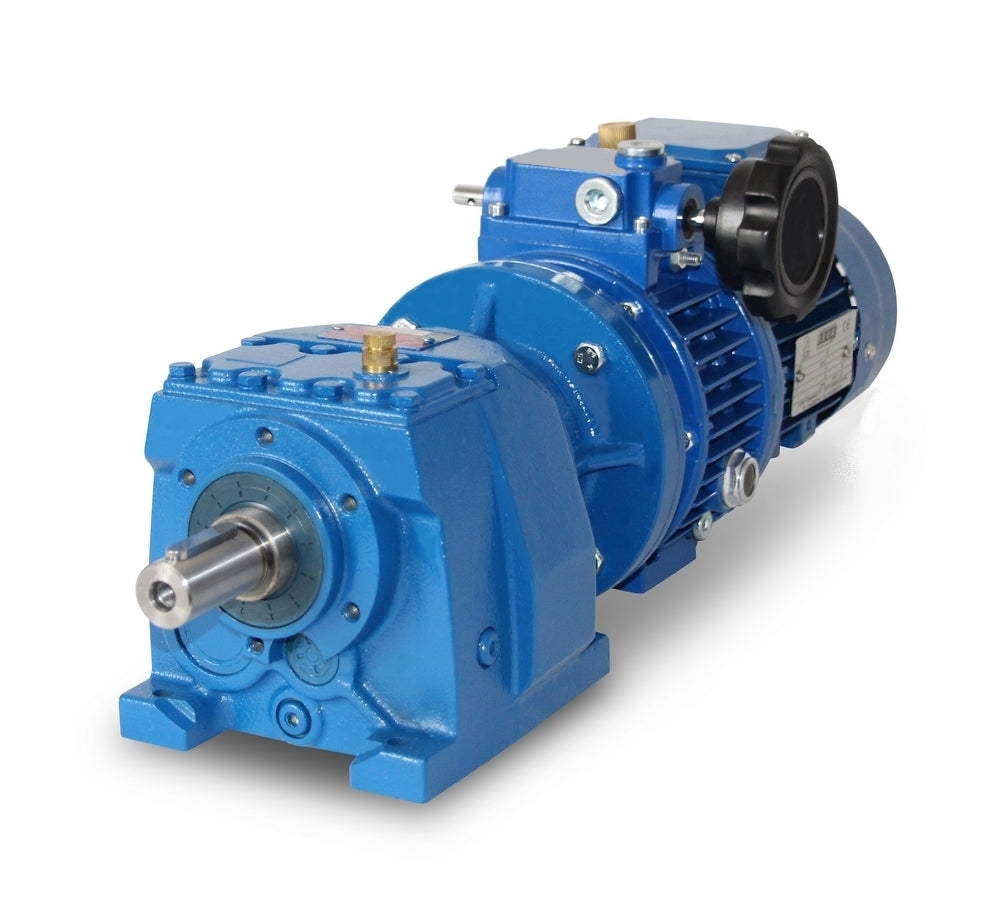

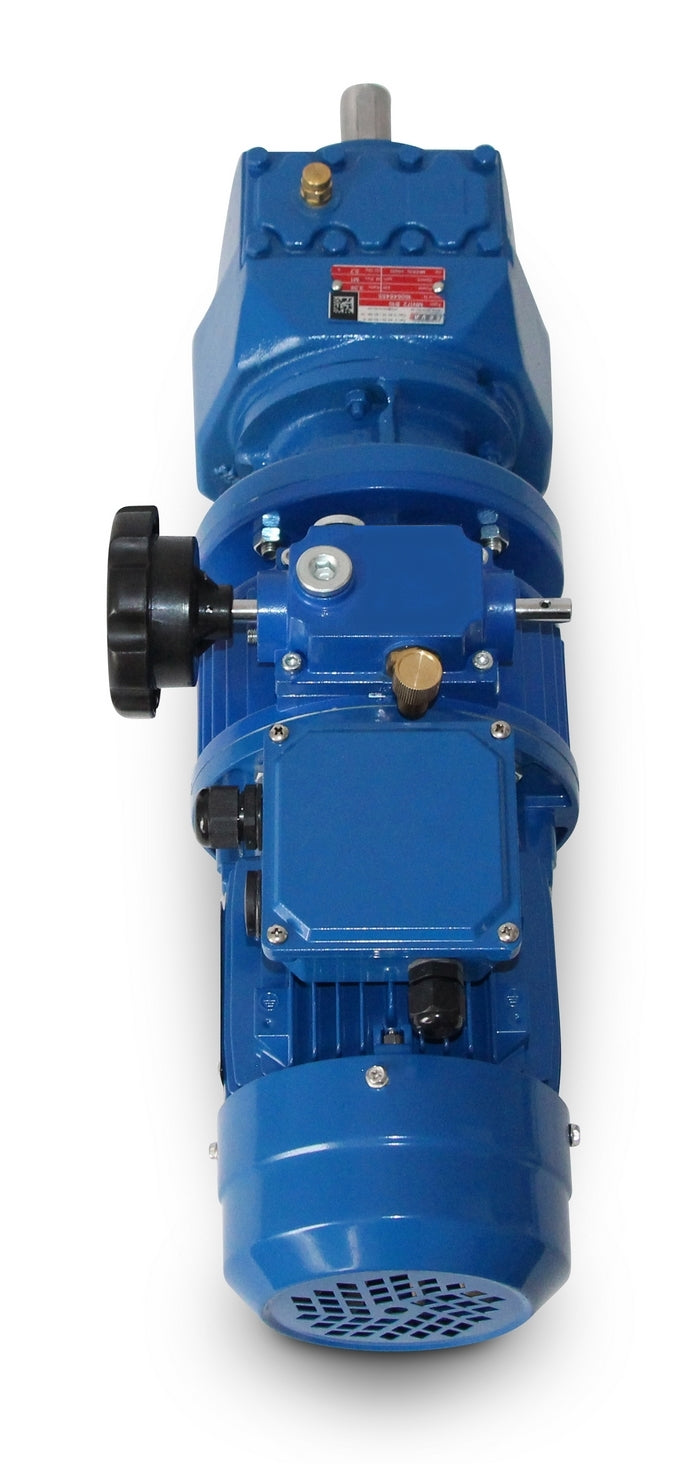

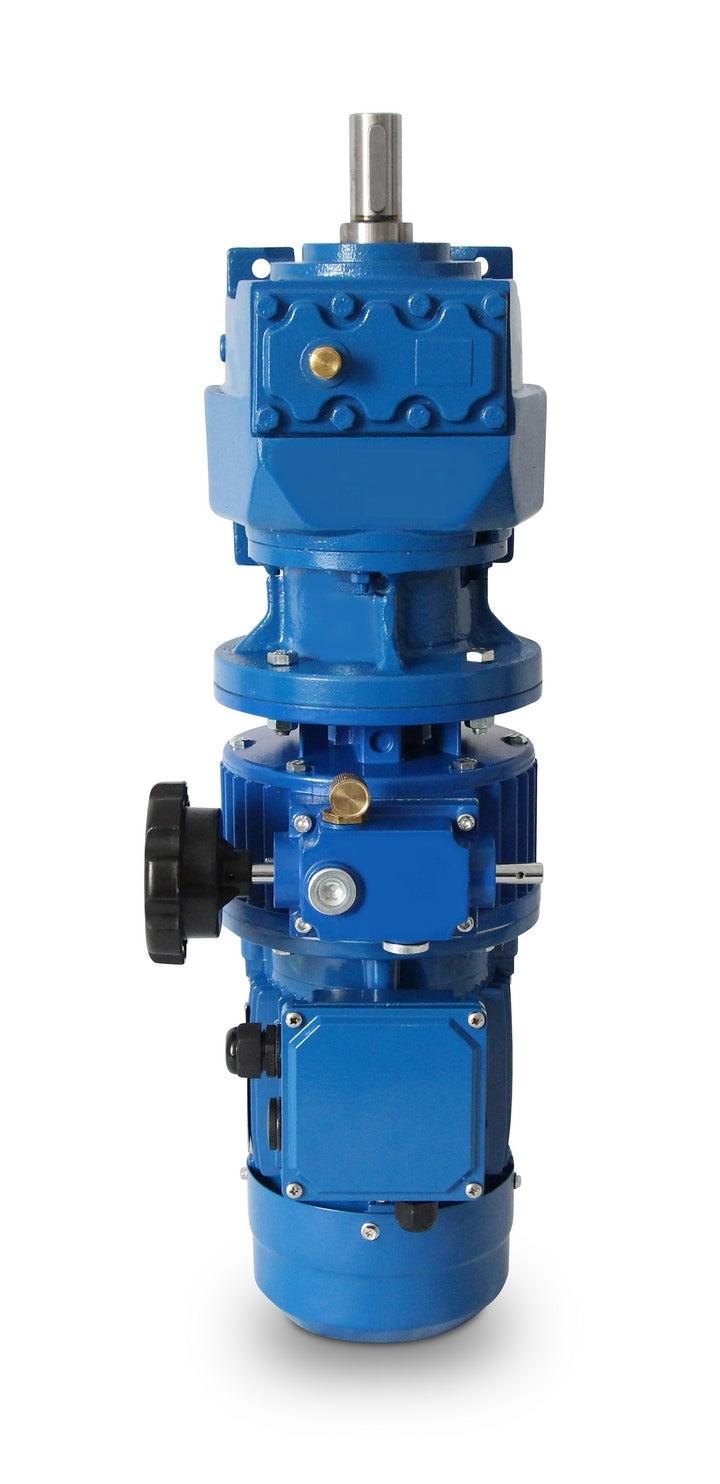

SEVA- MV-F272/B5-90L-4 - 1.5 kW – 6.4-37 rpm helical variable speed gear motor

Spur geared motor with flange mounting option from B3 to B35,

Power= 1.5 kW, Speed= 6.4 – 37 rpm, Gear ratio adjustment unit (i)= 36.2 – 212.3, Gear ratio (i)= 25.89,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/ 60 Hertz.

Torque (M²)= 254 - 508 Nm, Service factor (fs)= 0.9 - 1.8, Design= B3 (B35 at extra charge), Shaft= 35x70 mm,

Weight= 43.4 kg, color= RAL5010, temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED.

The spur gear can be operated in both directions of rotation and is filled with oil upon delivery.

According to VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel.

As is usual with variable speed drives, speed control by turning the handwheel is only permitted during operation!

Changing the speed when stationary can cause damage to the stepless adjustment unit.

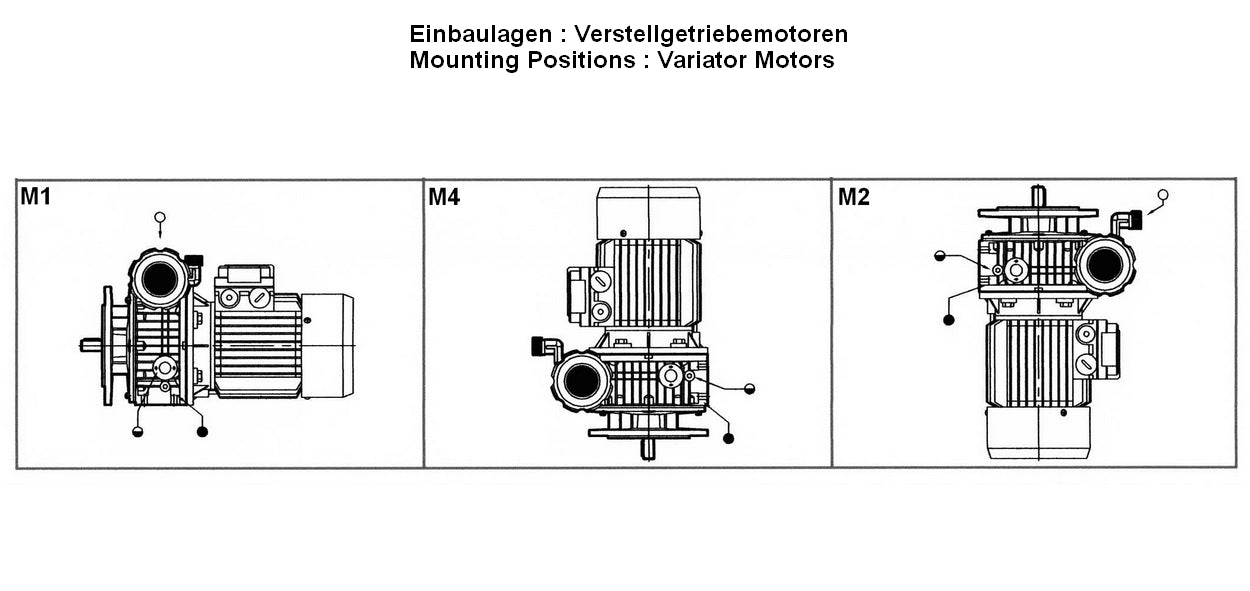

When ordering, please select the desired installation position!

All product photos are non-binding examples! Technical changes reserved.
