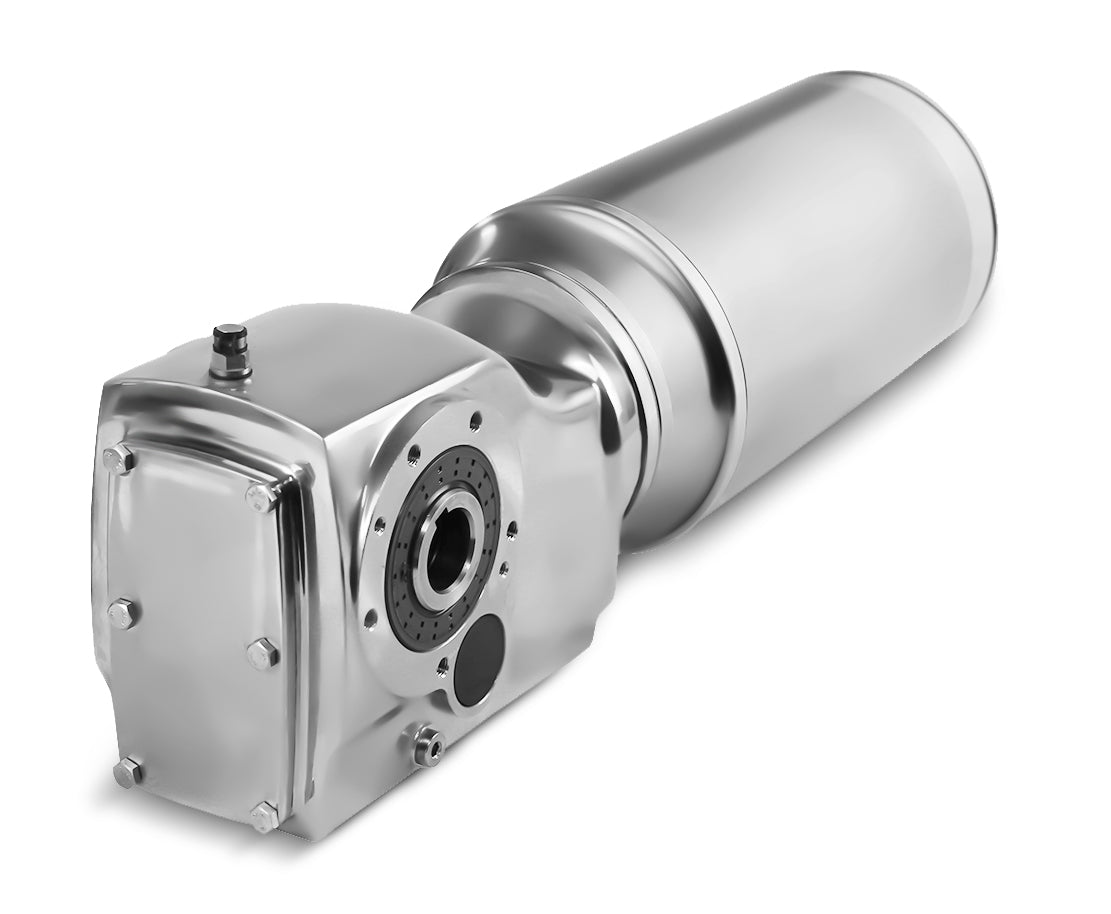

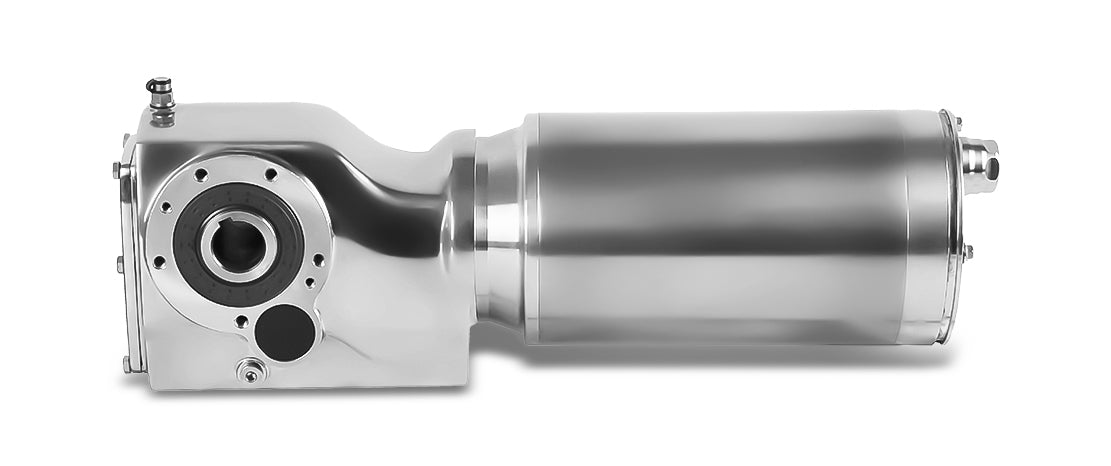

SEVA-ESK37-80-4-0.55 kW-67 rpm stainless steel bevel gear motor

Stainless steel bevel gear motor with oil-tight motor,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/ 60 Hertz.

Power= 0.55 kW, speed (n²)= 67 rpm, gear ratio (i)= 20.19, torque (M²)= 78 Nm,

Permissible transverse forces (radial) = 4130 N, service factor (fs) = 2.4, design = B3, hollow shaft = 30 mm, weight = 35 kg.

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, cable outlet= rear.

The bevel gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft.

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

The stainless steel bevel gear can be operated in both directions of rotation and contains a food-grade oil filling upon delivery.

According to VDE 0105 or IEC 364, all work on the electric drive must only be carried out by qualified personnel

For modifications or special designs, please send an inquiry.

When ordering, please select the desired installation position.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
