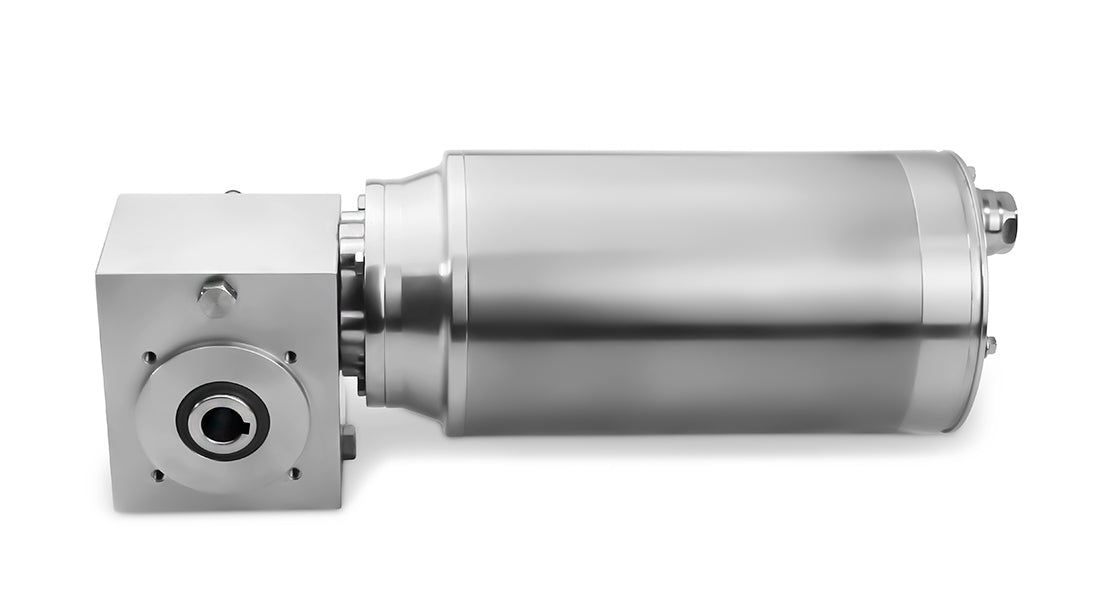

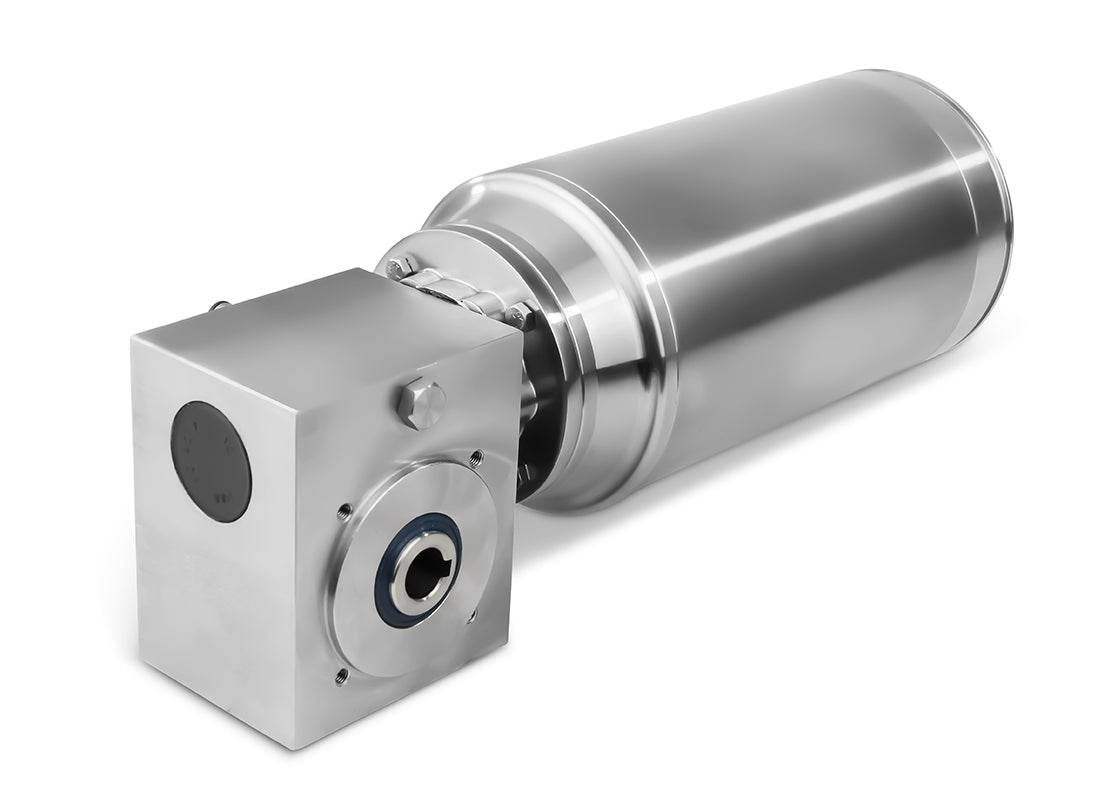

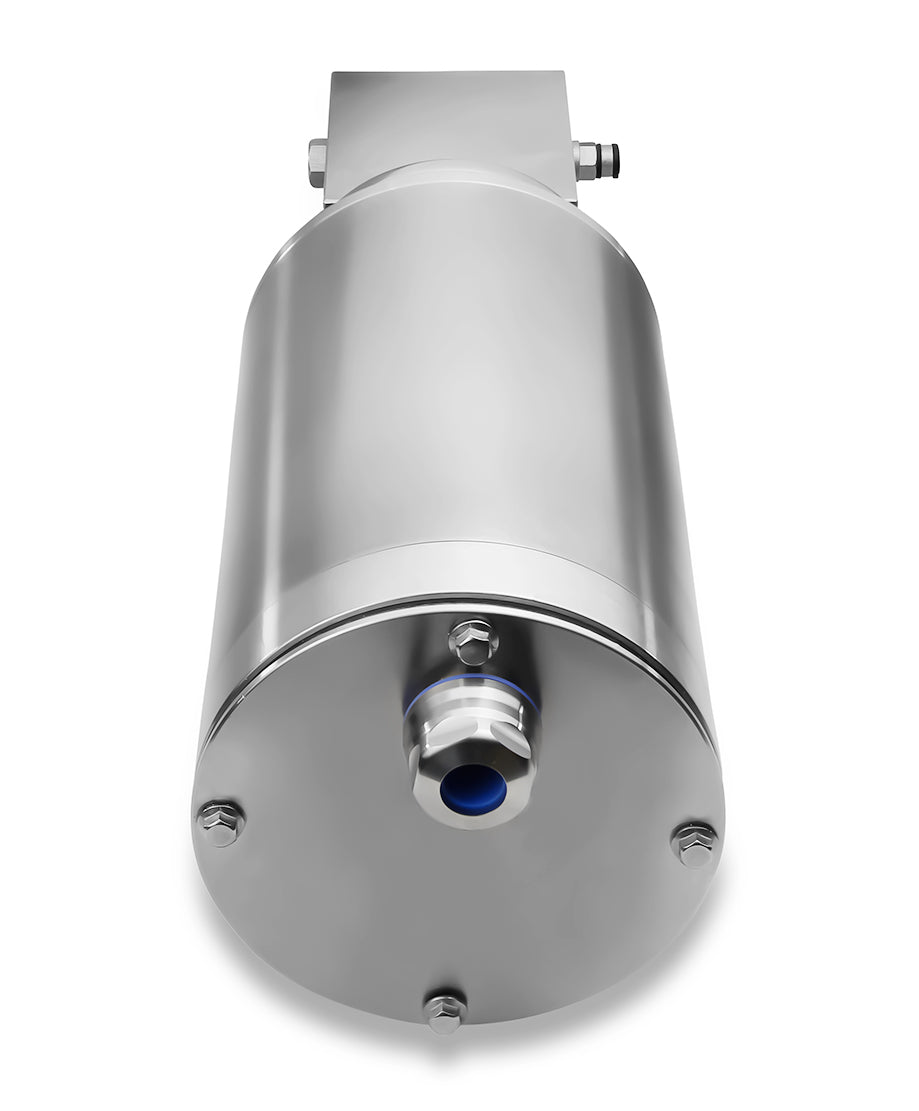

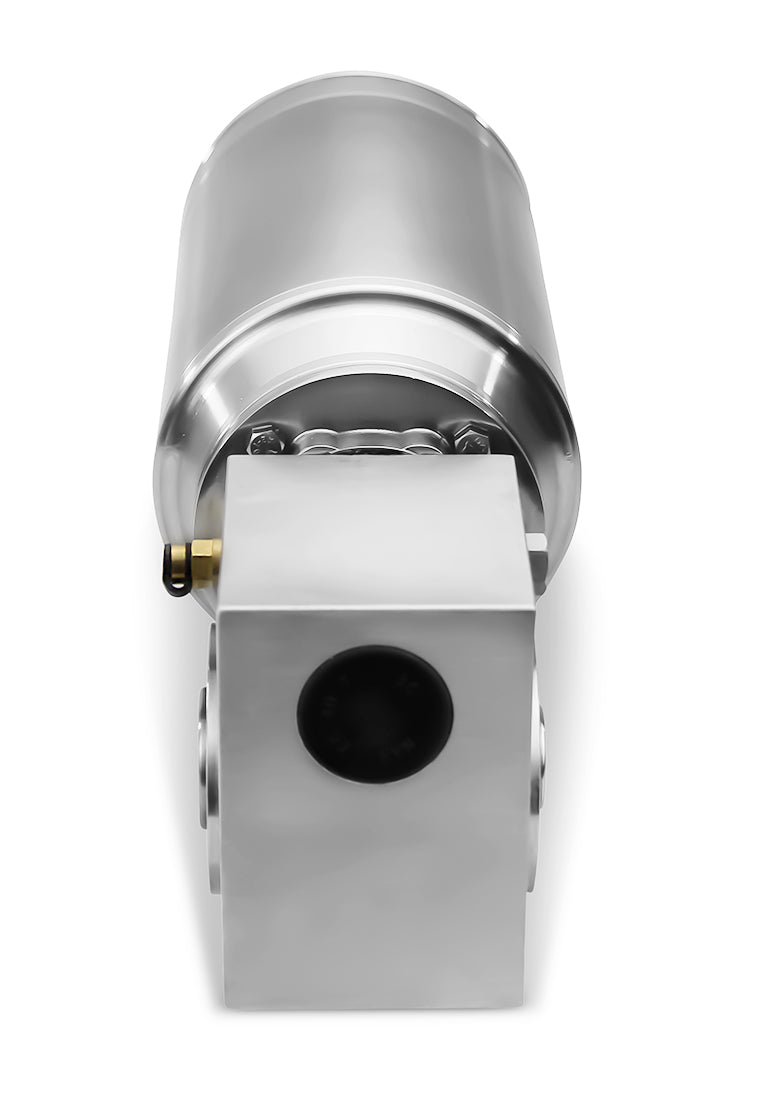

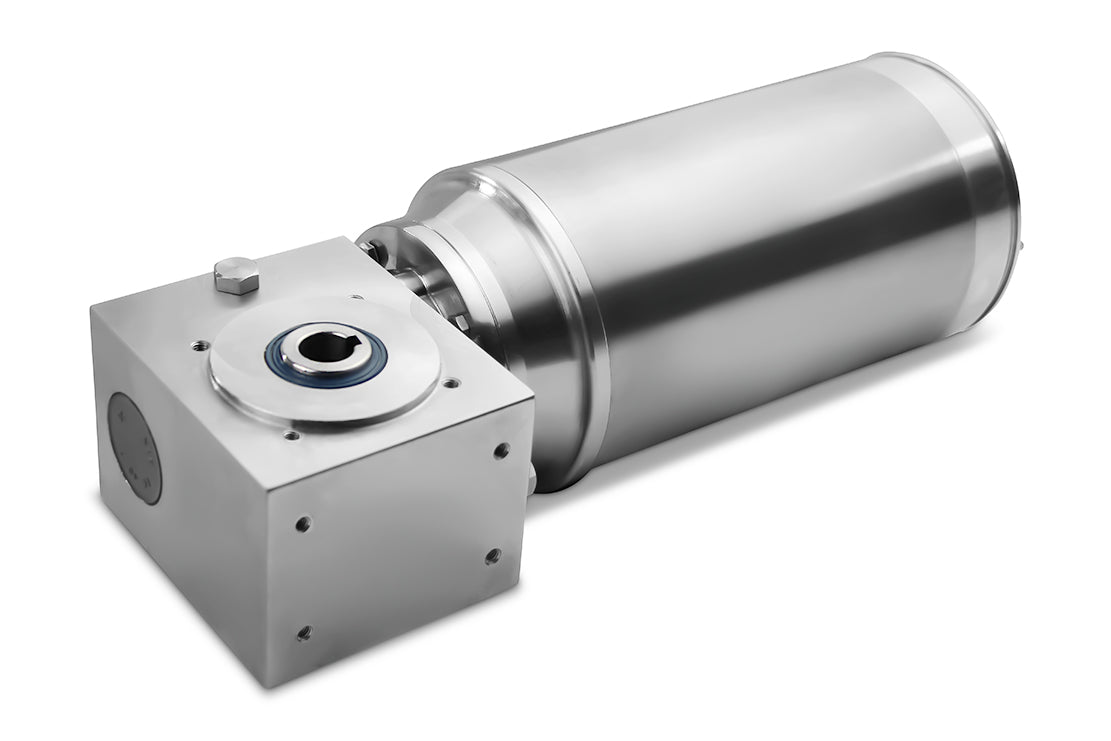

SEVA- ESD63-90S-4 - 1.1 kW - 46.7 rpm - stainless steel worm gear motor

Stainless steel worm gear motor, power= 1.1 kW, speed= 46.7 rpm,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP69k, Insulation class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,

Hollow shaft= 25mm, Motor speed= 4 poles, Gear ratio (i)= 30, Torque= 167 Nm,

Permissible lateral forces (radial)= 3740 N, operating factor (fs)= 1.0, cable outlet= rear, weight= 47 kg,

Temperature sensor = 3 x PTC thermistors, housing = AISI 304 (V2A), ball bearings = SKF, C&U or equivalent.

The stainless steel worm gear motor is suitable for frequency converter operation and

complies with IEC 60034-30:2008. The geared motor can be operated in both directions of rotation and contains

A food-grade oil filling is included upon delivery. According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
