Frequency converter ED230-0055-alpha

Frequency converter, 1x 230V, EASYdrive alpha 0.55 kW

Frequency converter
Power= 0.55 kW, Size= alpha, Input voltage= 1 x 230V +10% (single-phase), Input frequency= 50/60 Hz,
Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,
Rated output current, eff. [IN at 8 kHz]= 2.7 A, Mains current (input)= 5.8 A,

Product information
The frequency converter offers the option of becoming “bus-capable” using fieldbus modules.
With Modbus (already included) and CANopen, the EASYdrive alpha offers compatibility with control environments.
The required optional control variant must be specified when ordering.
The EASYdrive alpha drive controllers are CE, UL, and CSA certified. The EASYdrive can withstand high temperatures without the need for external filtering measures.
EMC class C2 (for 1-phase mains supply).

! Possible variant selection !

Product selection
When selecting a frequency converter, it is important to note that there are two variants. Firstly, the device
in standard version and secondly the device with a membrane keyboard. In both versions a potentiometer
optional to order.

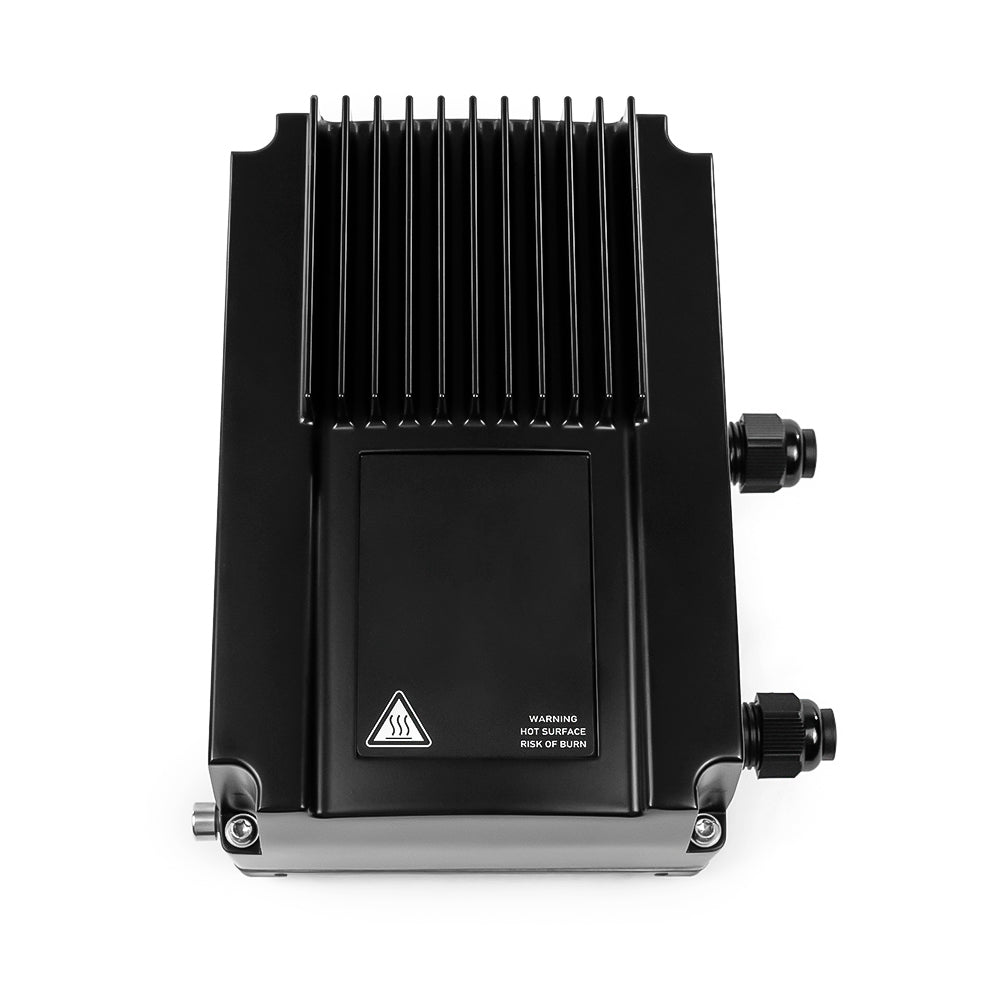

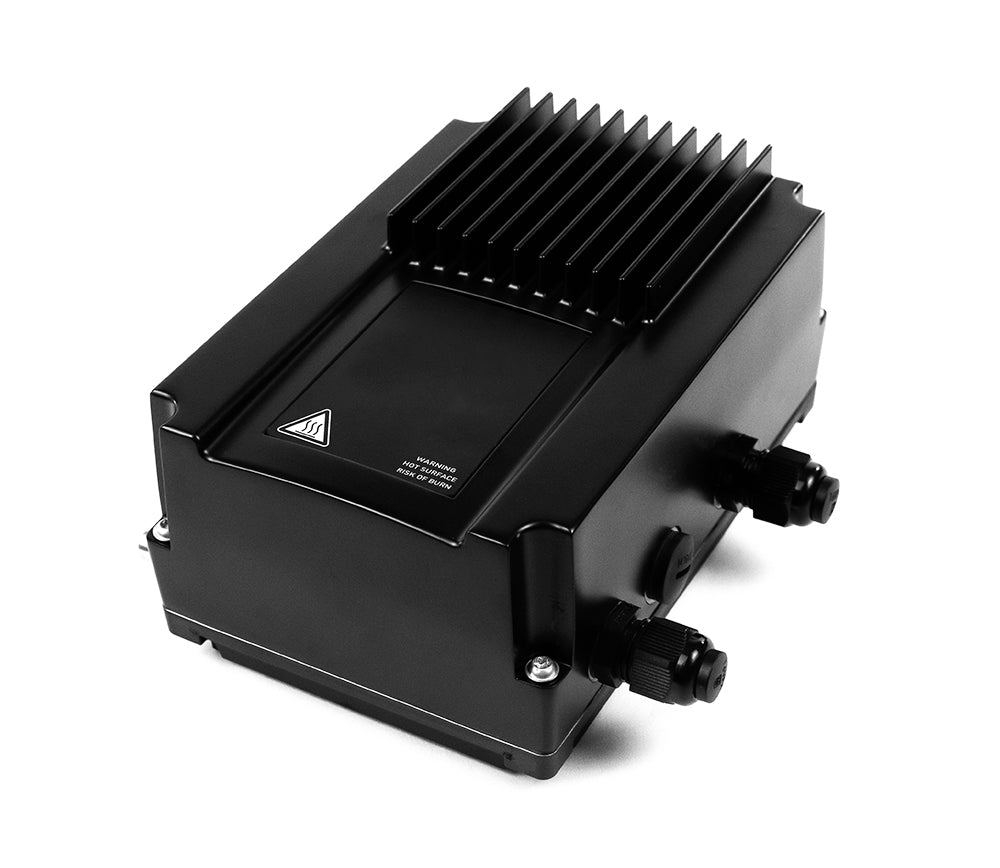

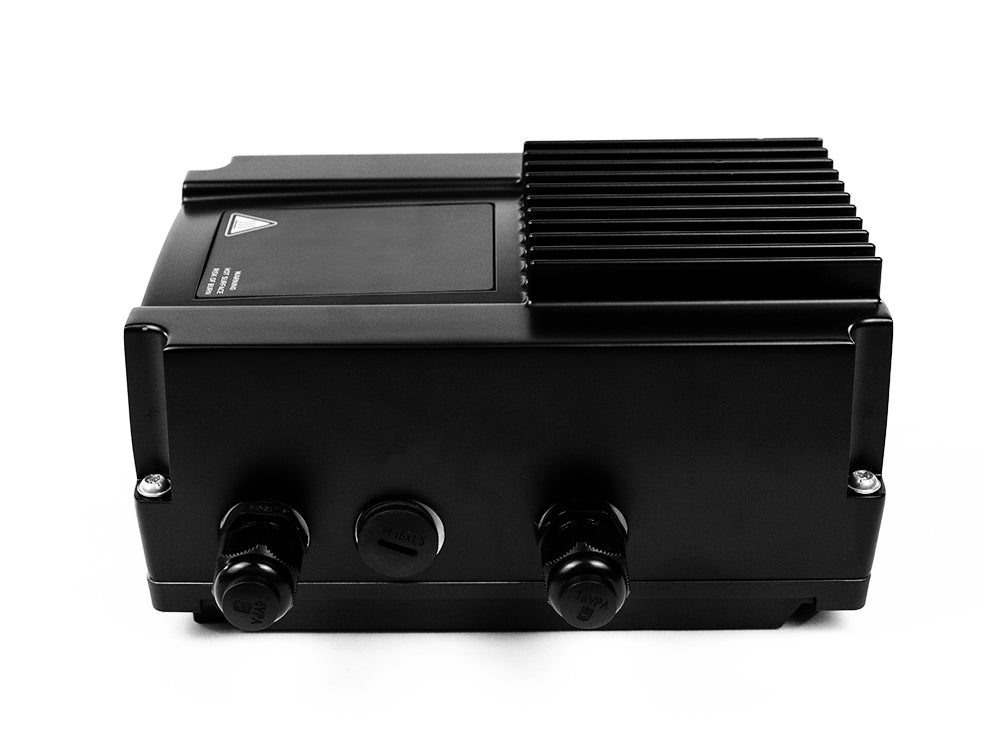

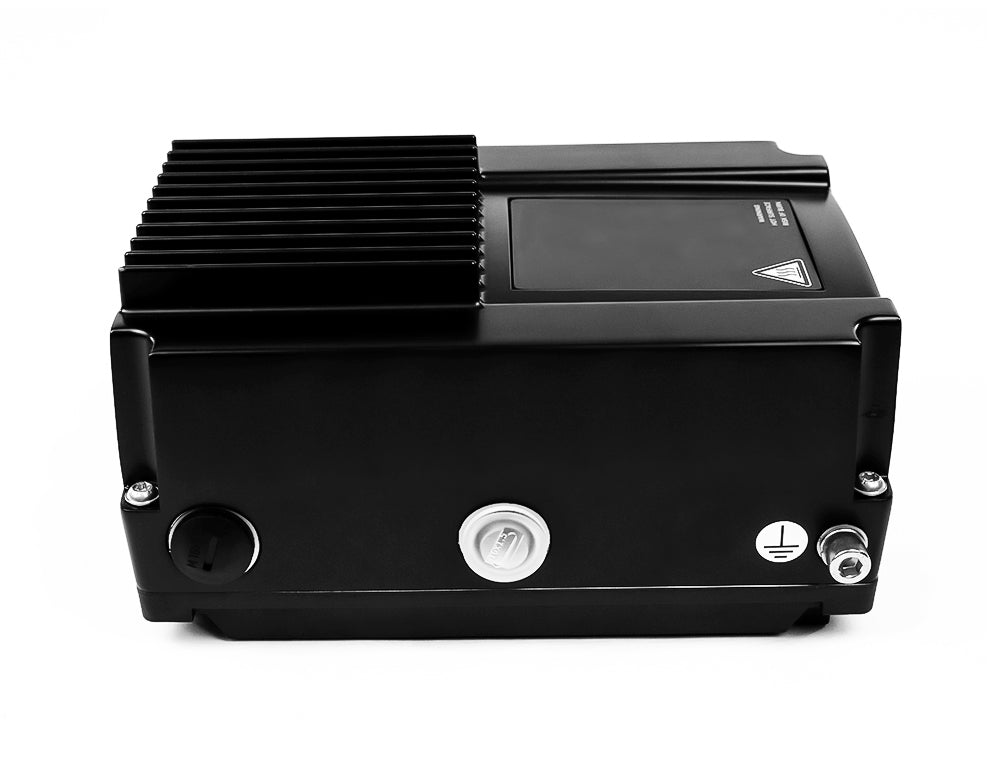

The “standard version of the frequency converter” shown is fully usable.
but requires a corresponding control unit for control.
To do this, you must order one of the following options:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

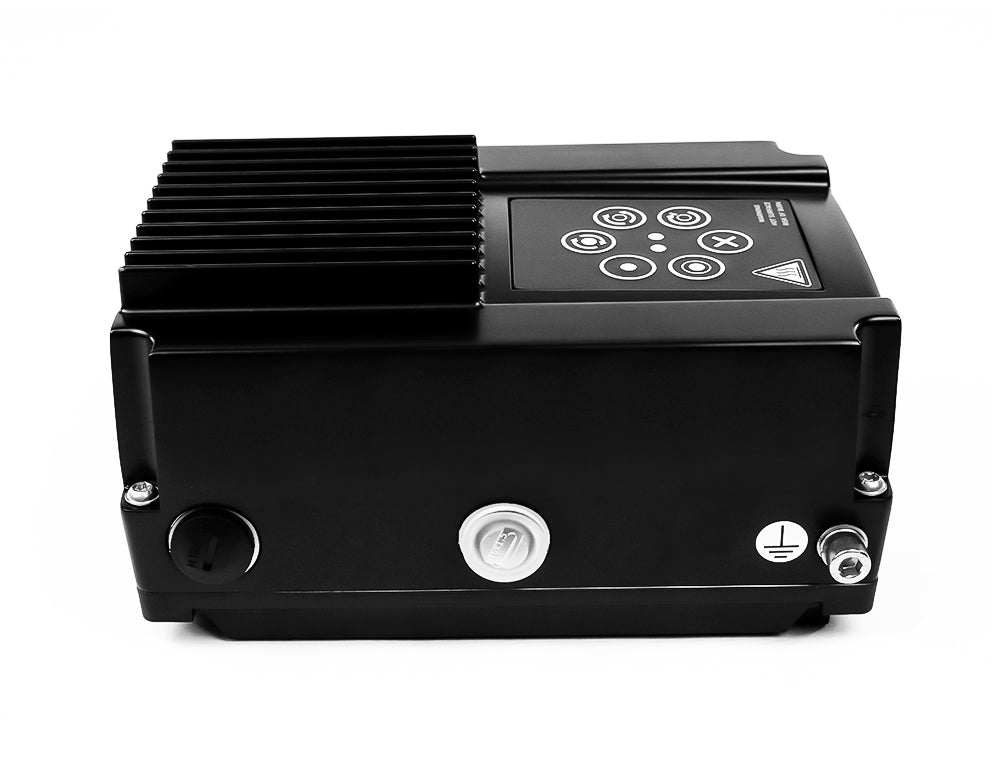

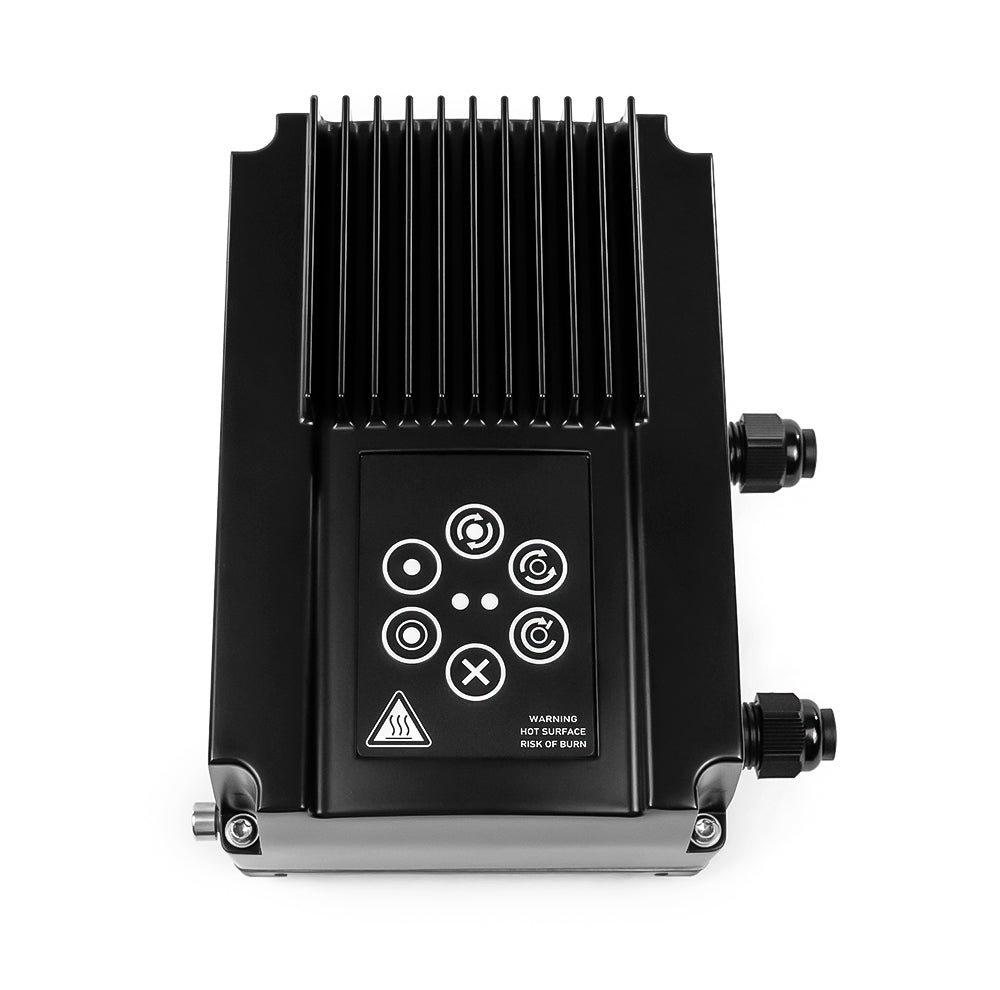

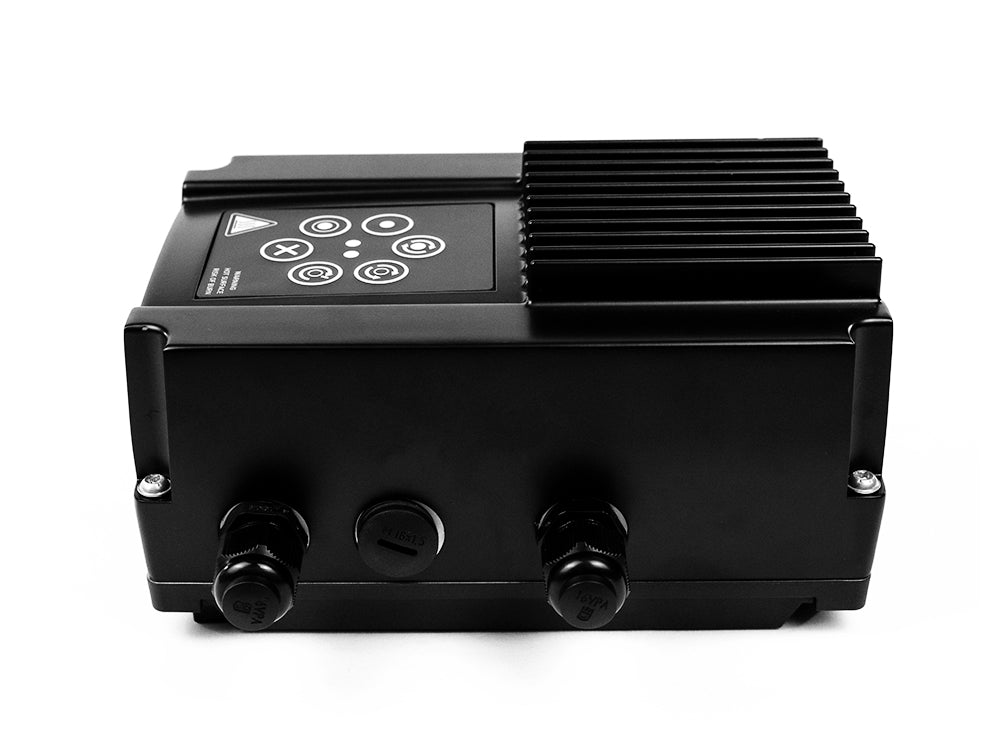

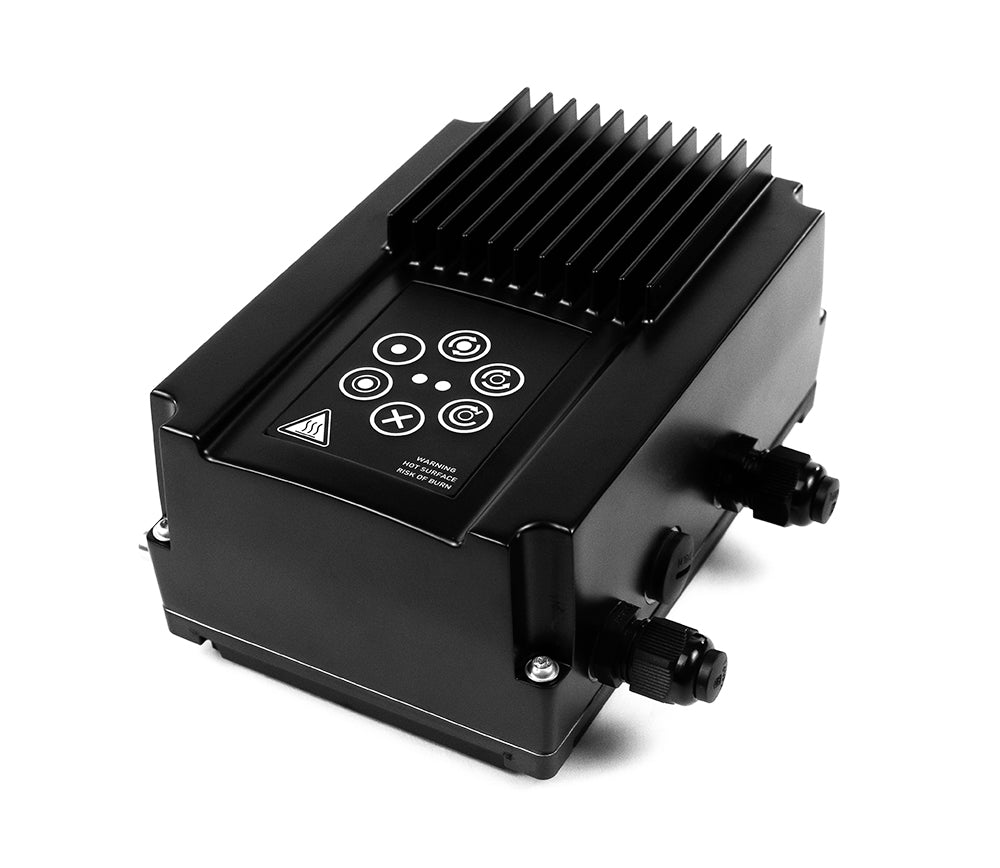

The variant "Frequency converter with membrane keyboard" offers the possibility of controlling the FU directly,
such as start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

The variant "Frequency converter with MMI control unit" does not require an optional control unit,
The device cover also includes a display. The options mentioned above can be used if necessary.

All product photos are non-binding examples! Technical changes reserved.
