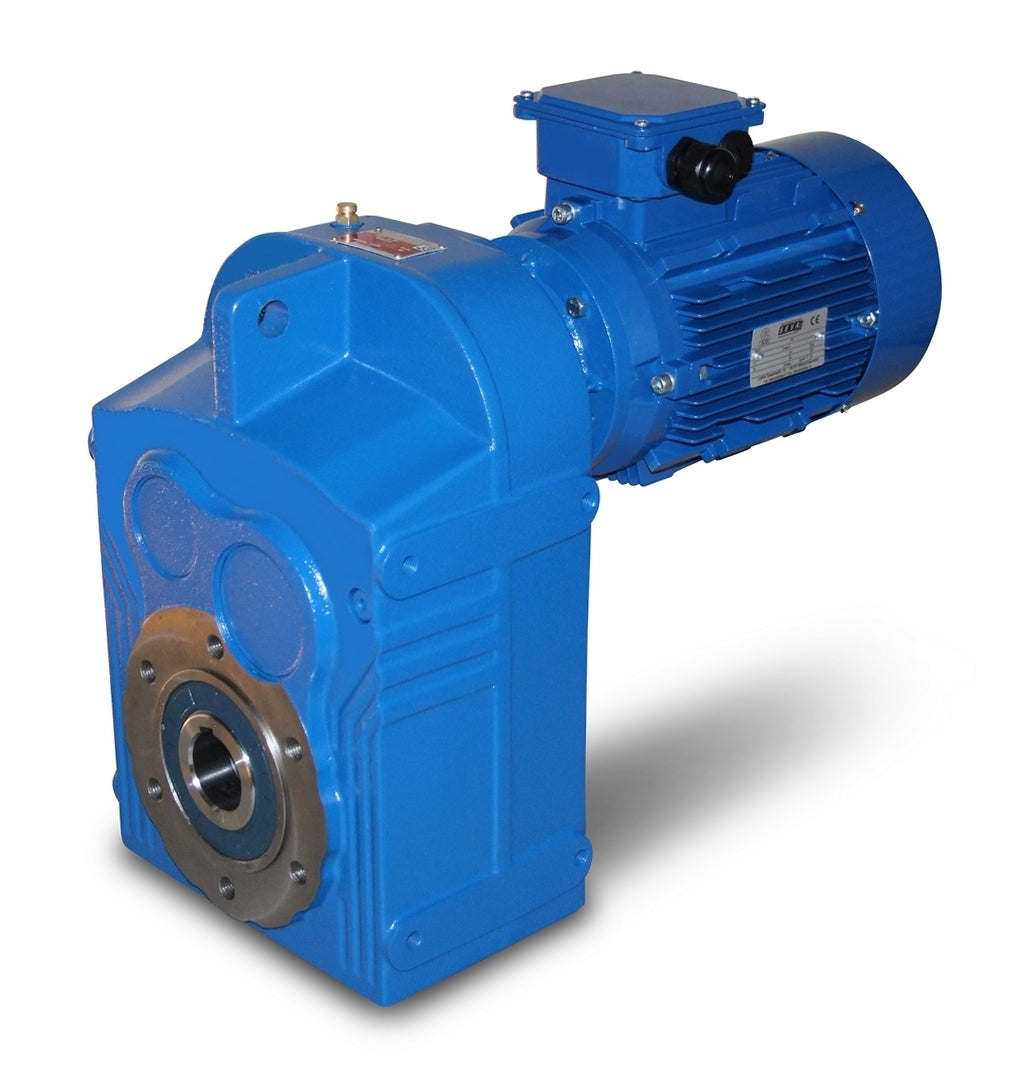

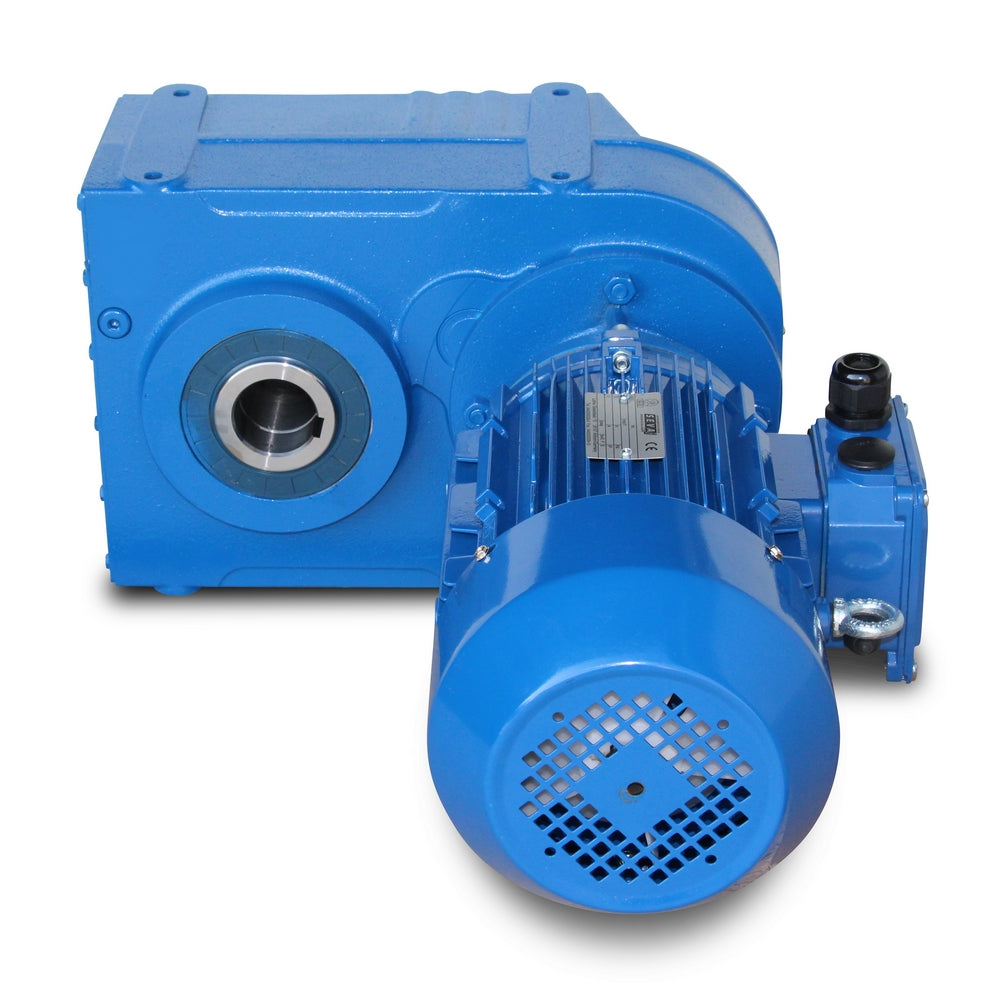

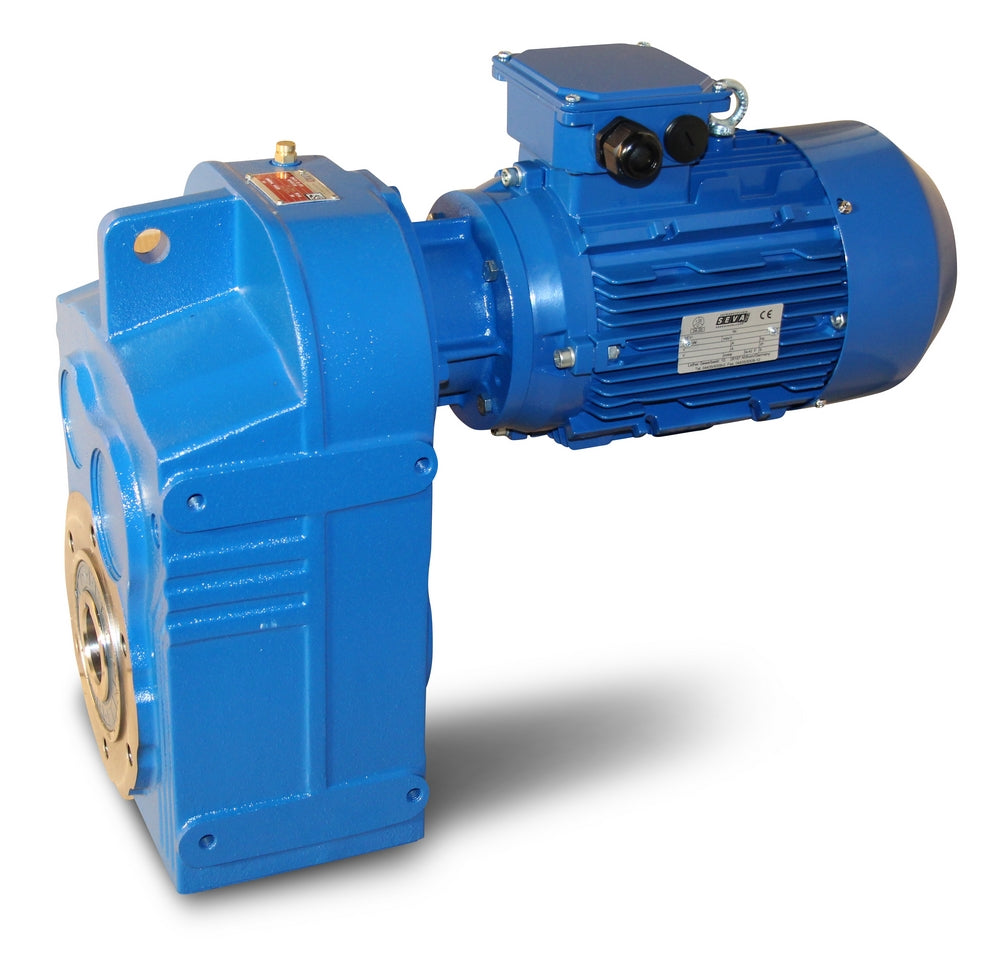

SEVA- DV673-100-4-3 kW-6.3 rpm flat gear motor

Flat gear motor with IEC flange between gearbox + electric motor,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/ 60 Hertz.

Power= 3 kW, speed (n²)= 6.3 rpm, gear ratio (i)= 221.47, torque (M²)= 4264 Nm,

Operating factor (fs)= 1.0, design= B3, hollow shaft= 70 mm, weight= 230 kg, color= RAL5010.

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

The parallel shaft gear can be operated in both directions of rotation and contains an oil filling upon delivery.

According to VDE 0105 or IEC 364, all work on the electric drive must only be carried out by qualified personnel

For modifications or special designs, please send an inquiry.

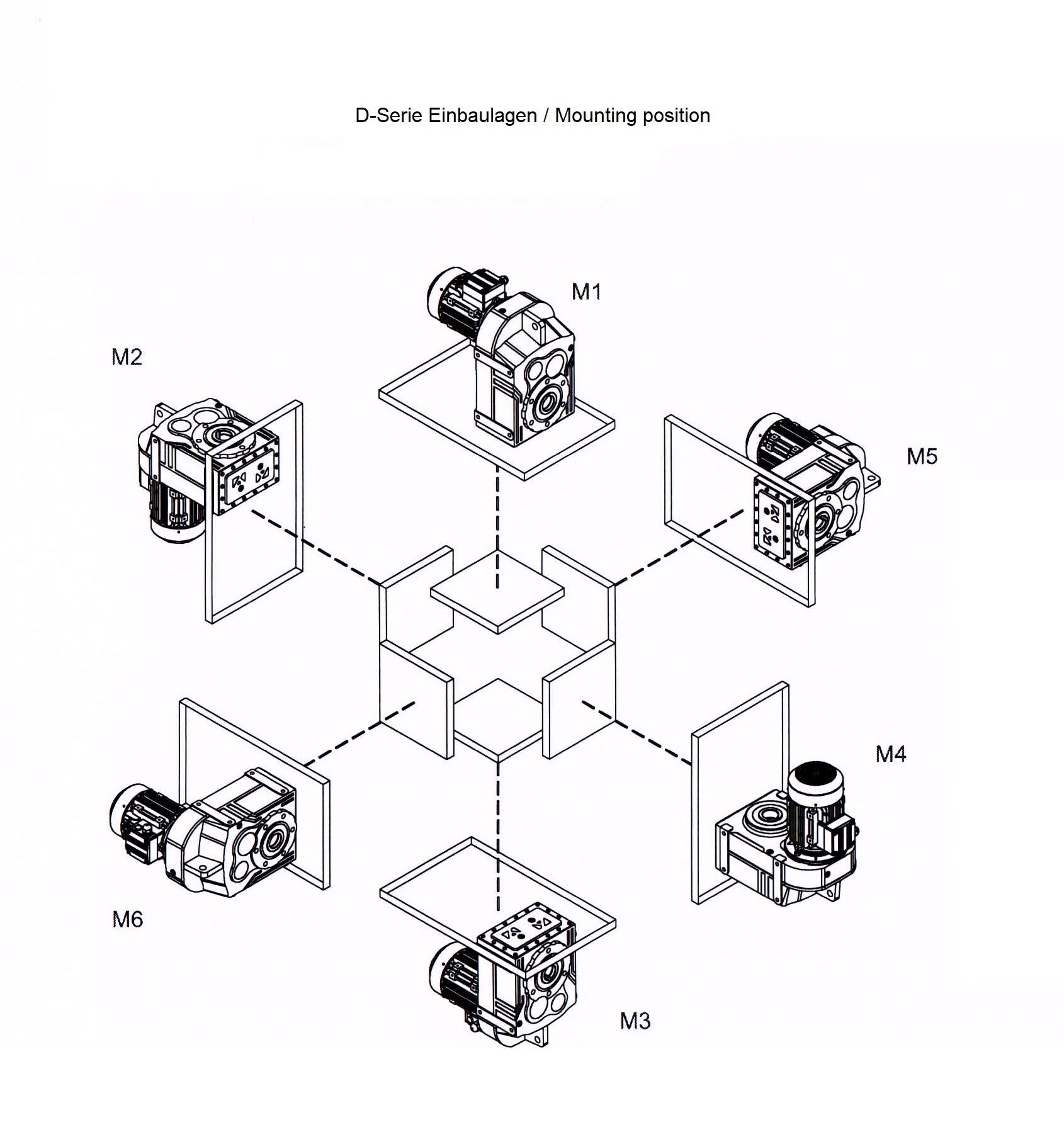

When ordering, please select the desired installation position + version.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
