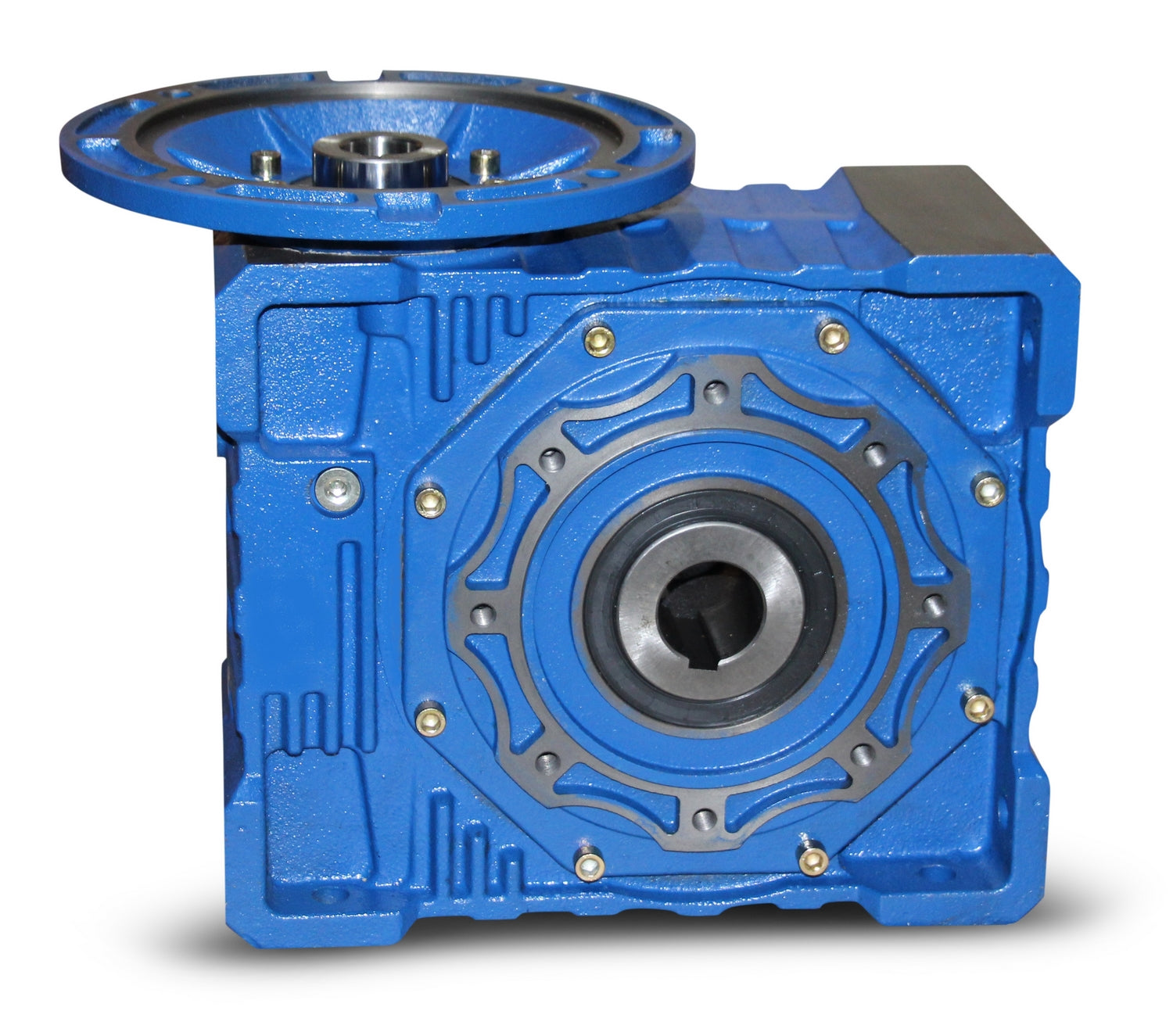

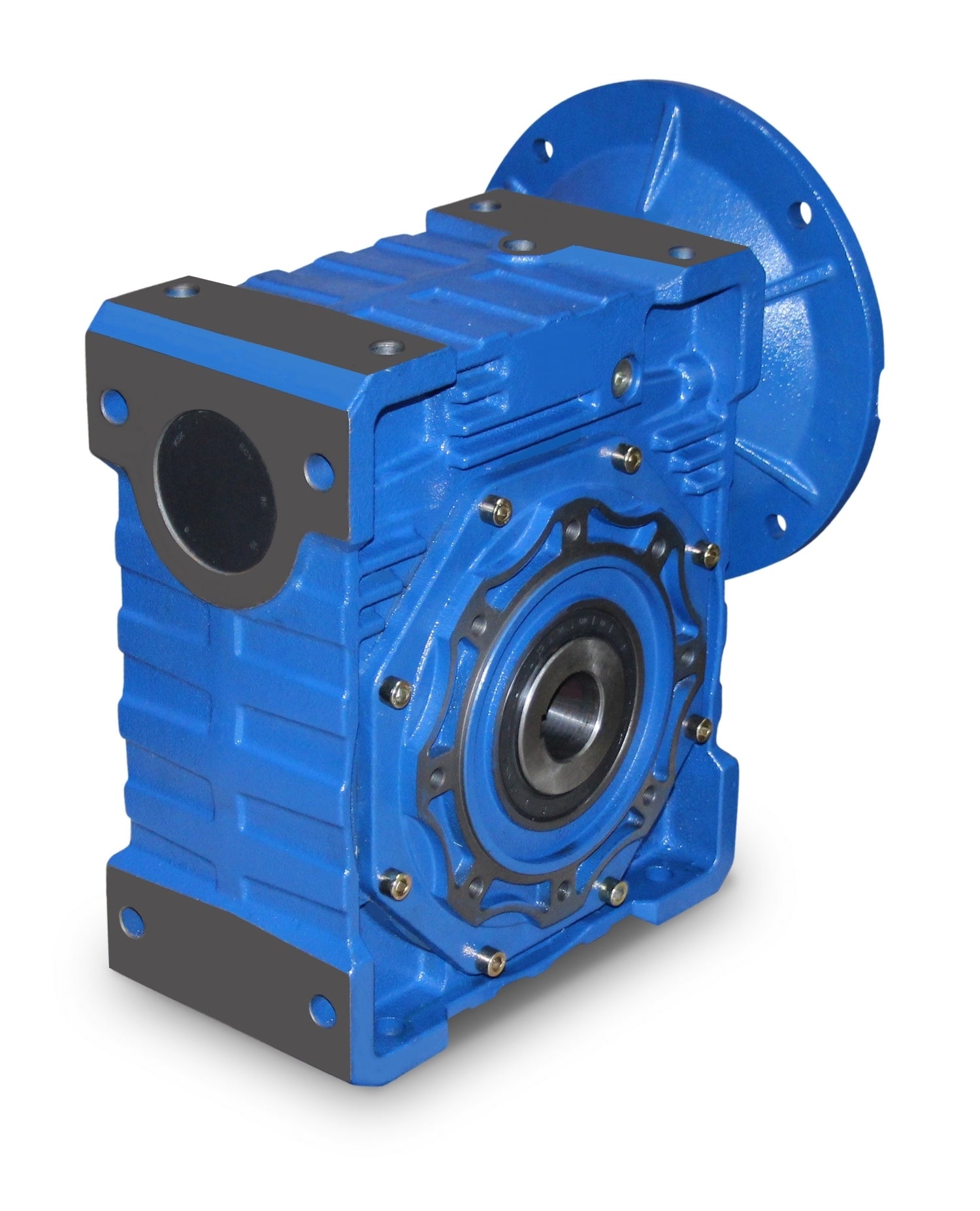

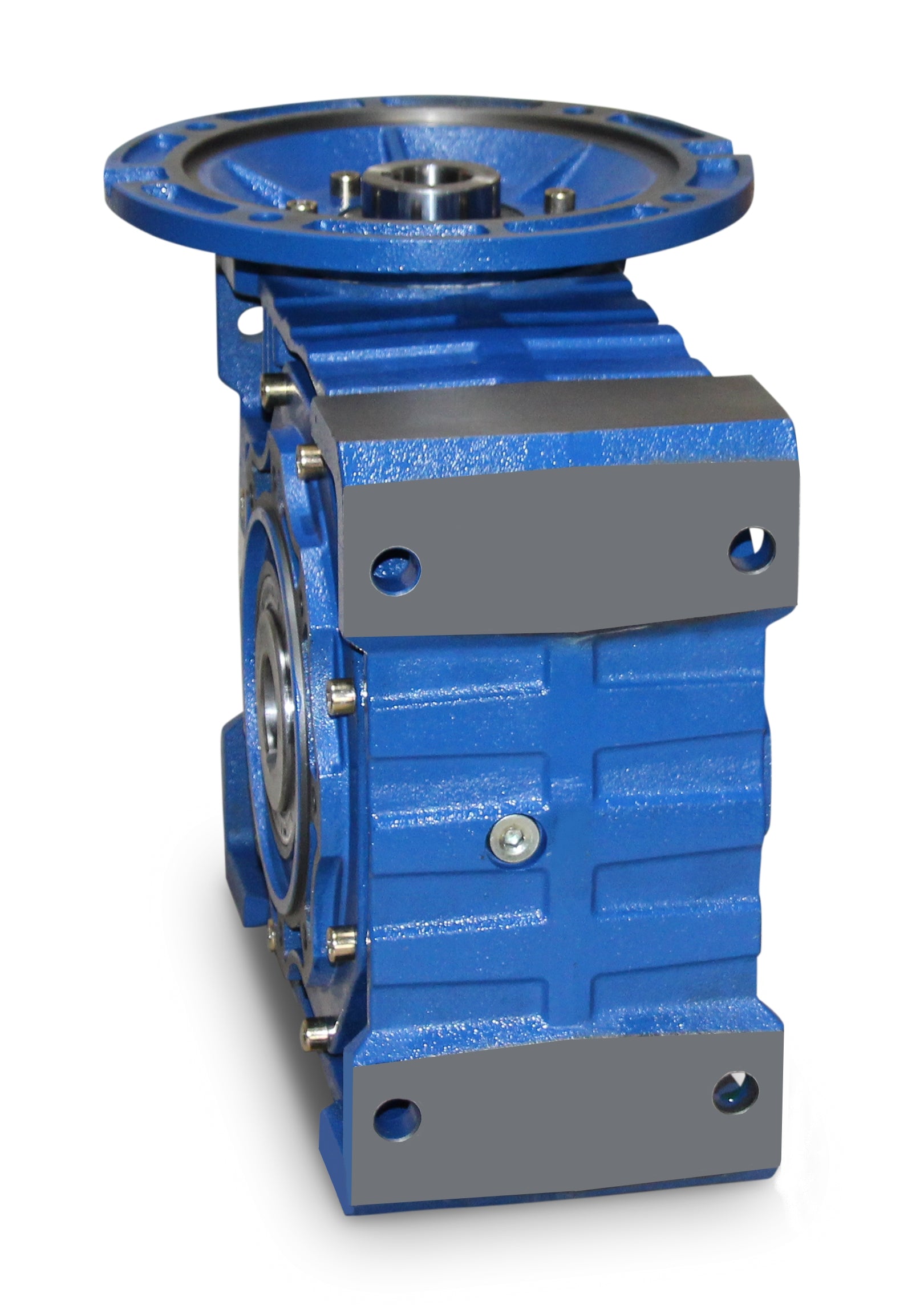

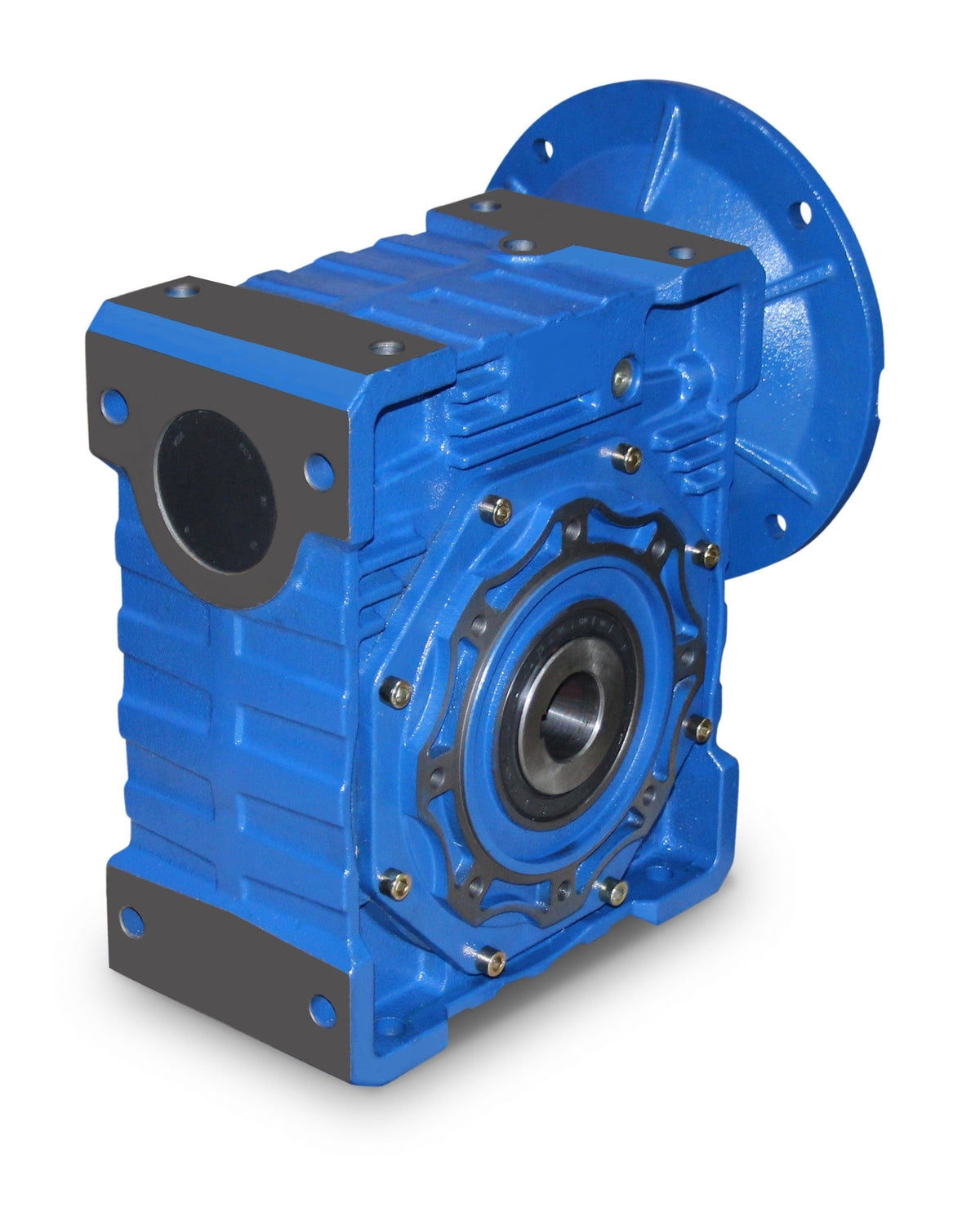

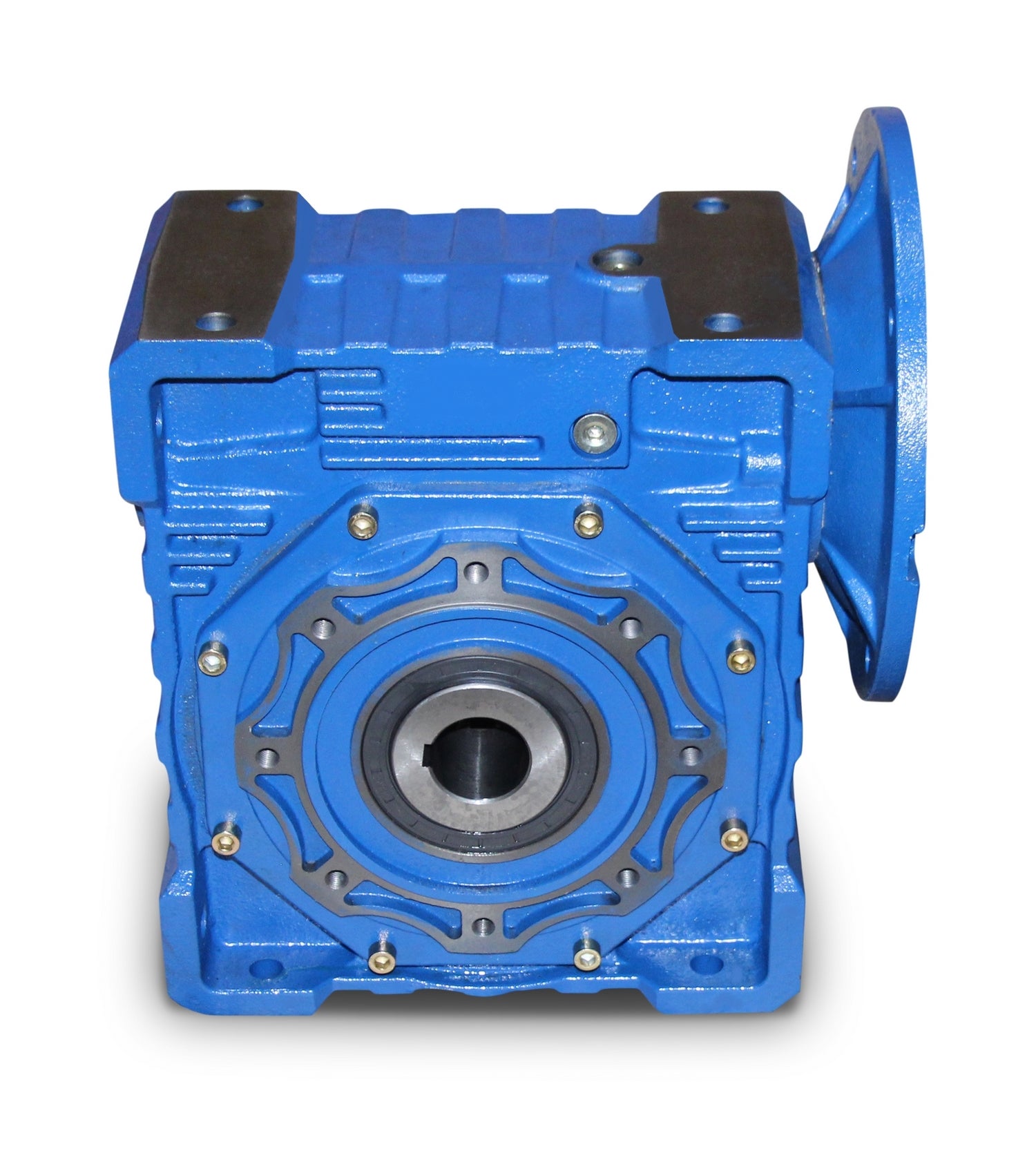

SEVA- CMRV110 IEC132 i=10 worm gear
SEVA- CMRV110 IEC132 i=10 worm gear
SEVA- CMRV110 IEC132 i=10 worm gear
SEVA- CMRV110 IEC132 i=10 worm gear
SEVA- CMRV110 IEC132 i=10 worm gear

SEVA- CMRV110 IEC132 i=10 worm gear

Key Features

  • Worm gear with IEC flange to the motor side, Ratio (i)= 10, hollow shaft= 42mm, IEC input hollow shaft= 38 x 80mm,
  • IEC input flange B14 = 200 x 130 x 165mm, suitable for motors of frame size 132 in B14
  • IEC input flange B5 = 300 x 230 x 655mm, suitable for motors of frame size 132 in B5
  • Weight = 35.0 kg, Color = RAL 5010 (gentian blue)
  • The gearbox can rotate in both directions
Downloads
Eigenschaften

Wird geladen …

Wird geladen …

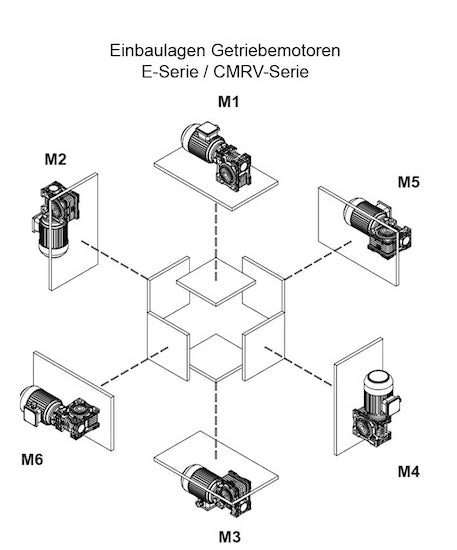

Installation position for geared motors: M1
IEC input flange: B14
€717,27 EUR
€717,27 EUR

* plus VAT plus shipping costs

SKU: CSG11010130M1

Payment Methods

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Visa

Accesories

Wird geladen...
Description
Description
x

Worm gear with IEC flange to the motor side,

Ratio (i)= 10, hollow shaft= 42mm, IEC input hollow shaft= 38 x 80mm,

IEC input flange B14 = 200 x 130 x 165mm, suitable for motors of frame size 132 in B14

IEC input flange B5 = 300 x 230 x 655mm, suitable for motors of frame size 132 in B5

Weight = 35.0 kg, Color = RAL 5010 (gentian blue). The gearbox can rotate in both directions

operated and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.

When ordering, please select the desired installation position!
