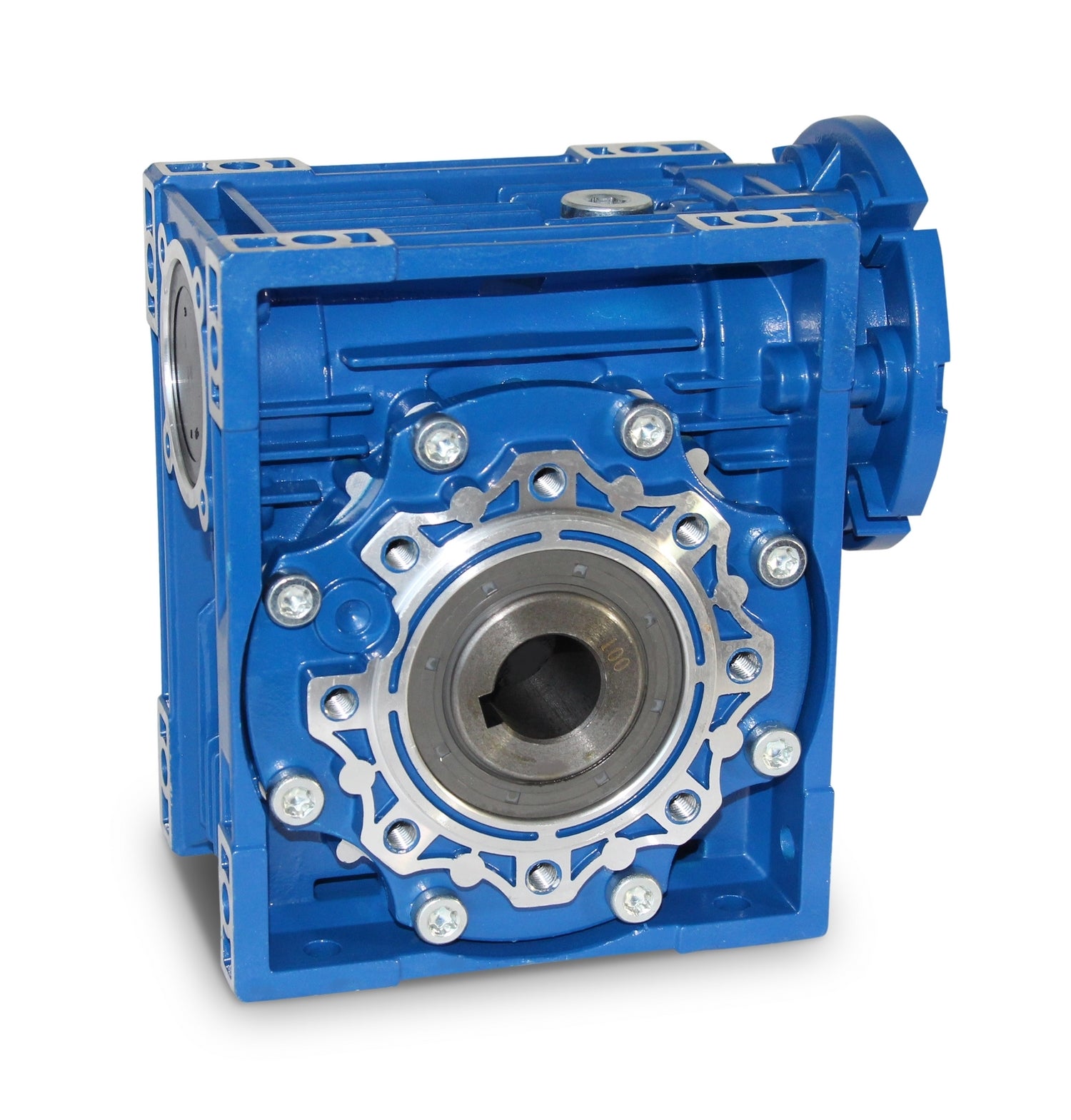

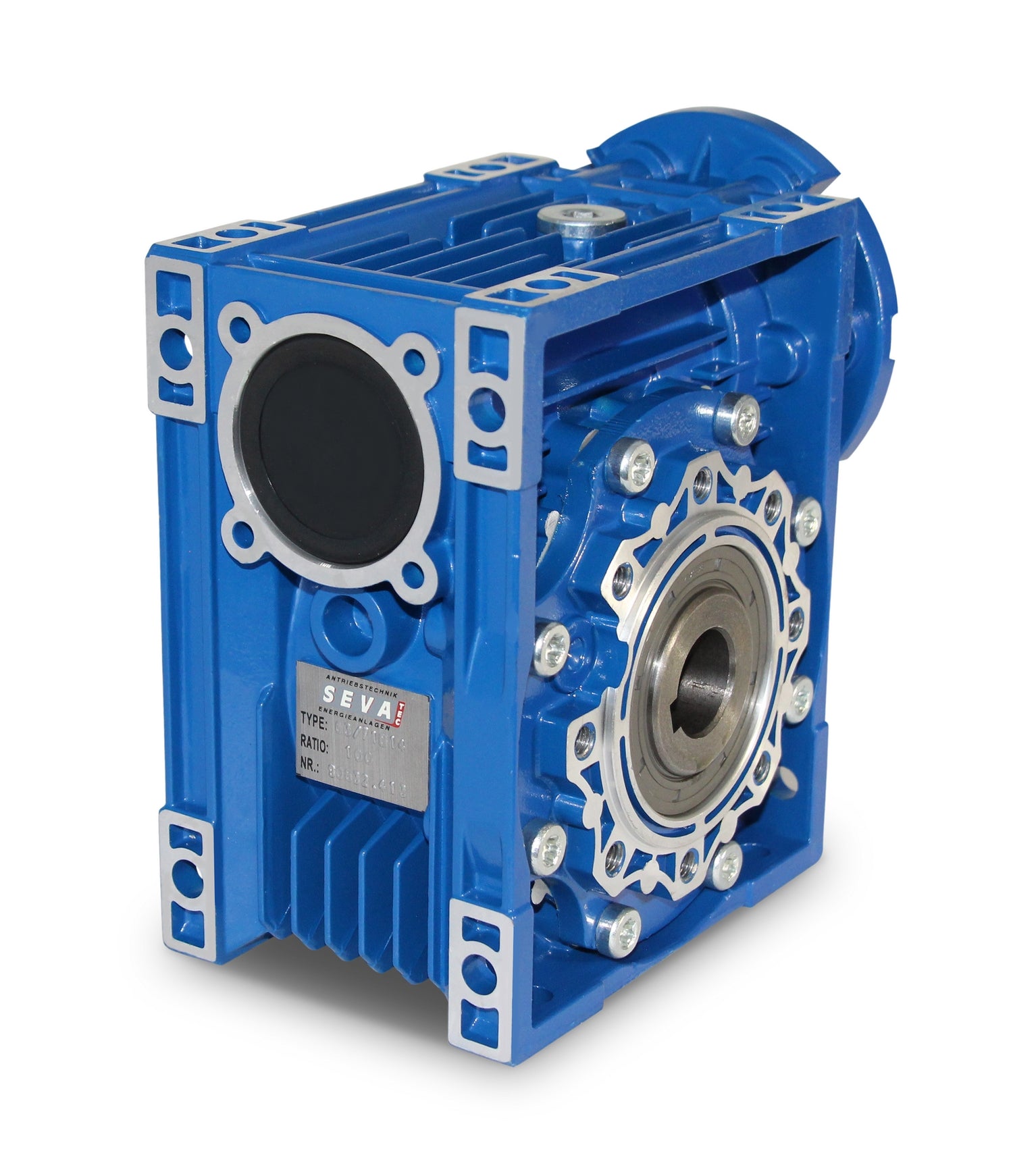

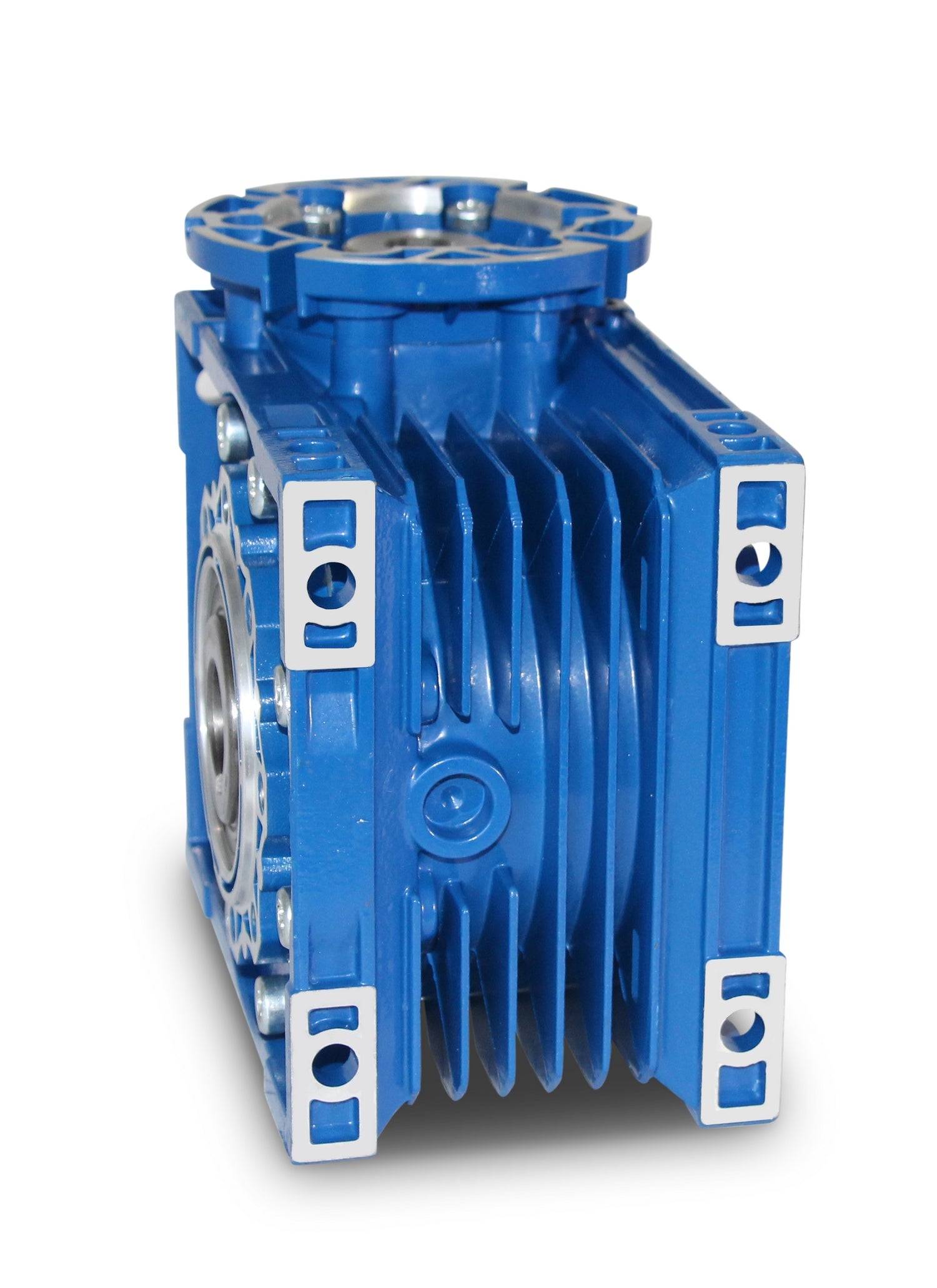

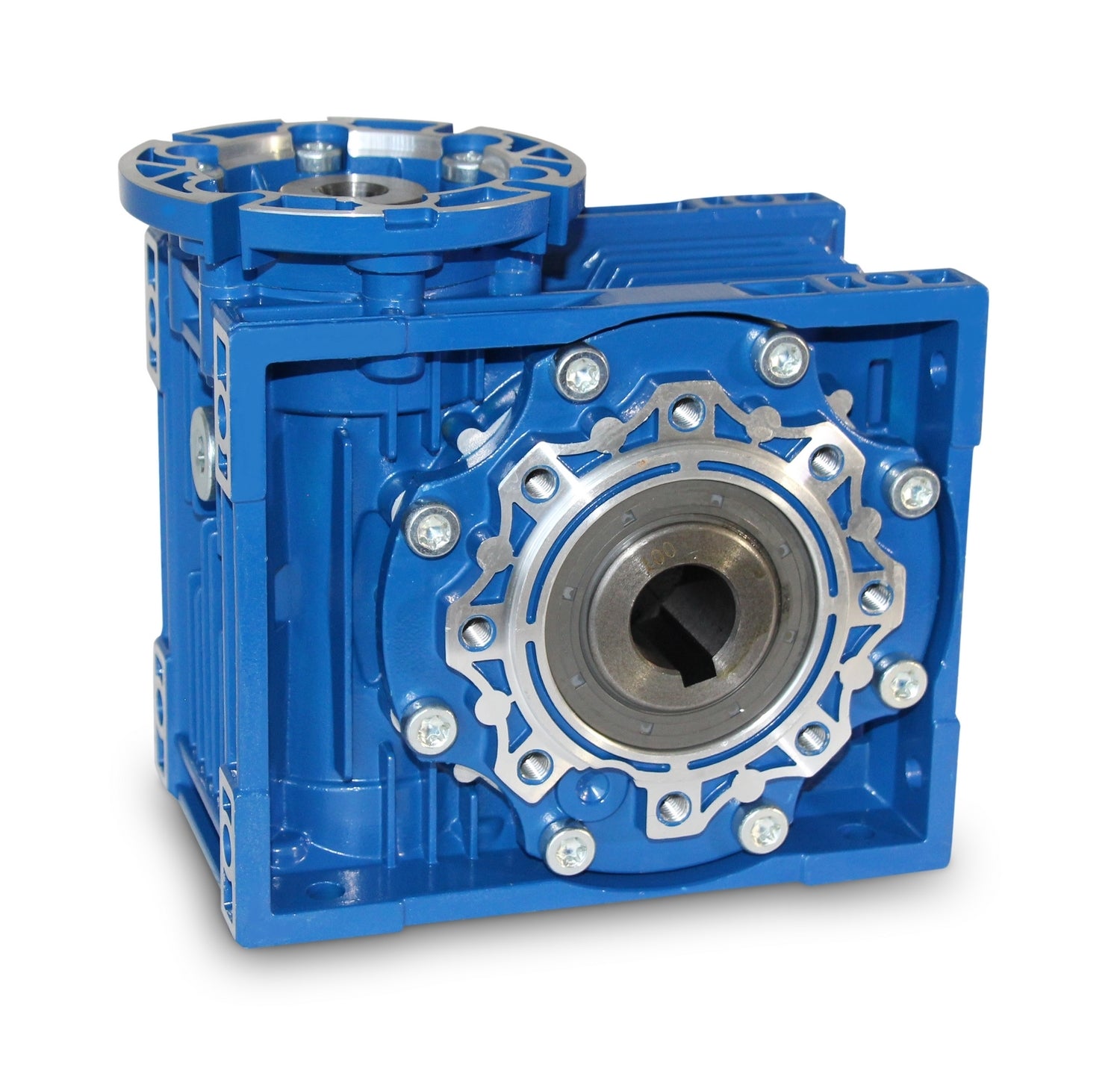

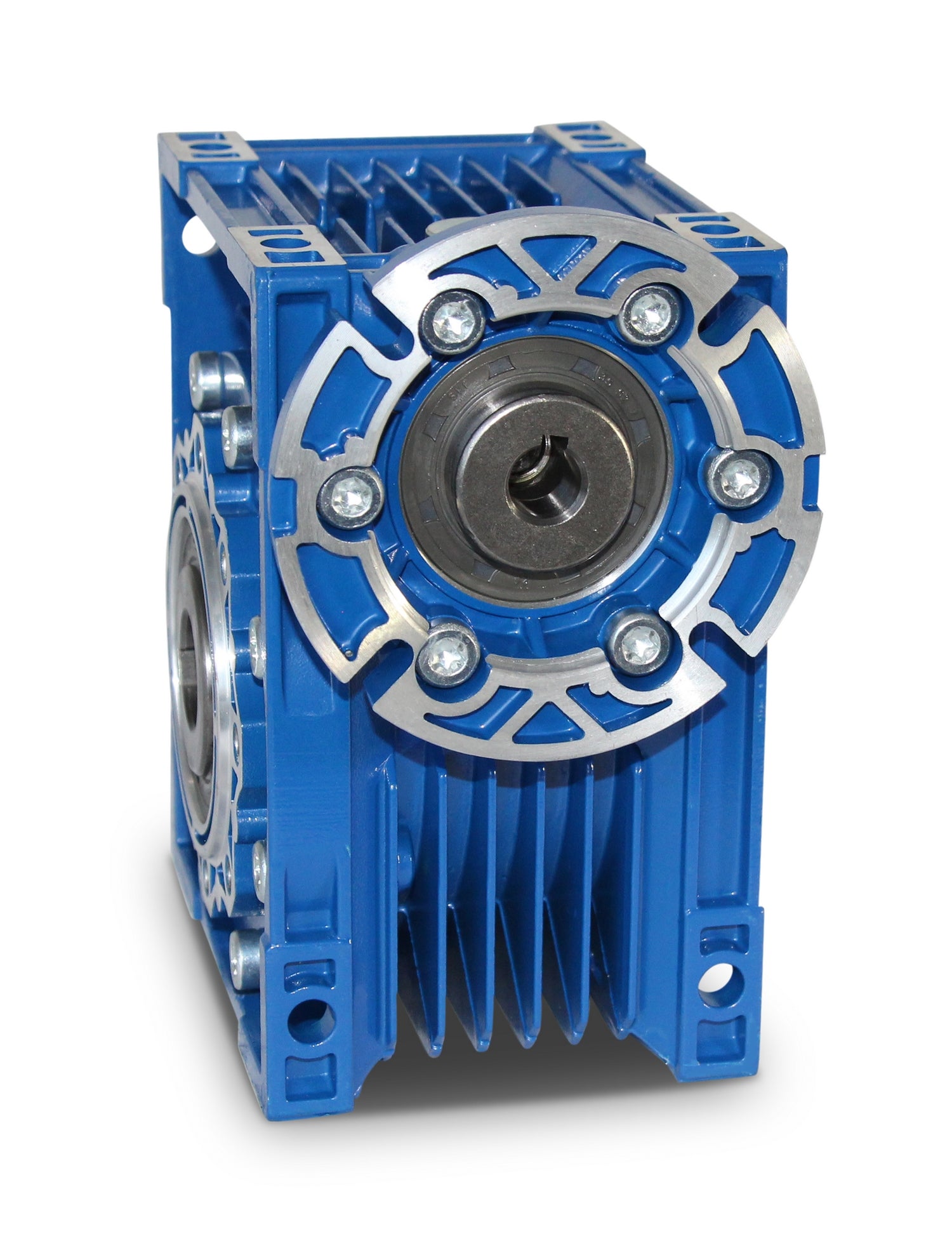

SEVA- CMRV075 IEC80 i=60 worm gear

Worm gear with IEC flange to the motor side,

Ratio (i)= 60, hollow shaft= 28mm, IEC input hollow shaft= 19 x 40mm,

IEC input flange B14 = 120 x 80 x 100mm, suitable for motors of frame size 80 in B14

IEC input flange B5 = 200 x 130 x 165mm, suitable for motors of frame size 80 in B5

Weight = 9.0 kg, Color = RAL 5010 (gentian blue). The gearbox can be used in both directions of rotation

operated and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.
