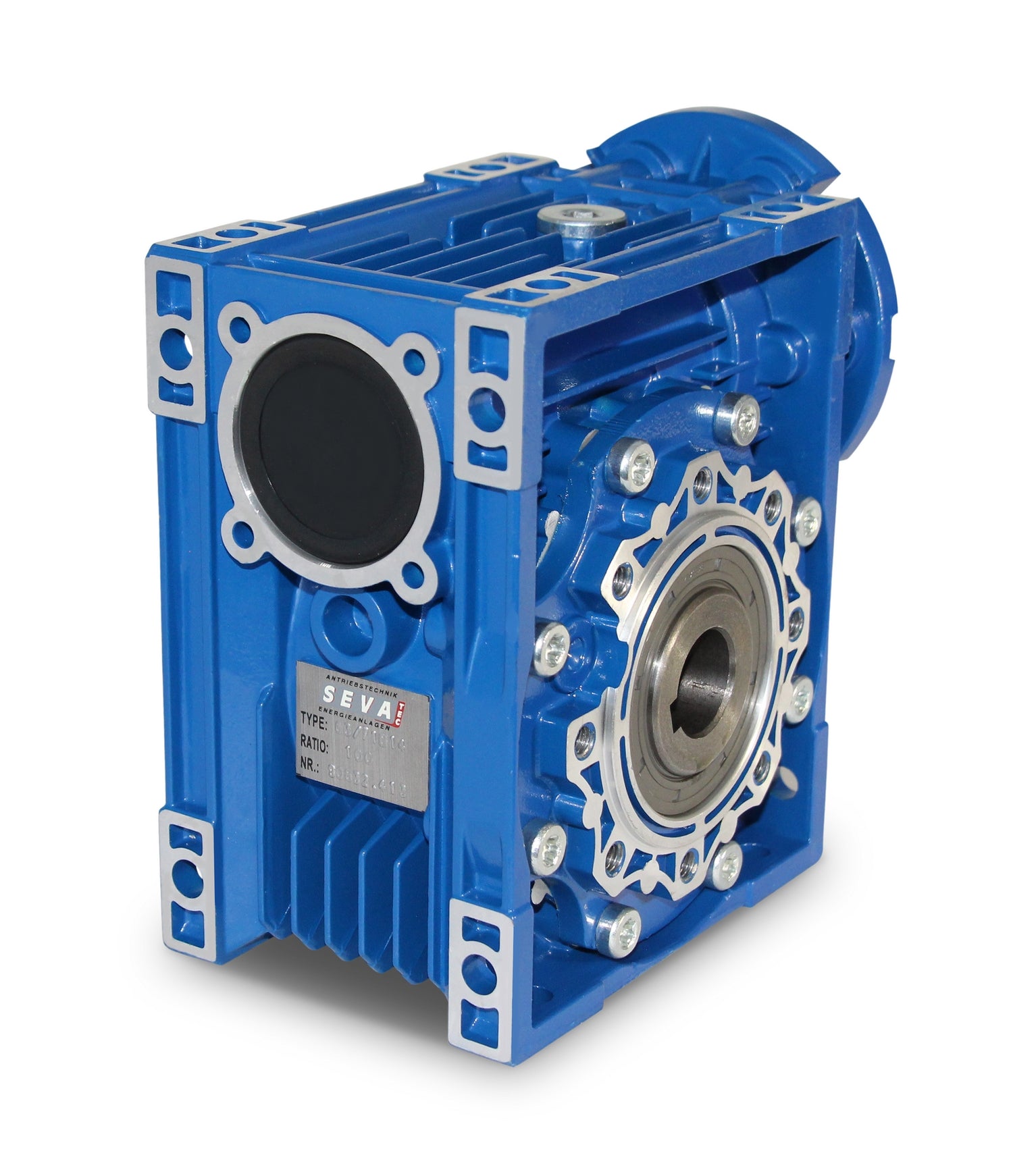

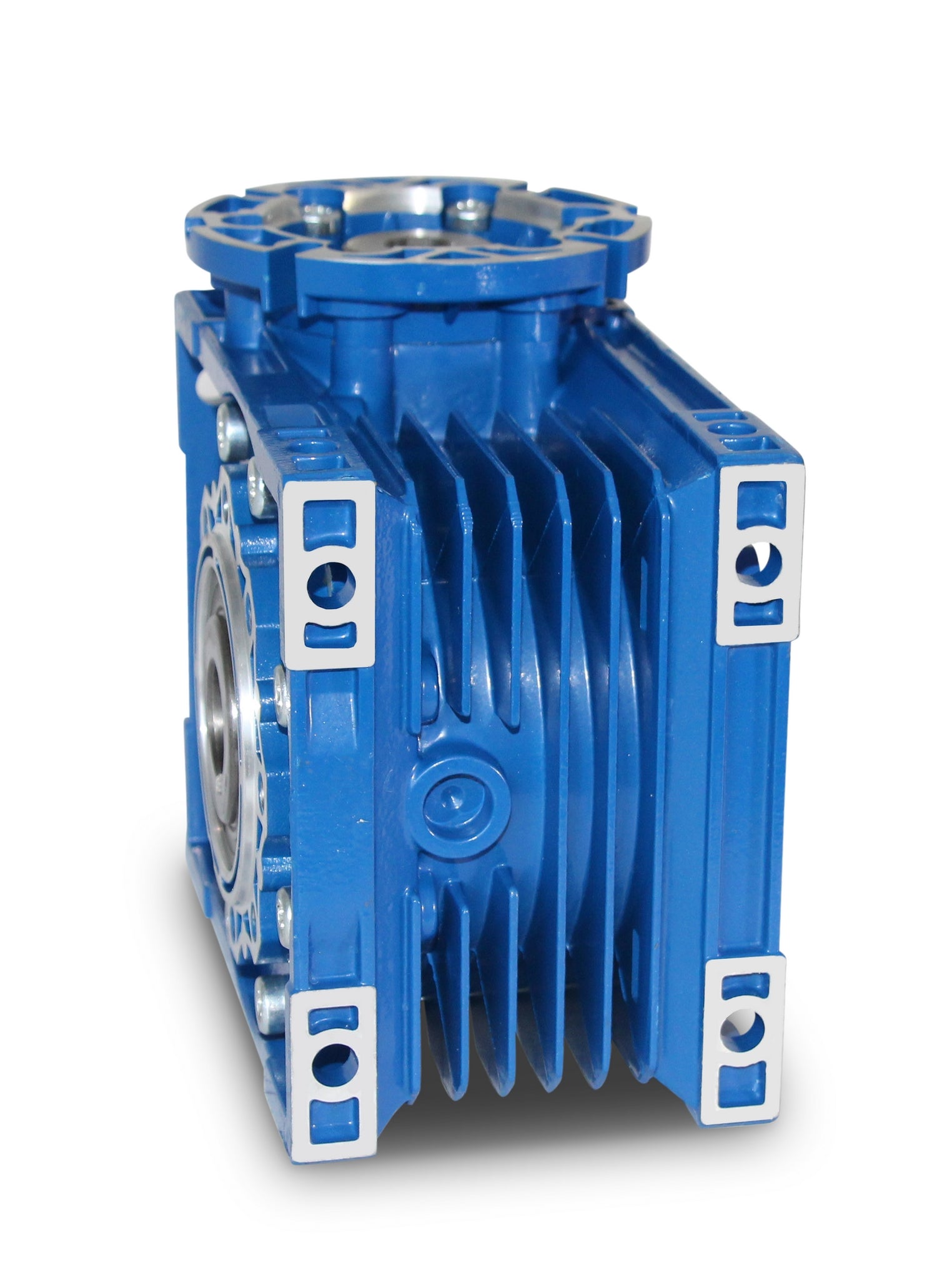

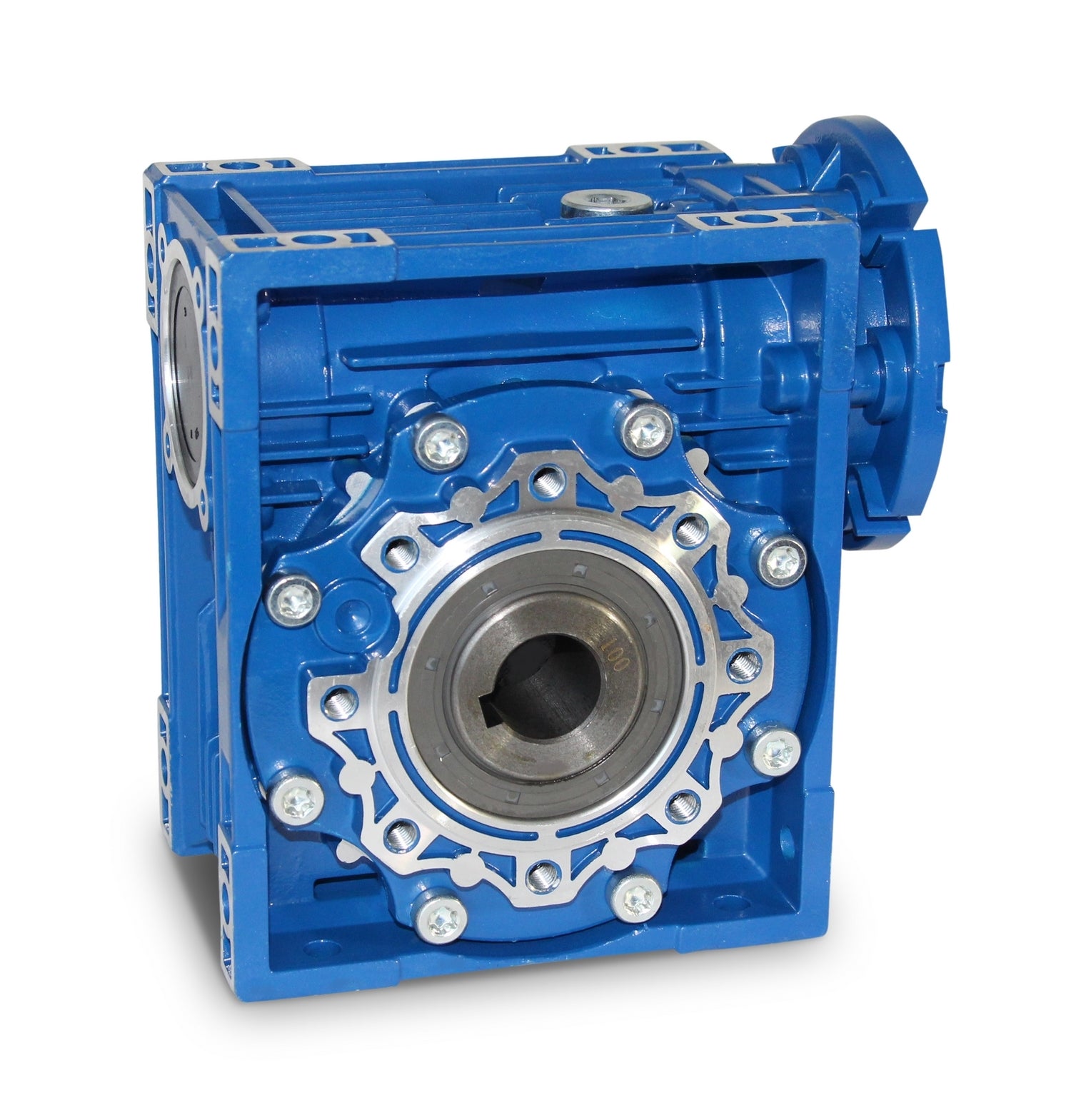

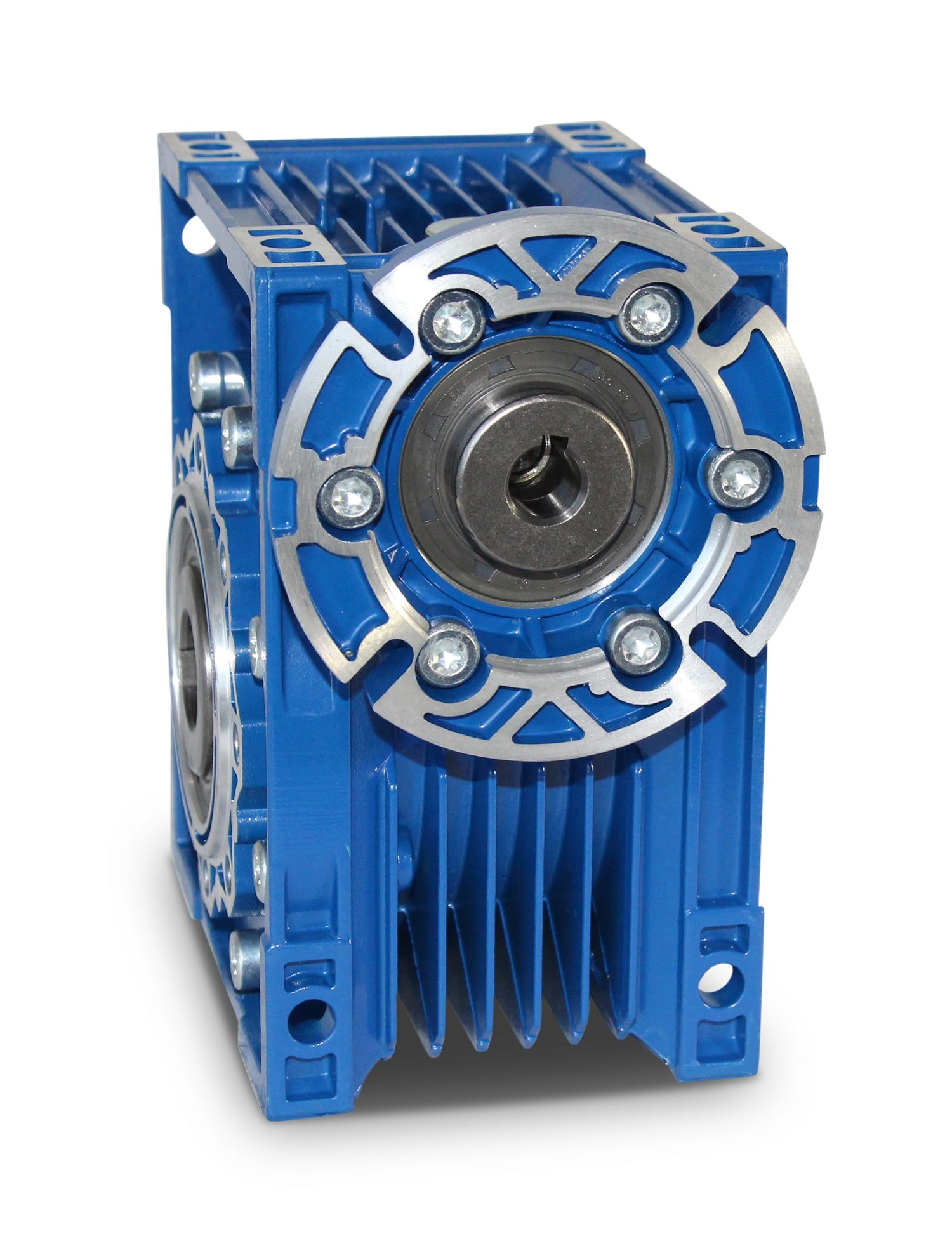

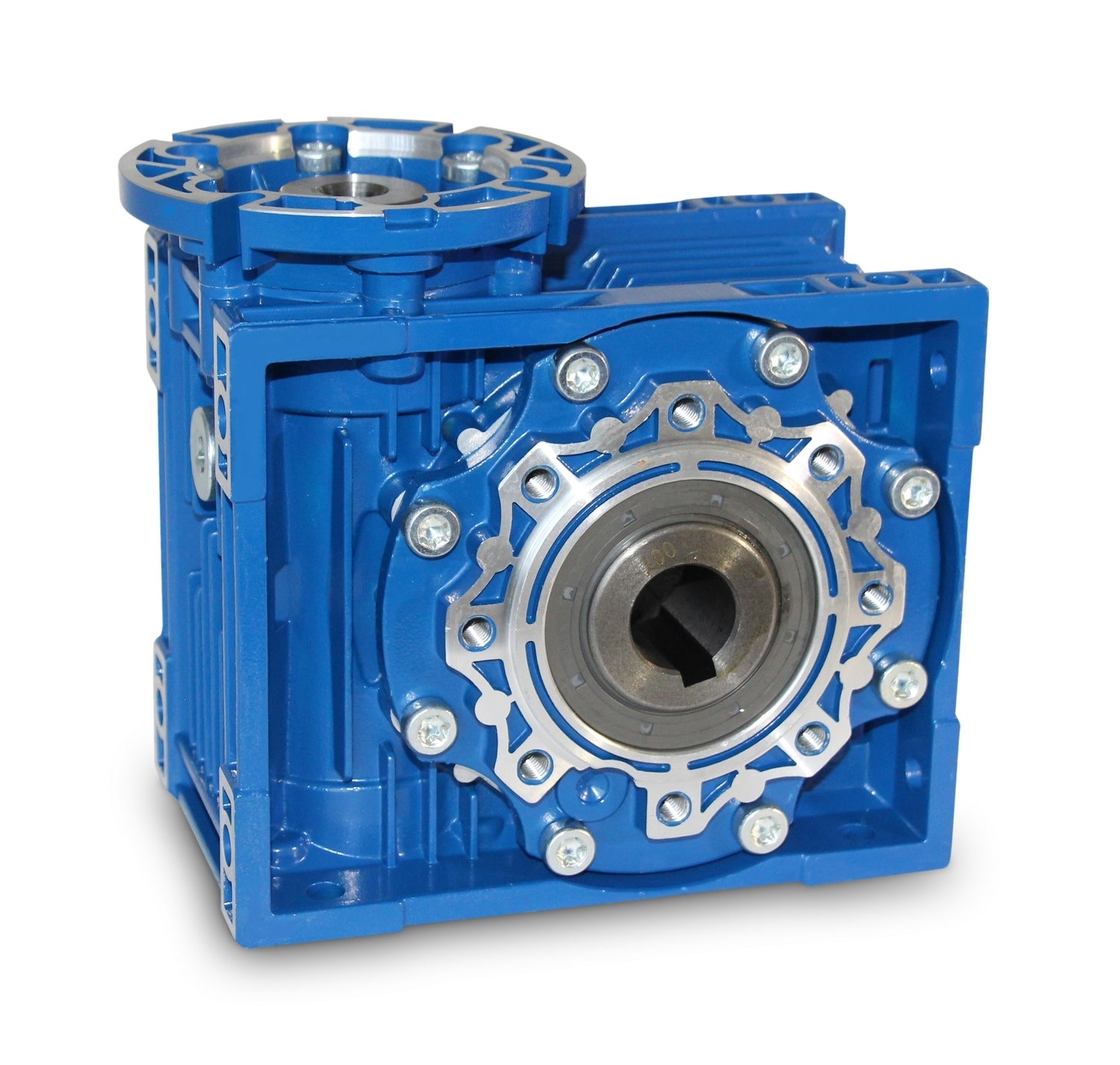

SEVA- CMRV075 IEC100/112 i=10 worm gear

Worm gear with IEC flange to the motor side,

Ratio (i)= 10, Hollow shaft= 28mm, IEC input hollow shaft= 28 x 60mm,

IEC input flange B14 = 160 x 110 x 130mm, suitable for motors of size 100/112 in B14

IEC input flange B5 = 250 x 180 x 215mm, suitable for motors of frame size 100/112 in B5

Weight = 9.0 kg, Color = RAL 5010 (gentian blue). The gearbox can be used in both directions of rotation

operated and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.
