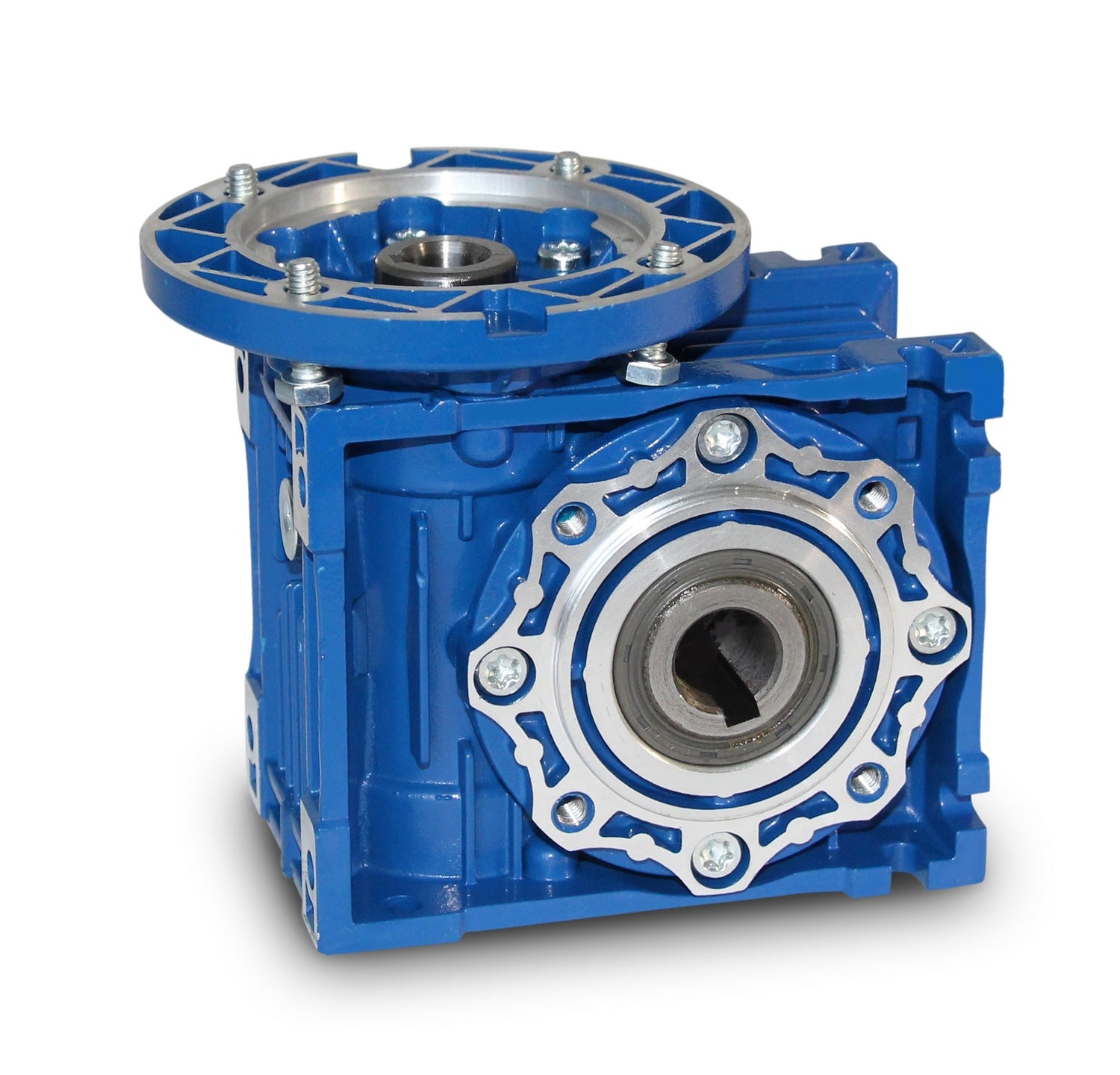

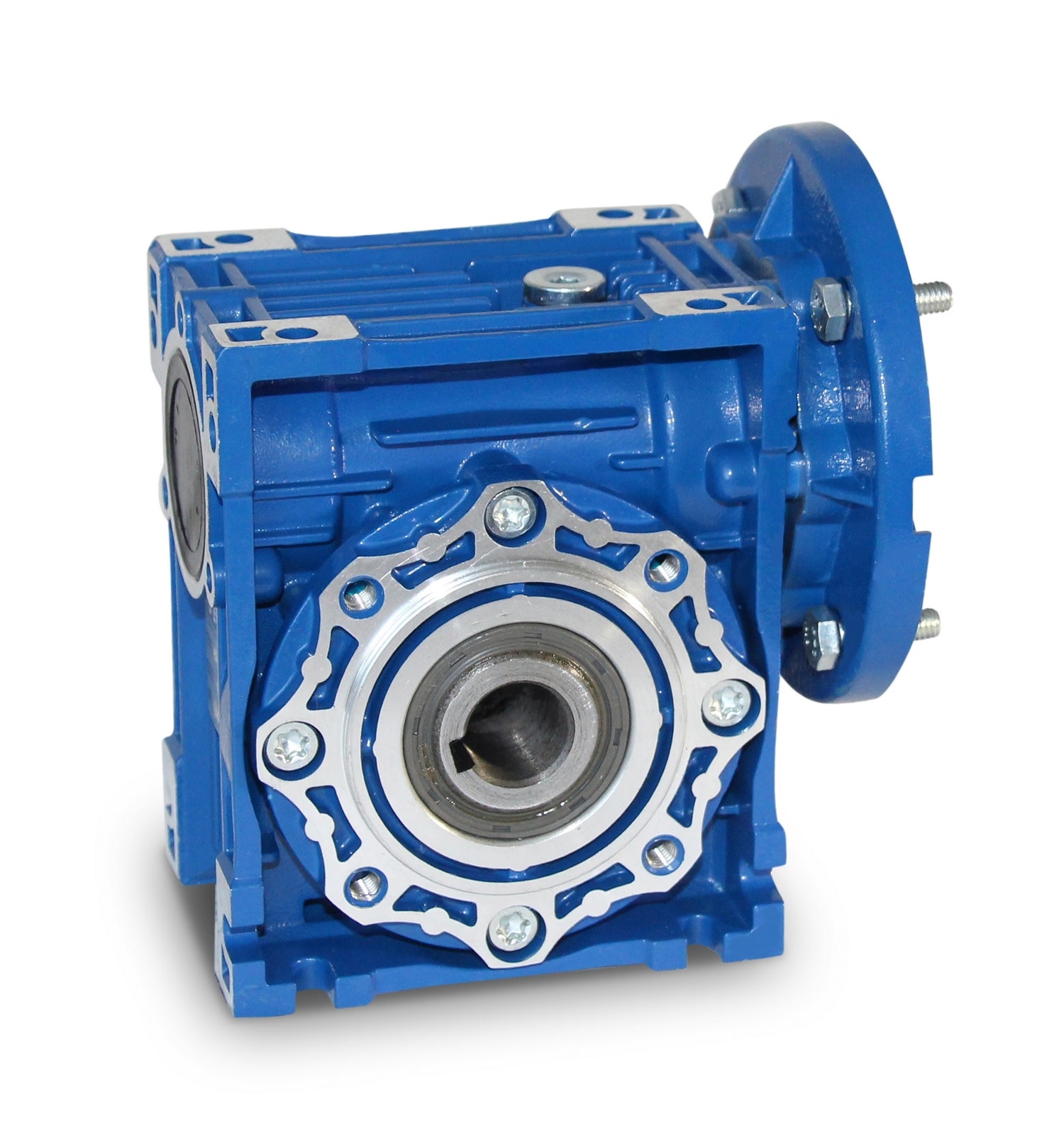

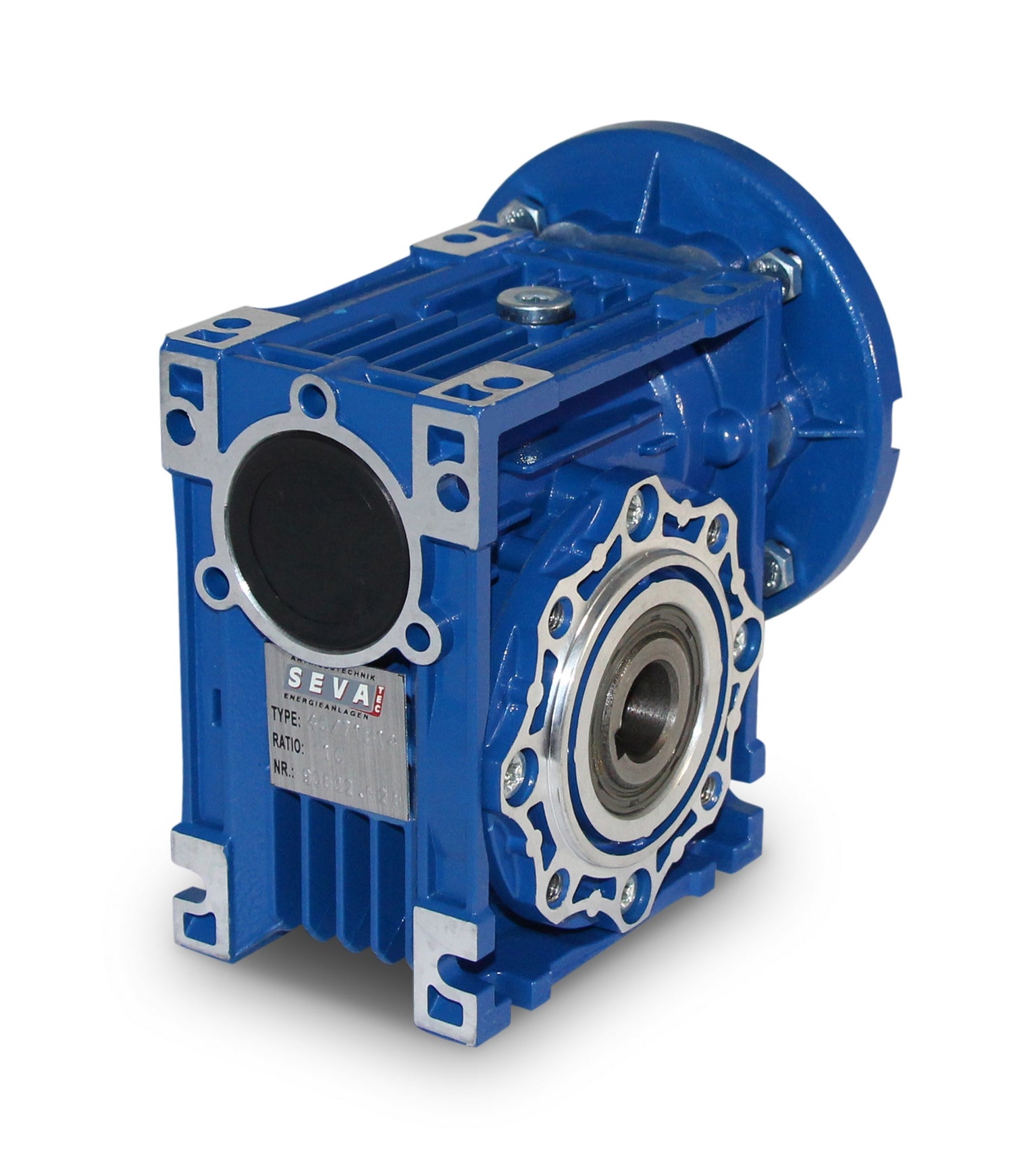

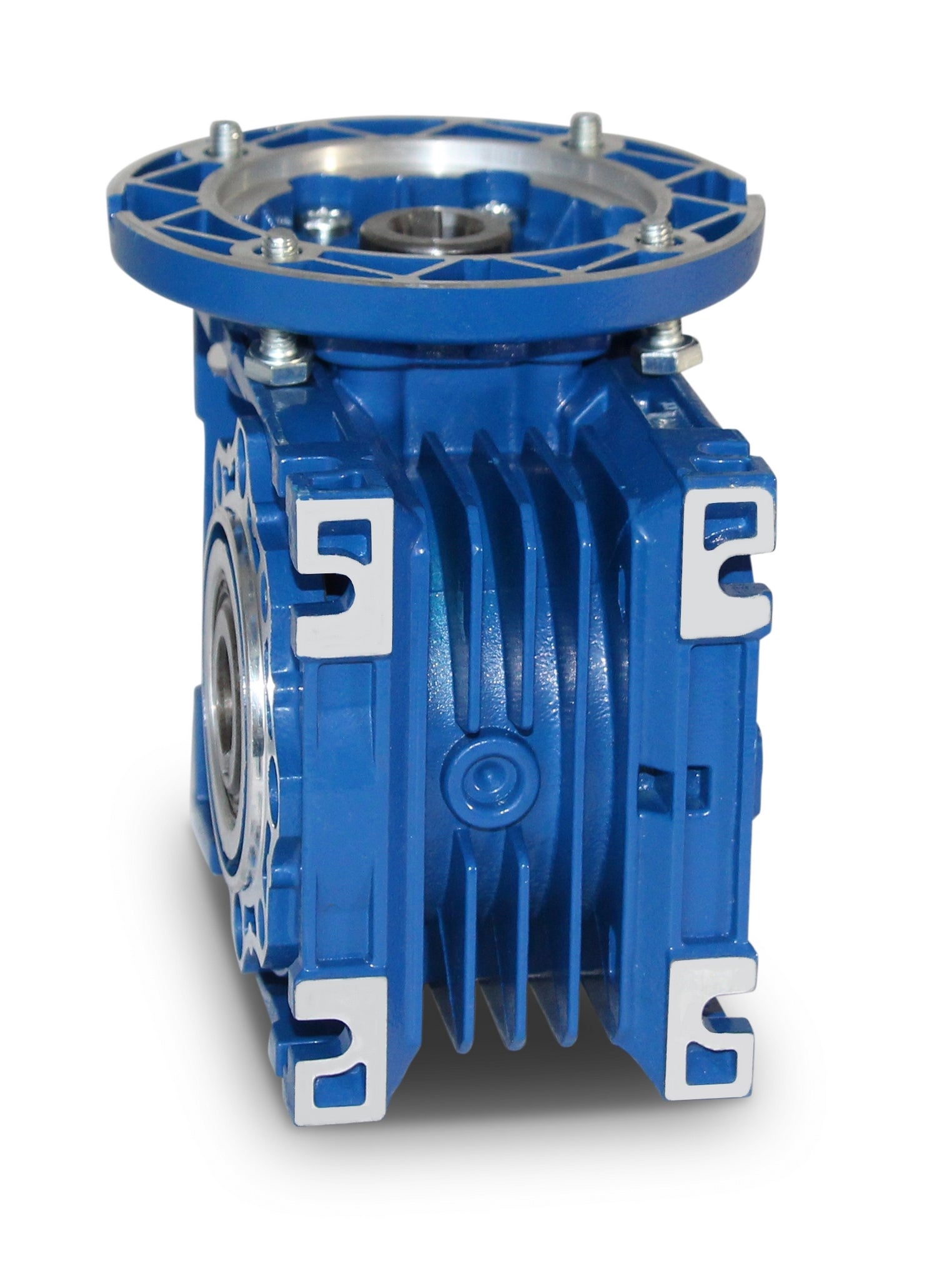

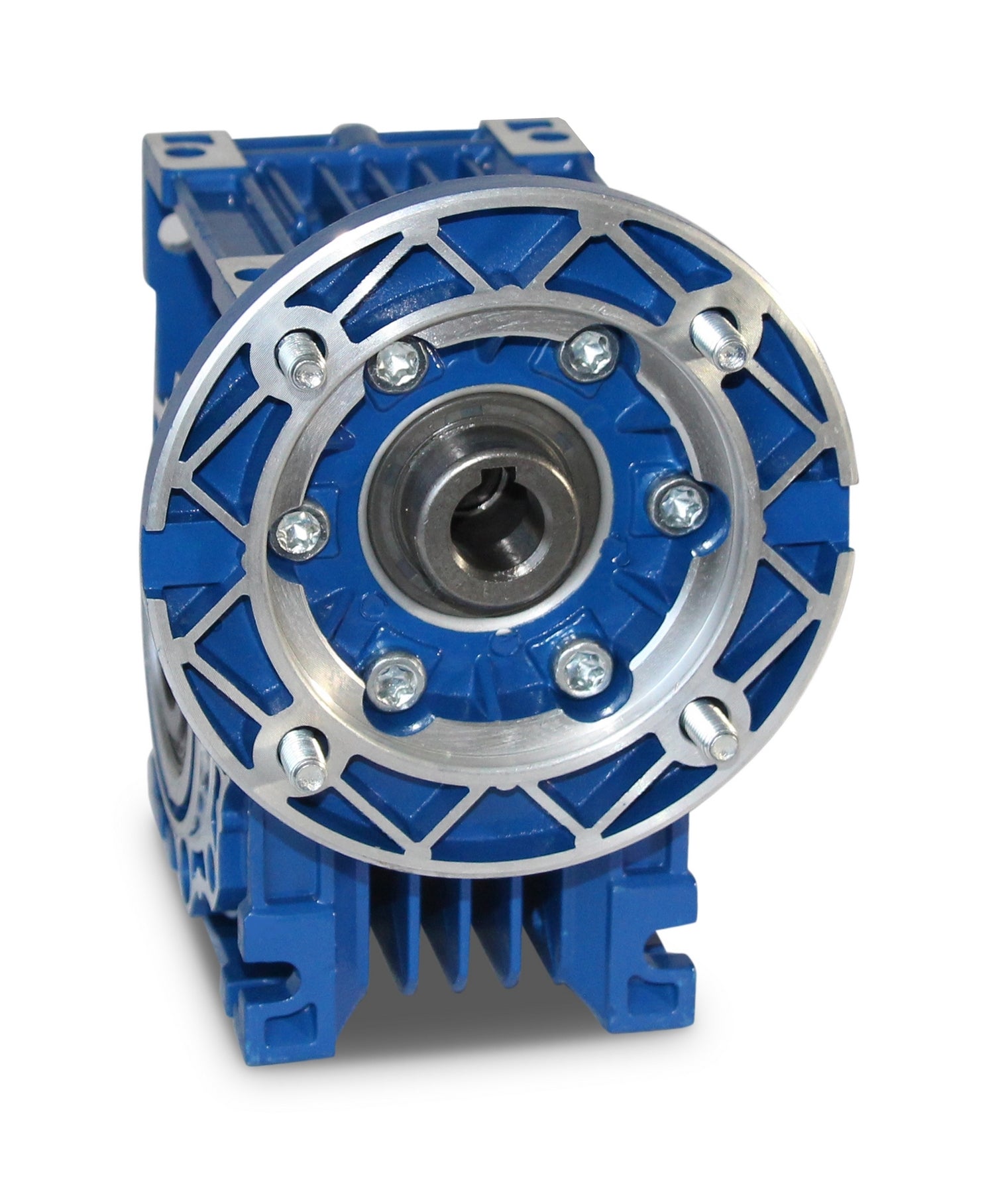

SEVA- CMRV030 IEC56 i=80 worm gear

Worm gear with IEC flange to the motor side,

Ratio (i)= 80, hollow shaft= 14mm, IEC input hollow shaft= 9 x 20mm,

IEC input flange B14 = 80 x 50 x 65mm, suitable for motors of frame size 56 in B14

IEC input flange B5 = 120 x 80 x 100mm, suitable for motors of frame size 56 in B5

Weight = 1.0 kg, Color = RAL 5010 (gentian blue). The gearbox can be used in both directions of rotation

operated and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.
