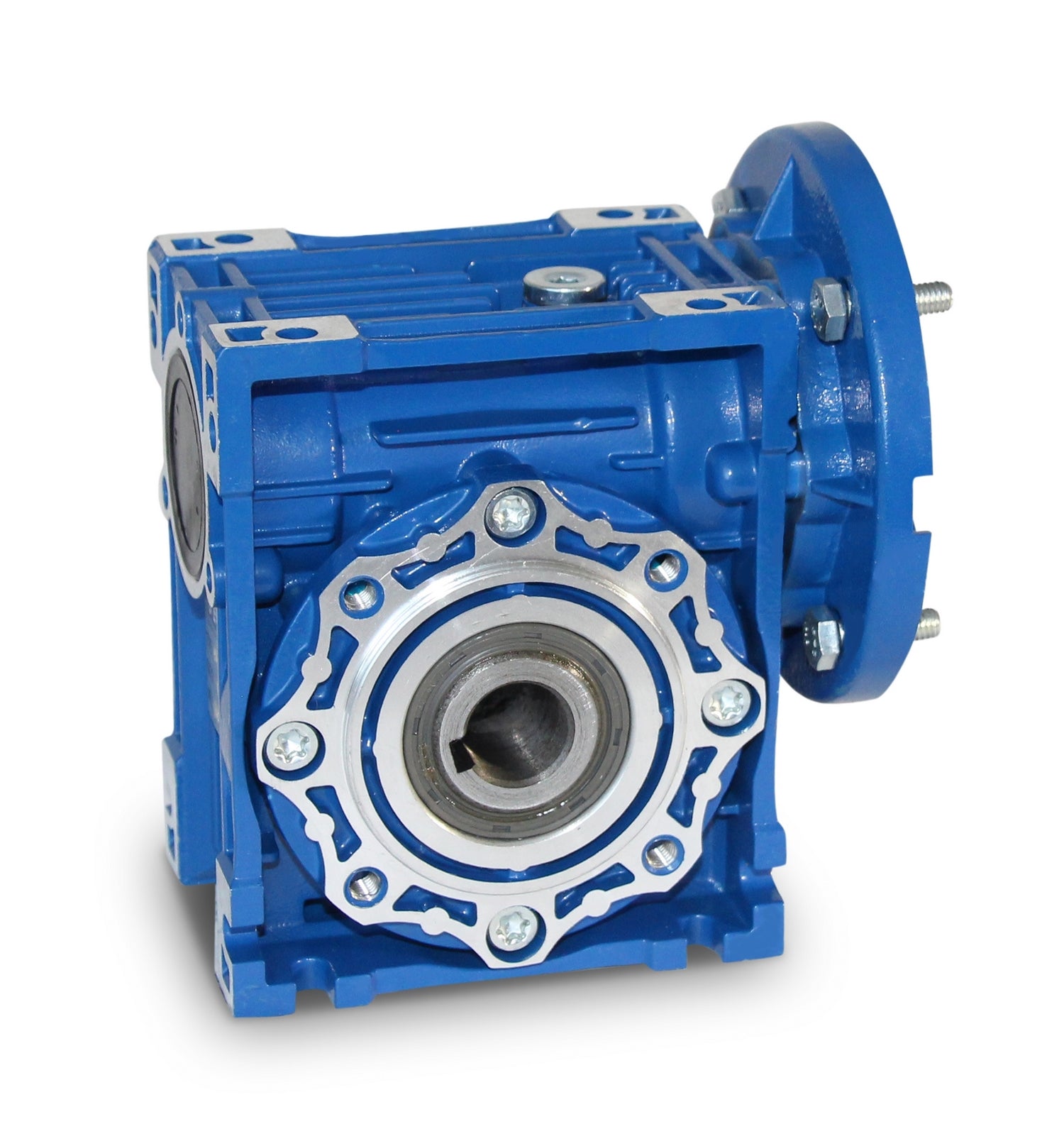

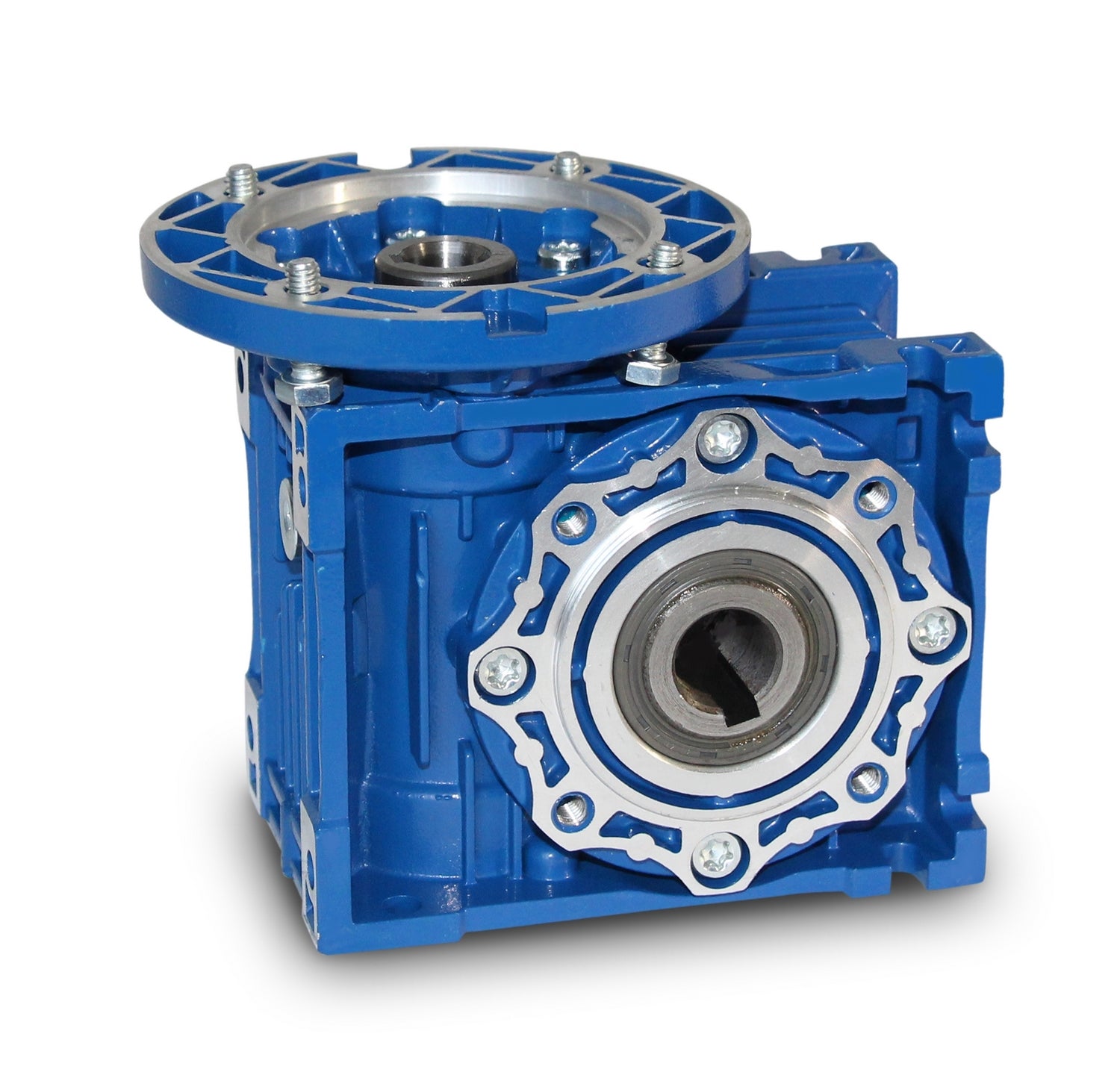

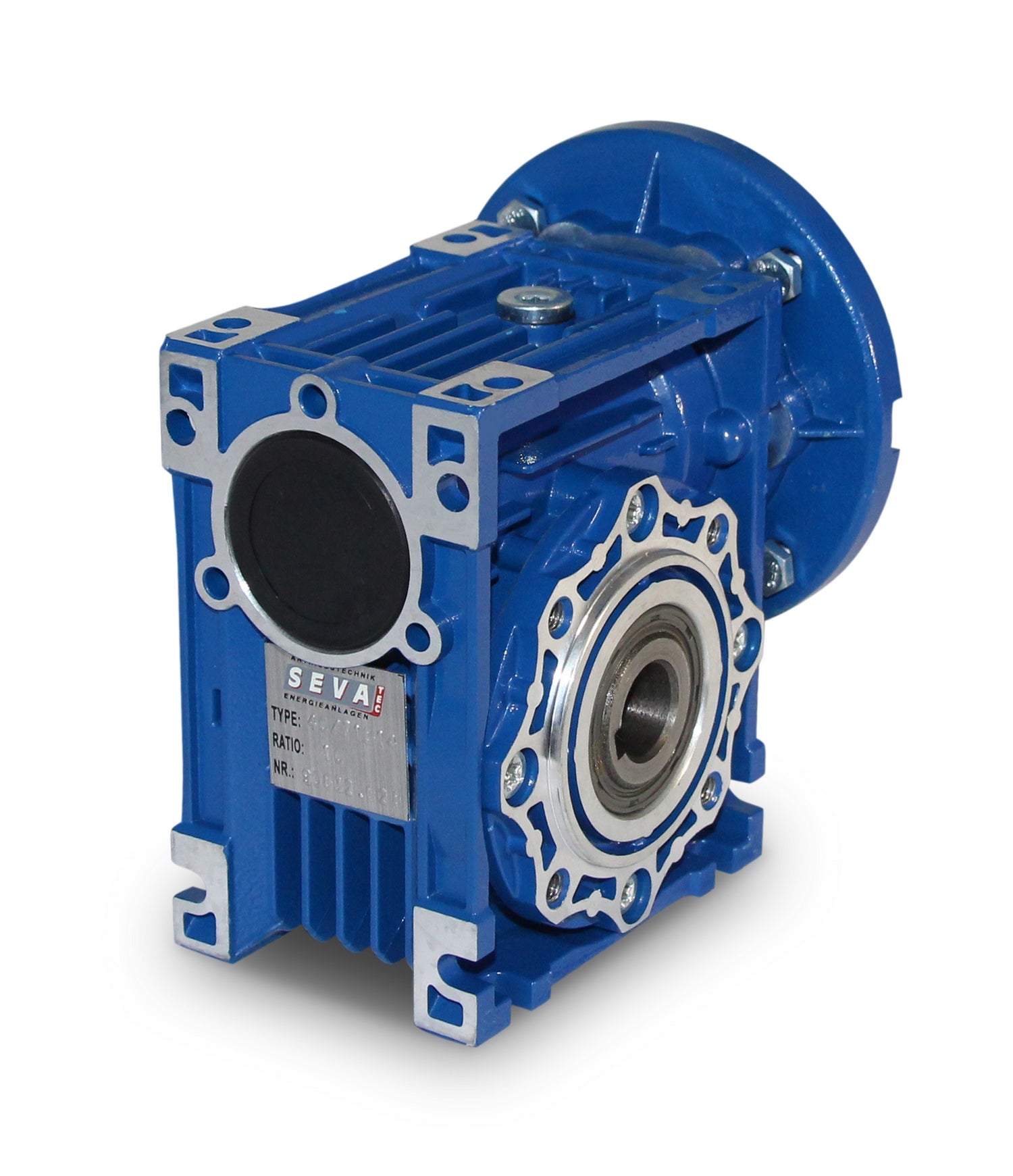

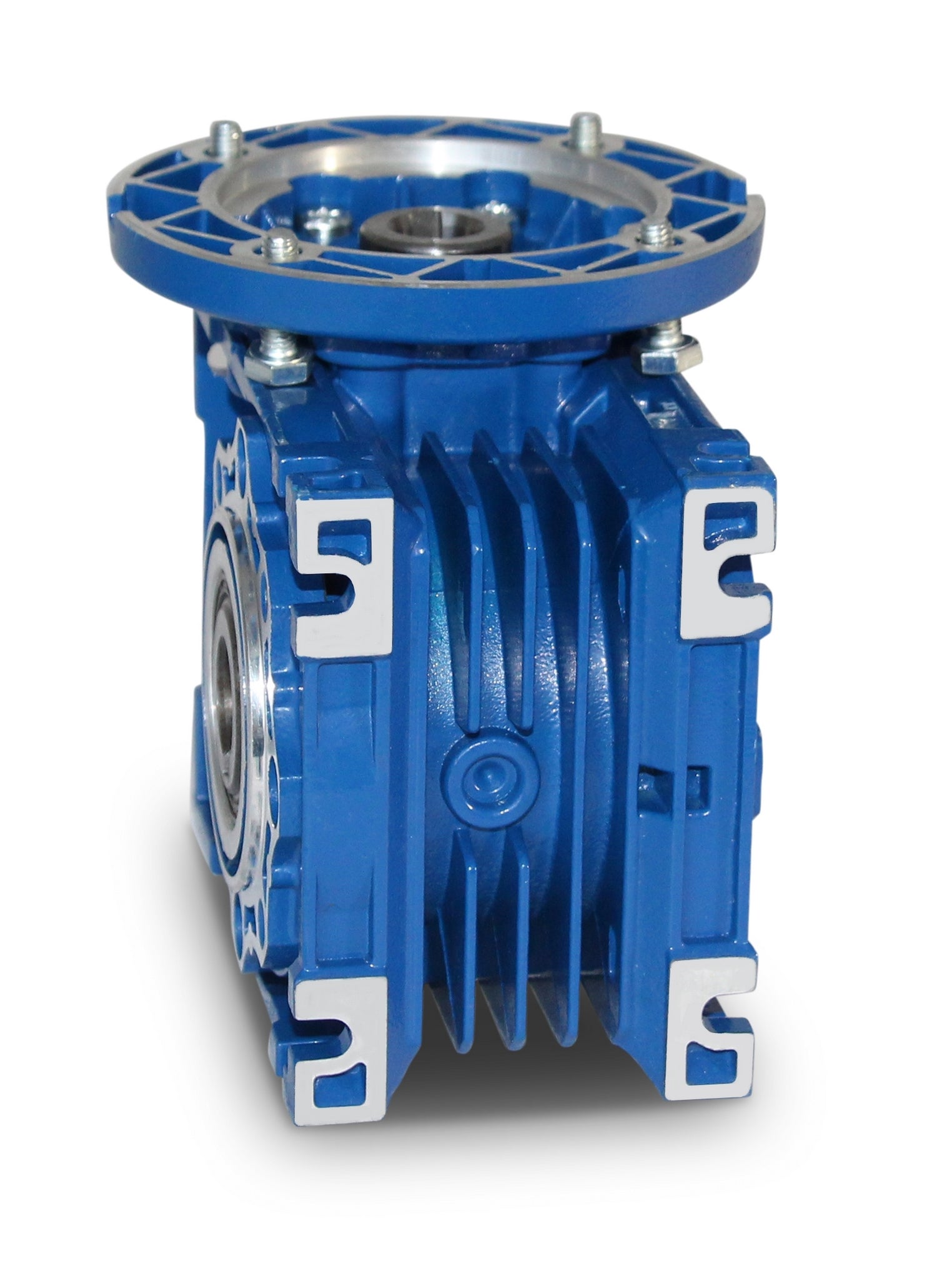

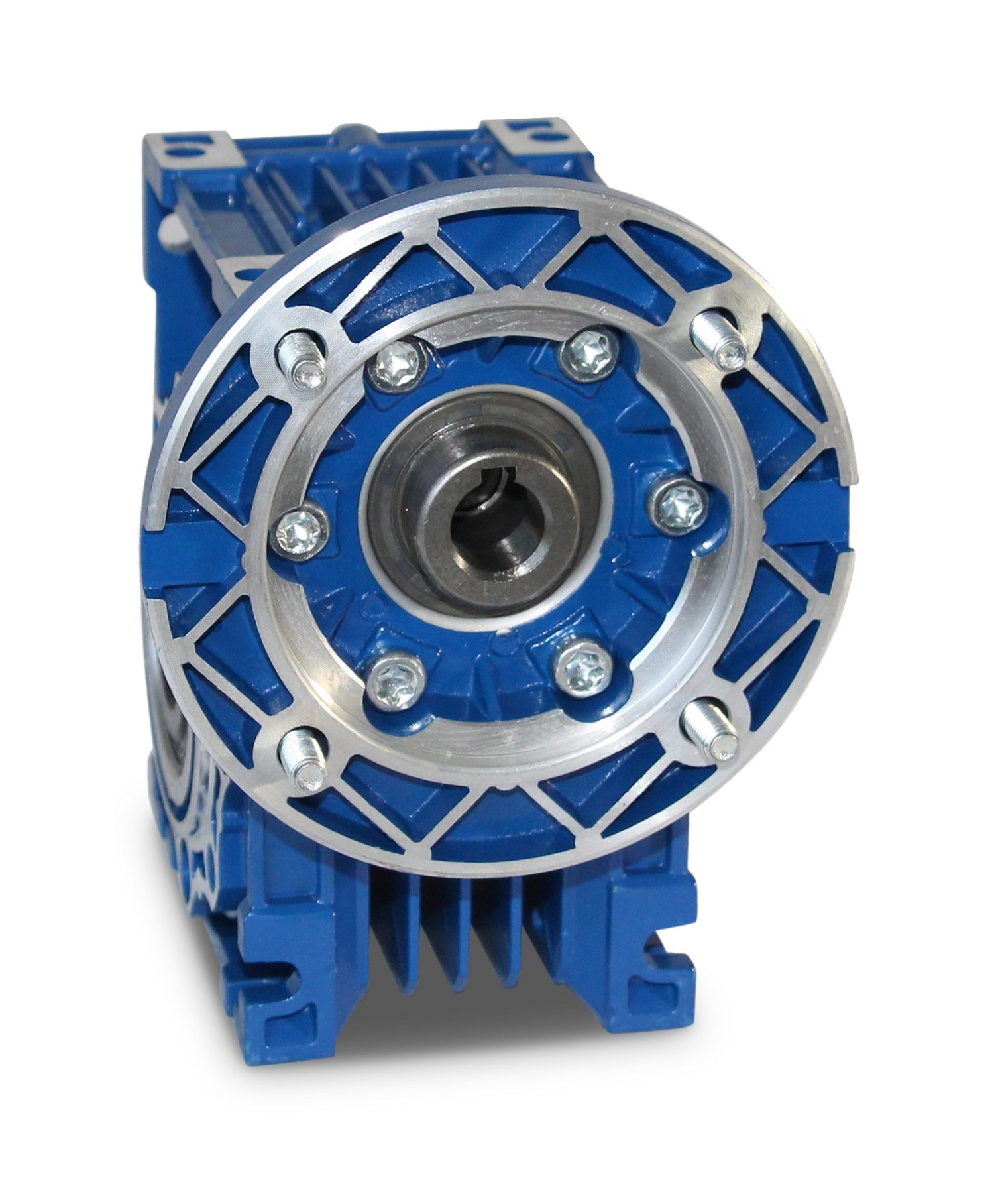

SEVA- CMRV030 IEC63 i=7.5 worm gear

Worm gear with IEC flange to the motor side,

Ratio (i)= 7.5, hollow shaft= 14mm, IEC input hollow shaft= 11 x 23mm,

IEC input flange B14 = 90 x 60 x 75mm, suitable for motors of frame size 63 inB14

IEC input flange B5 = 140 x 95 x 115mm, suitable for motors of frame size 63 in B5

Weight = 1.5 kg, Color = RAL 5010 (gentian blue). The gearbox can be used in both directions of rotation

operated and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.
