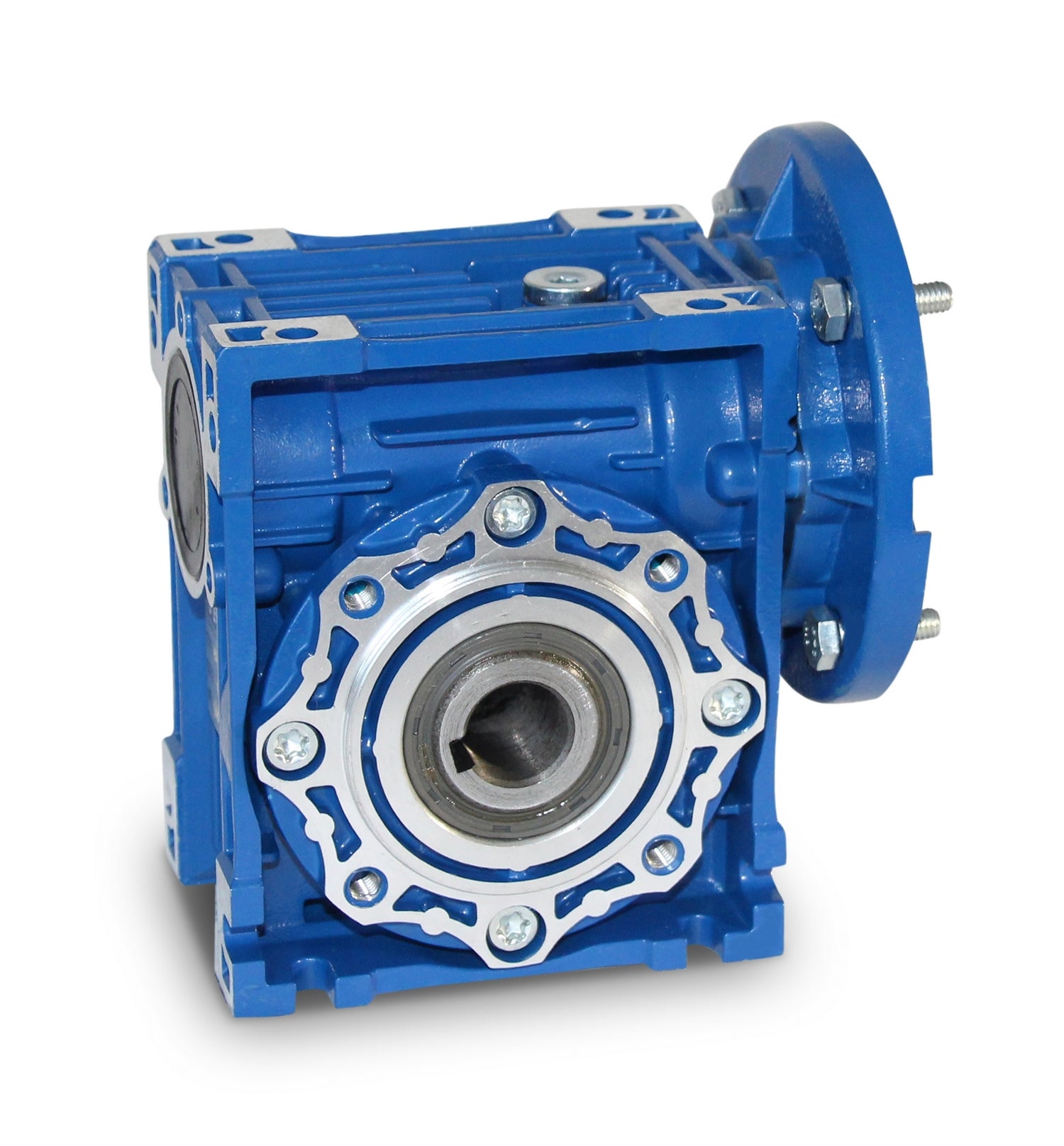

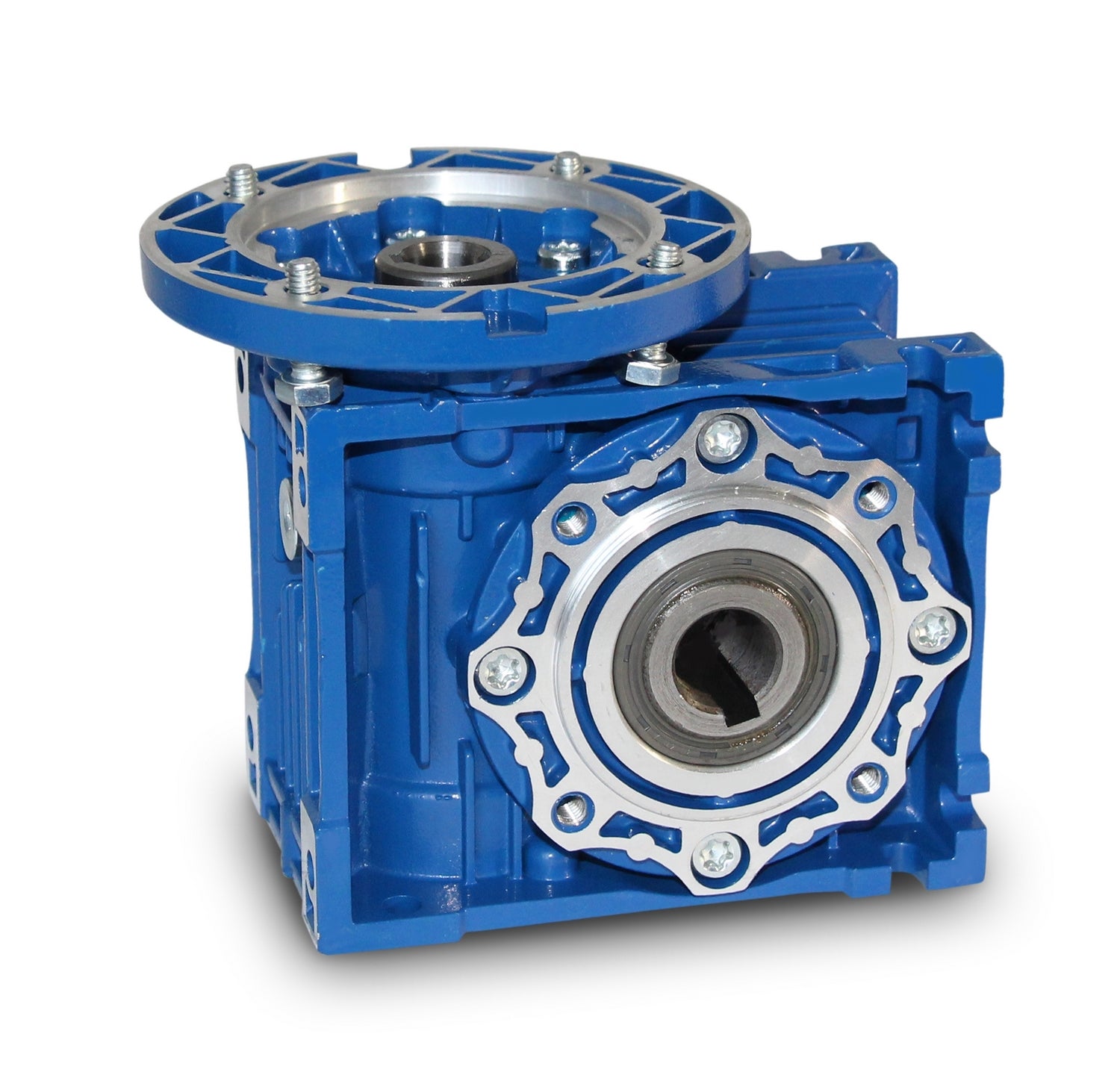

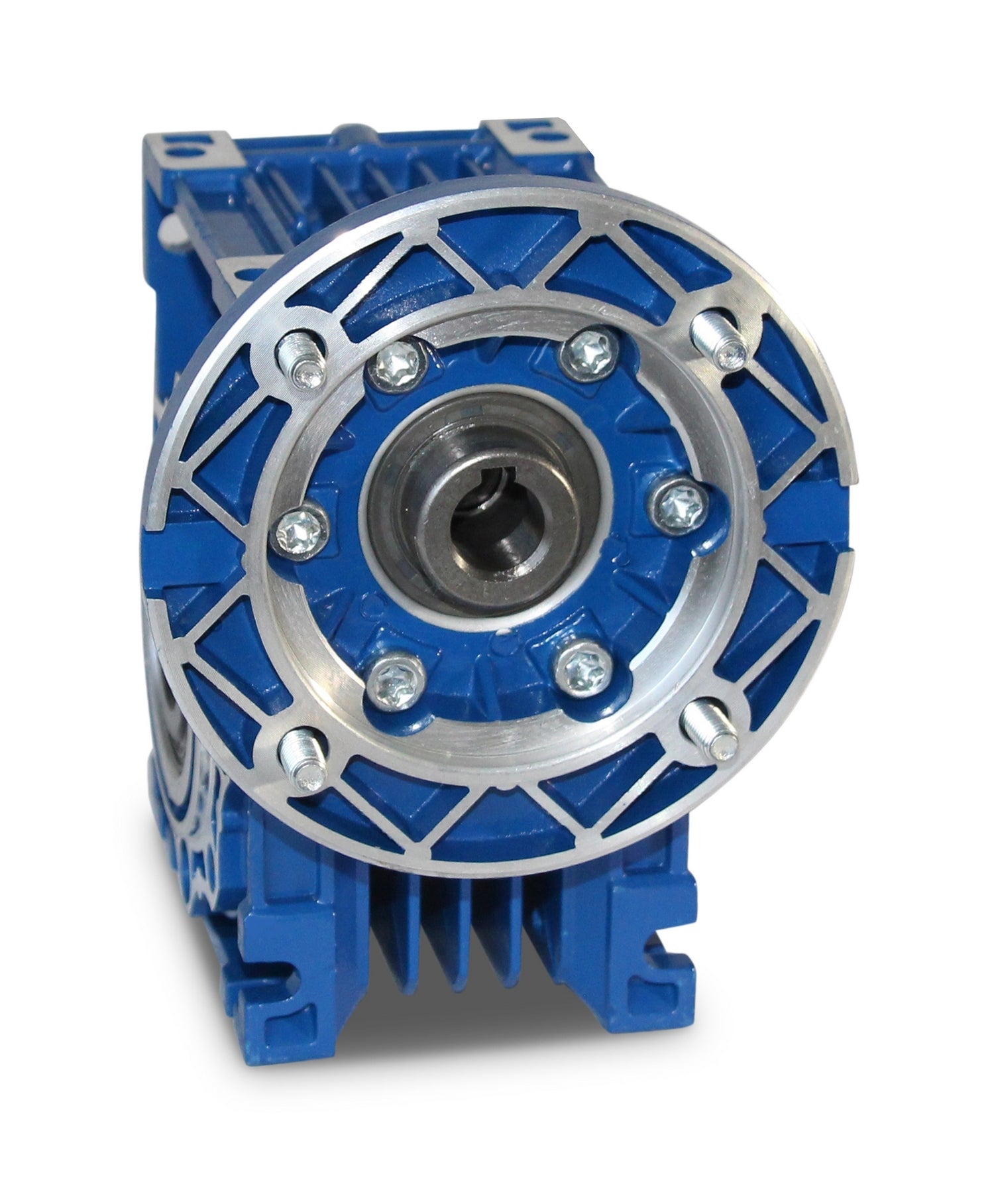

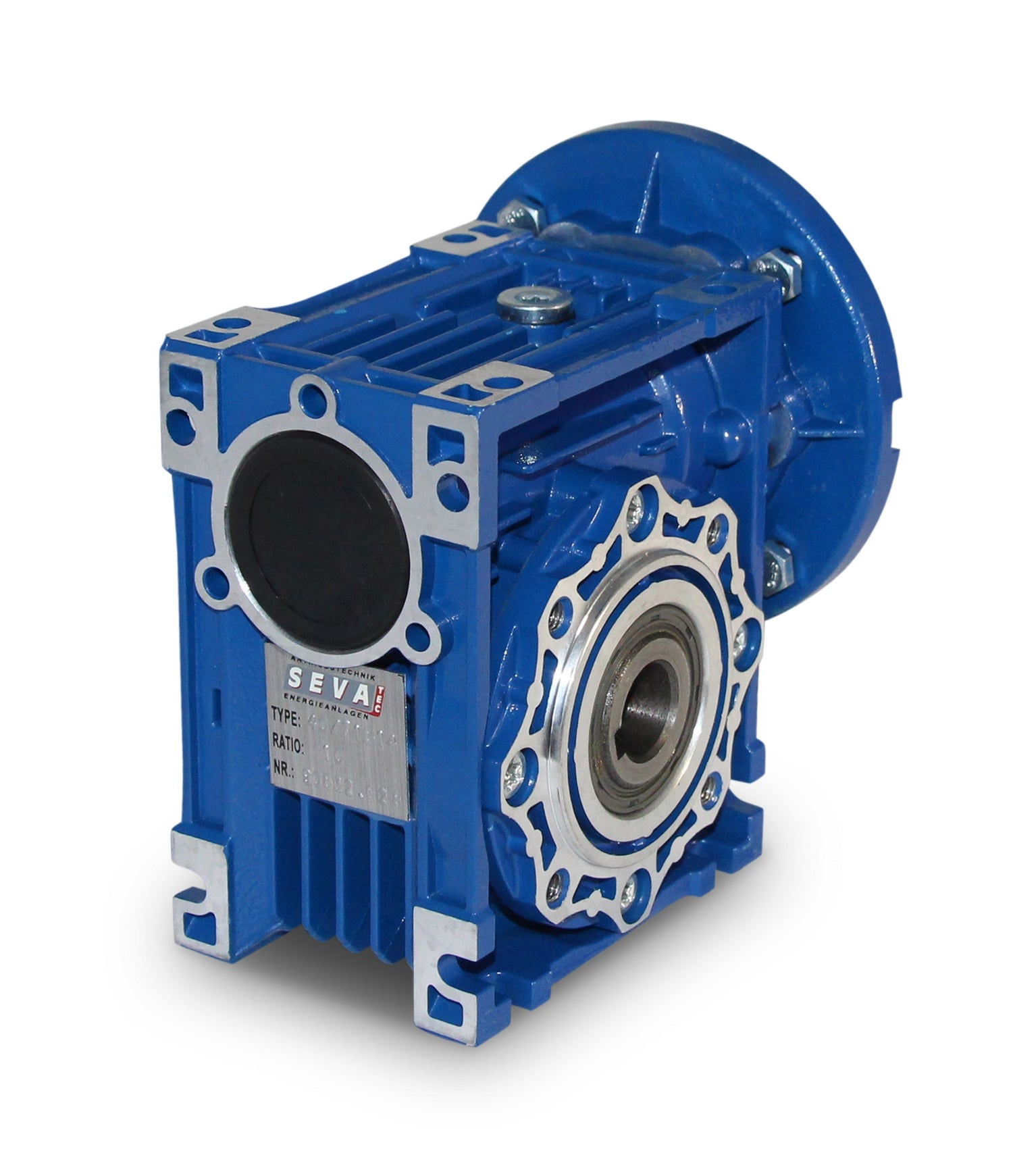

SEVA- CMRV025 IEC56 i=60 worm gear

Worm gear with IEC flange to the motor side,

Ratio (i)= 60, hollow shaft= 11mm, IEC input hollow shaft= 9 x 20mm,

IEC input flange = 80 x 50 x 65mm, suitable for

Motors of size 56, weight = 1.0 kg,

Colour = RAL 5010 (gentian blue). The gearbox can be

both directions of rotation and contains a

Oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.
