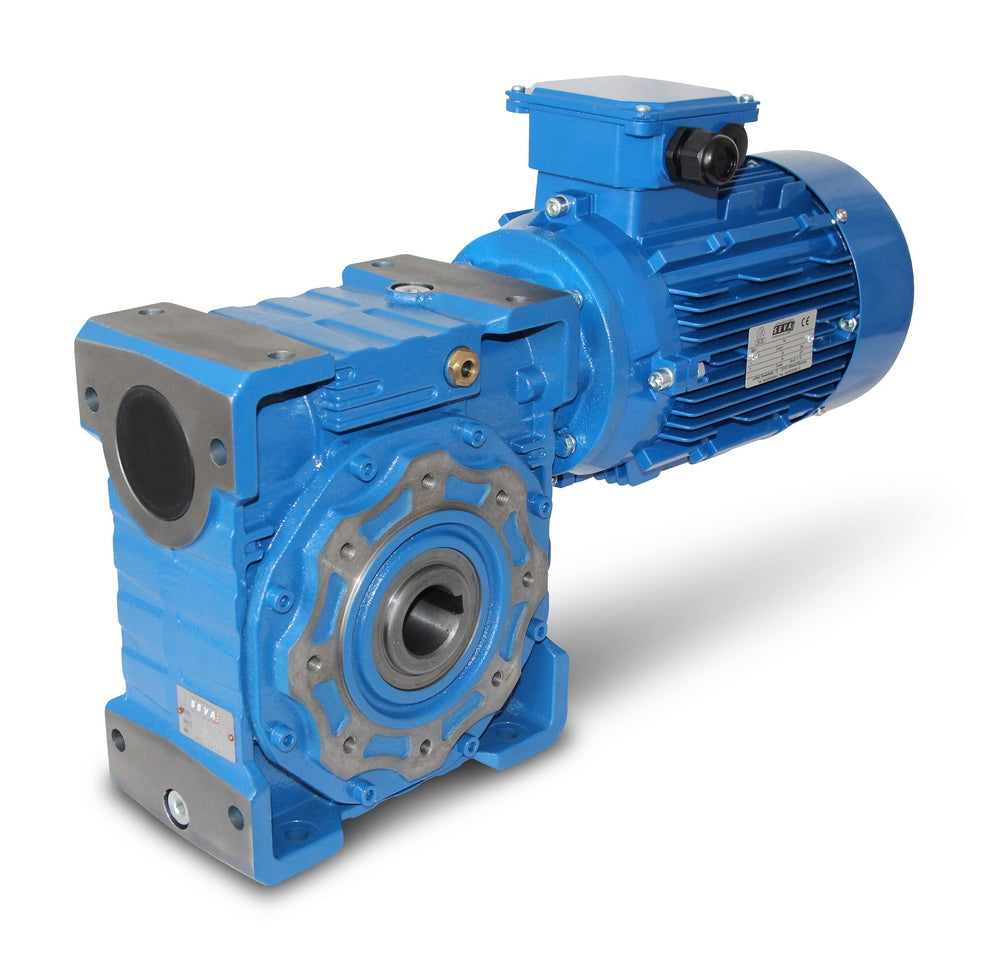

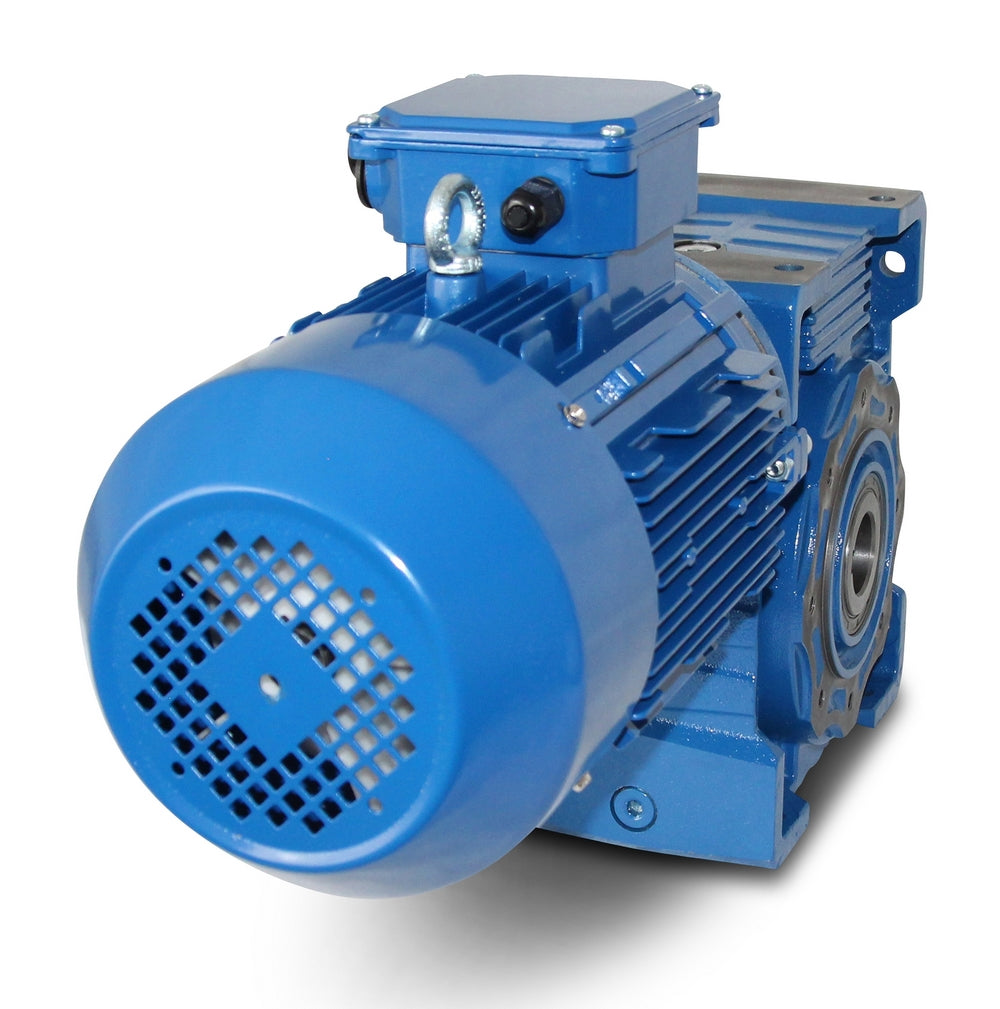

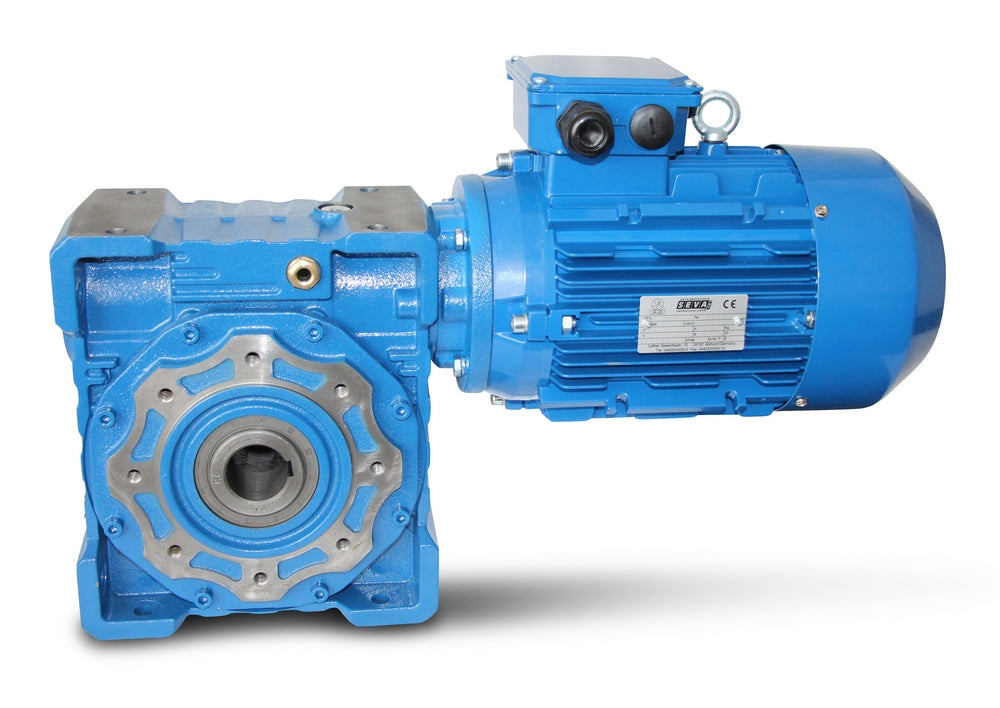

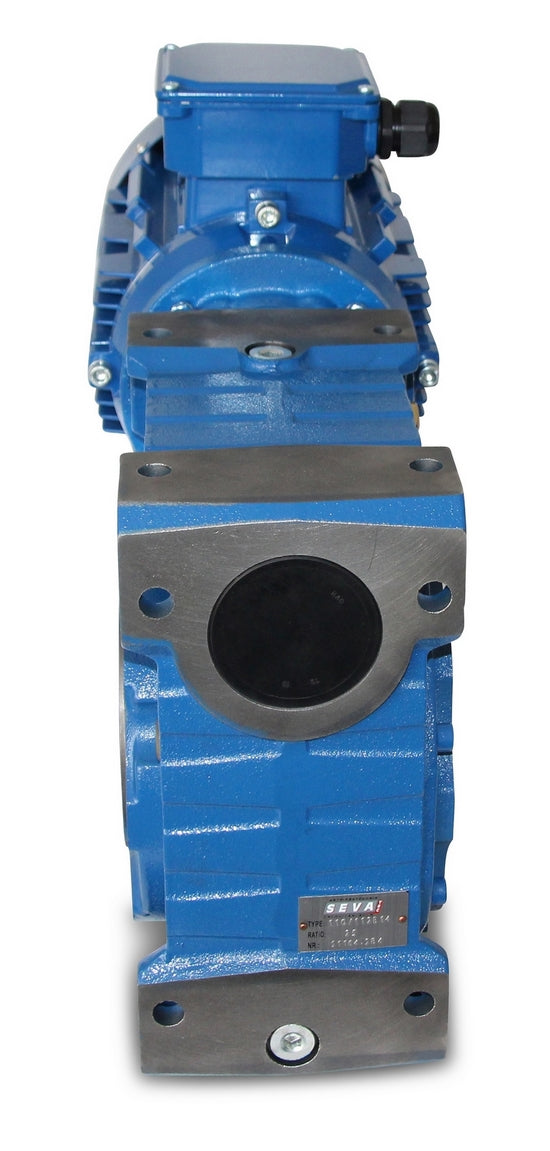

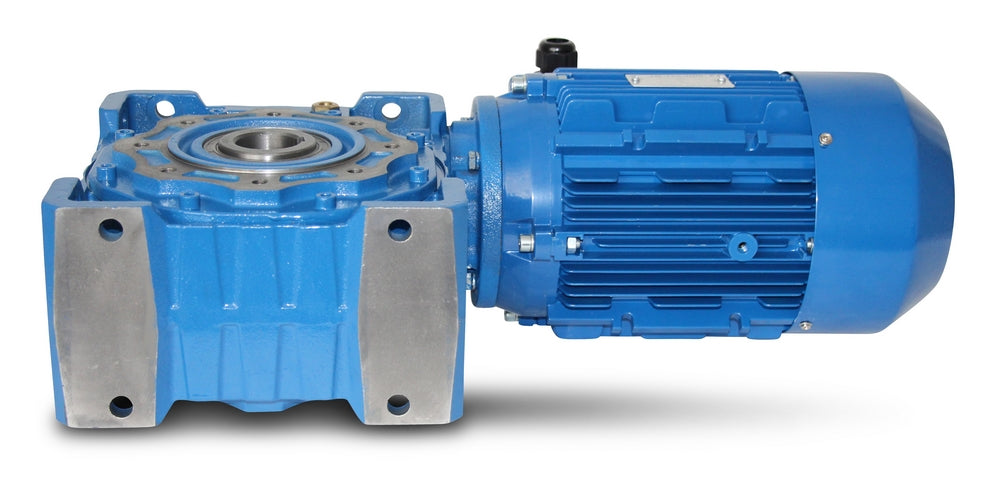

SEVA- CMRV 130-112M-4 - 4 kW - 46.7 rpm - Worm gear motor

Worm gear motor, voltage = 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,

Hollow shaft= 45mm, mounting position M1-M6, motor speed= 4 poles, gear ratio (i)= 30, torque= 655 Nm,

Operating factor (fs)= 1.6 . Terminal box= top (rotatable), Weight= 90 kg , Color= RAL 5010 (gentian blue),

Temperature sensor= 3 x PTC thermistors, Housing= grey cast iron, Ball bearings= SKF, C&U or equivalent,

Cooling = axial fan (plastic). The worm gear motor is suitable for frequency converter operation and

complies with IEC 60034-30:2008. The geared motor can be operated in both directions of rotation and contains

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.

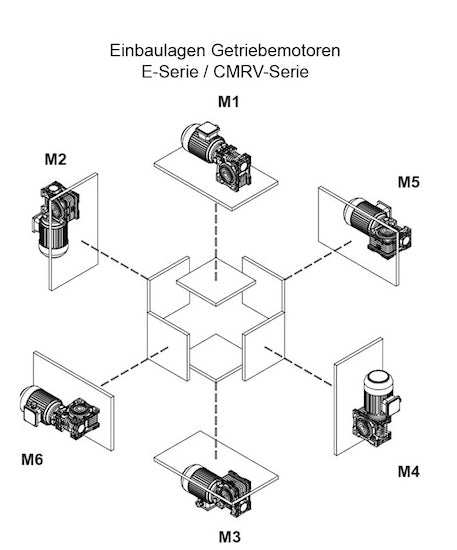

Please select the desired installation position when ordering!
