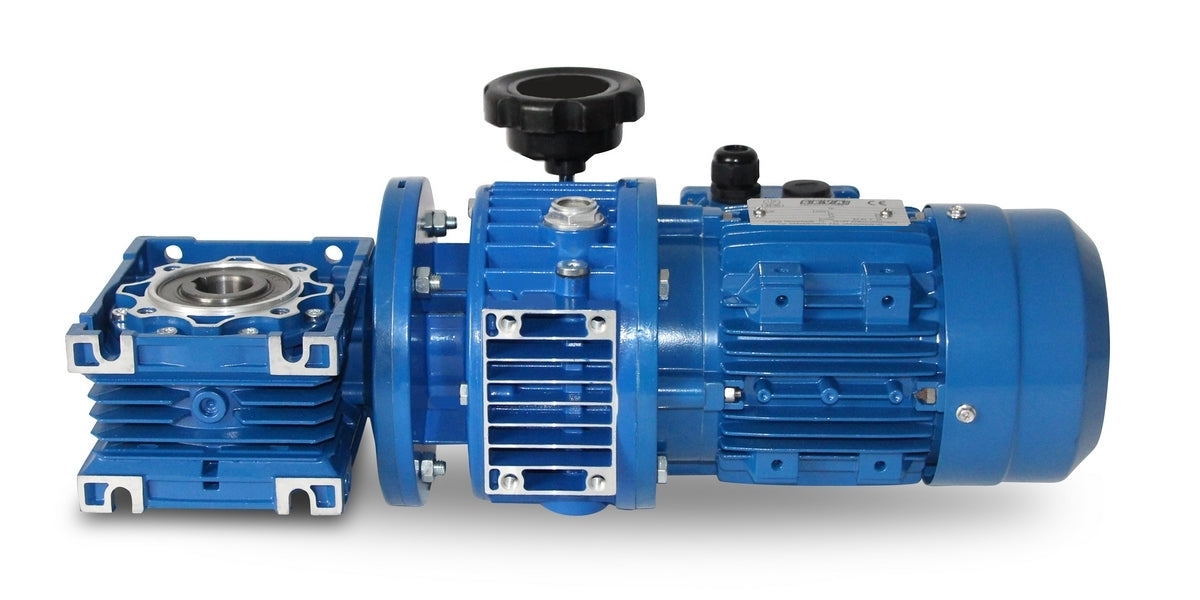

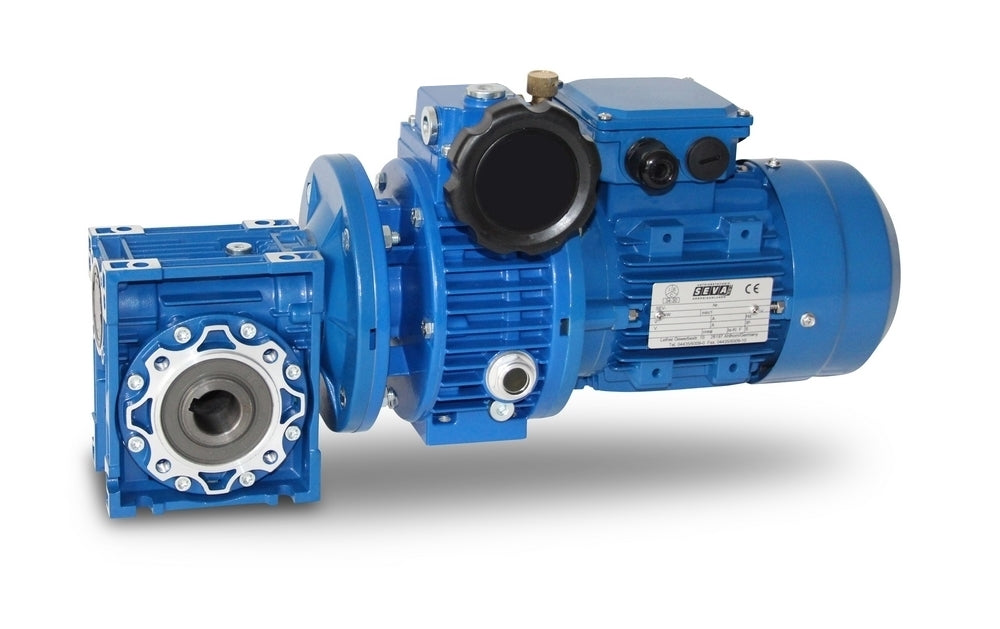

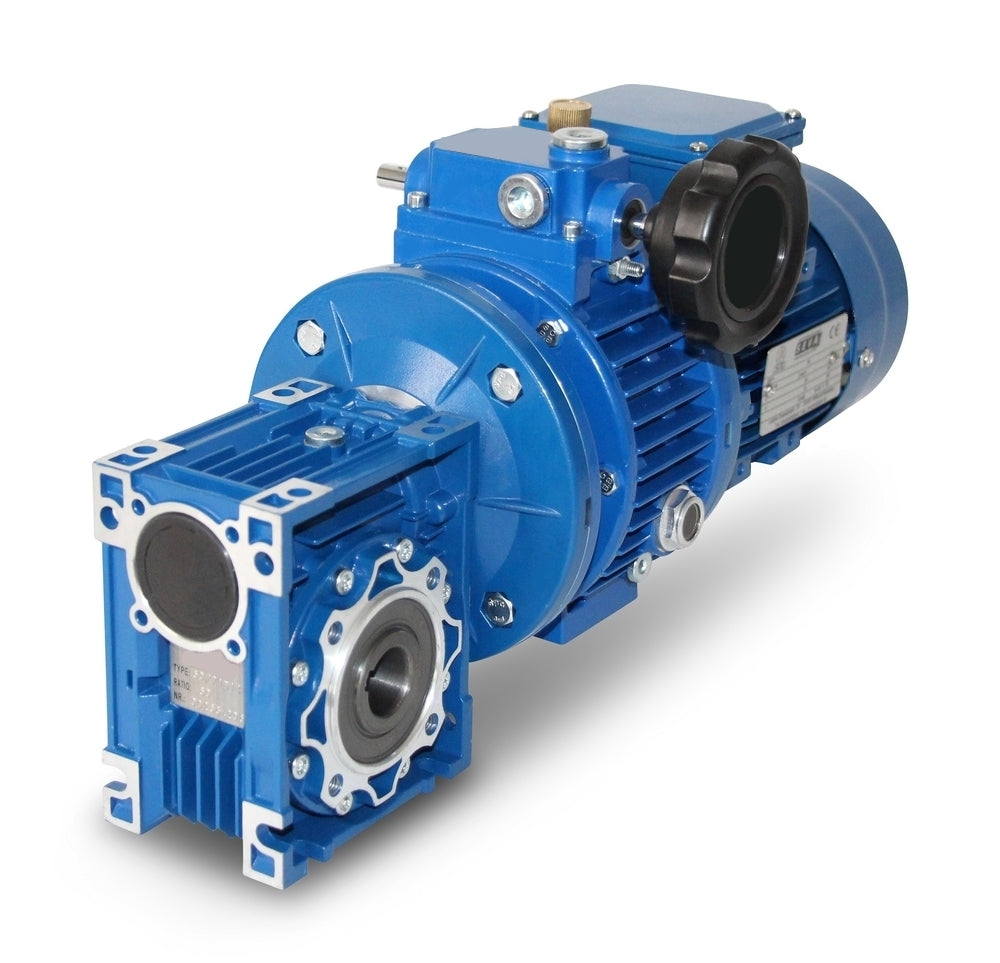

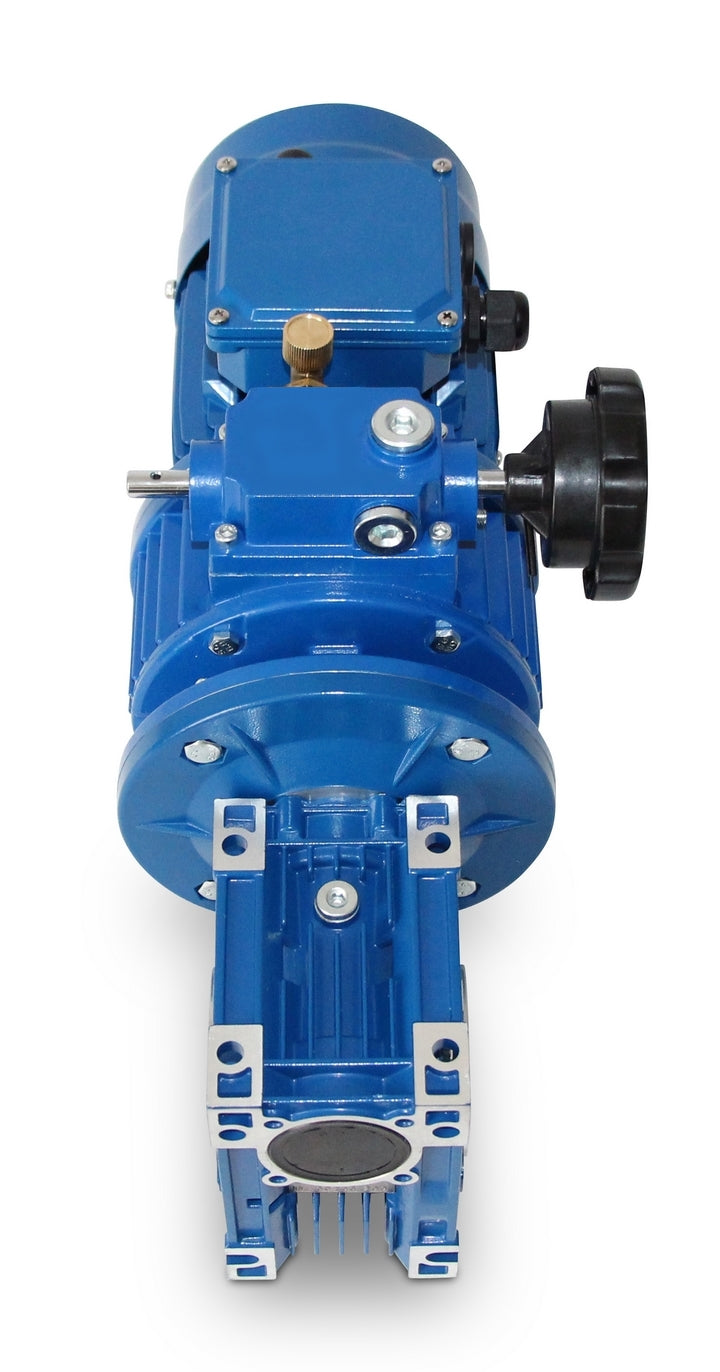

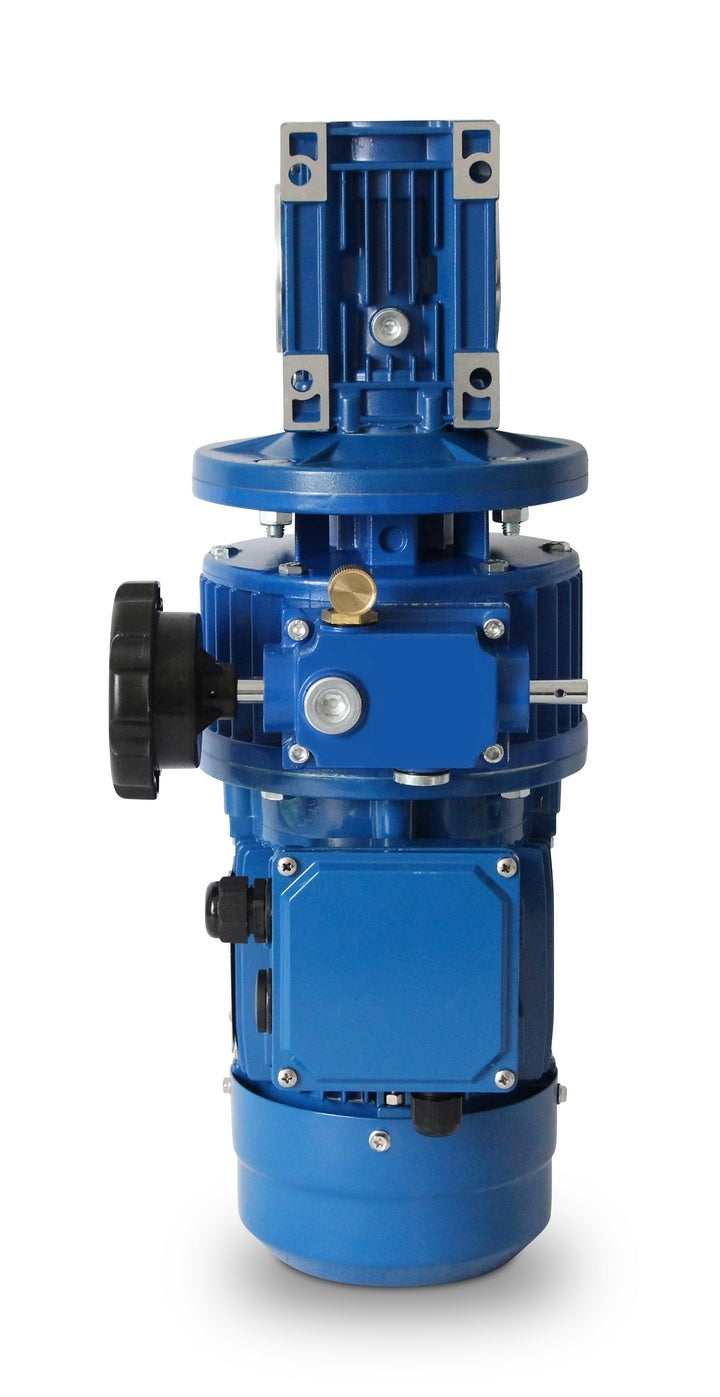

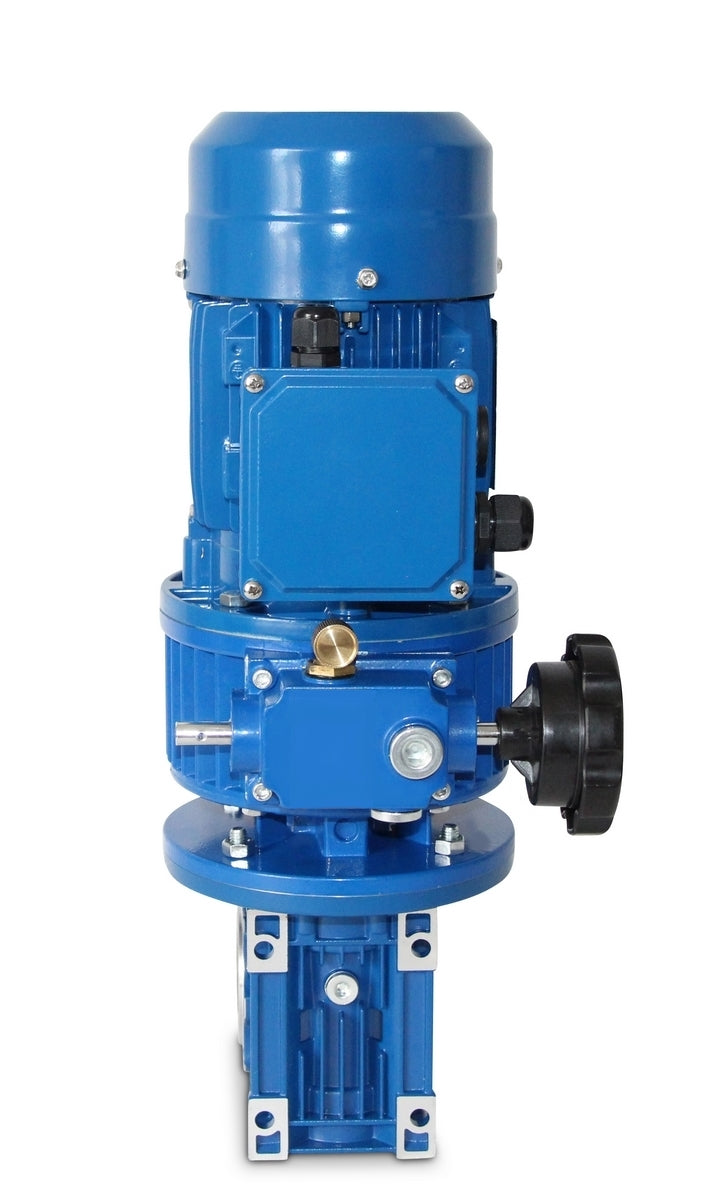

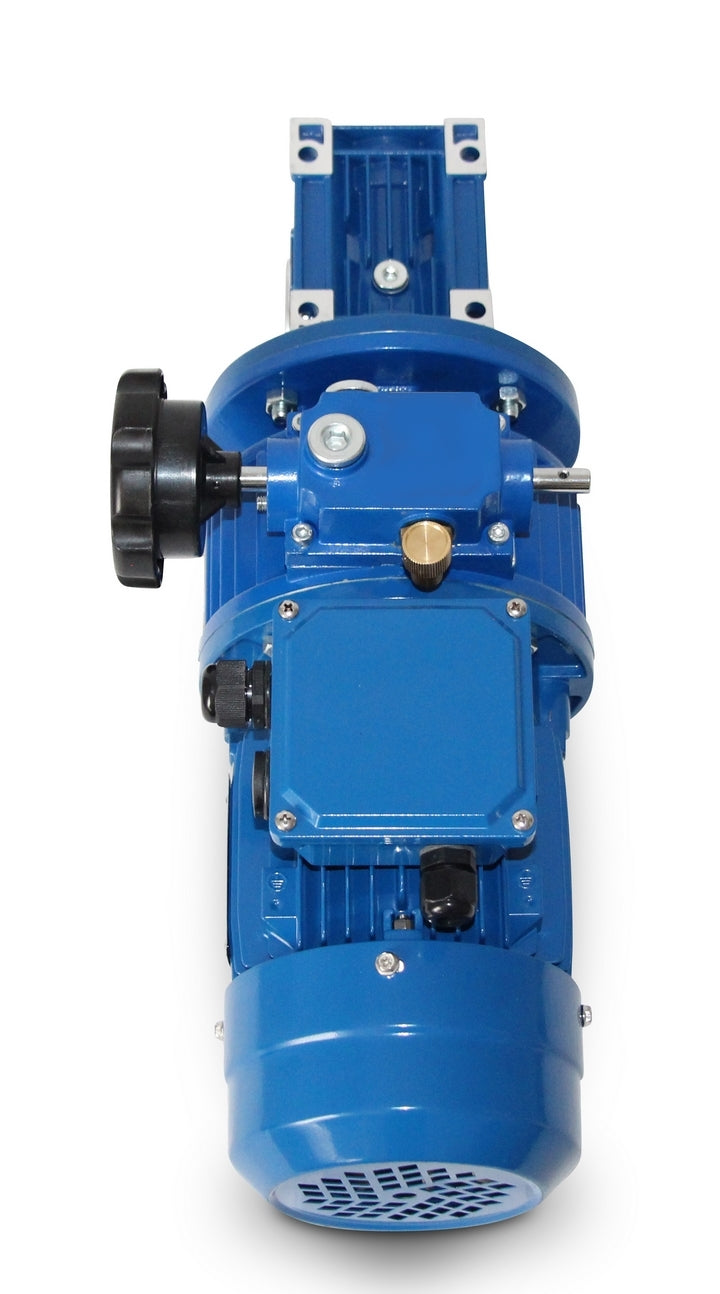

SEVA- CMRV063+V10-801- 4- 0.55 kW- 5-25 rpm Worm Variable Speed ​​Gear Motor

Worm variable speed gear motor, power= 0.55 kW, speed= 5 - 25 rpm, CMRV063,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,

Hollow shaft = 25 mm, motor speed = 4 poles, gear ratio adjustment unit (i) = 56 – 280

Worm gear ratio (i)= 40, torque= 105 Nm – 179 Nm, service factor (fs)= 1,

Terminal box= top (rotatable), weight= 17 kg, color= RAL 5010 (gentian blue),

Temperature sensor= 3 x PTC thermistors, Gear housing= Aluminum, Ball bearings= SKF, C&U or equivalent,

Cooling= axial fan (plastic).

The drive complies with IEC 60034-30:2008,

is suitable for both directions of rotation and is supplied with an oil filling. Open hollow shafts are

with a cover cap. This can be ordered under the "Accessories" section. According to VDE 0105 and IEC 364, all work on the electric drive must be carried out only by qualified personnel.

As is usual with variable speed drives, speed control by turning the handwheel is only permitted during operation!

Changing the speed when stationary can cause damage to the stepless adjustment unit.

All product photos are non-binding examples! Technical changes reserved.
