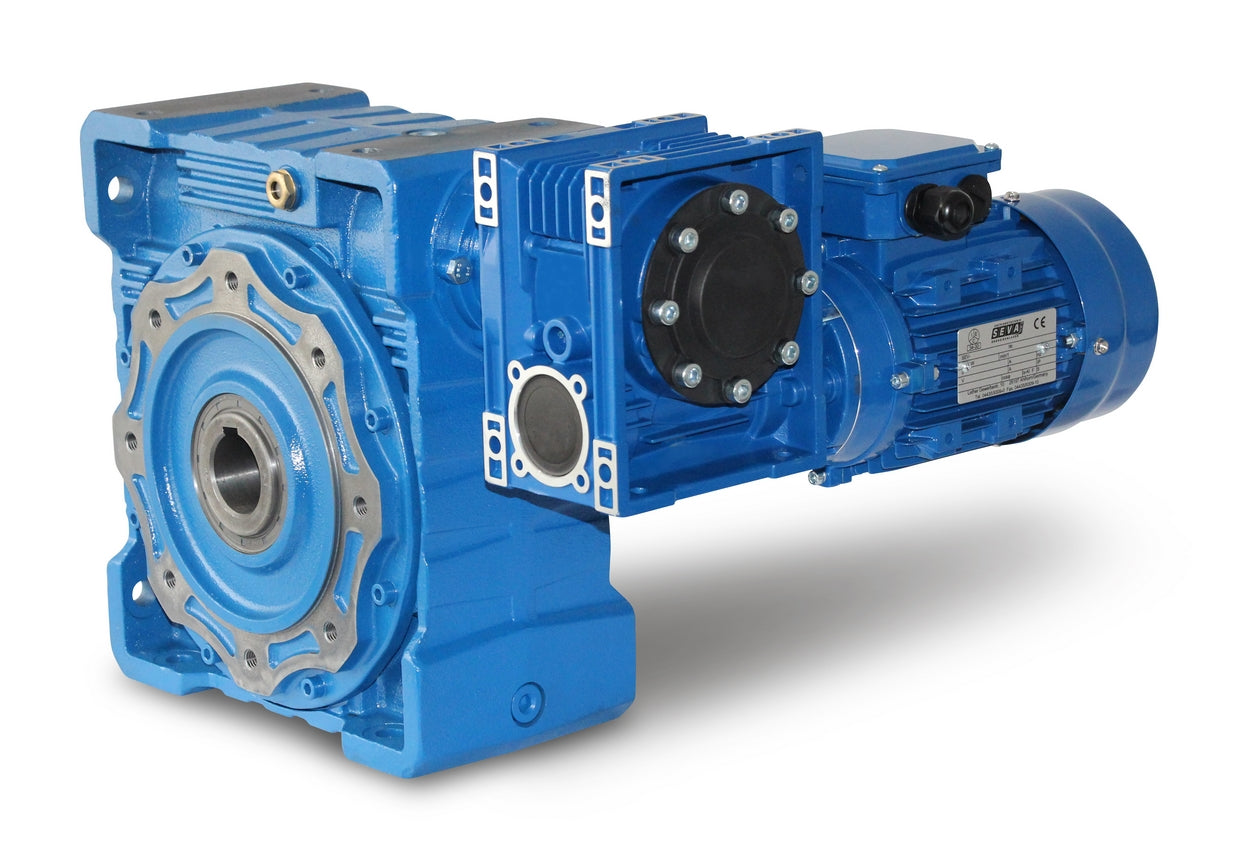

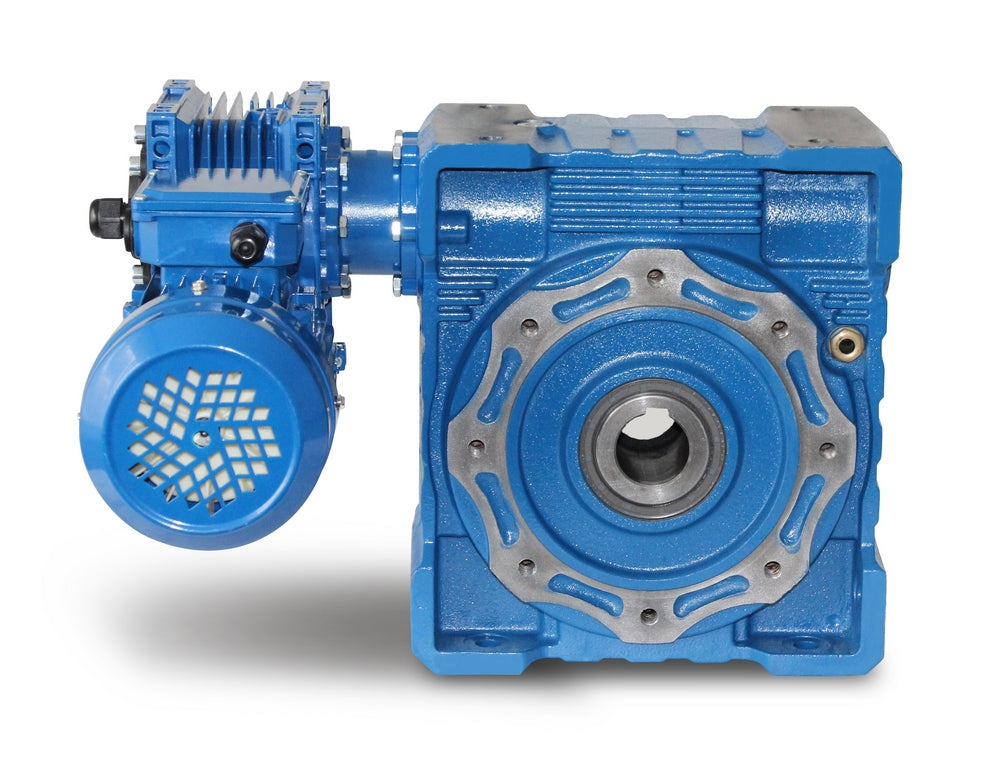

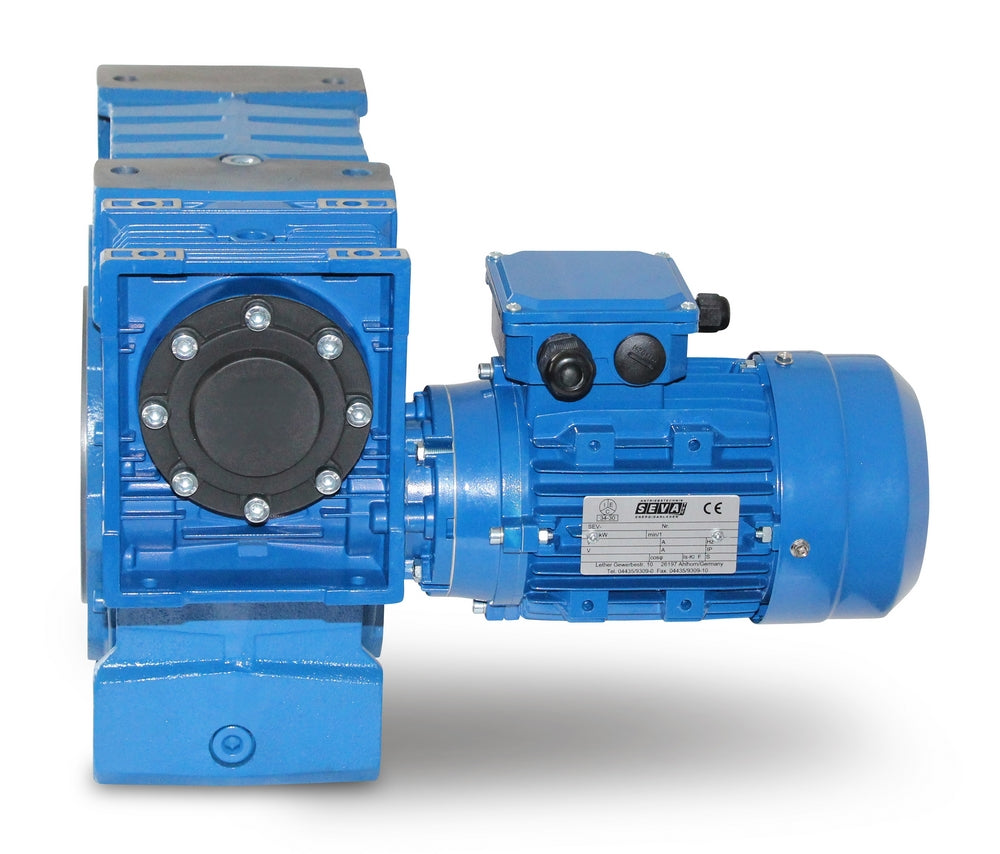

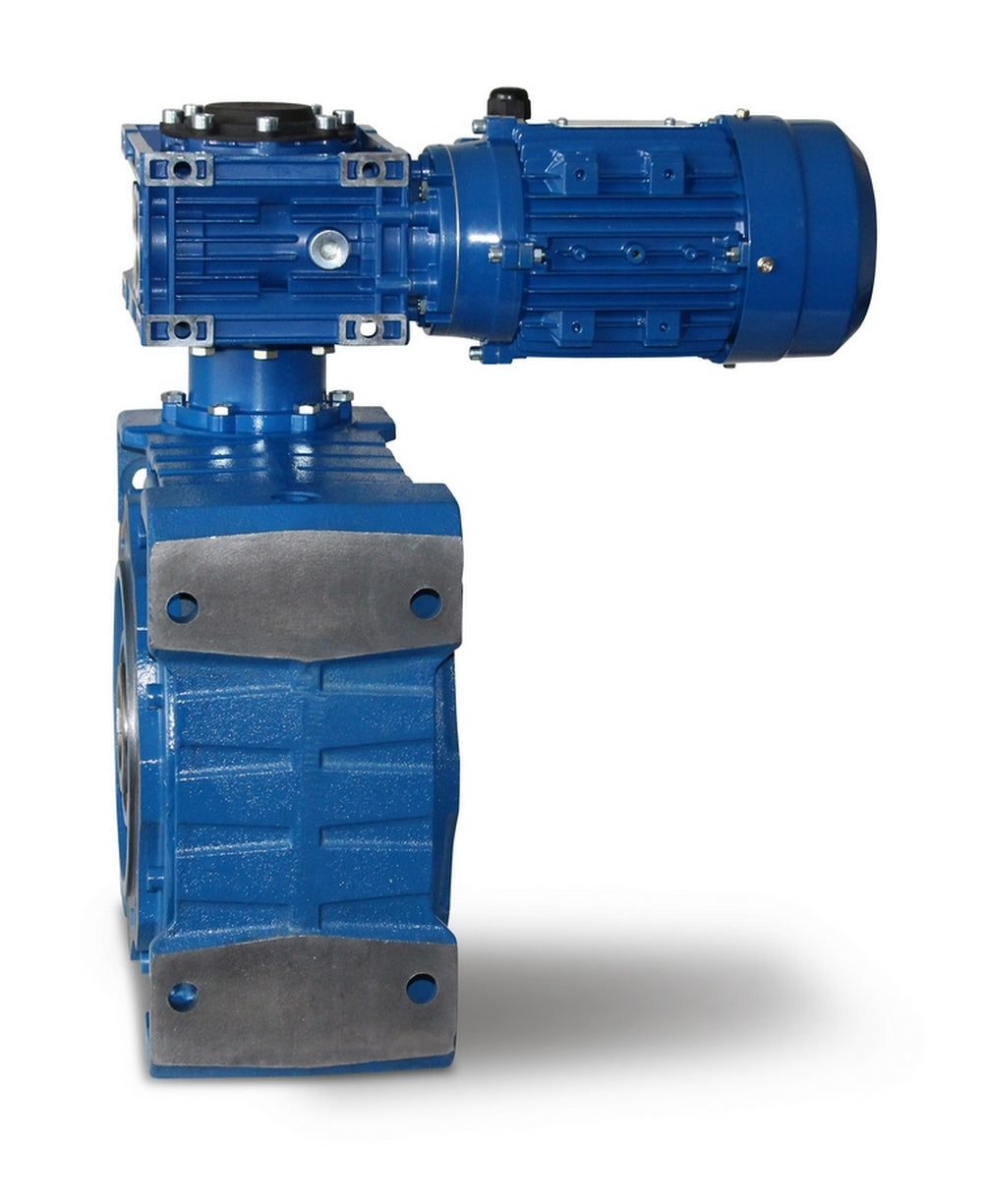

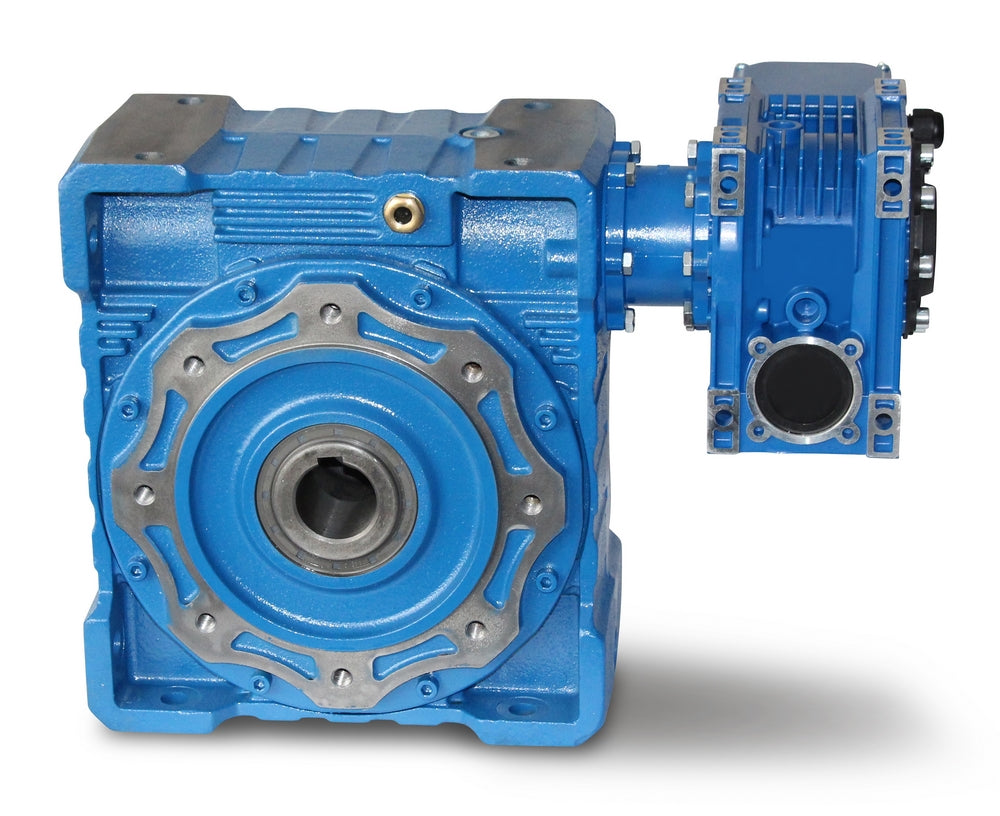

SEVA- CMRV 130/063-90S-4 - 1.1 kW - 4.7 rpm- Worm gear motor

Double worm gear motor (worm gear-worm gear-three-phase motor)

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode = S1, Duty cycle = S1- 100%,

Hollow shaft= 45 mm, Motor speed= 4 poles, Gear ratio (i)= 300, Torque= 1312 Nm,

Operating factor (fs) = 1.3, Terminal box = top (rotatable), Weight = 76.62 kg. Color = RAL 5010 (gentian blue),

Temperature sensor= 3 x PTC thermistors, Gear housing= Grey cast iron, Ball bearings= SKF, C&U or equivalent,

Cooling = axial fan (plastic). The worm gear motor is suitable for frequency converter operation and

complies with IEC 60034-30:2008. The geared motor can be operated in both directions of rotation and

Includes an oil filling upon delivery. Open hollow shafts must be sealed with cover caps.

According to VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel.

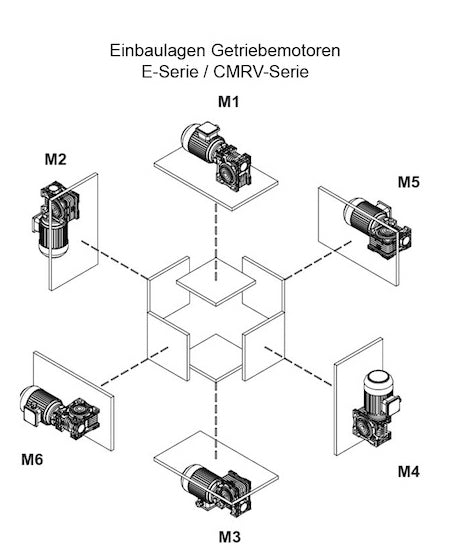

From gearbox size 110 the installation position must be specified .

All product photos are non-binding examples! Technical changes reserved.
