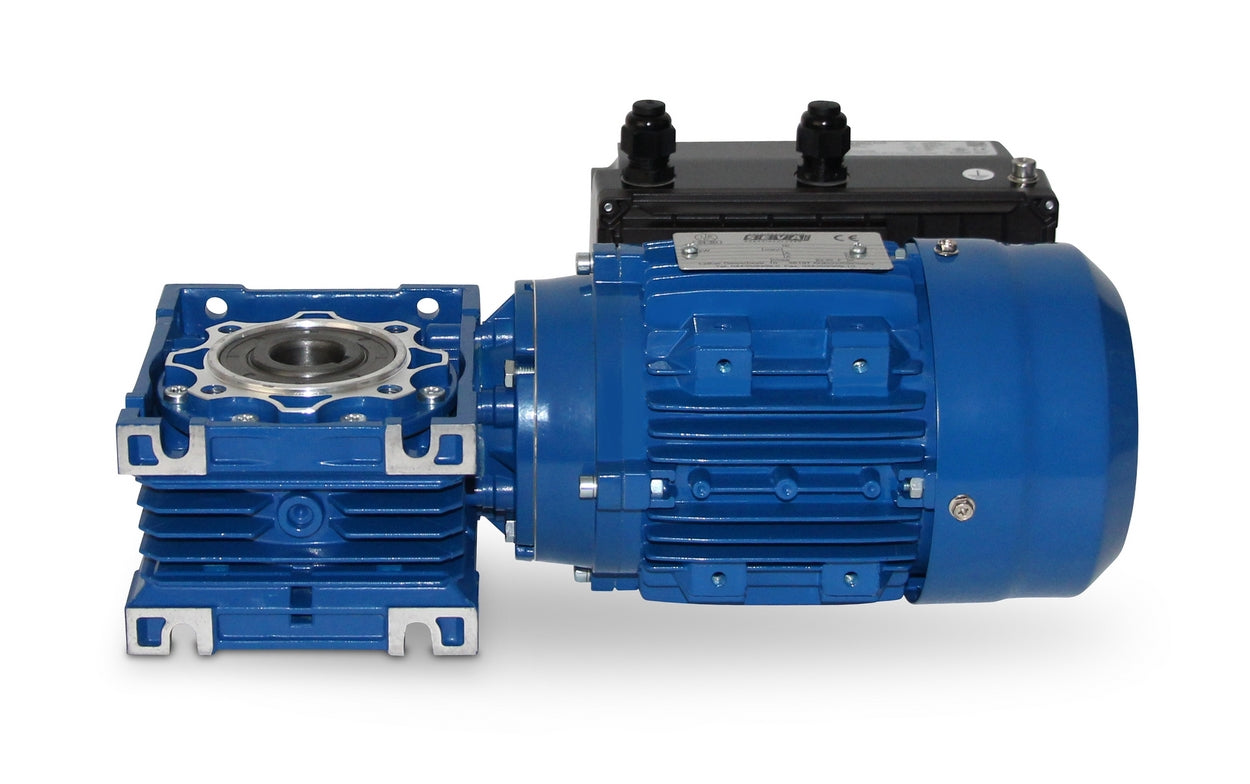

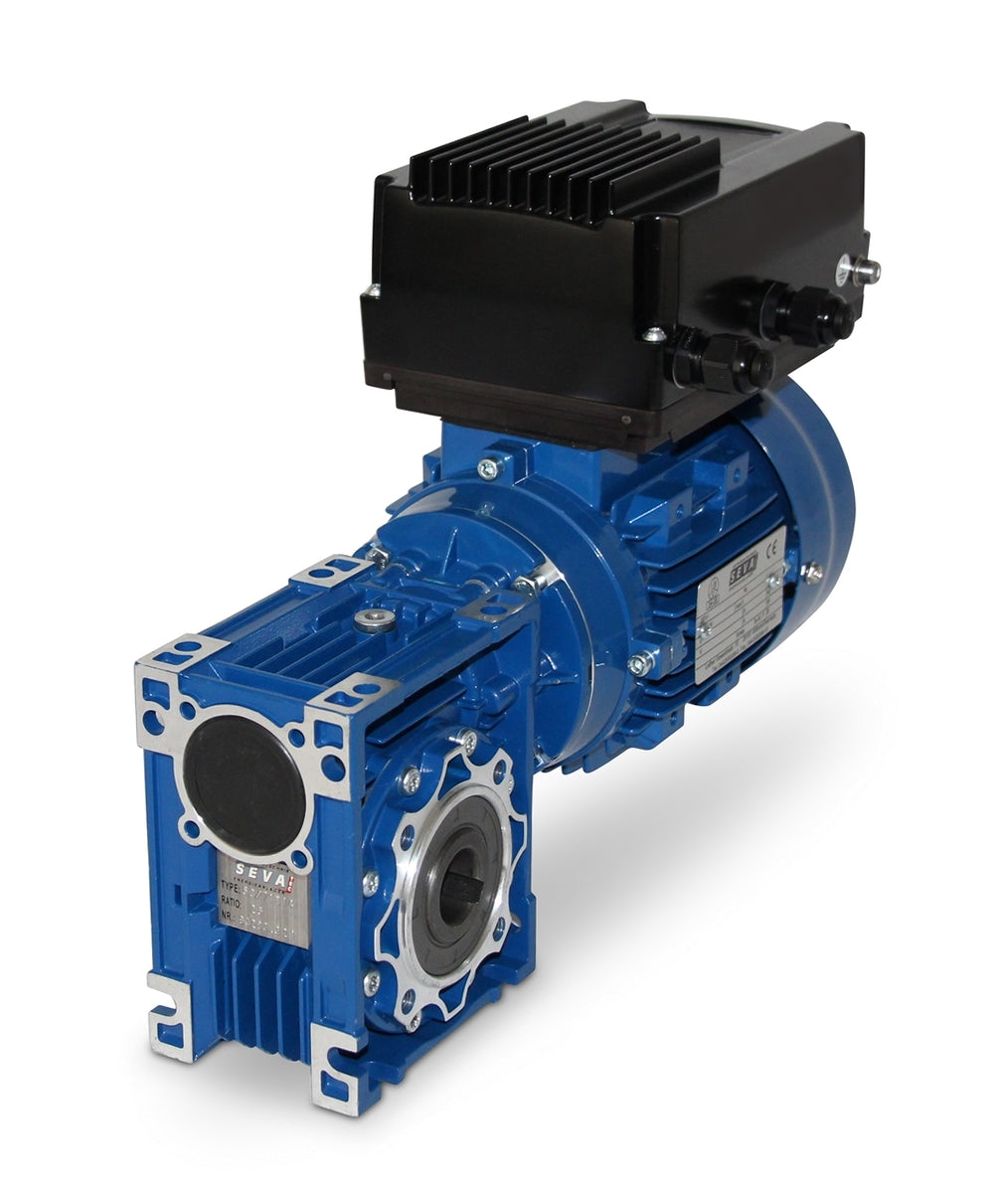

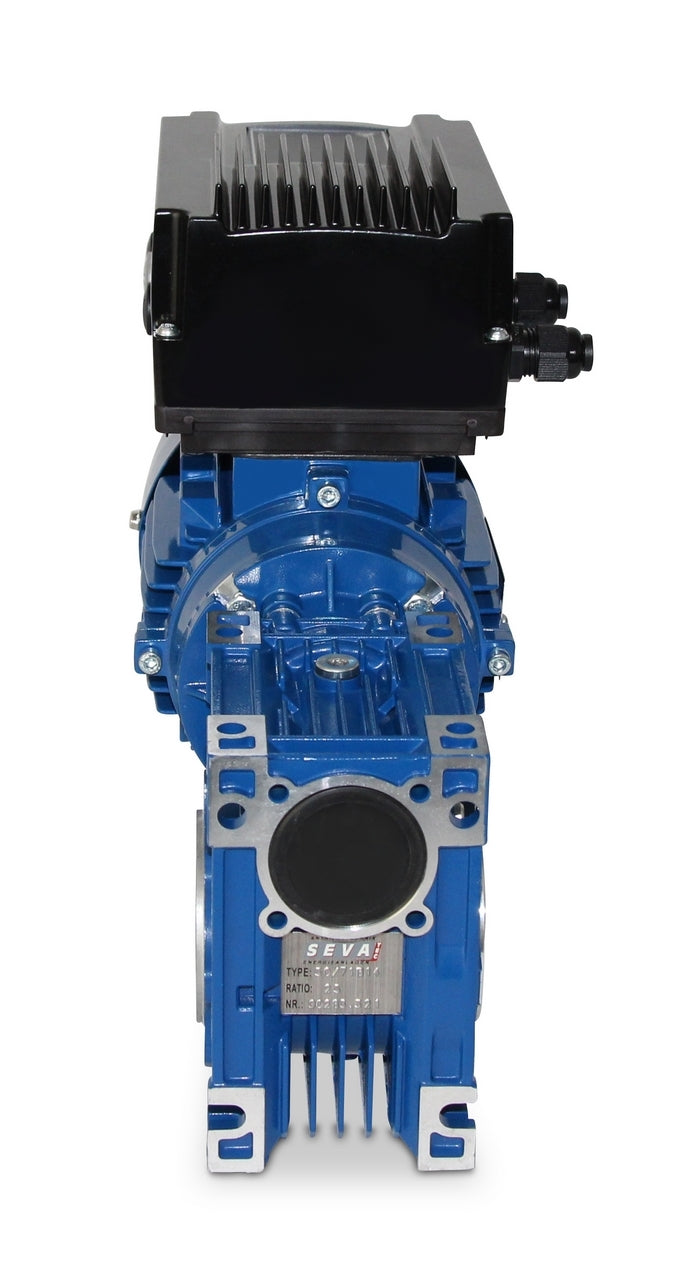

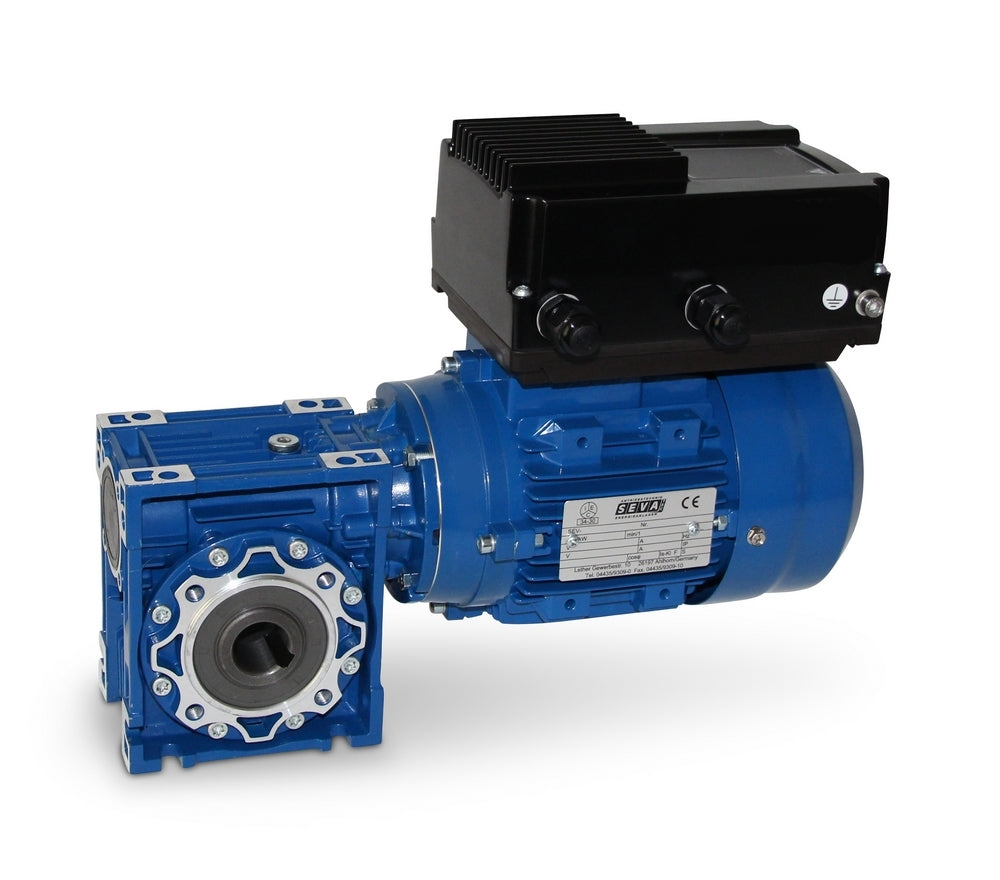

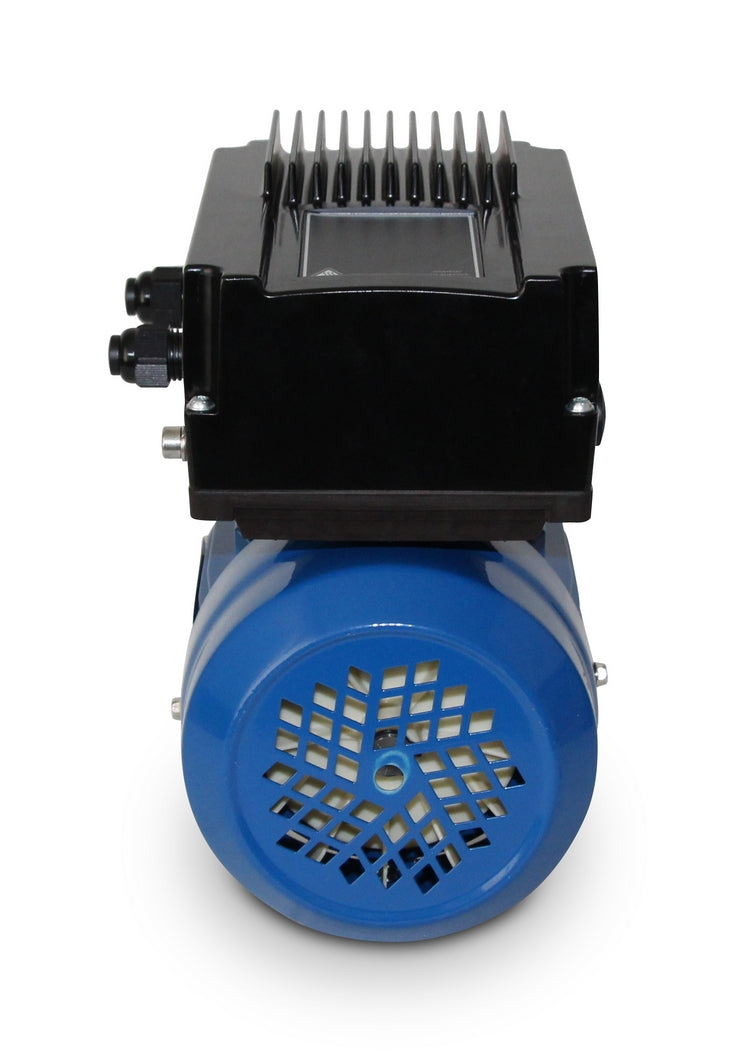

SEVA- CMRV 063-802-4 - 0.75 KW - 7 to 84 rpm - Worm gear + frequency inverter motor alpha

Worm gear motor, power= 0.75 KW, speed= 7 to 84 rpm,

Protection class= IP55, Insulation class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,
Hollow shaft= 25mm, Motor speed= 4 poles, Gear ratio (i)= 20, Torque= 83 Nm,
Operating factor (fs)= 1.6 . Terminal box= top, weight= 18.2 kg, color= RAL 5010 (gentian blue),
Temperature sensor= 3 x PTC thermistors, Housing= die-cast aluminum, Ball bearings= SKF, C&U or equivalent,

Frequency converter
Power= 0.75 KW, Size= alpha, Input voltage= 1 x 230V +10% (single-phase), Input frequency= 50/60 Hz,
Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 80mm,
Mains current (input) = 7.3 A. Ideal control range = 5- 60 Hz, with constant nominal torque, below 30 Hz
An external fan is required for cooling.

Product information
The frequency converter offers the option of becoming “bus-capable” using fieldbus modules.
With Modbus (already included) and CANopen, the EASYdrive alpha offers compatibility with control environments
The required optional control variant must be specified when ordering.
The EASYdrive alpha drive controllers are CE, UL and CSA certified. The EASYdrive Alpha operates without external
Filter measures EMC class C2 (for 1-phase mains supply).

! Possible variant selection !

Product selection
When selecting a frequency converter, it is important to note that there are two variants. Firstly, the device
in standard version and secondly the device with a membrane keyboard. In both versions a potentiometer
optional to order.

The “standard version of the frequency converter” shown is fully usable.
but requires a corresponding control unit for control.
To do this, you must order one of the following options:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

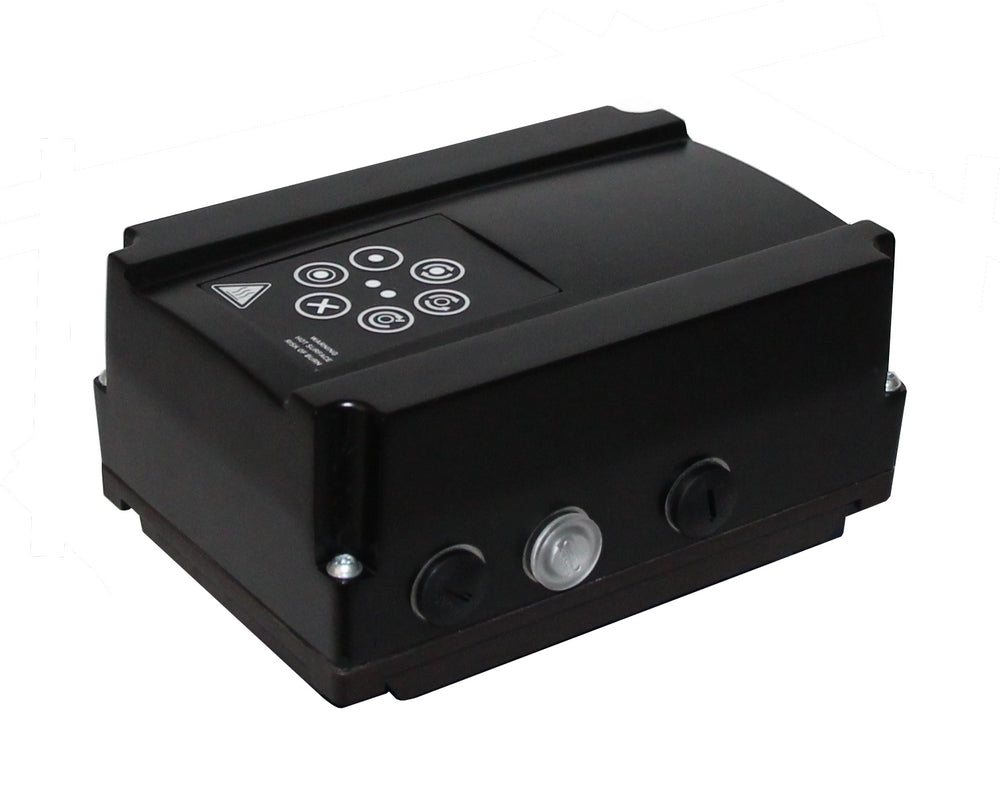

The variant "Frequency converter with membrane keyboard" offers the possibility of controlling the FU directly,
such as start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
