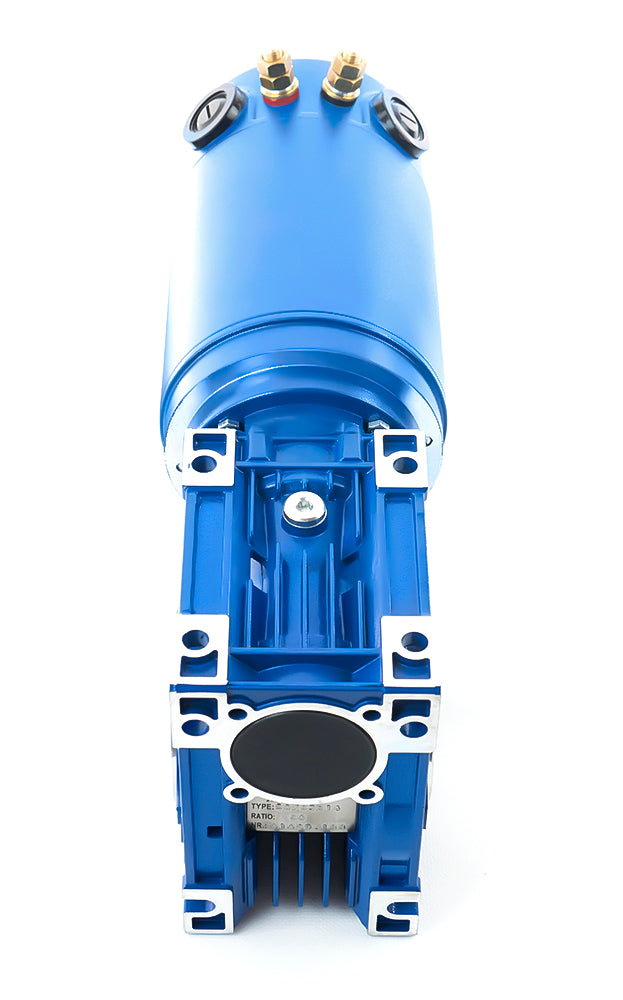

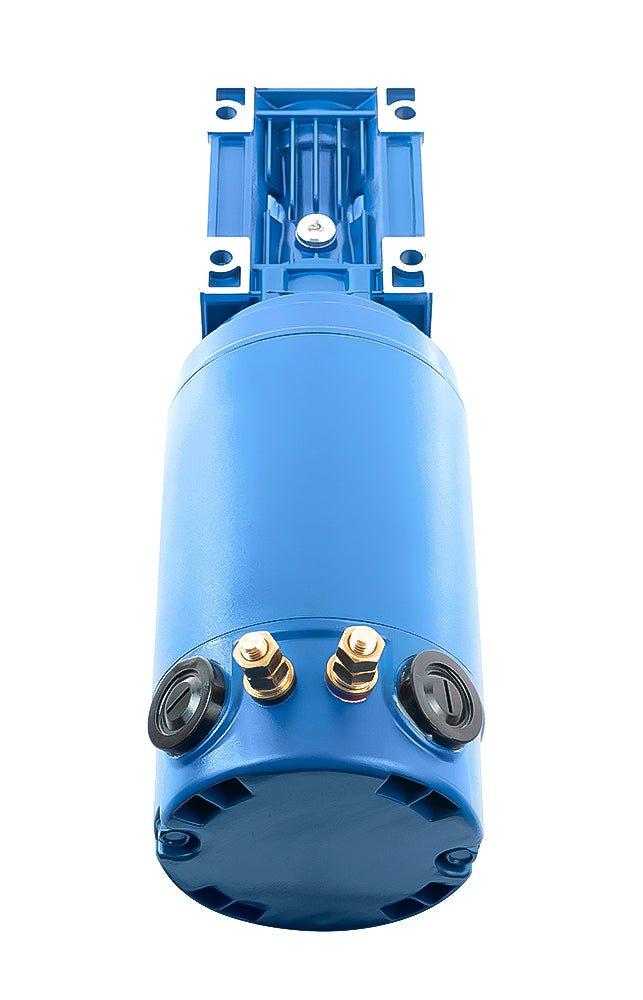

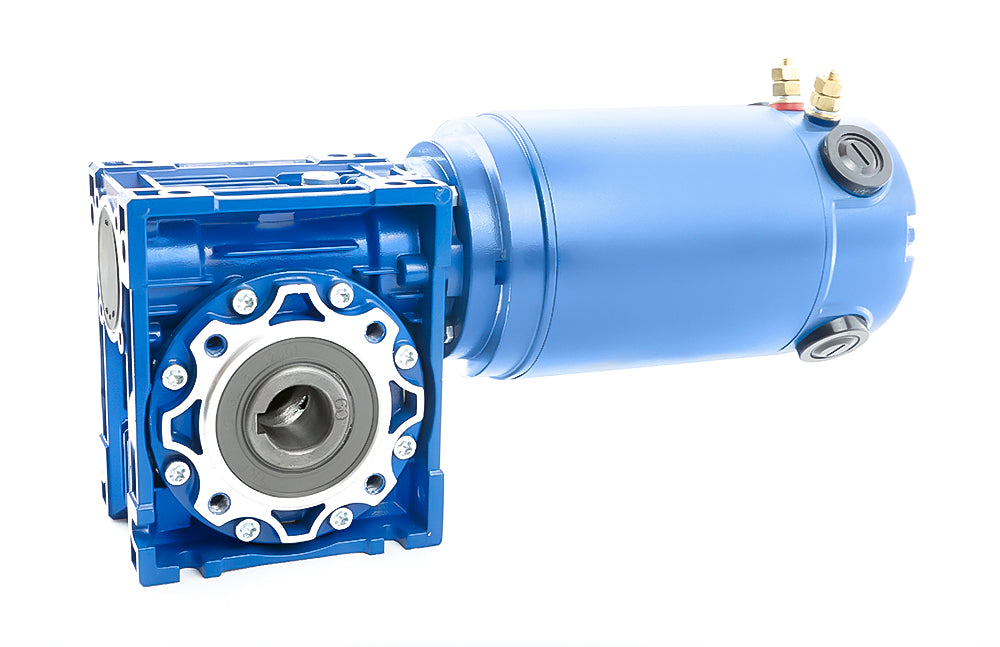

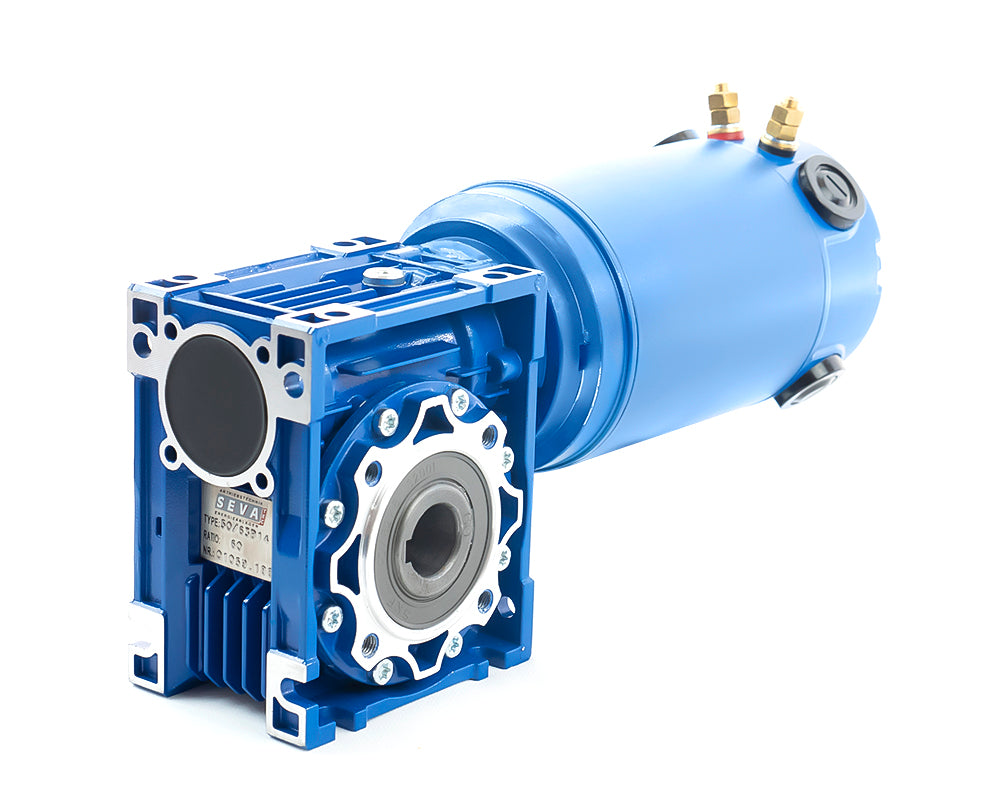

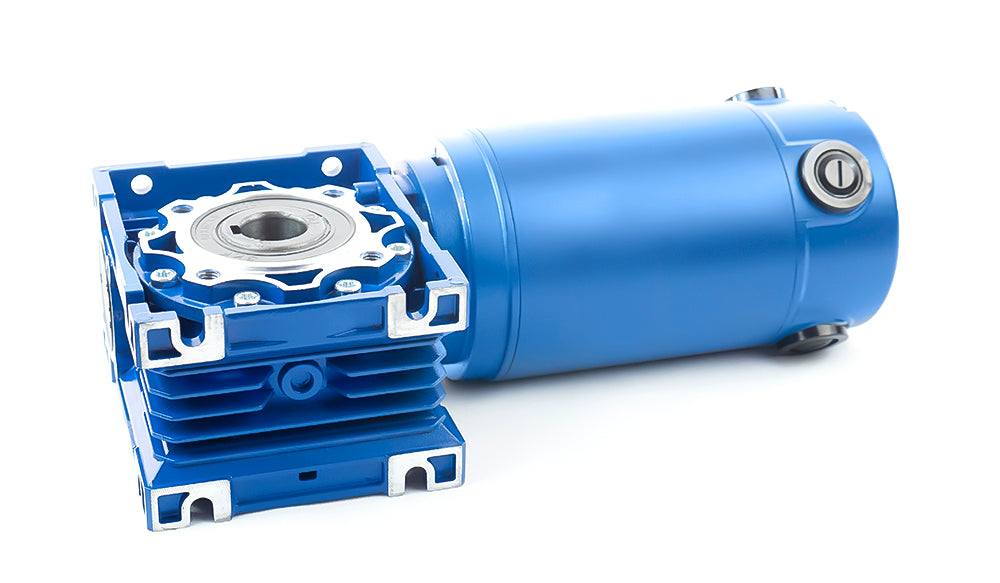

CMRV050 DC250-2 - 0.35 kW - 75 rpm - Worm gear motor

Worm gear with DC motor, IP40, power = 0.35 kW (S2 operation), speed = 75 rpm

Voltage= 12 or 24 Volt DC, Protection class= Gearbox IP55, Motor IP40, Current consumption= 12V/38.5A, 24V/20.5A,

Operating mode= S2 (short-time operation), hollow shaft= 25mm, motor speed= 2 poles, gear ratio (i)= 40,

Torque= 33.0 Nm, Service factor (fs)= 1.8, Connection= clamping bolt, Weight= 8.2 kg,

An external speed control is available as an option. The gearbox can be operated in both directions.

and contains an oil filling upon delivery. According to VDE 0105 and IEC 364, all work on the

Electric drive may only be carried out by qualified specialist personnel.

All product photos are non-binding examples! Technical changes reserved.
