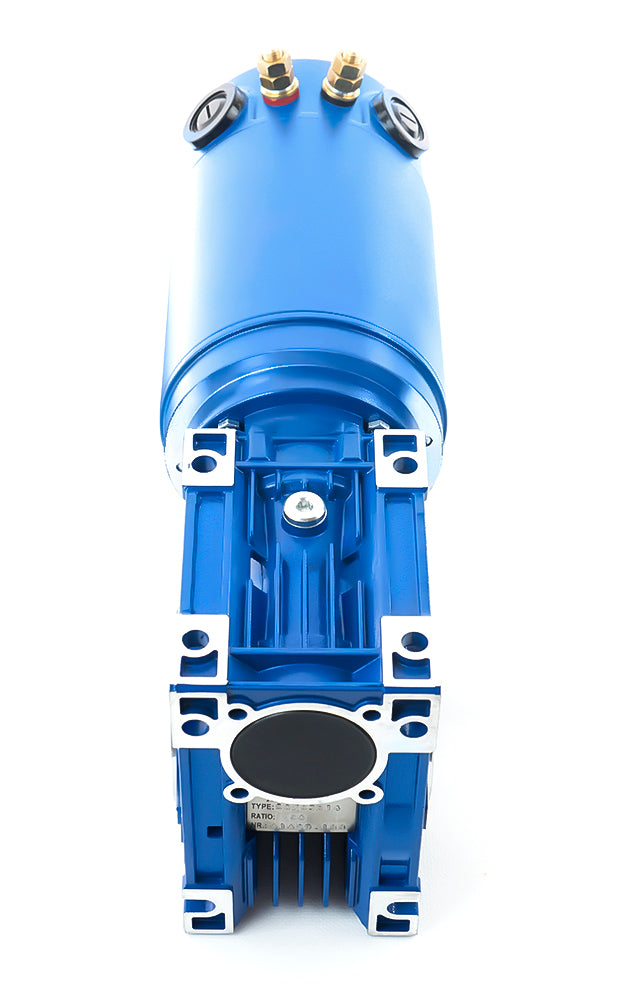

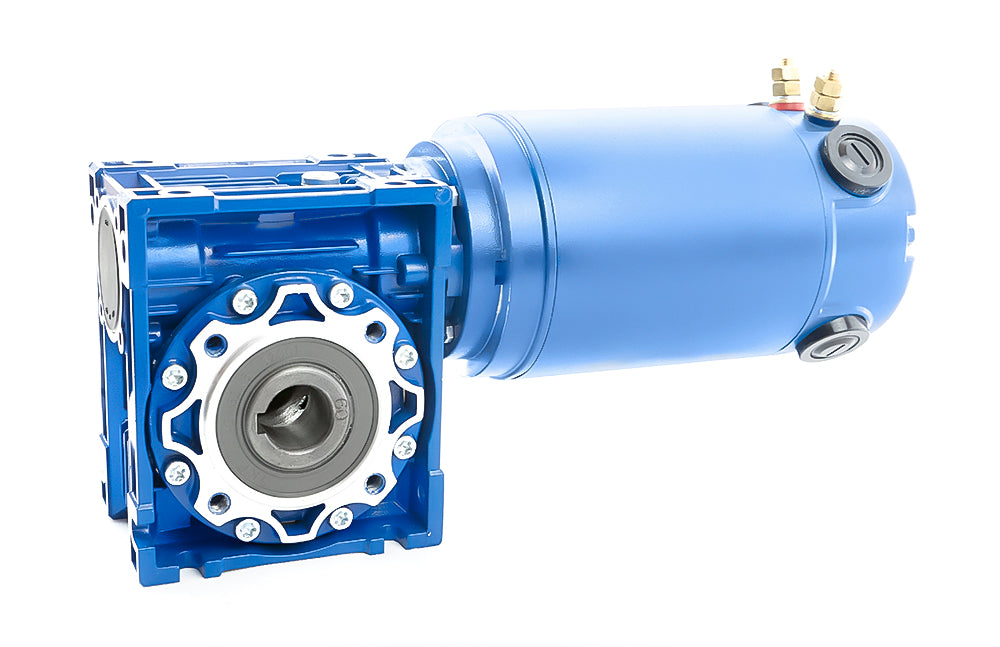

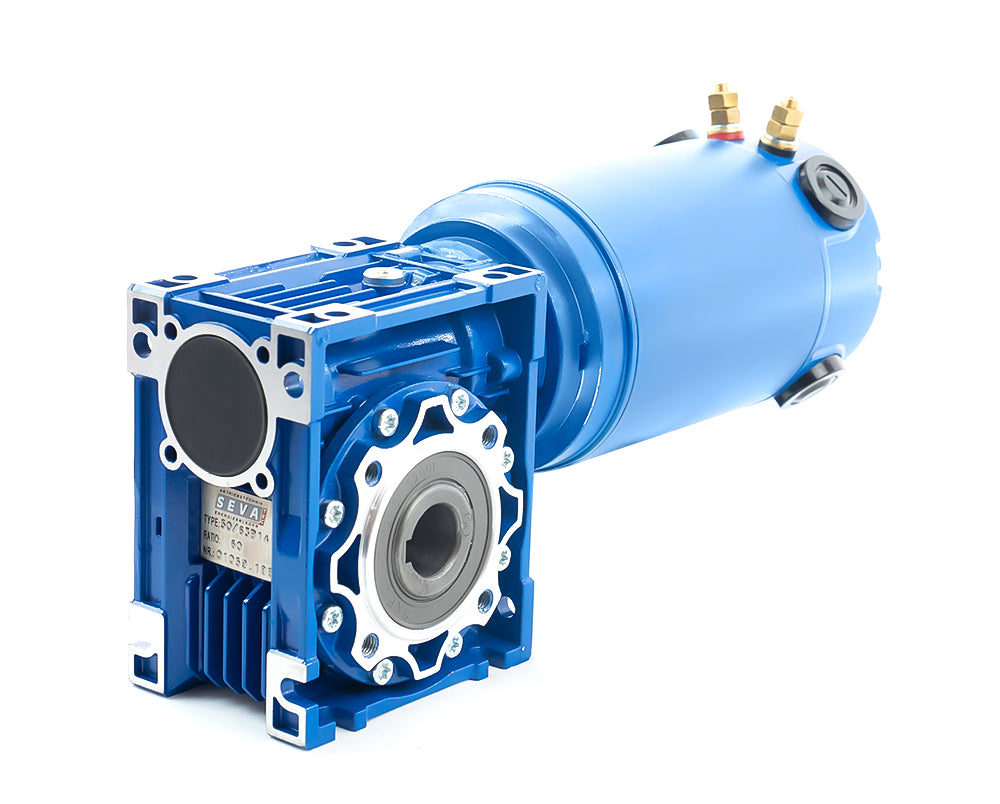

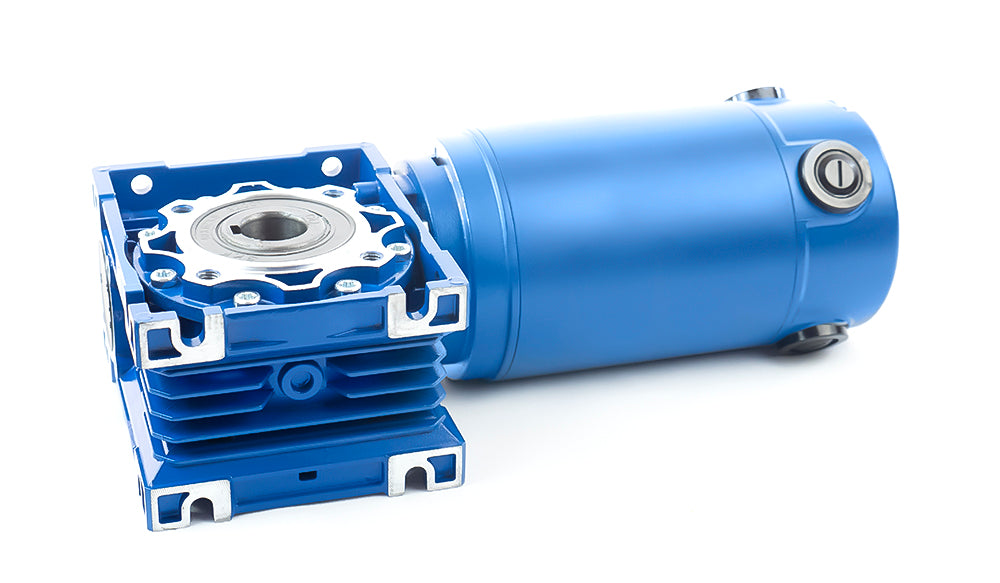

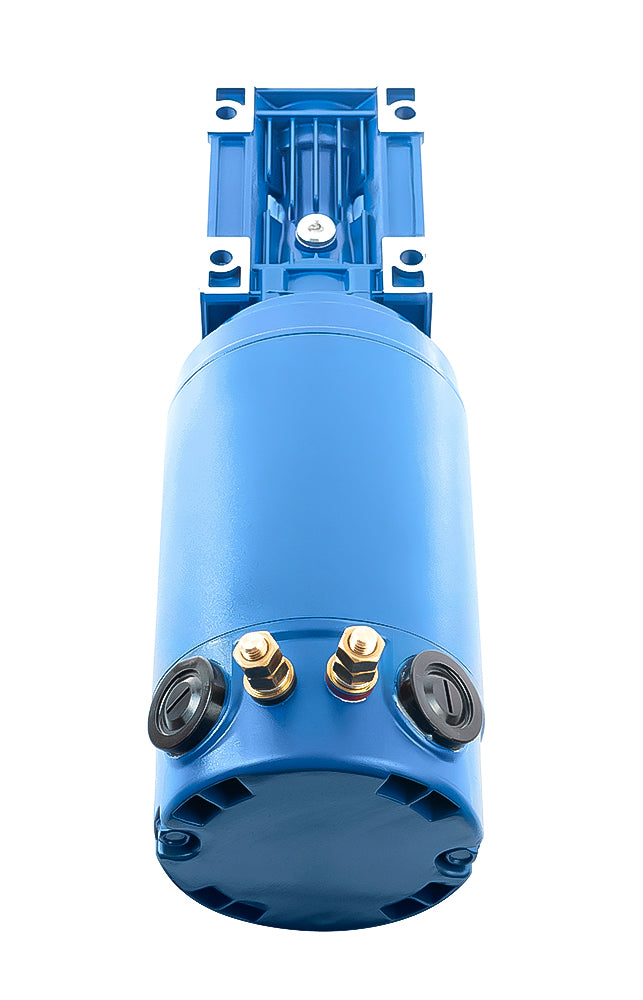

CMRV040 DC600-2 - 0.80 kW - 400 rpm - Worm gear motor

Worm gear with DC motor, IP40, power = 0.80 kW (S2 operation), speed = 400 rpm

Voltage= 12 or 24 Volt DC, Protection class= Gearbox IP55, Motor IP40, Current consumption= 12V/94.4A, 24V/47.2A,

Operating mode= S2 (short-time operation), hollow shaft= 18mm, motor speed= 2 poles, gear ratio (i)= 7.5,

Torque= 17.0 Nm, Service factor (fs)= 1.8, Connection= clamping bolt, Weight= 9.1 kg,

An external speed control is available as an option. Version with brake, encoder or other

Protection classes on request. The gearbox can be operated in both directions of rotation and contains

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by

carried out by qualified specialist personnel.

All product photos are non-binding examples! Technical changes reserved.
