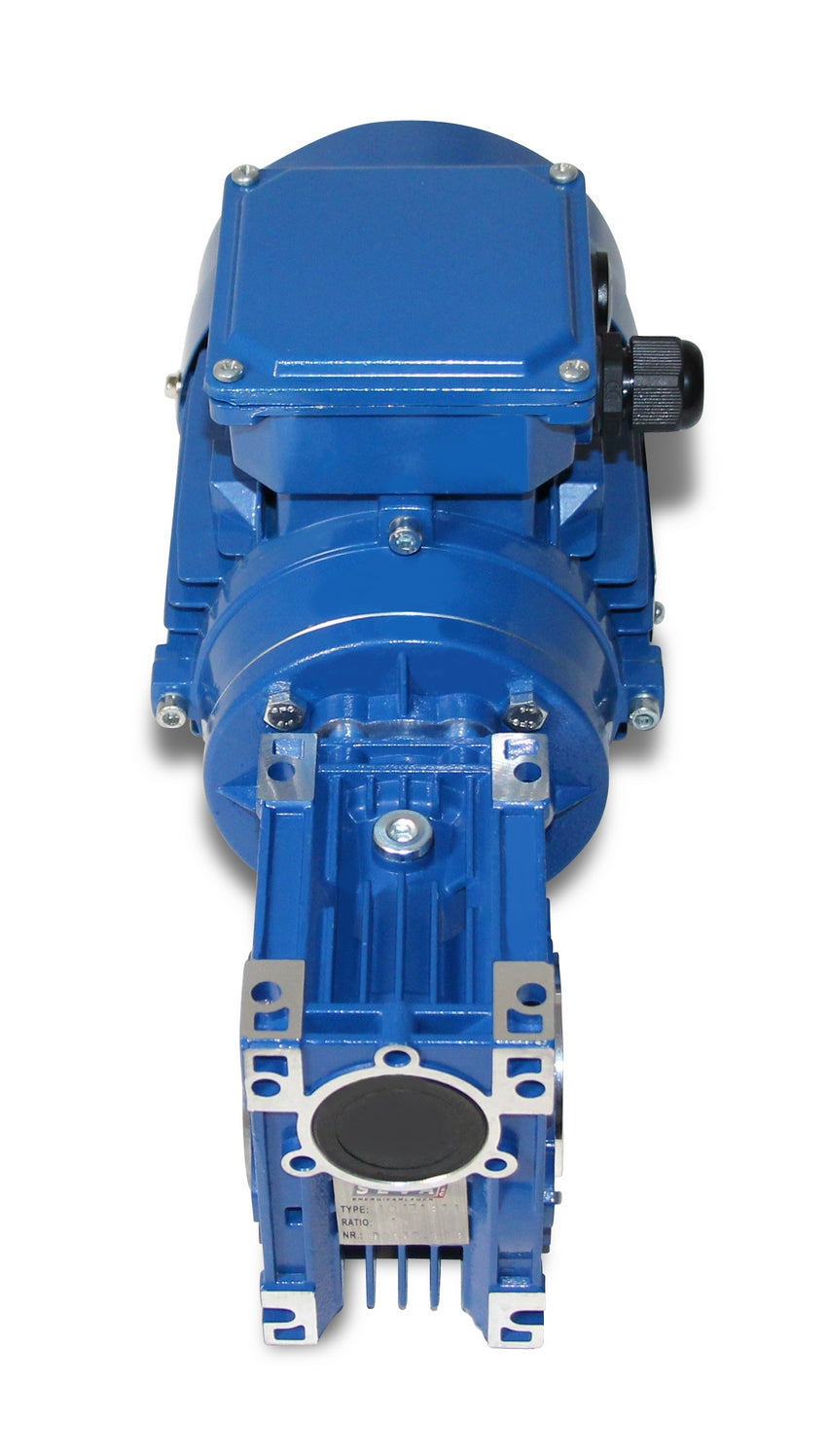

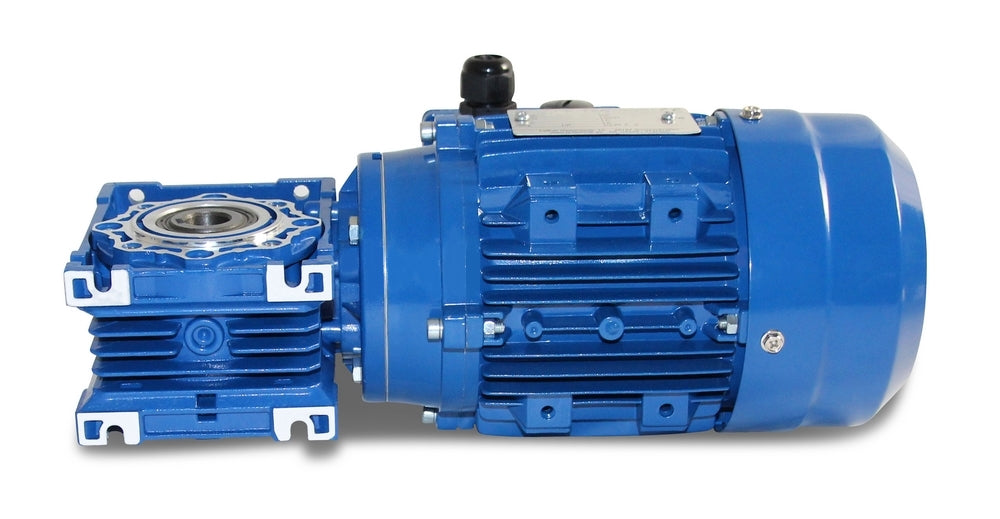

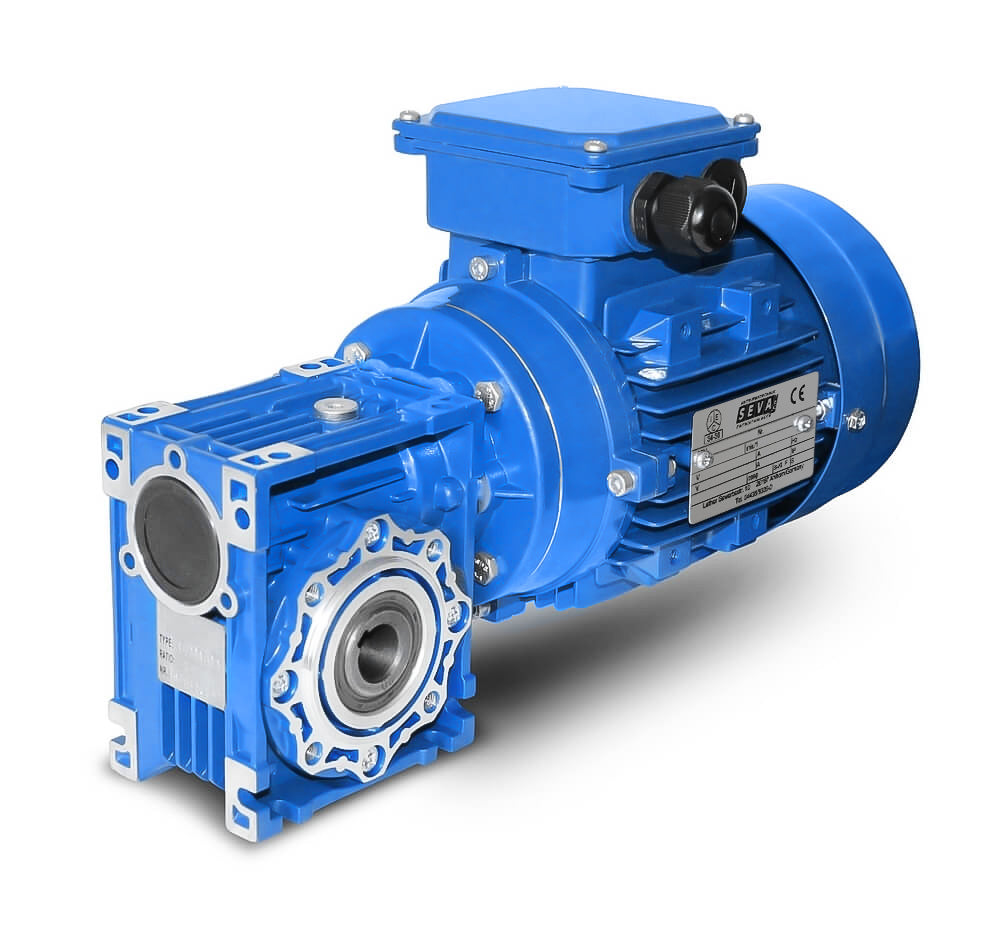

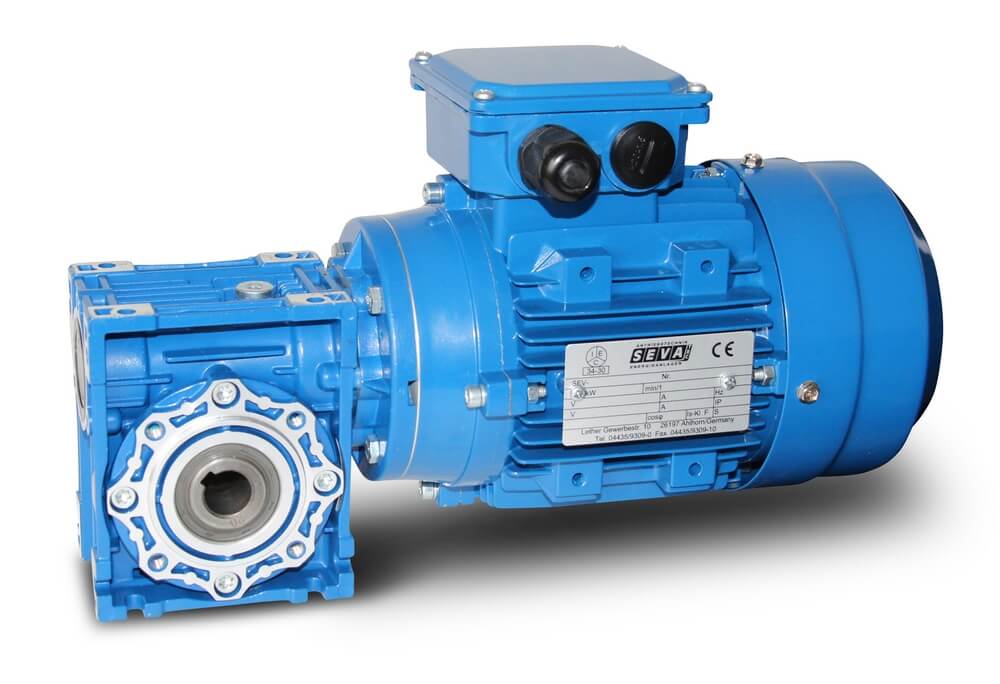

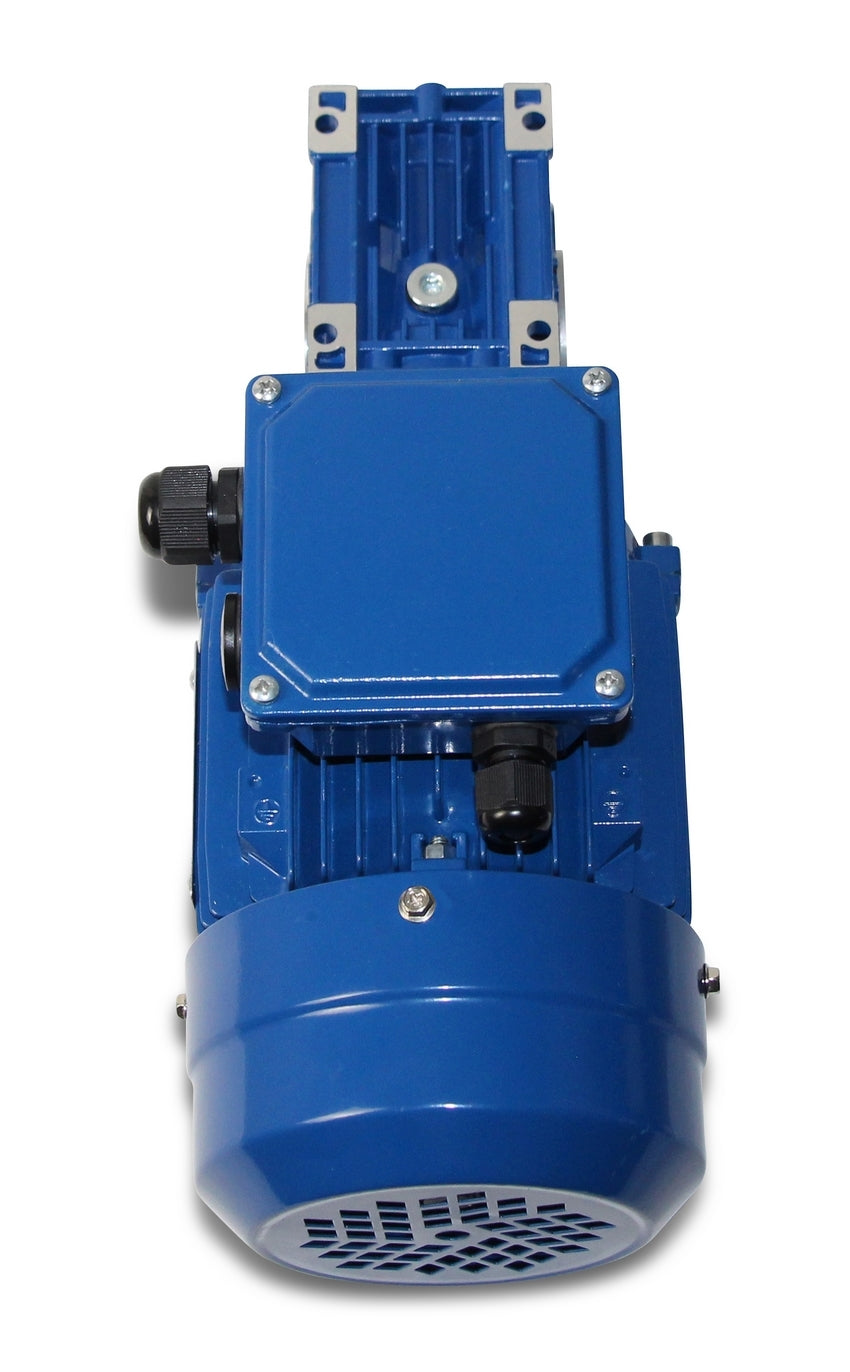

SEVA- CMRV 040-631-4 - 0.12 kW - 23.3 rpm - Worm gear motor

Worm gear motor, voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%,

Hollow shaft = 18mm, mounting position M1, motor speed 1500 rpm, gear ratio (i) = 60, torque = 28 Nm,

Operating factor (fs) = 1.3. Terminal box at the top, weight 6.4 kg,

Paint finish RAL 5010, 3 PTC thermistors, oil filled upon delivery.

Also available with AC motor (up to 3.7 kW), external fan or brake motor.

The AC motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

All product photos are non-binding examples!!
