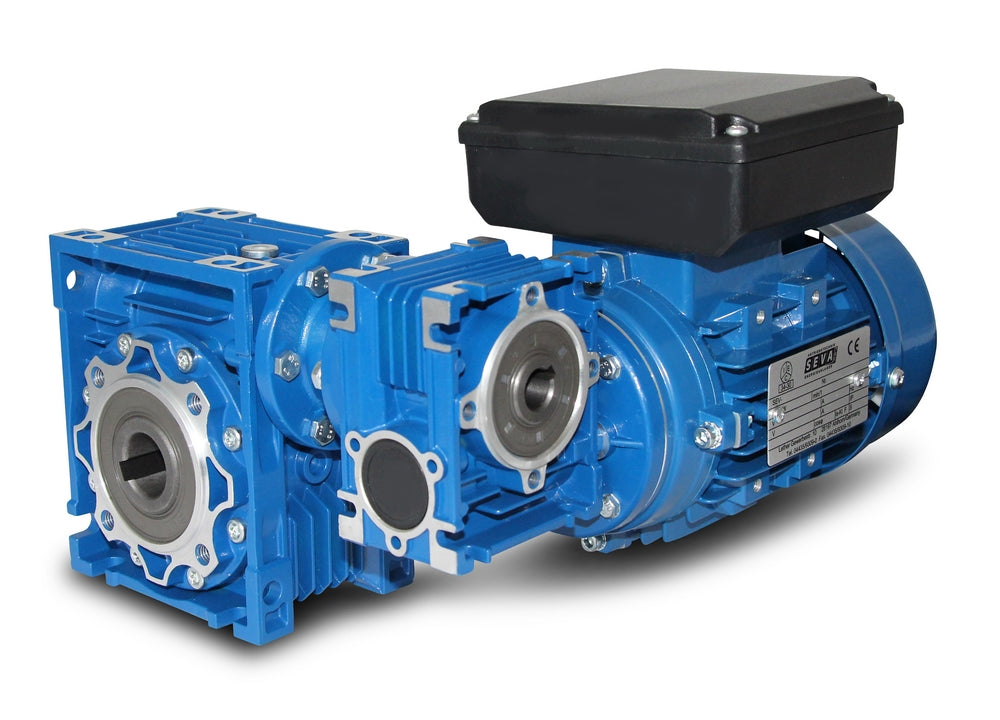

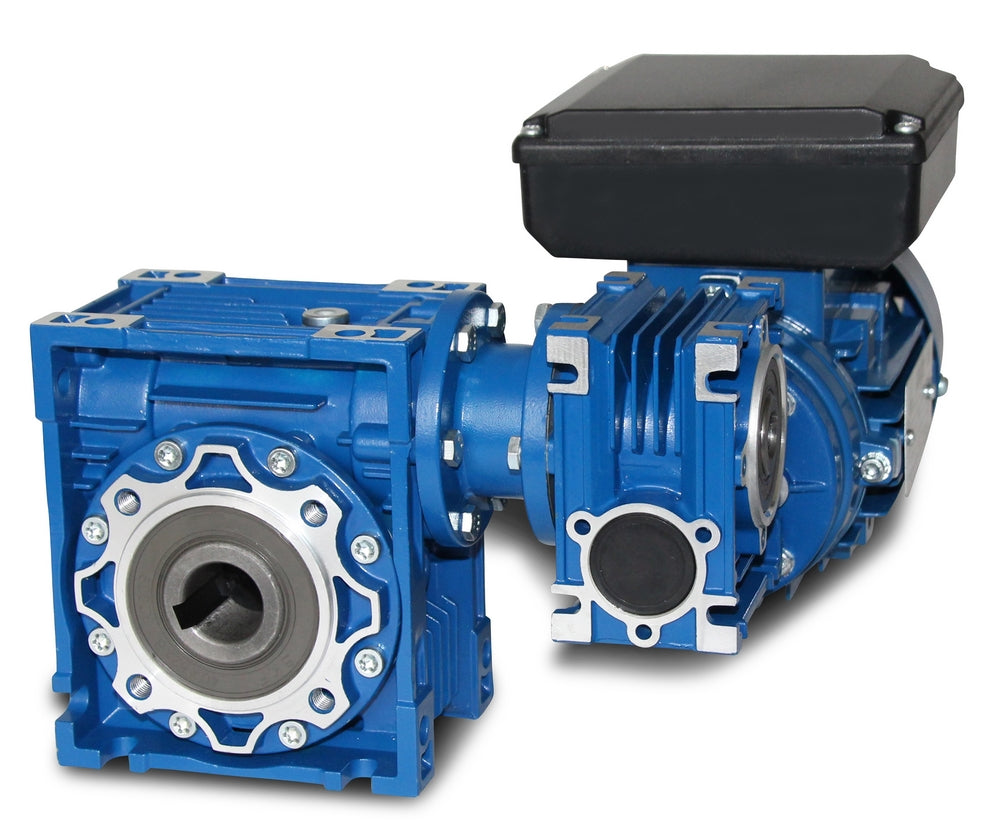

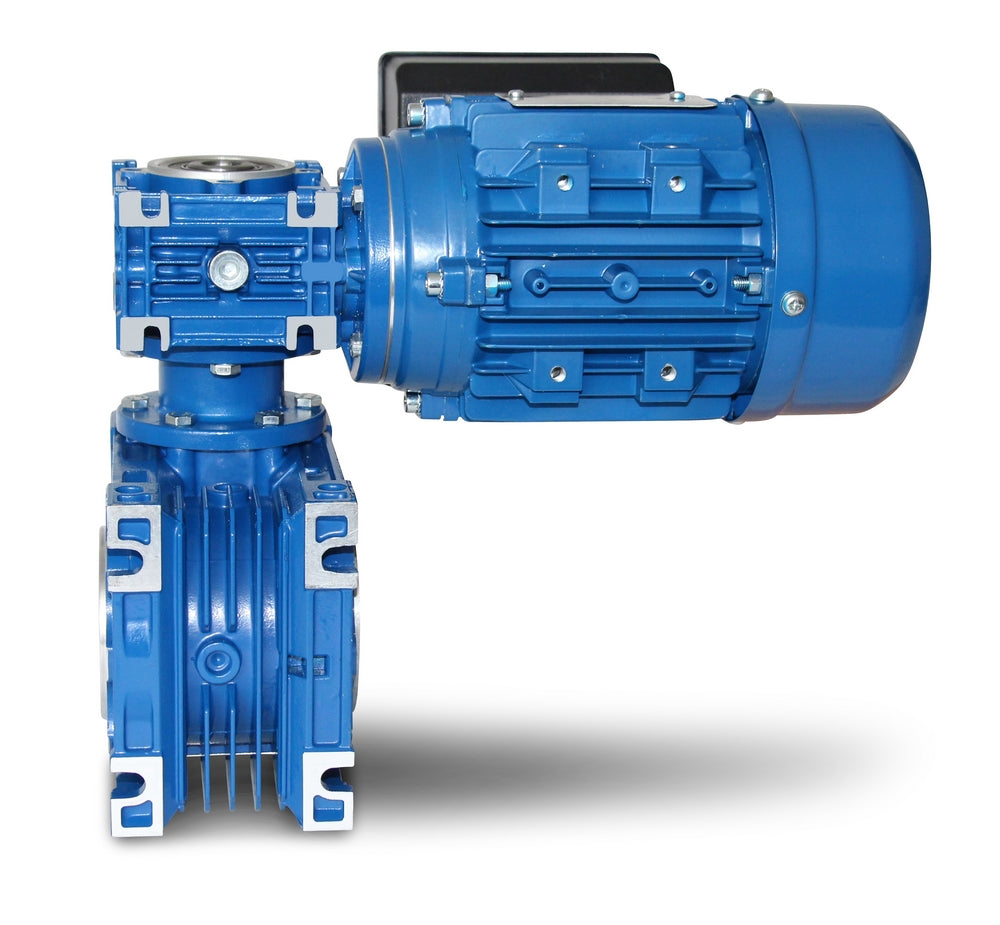

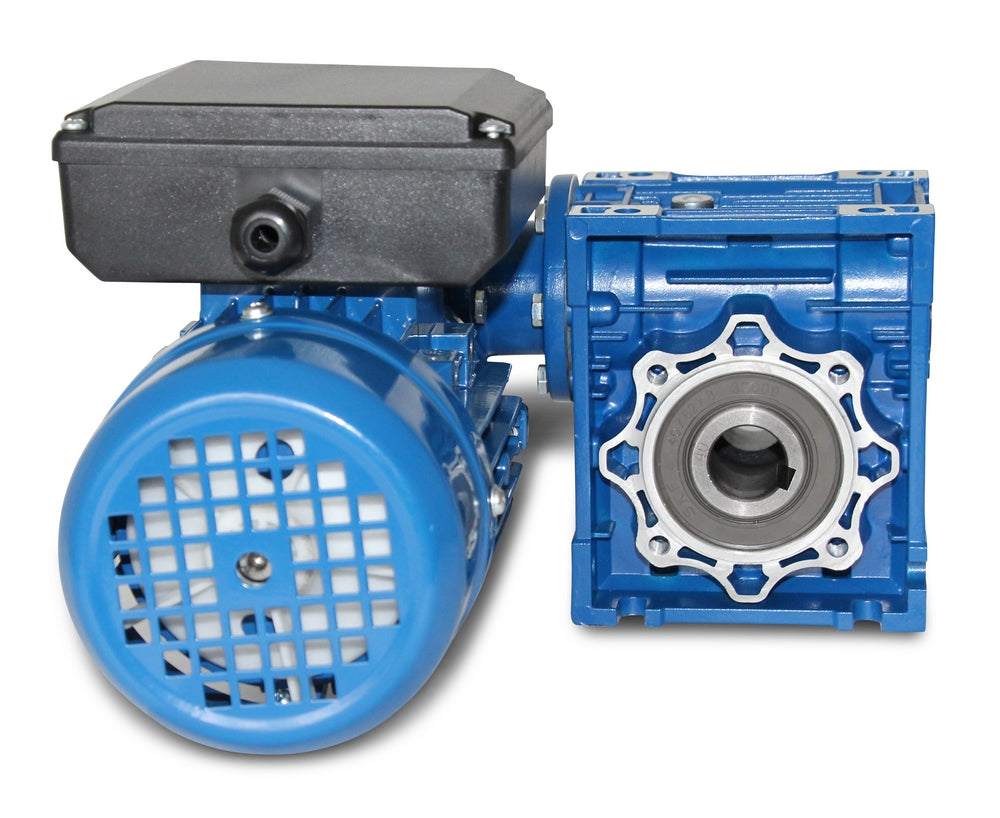

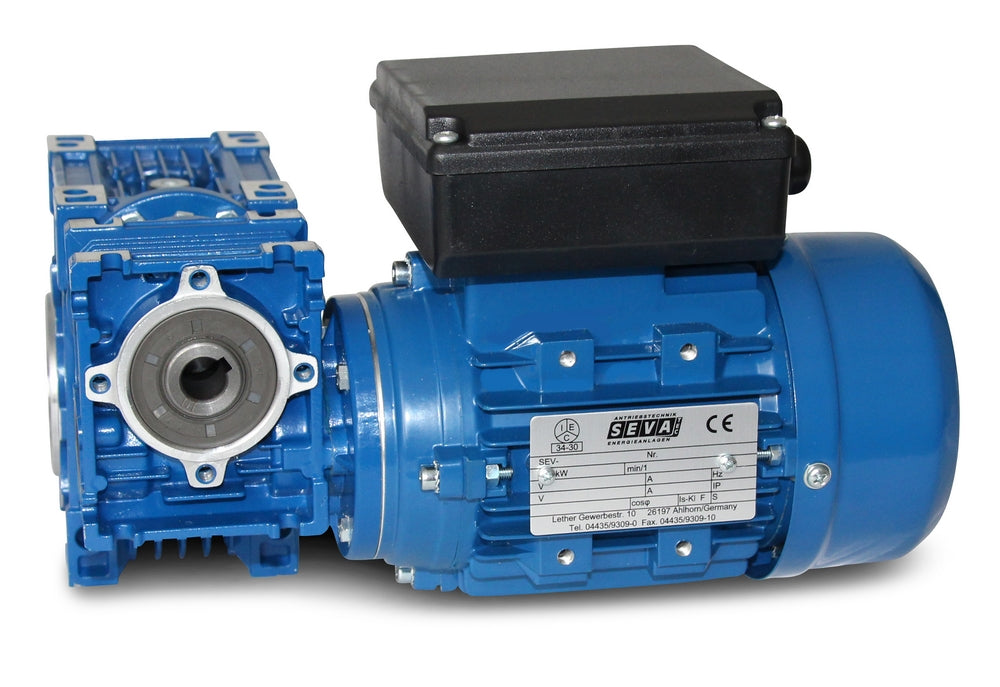

SEVA- CMRV 063/030-ML632-2 - 0.25 kW - 5.6 rpm - 230 Volt worm gear motor

Grill motor as worm gear + AC motor, power = 0.25 kW,

Voltage = 1 x 230 Volt (± 5% according to VDE 0530),

Protection class= IP55, Insulation class= F (155°C), Operating mode = S1, Duty cycle = S1- 100%,

Hollow shaft= 25 mm, Motor speed= 2 poles, Gear ratio (i)= 500, Torque= 185 Nm,

Operating factor (fs) = 1.2, Terminal box = top (rotatable), Weight = 12.7 kg. Color = RAL 5010 (gentian blue),

Temperature sensor= 1 x PTC thermistor, Gear housing= Aluminum, Ball bearings= SKF, C&U or equivalent,

Cooling = axial fan (plastic). The gear motor can be operated in both directions and

Includes an oil filling upon delivery. Open hollow shafts must be sealed with cover caps.

According to VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel.

From gearbox size 110 the installation position must be specified .

All product photos are non-binding examples! Technical changes reserved.
