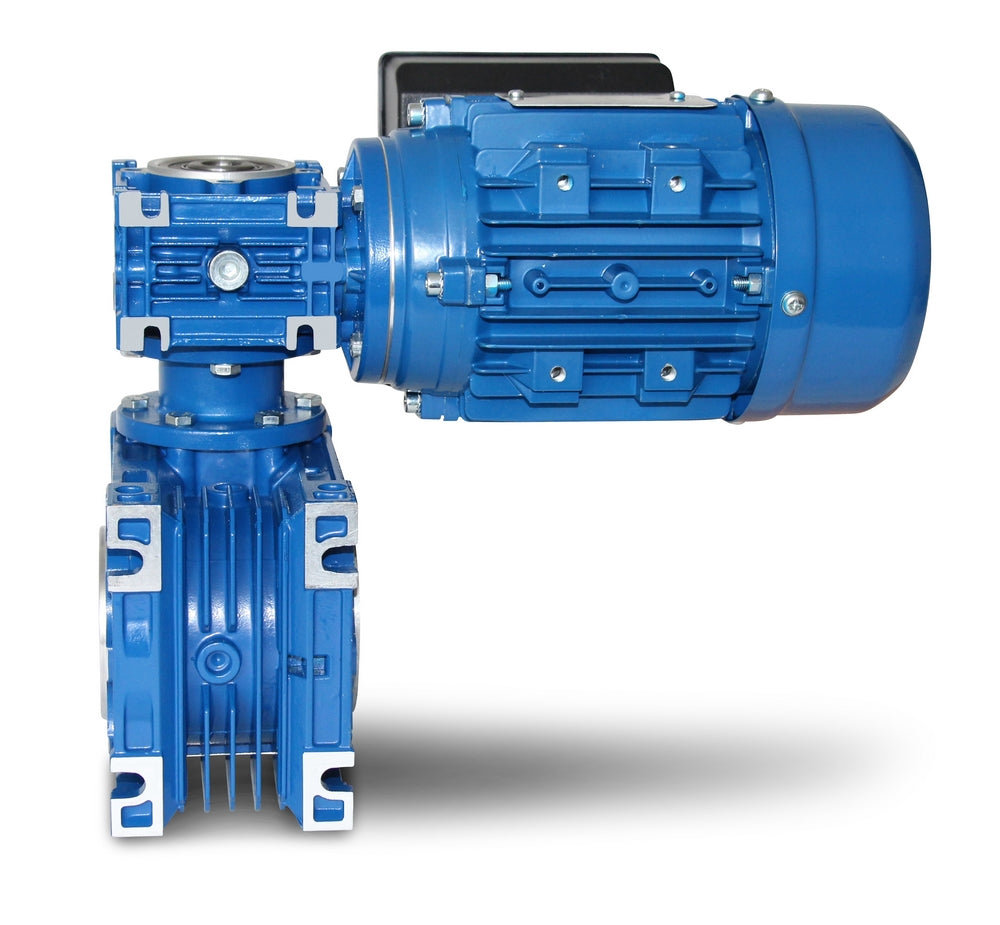

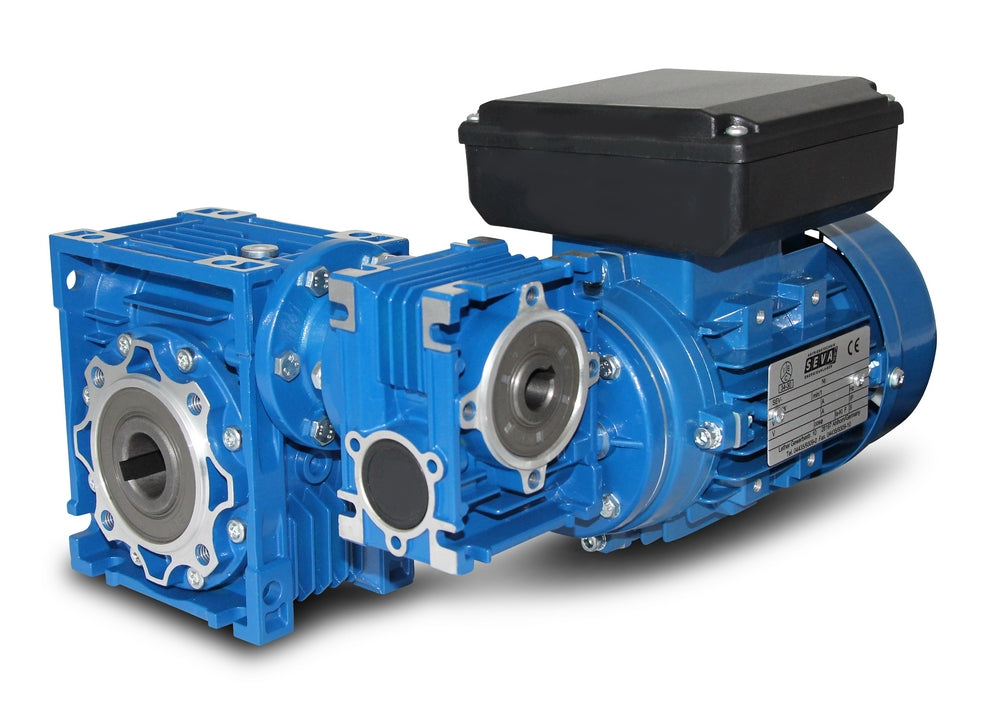

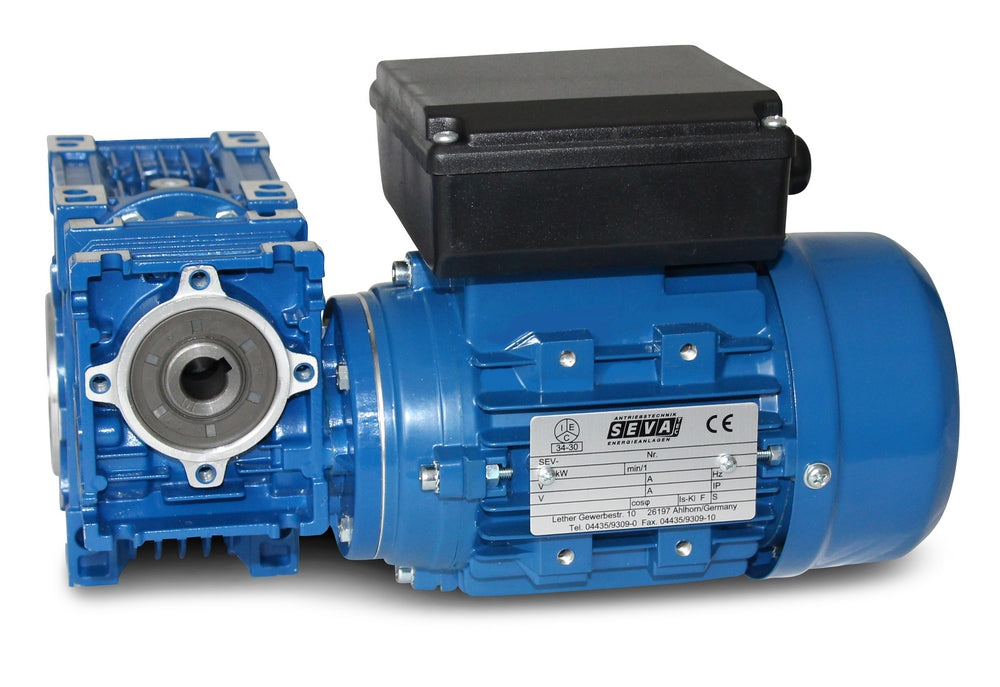

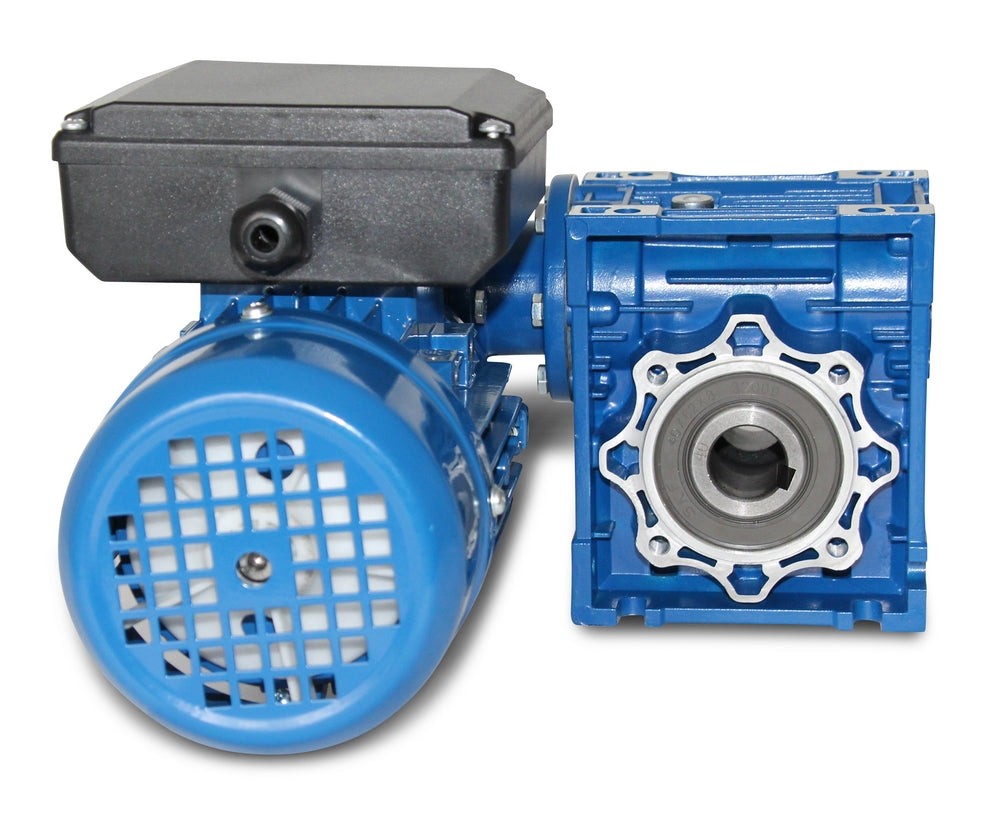

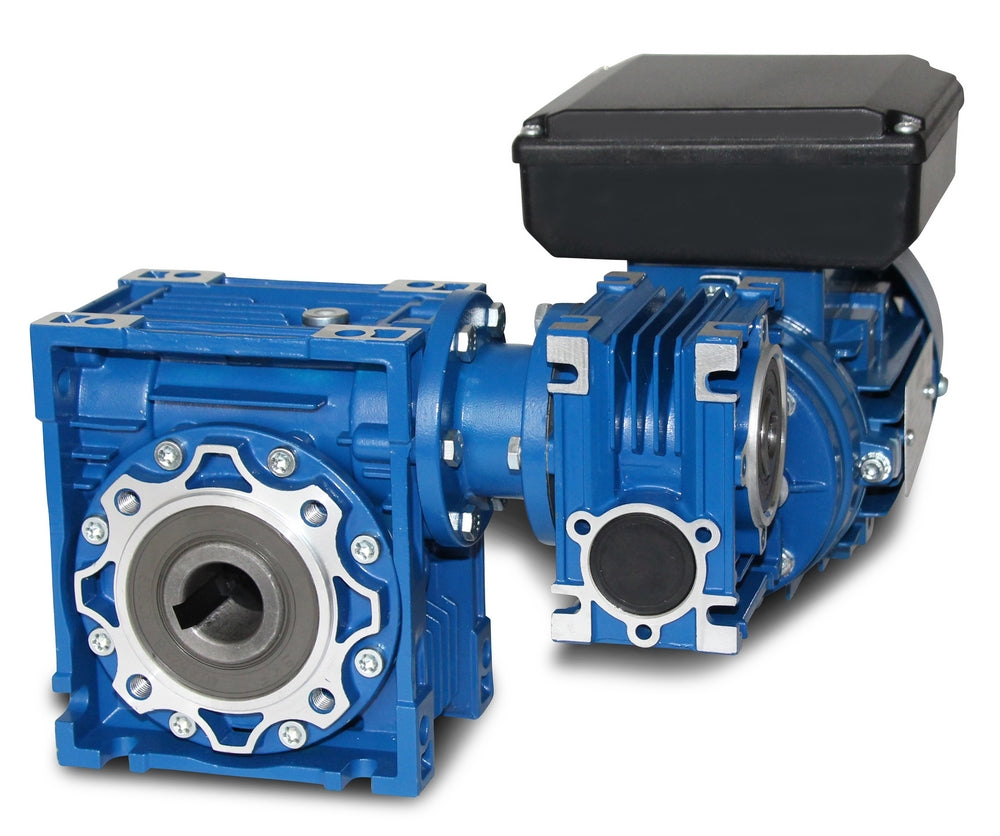

SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor
SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor
SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor
SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor
SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor

SEVA- CMRV 063/030-ML632-4 - 0.18 kW - 3.5 rpm - 230 Volt worm gear motor

Key Features

  • Grill motor as worm gear + AC motor, power = 0.18 kW, Voltage= 1 x 230 Volt (± 5% according to VDE 0530), Protection class= IP55,
  • Insulation class = F (155°C), operating mode = S1- 100% ED, speed (n²) = 3.5 rpm,
  • Gear ratio (i)= 400, torque= 222 Nm, service factor (fs)= 1.0, hollow shaft= 25 mm.
  • Weight= 13 kg, Color= RAL 5010 (gentian blue), Temperature sensor= 1 x PTC thermistor,
  • Housing= die-cast aluminum, ball bearings= SKF, C&
Downloads
Eigenschaften

Wird geladen …

Wird geladen …
€475,23 EUR
€475,23 EUR

* plus VAT plus shipping costs

SKU: C030063103104000F001T1

Payment Methods

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Visa

Accesories

Wird geladen...
Description
Description
x

Grill motor as worm gear + AC motor, power = 0.18 kW,

Voltage= 1 x 230 Volt (± 5% according to VDE 0530), Protection class= IP55,

Insulation class = F (155°C), operating mode = S1- 100% ED, speed (n²) = 3.5 rpm,

Gear ratio (i)= 400, torque= 222 Nm, service factor (fs)= 1.0, hollow shaft= 25 mm.

Weight= 13 kg, Color= RAL 5010 (gentian blue), Temperature sensor= 1 x PTC thermistor,

Housing= die-cast aluminum, ball bearings= SKF, C&U or equivalent, cooling= axial fan (plastic).

The gear motor can be operated in both directions of rotation and is filled with oil upon delivery.

All product photos are non-binding examples! Technical changes reserved.
