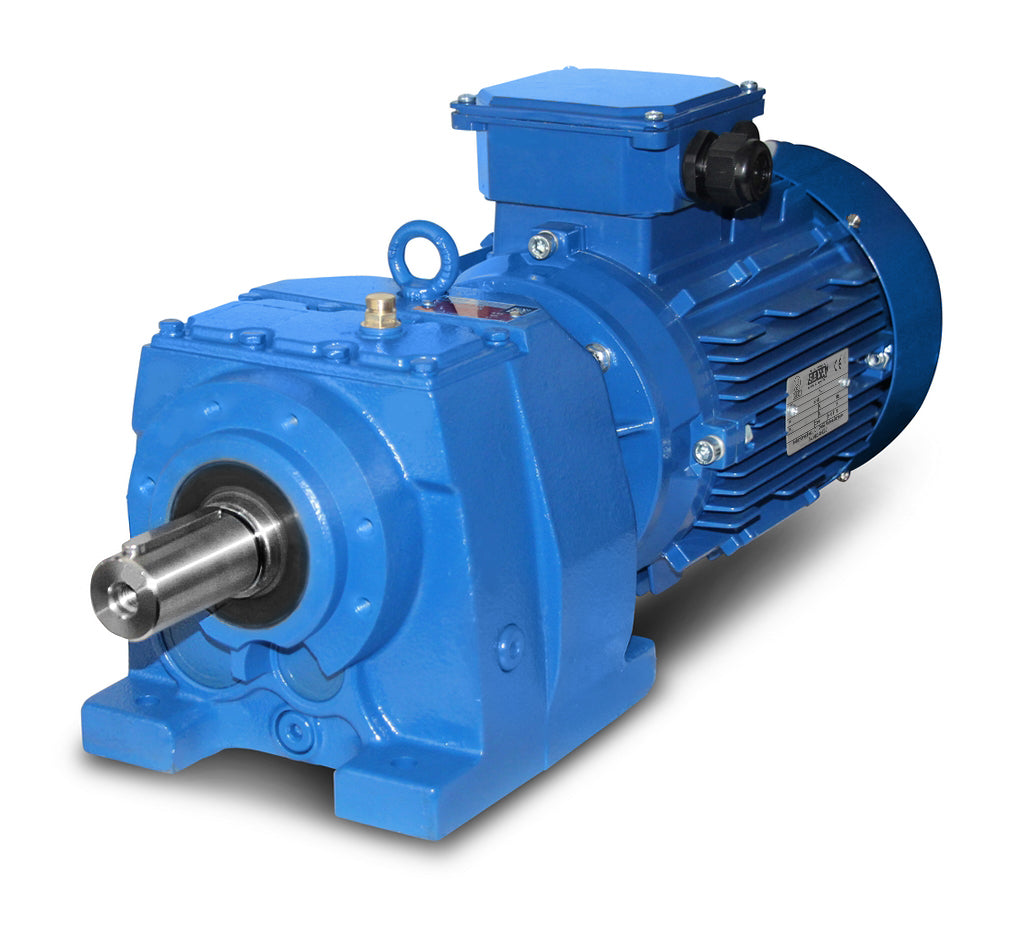

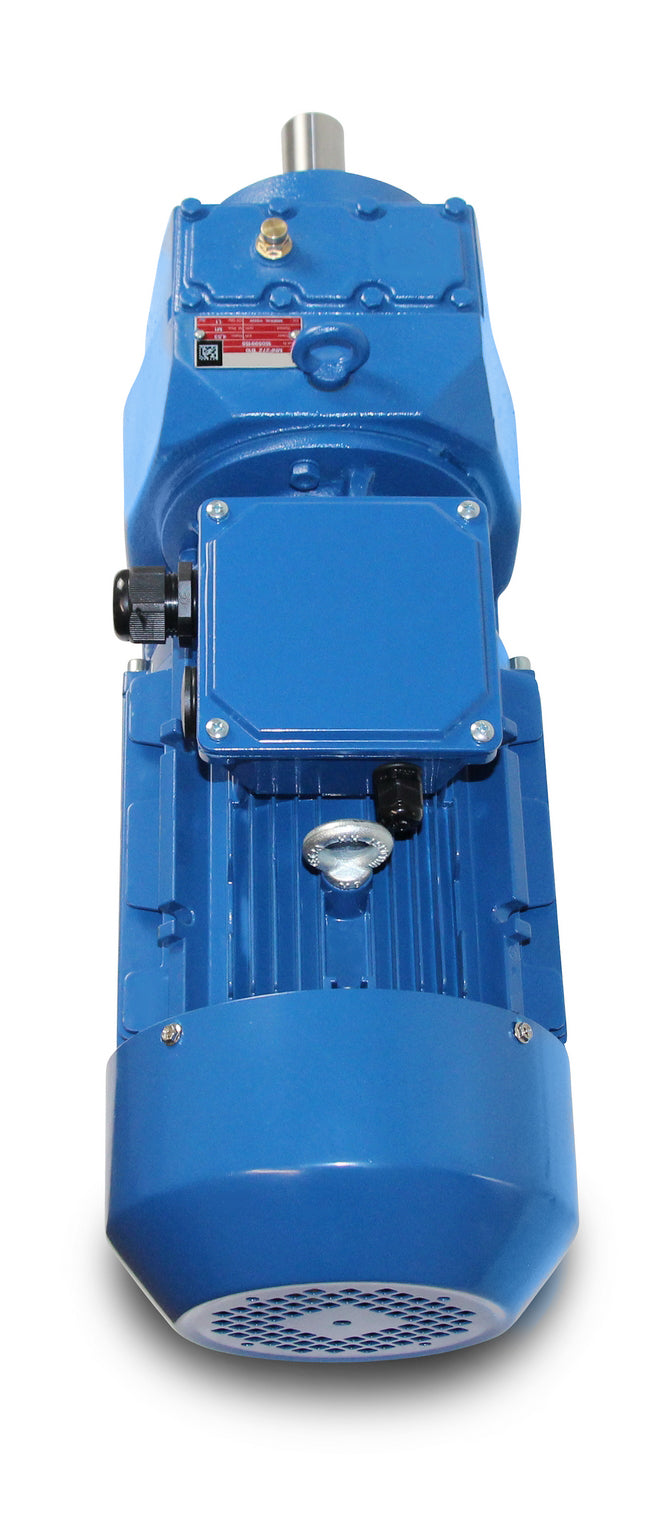

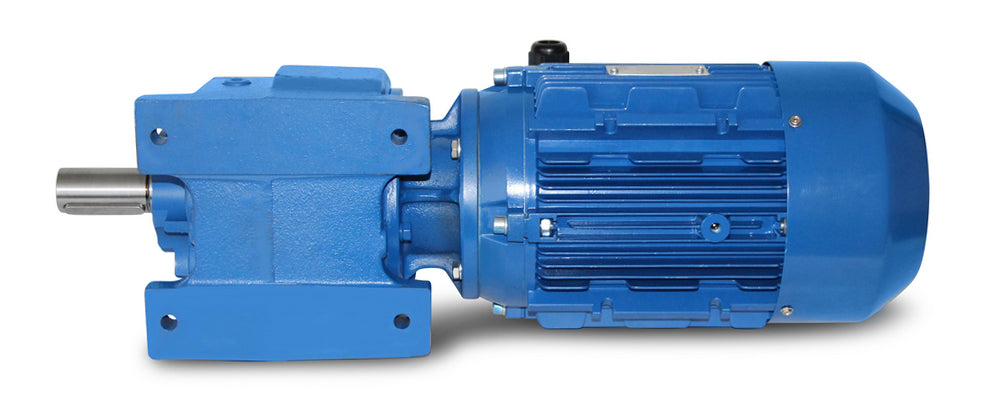

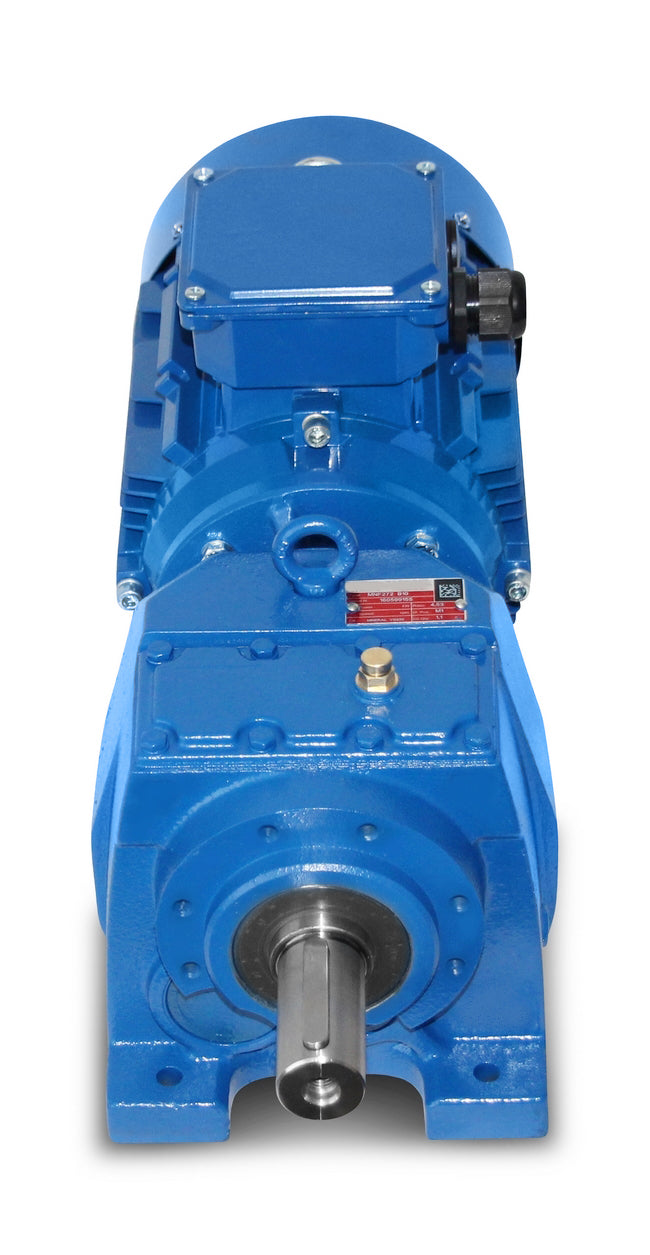

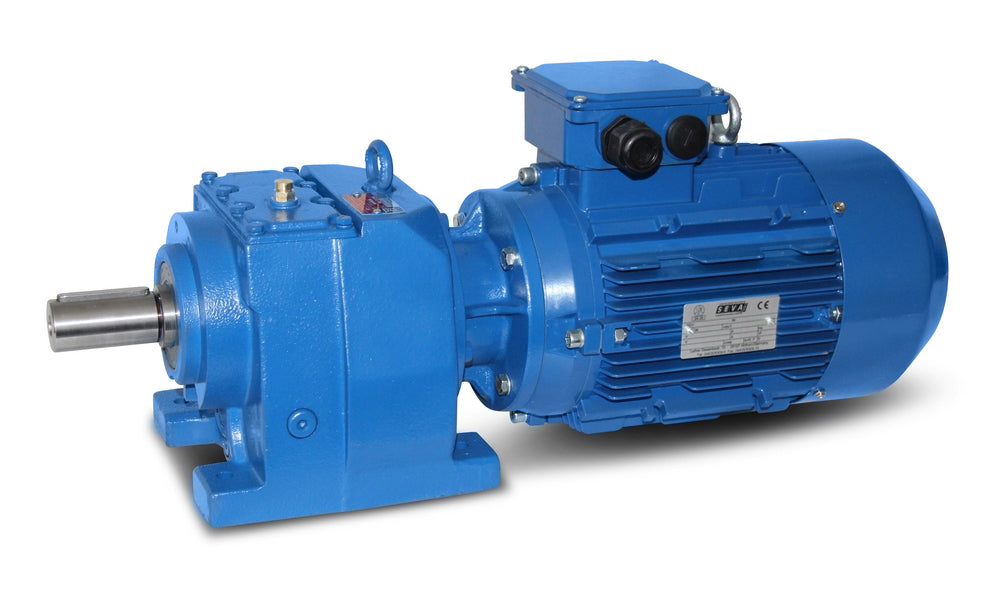

SEVA- MV-F273-100-4 - 2.2kW - 46 rpm helical gear motor

Spur geared motor with flange mounting option from B3 to B35,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.

Power= 2.2 kW, Speed= 46 rpm, Gear ratio (i)= 30.48, Torque (M²)= 434 Nm, service factor (fs)= 1.0.

Design= B3 (B35 at extra charge), shaft= 35x70 mm, weight= 45.2 kg, color= RAL5010,

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

The spur gear unit is suitable for frequency converter operation and complies with the

IEC 60034-30:2008. The helical gear unit can be operated in both directions of rotation

and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.

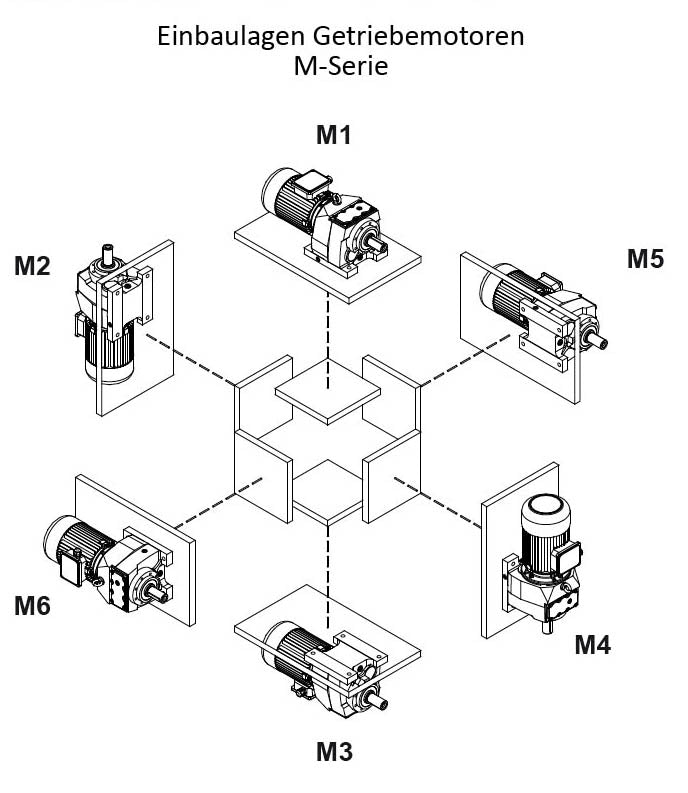

When ordering, please select the desired installation position!
