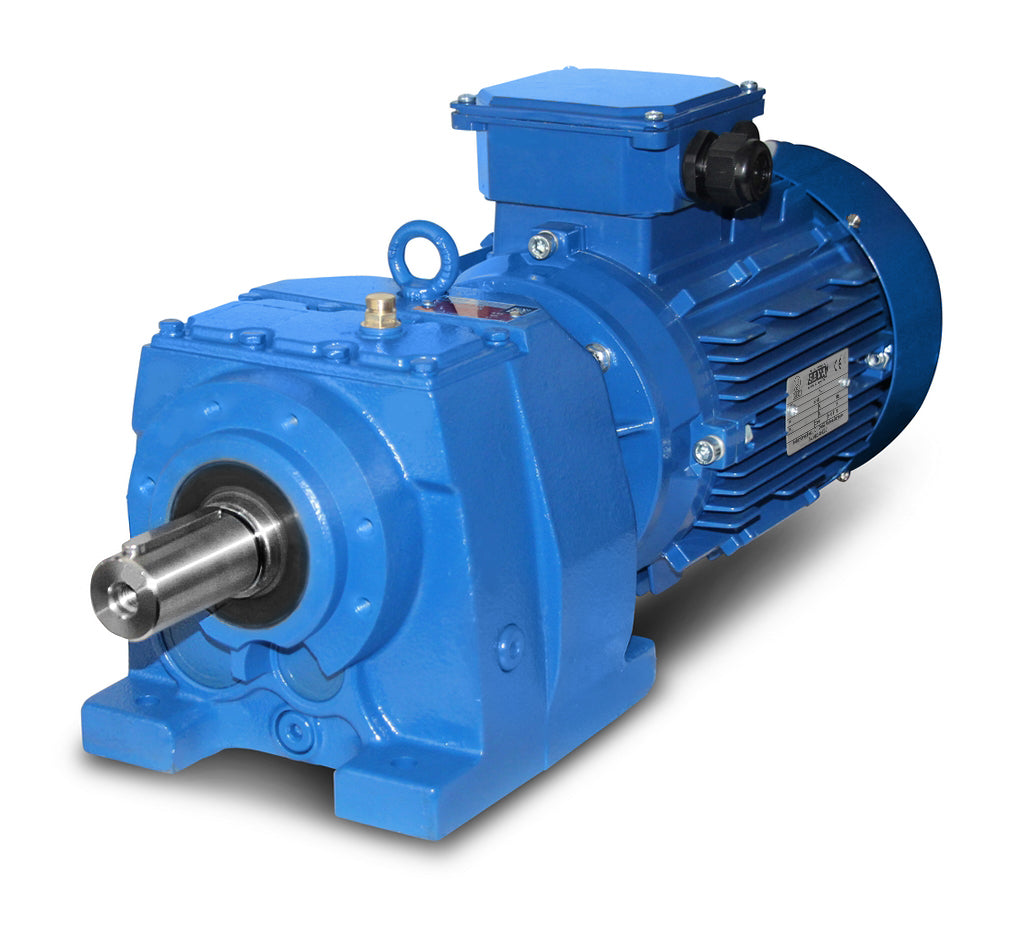

SEVA- MV-F203-80-4 - 0.75kW - 21 rpm helical gear motor

Spur geared motor with flange mounting option from B3 to B35,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.

Power= 0.75 kW, Speed= 21 rpm, Gear ratio (i)= 68.03, Torque (M²)= 327 Nm, Service factor (fs)= 0.9, Weight= 30.1 kg,

Design= B3 (B35 at extra charge), shaft= 30x60 mm,

Color= RAL5010,

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

The spur gear unit is suitable for frequency converter operation and complies with the

IEC 60034-30:2008. The helical gear unit can be operated in both directions of rotation

and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.

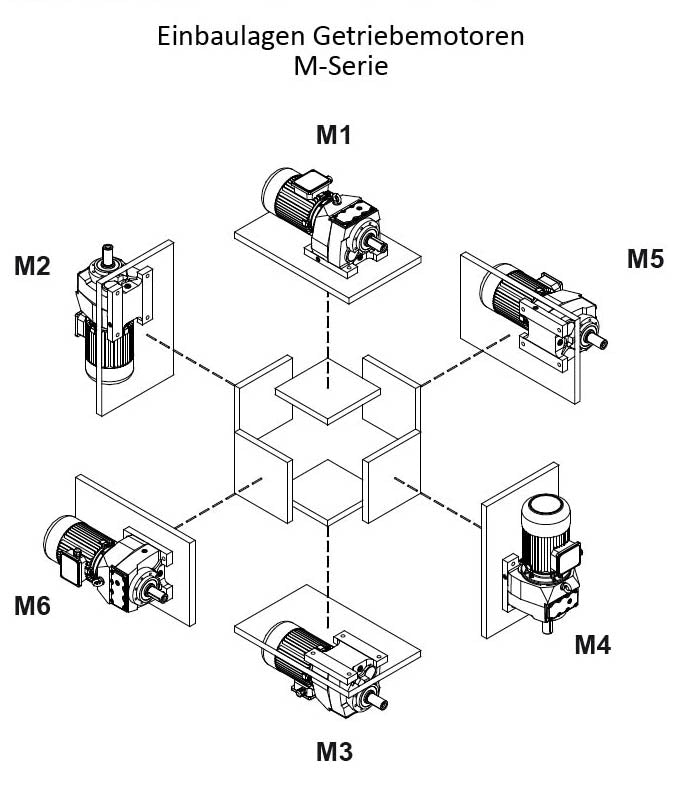

When ordering, please select the desired installation position!
