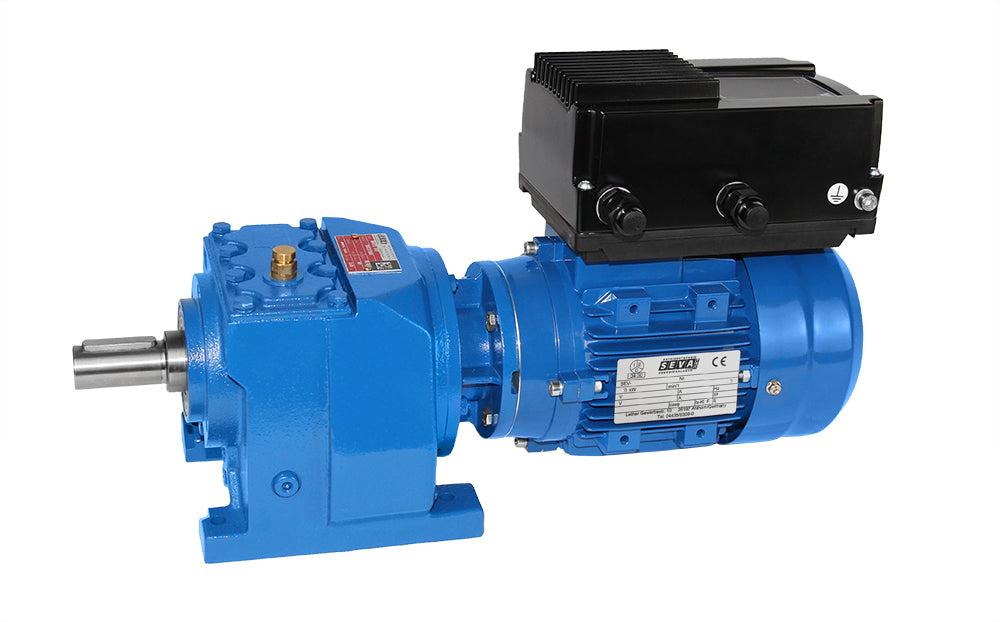

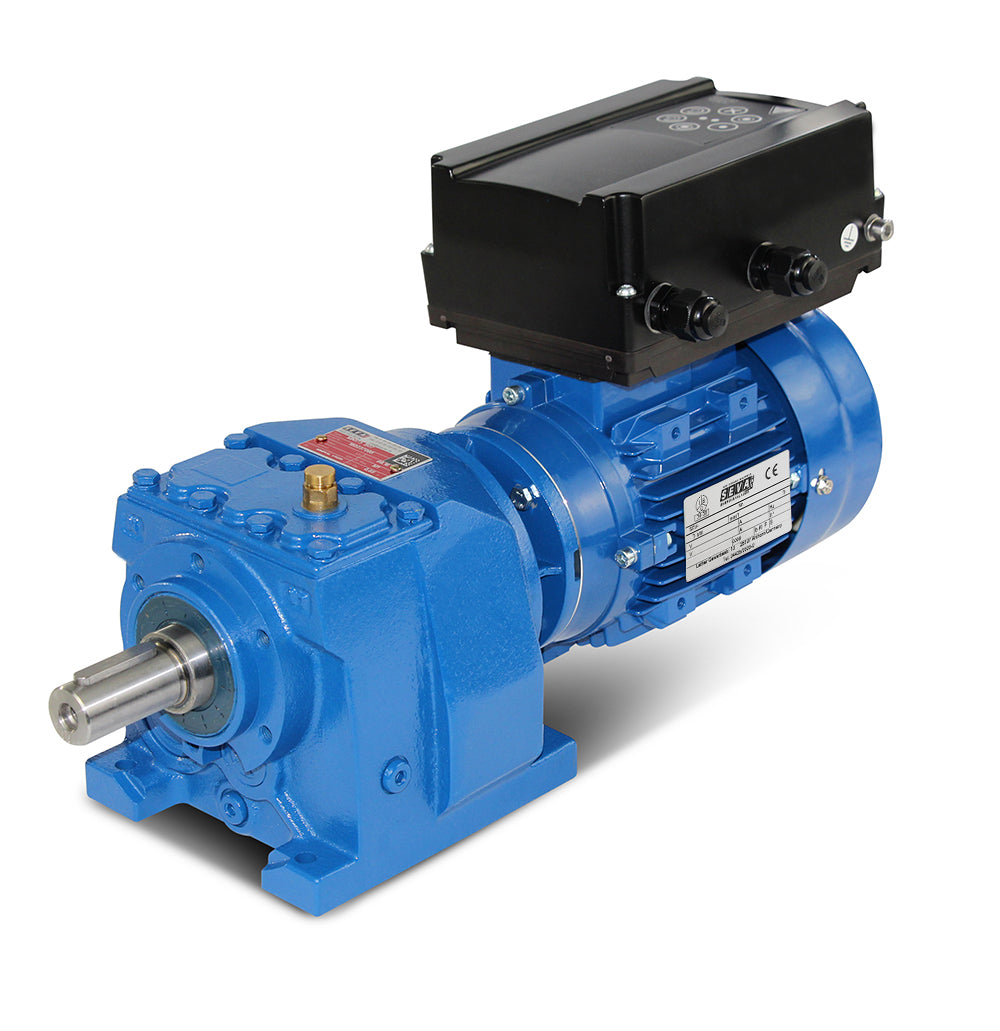

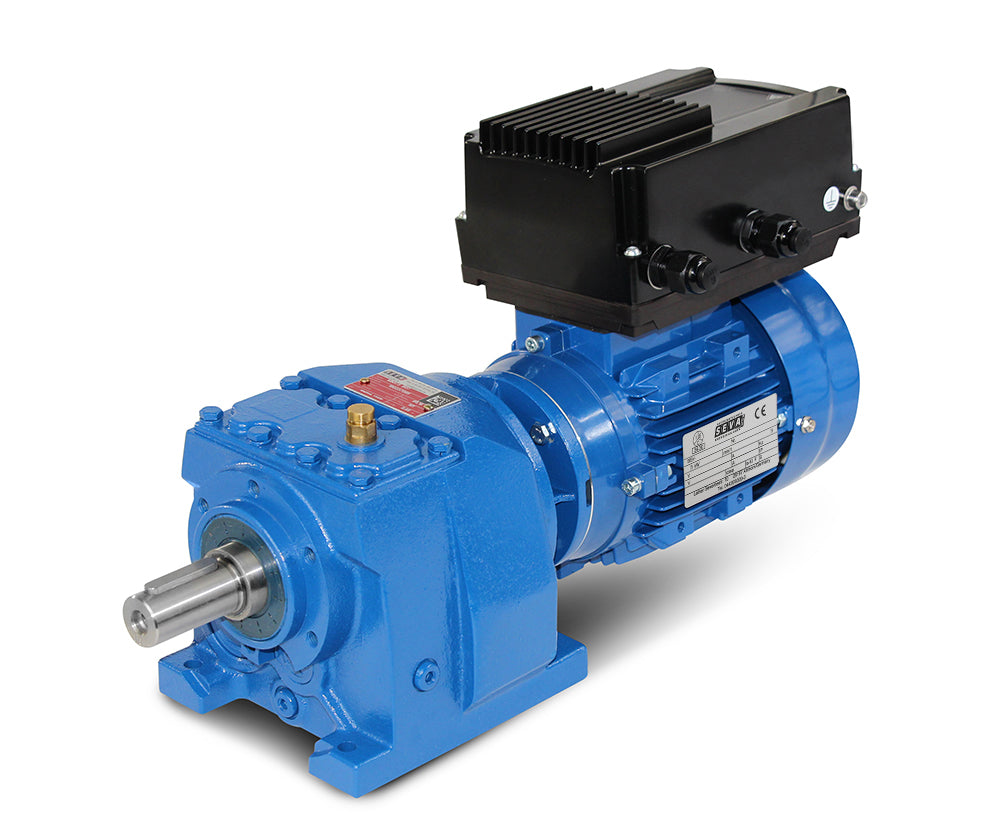

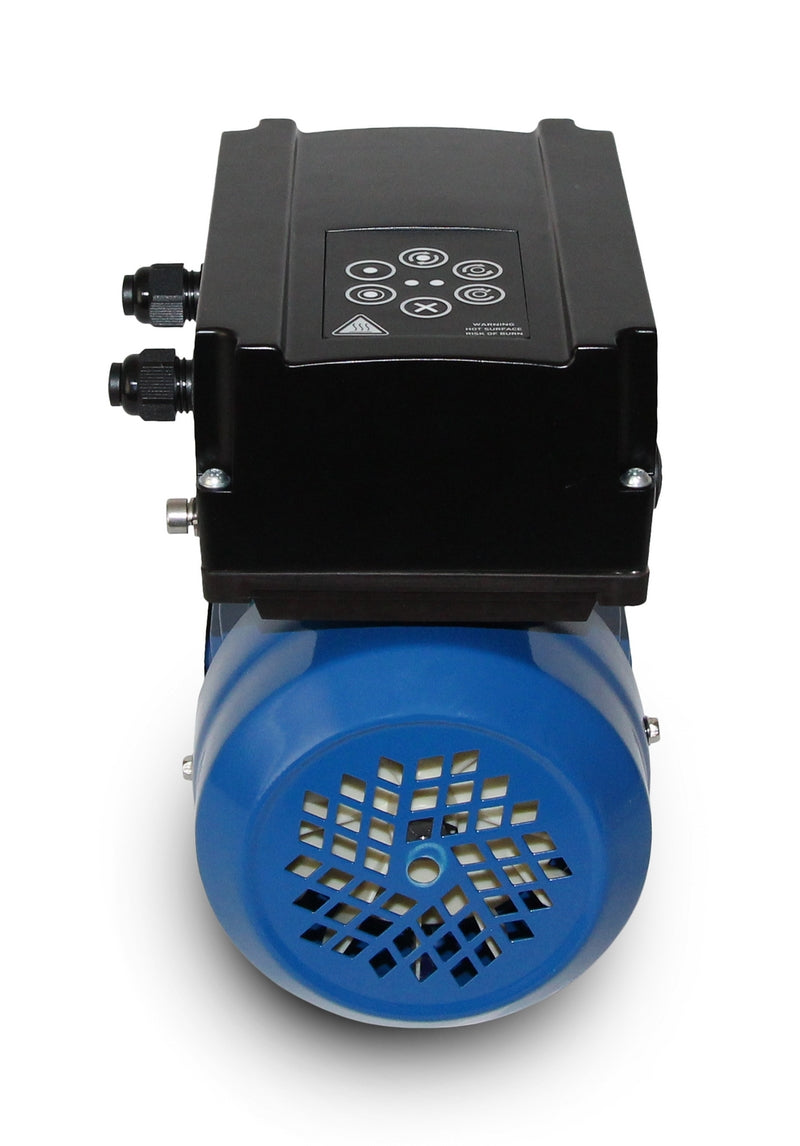

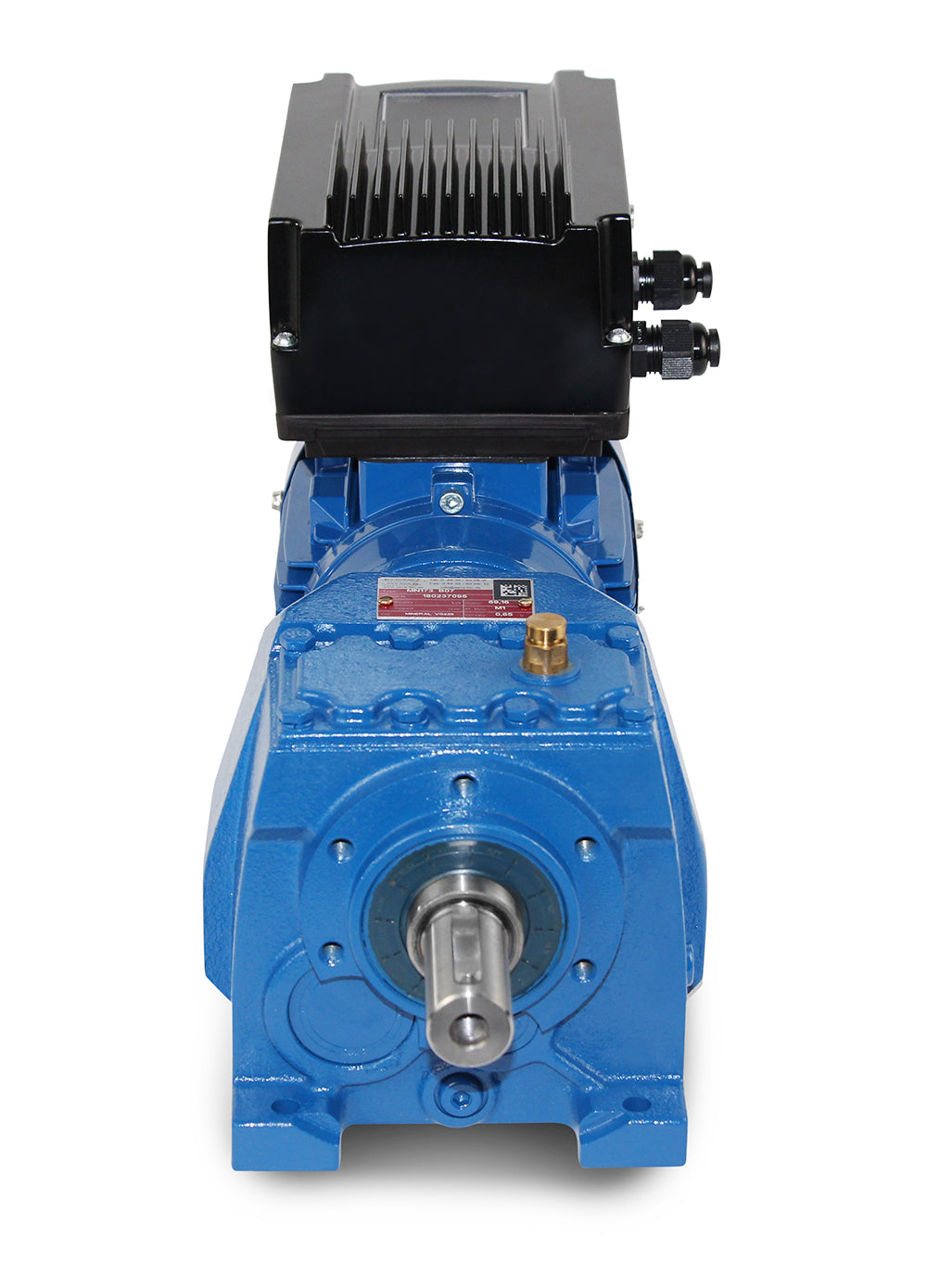

SEVA- MV-F103-801-4 - 0.55KW – 3 to 33 rpm helical gear + frequency inverter motor Alpha

Spur gear unit + frequency converter motor with flange mounting option,

Power= 0.55 KW, speed= 3 to 33 rpm, gear ratio (i)= 50.51, torque (M²)= 178 Nm, service factor (fs)= 0.8.
Design= B3 (B35 at extra charge), shaft= 25x50 mm, weight= 24.2 kg, color= RAL5010,
Temperature sensor = 3 x PTC thermistors, operating mode = S1- 100% duty cycle.

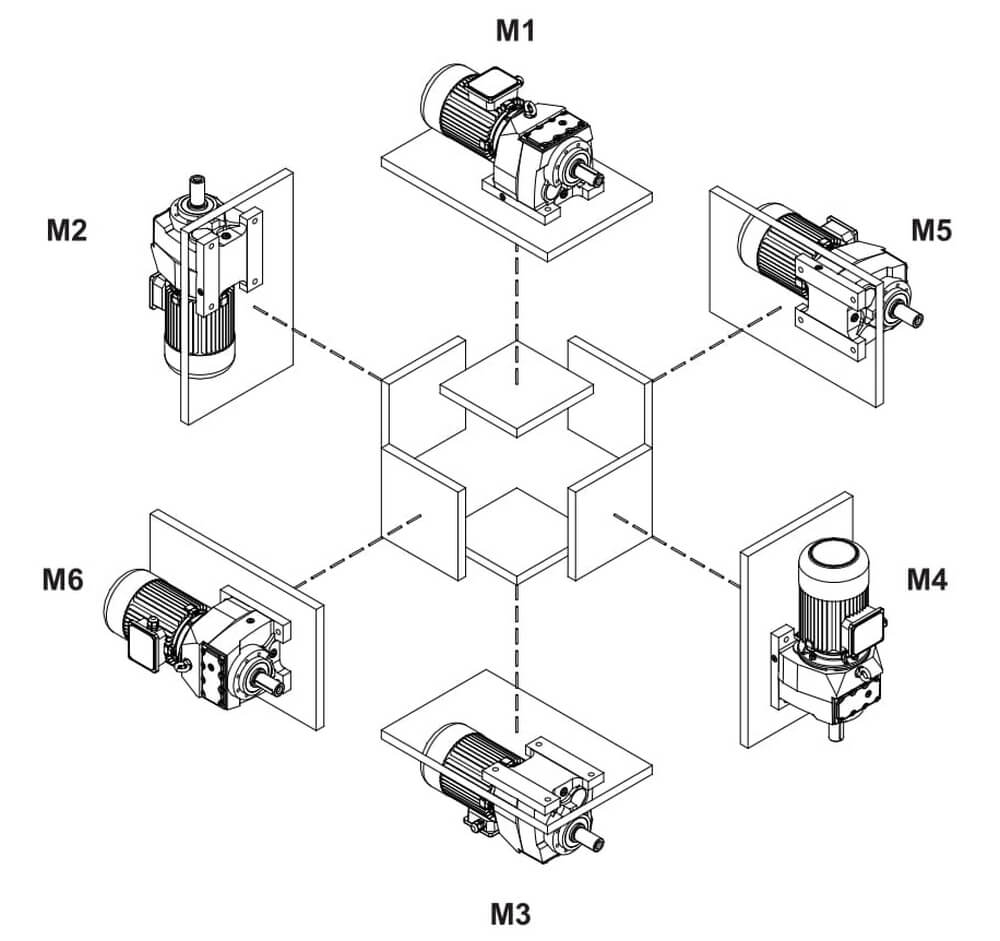

When ordering, please select the desired installation position!

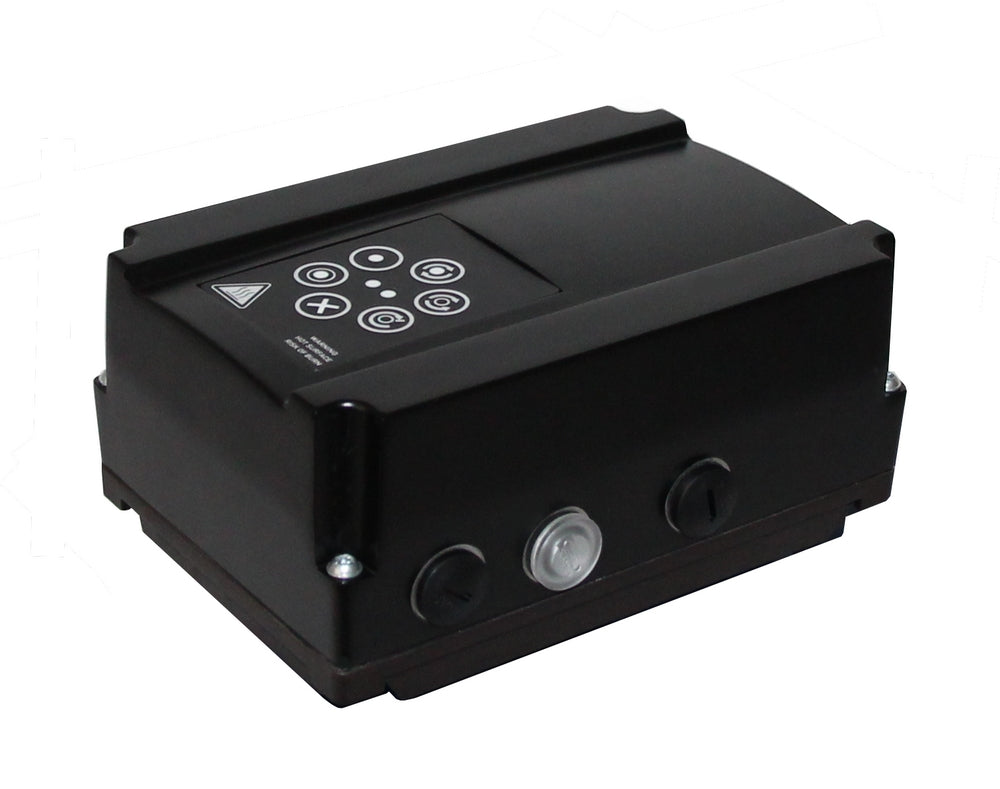

Frequency converter
Power= 0.55 KW, Size= alpha, Input voltage= 1 x 230V +10% (single-phase), Input frequency= 50/60 Hz,
Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 80mm,
Mains current (input) = 5.8 A. Ideal control range = 5- 60 Hz, with constant nominal torque, below 30 Hz
An external fan is required for cooling.

Product information
The frequency converter offers the option of becoming “bus-capable” using fieldbus modules.
With Modbus (already included) and CANopen, the EASYdrive alpha offers compatibility with control environments
The required optional control variant must be specified when ordering.
The EASYdrive alpha drive controllers are CE, UL and CSA certified. The EASYdrive Alpha operates without external
Filter measures EMC class C2 (for 1-phase mains supply).

! Possible variant selection !

Product selection
When selecting a frequency converter, it is important to note that there are two variants. Firstly, the device
in standard version and secondly the device with a membrane keyboard. In both versions a potentiometer
optional to order.

The “standard version of the frequency converter” shown is fully usable.
but requires a corresponding control unit for control.
To do this, you must order one of the following options:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

The variant "Frequency converter with membrane keyboard" offers the possibility of controlling the FU directly,
such as start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

programming
The three-phase motor with integrated EASYdrive alpha frequency converter is delivered for safety reasons
not programmed! Should further parameterization be necessary, we offer this adjustment work
at an hourly rate of 86,-€/ net.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
