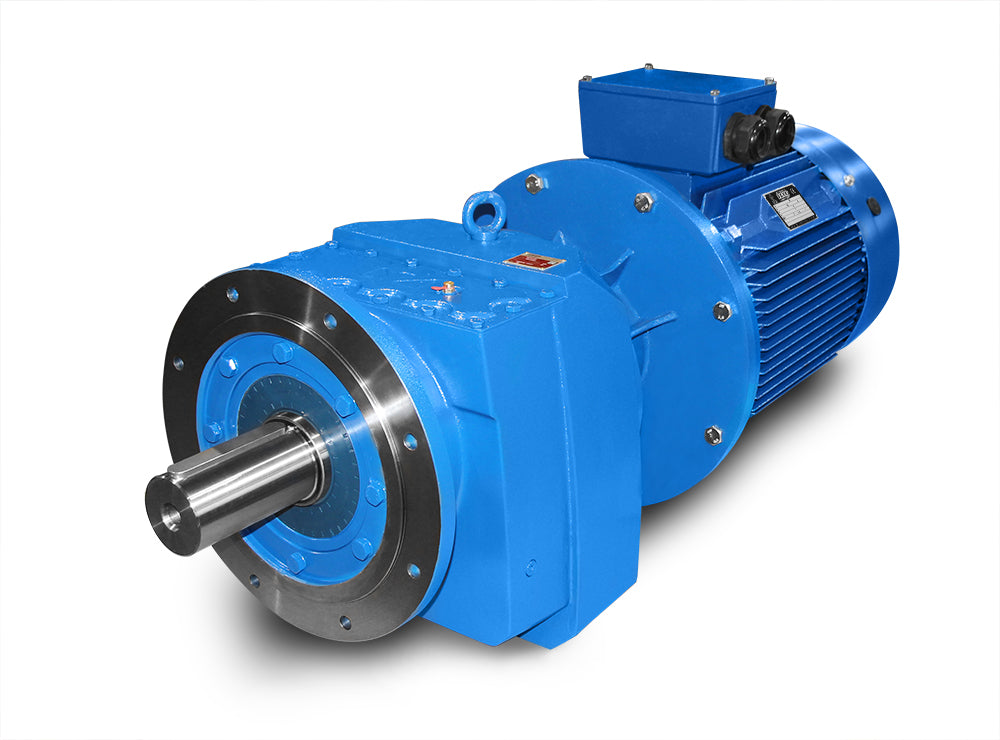

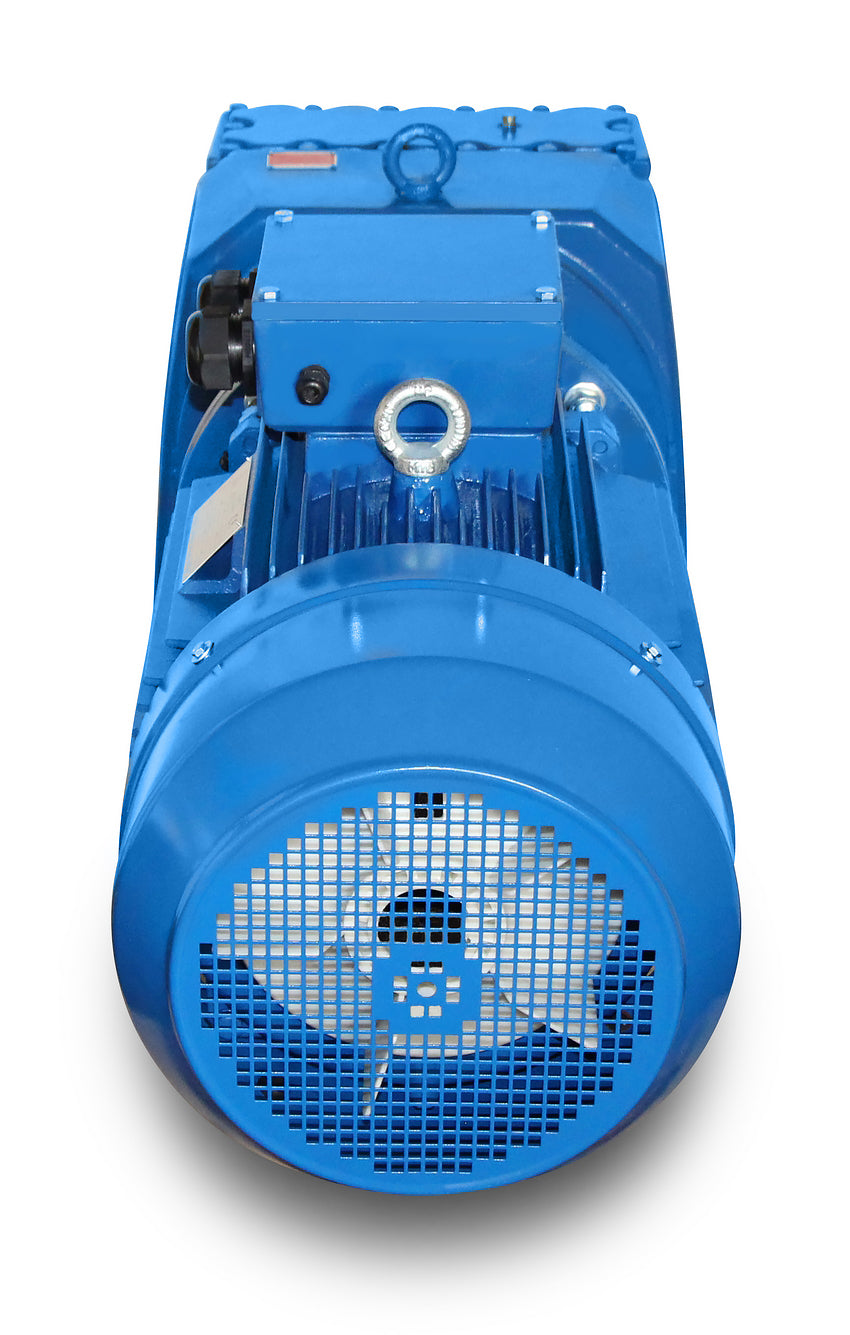

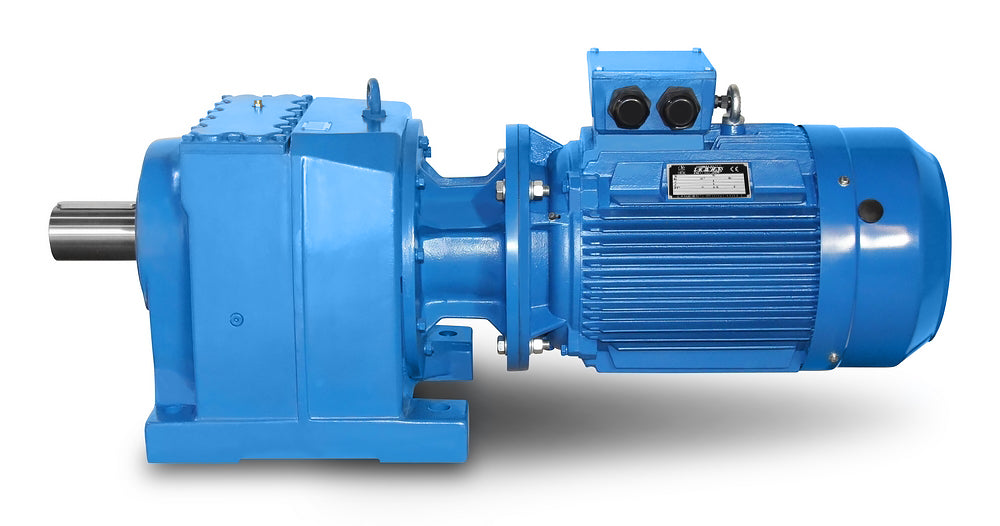

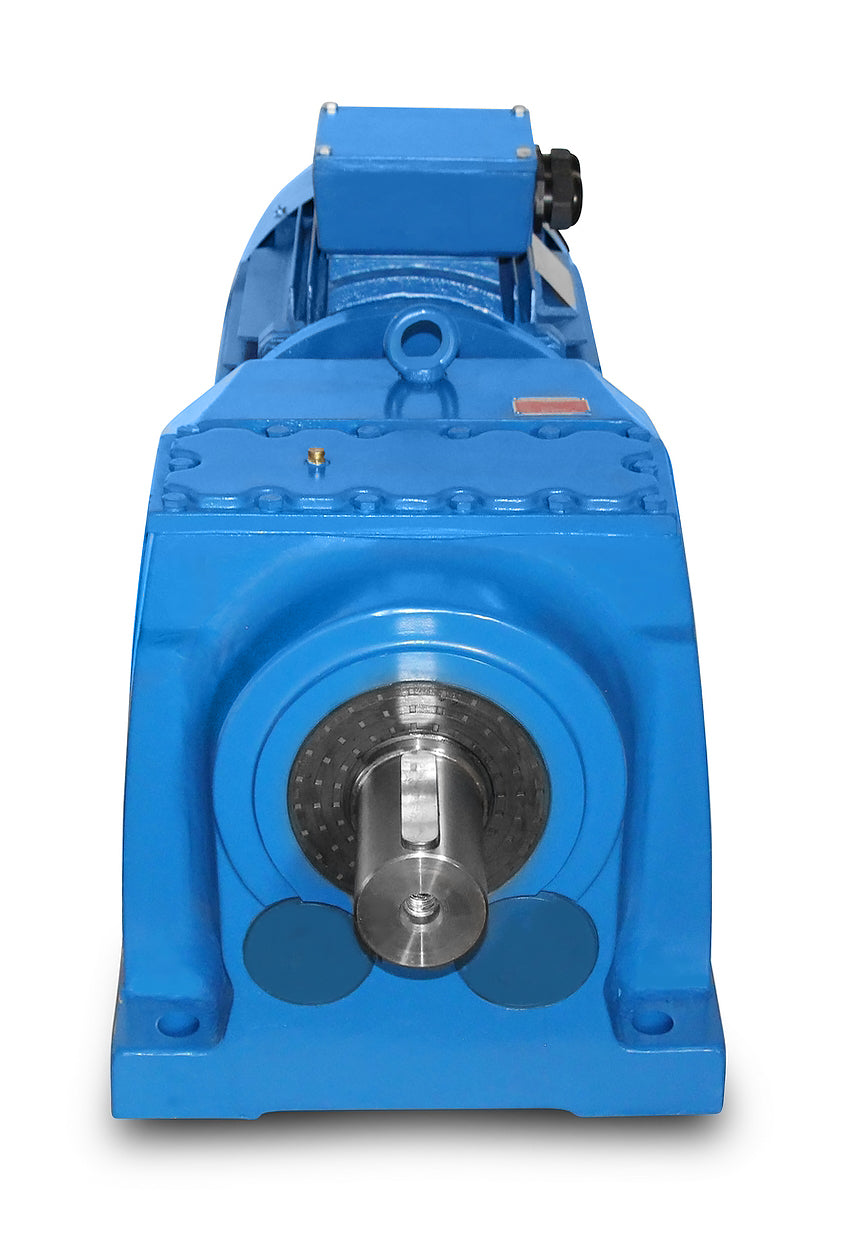

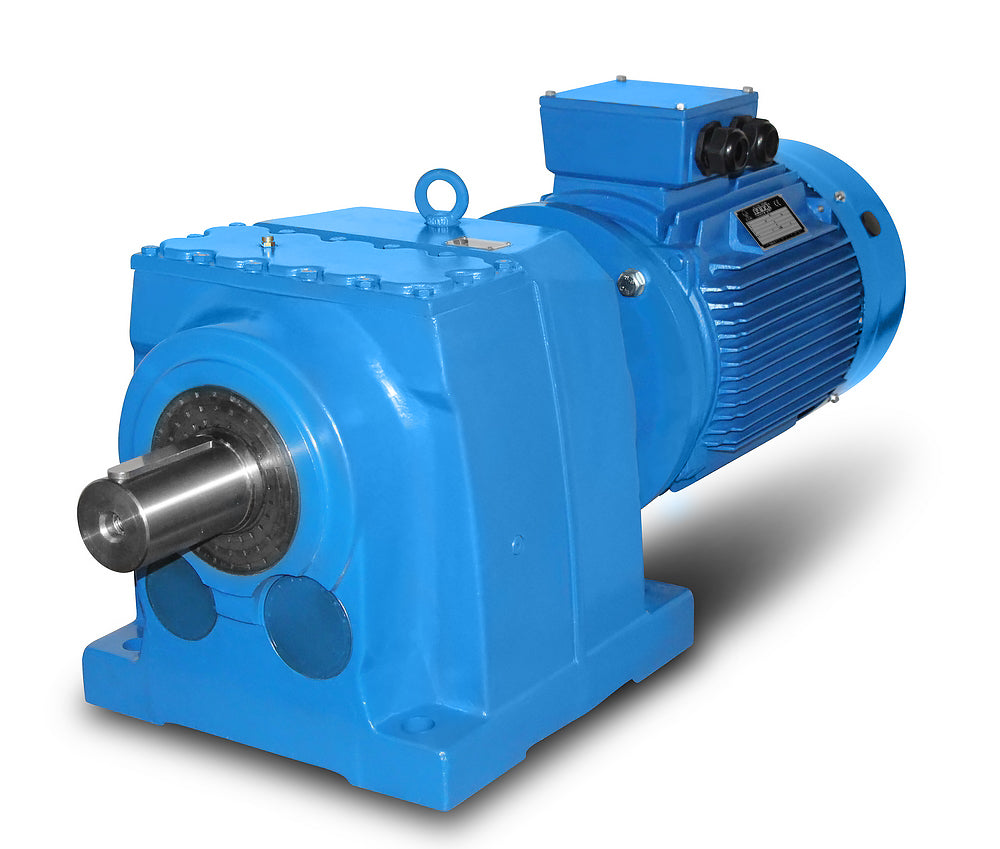

SEVA- MV972-250M-55kW-103 rpm helical gear motor

Spur gear motor (gearbox with IEC flange to the electric motor),

Voltage = 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.

Power= 55.0 kW, Speed= 103 rpm, Gear ratio (i)= 14.40, Torque (M²)= 4978 Nm, Service factor (fs)= 3.6,

Design= B3 (B5 at extra cost), shaft= 120mm x 210mm, weight= 1430.0kg, paint finish= RAL5010.

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.

The spur gear can be operated in both directions of rotation and is filled with oil upon delivery.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.

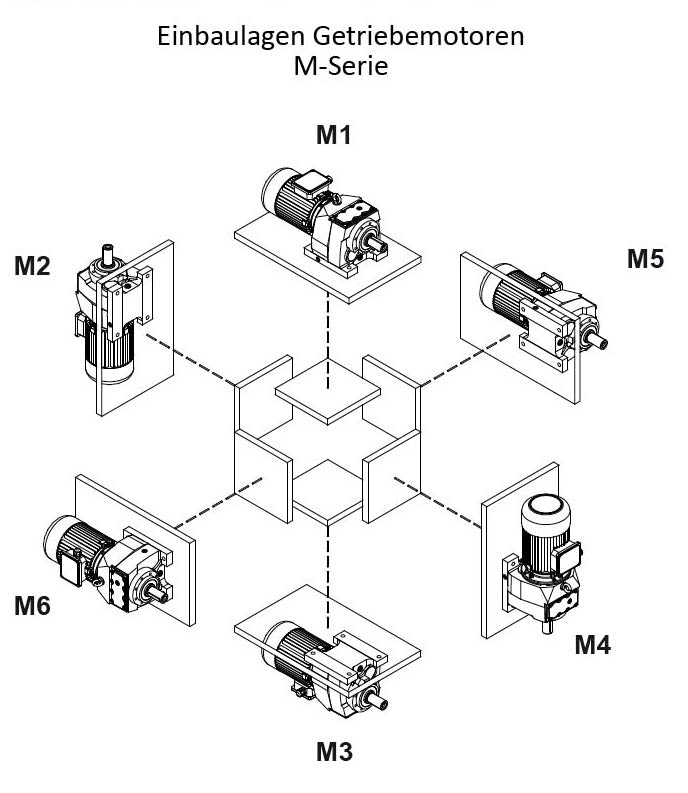

When ordering, please select the desired installation position and design!
