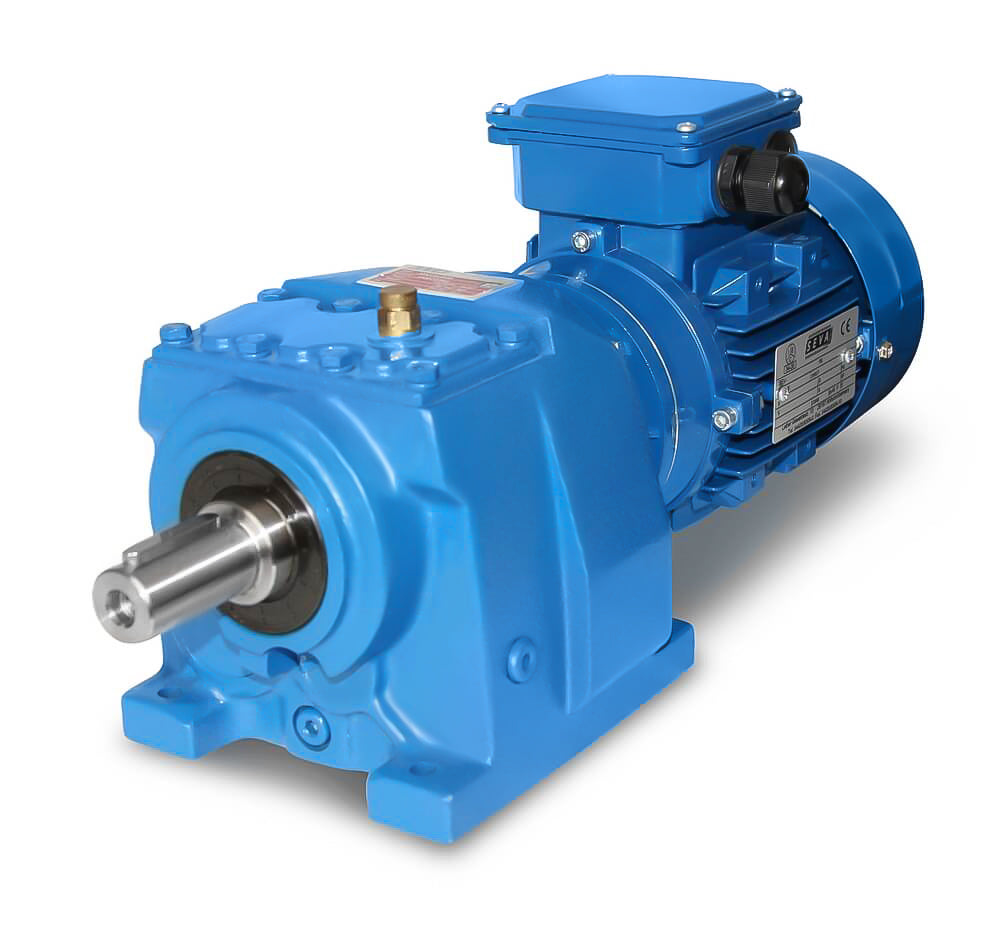

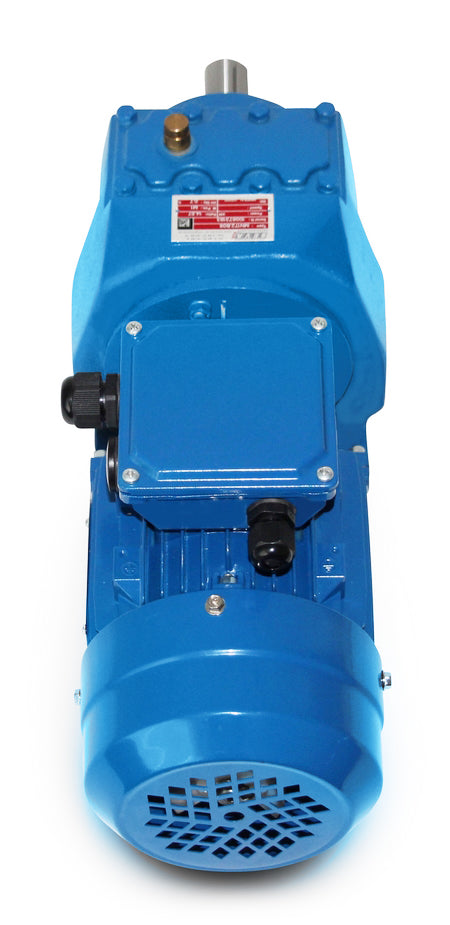

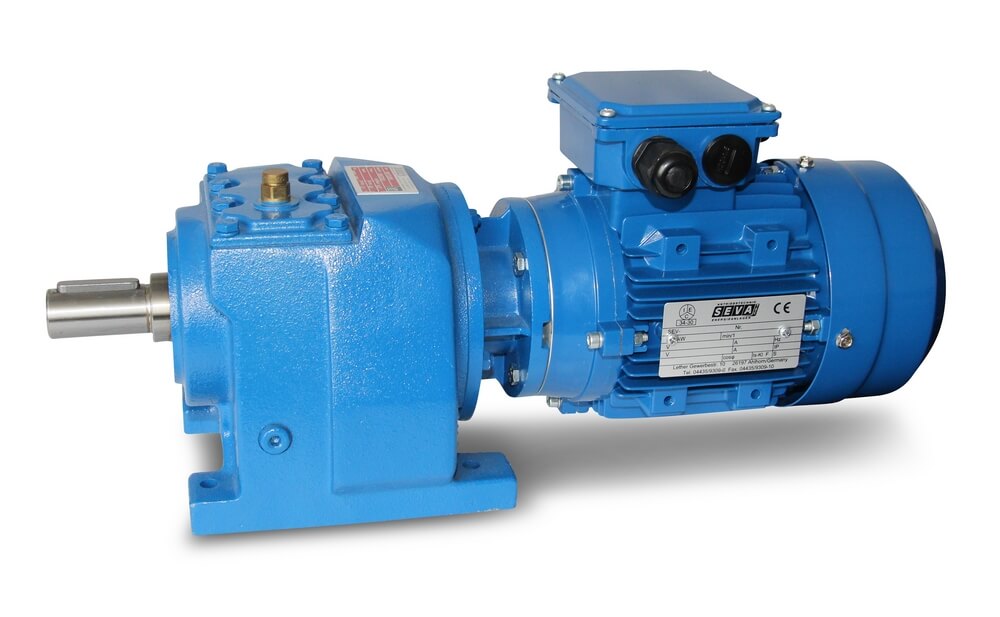

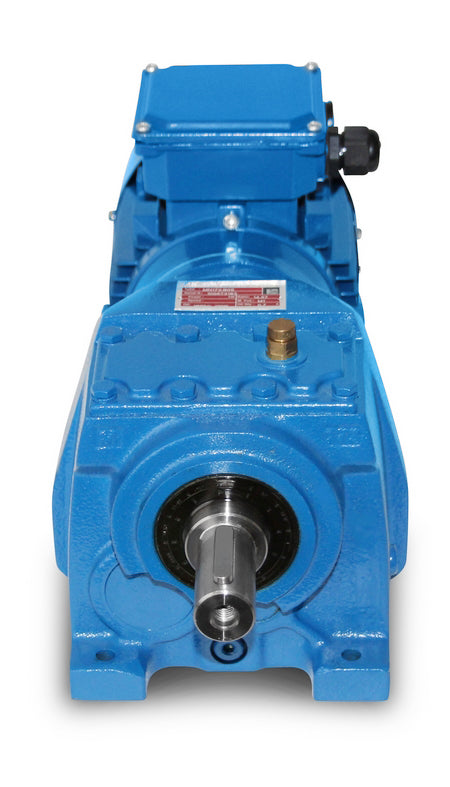

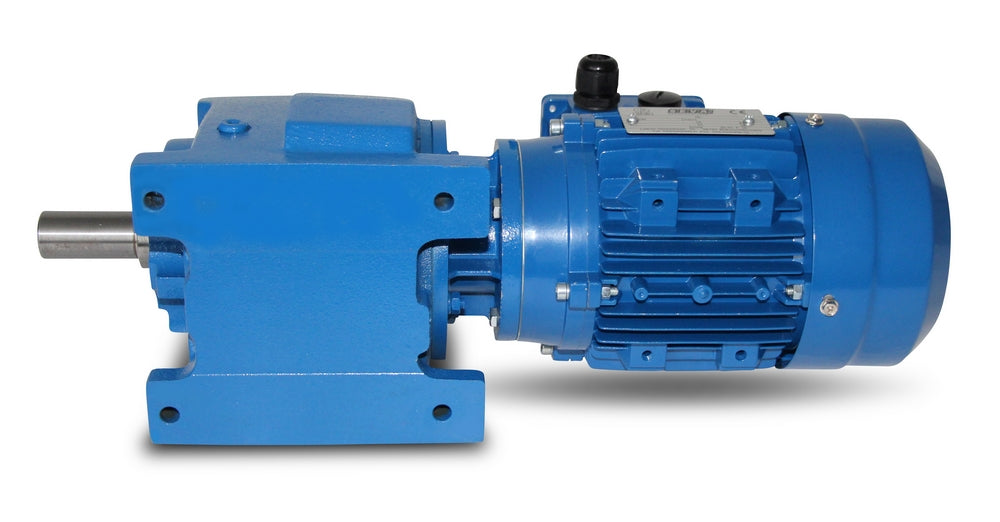

SEVA- MV002-801-2 - 0.75kW - 608 rpm helical gear motor

Spur gear motor (gearbox with IEC flange to the electric motor),

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.

Power = 0.75 kW, speed = 608 rpm, gear ratio (i) = 4.56, torque (M²) = 11 Nm, service factor (fs) = 4.0

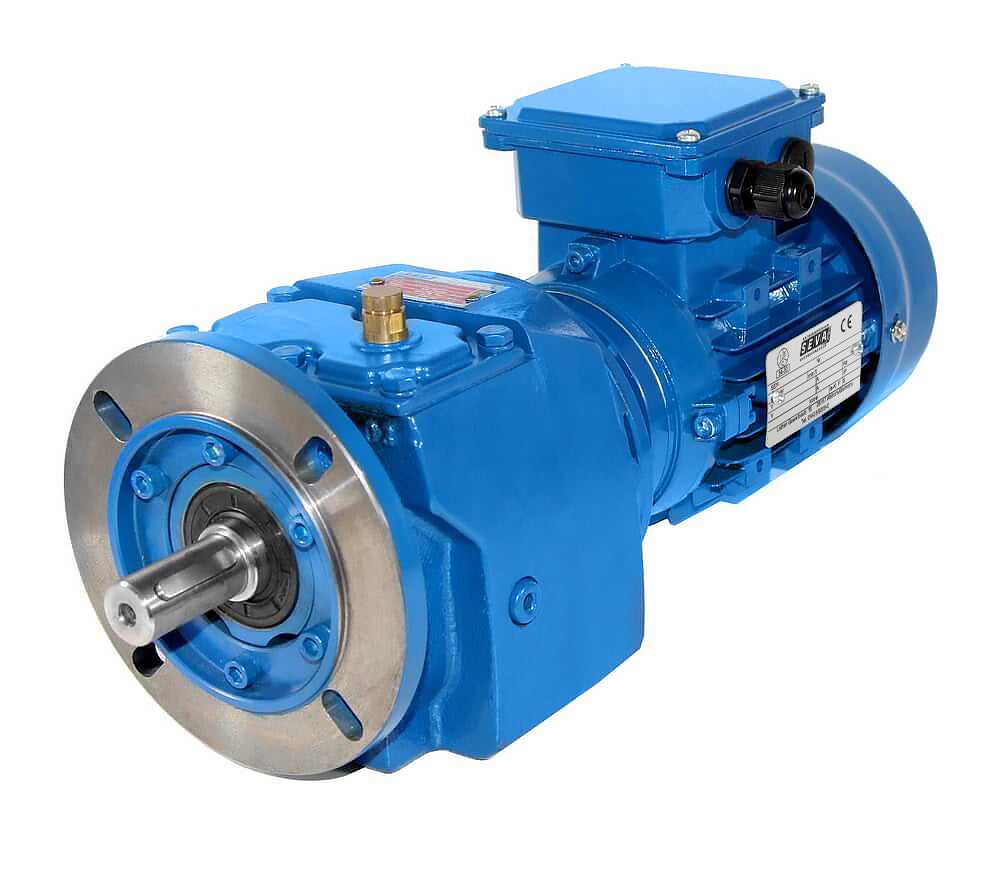

Design= B3 (B5 at extra cost), shaft= 20mm x 40mm, weight= 20.1kg, paint finish= RAL5010.

Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).

The spur gear unit is suitable for frequency converter operation and complies with the

IEC 60034-30:2008. The helical gear unit can be operated in both directions of rotation

and includes an oil filling upon delivery.

All product photos are non-binding examples! Technical changes reserved.

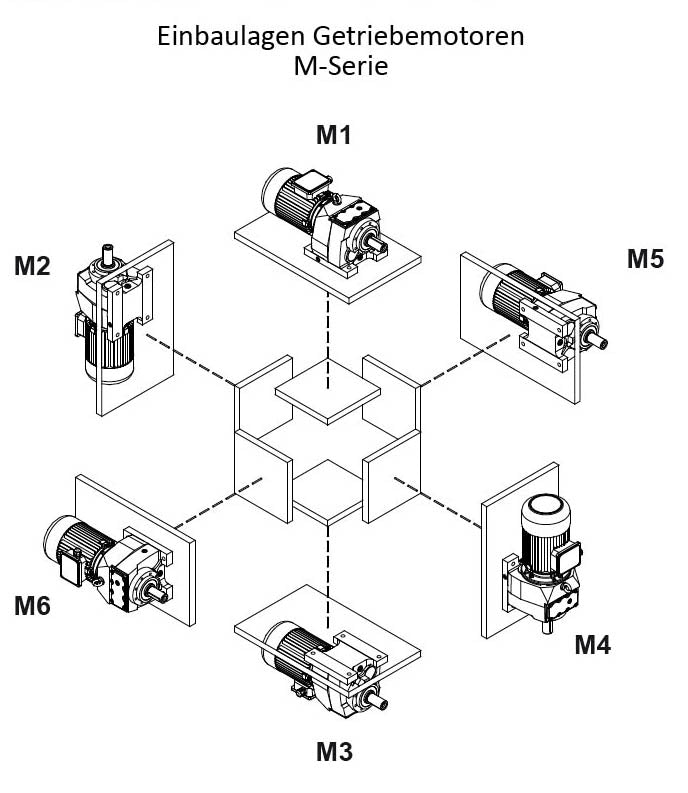

When ordering, please select the desired installation position and design!
