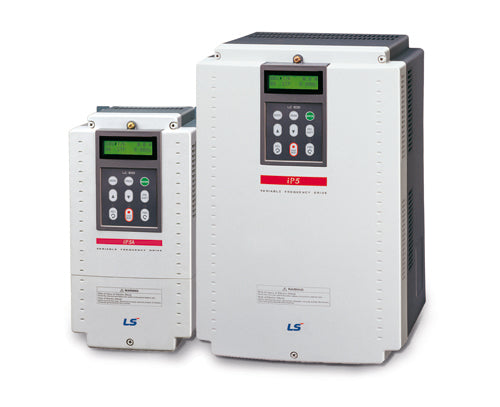

Frequency converter SEVA-LS 110-IP5A-4E high-performance device

Frequency converter for pump/fan operation, 11kW, 400V, 24.0 A, IP20, with control panel.

● Ideal for pump and fan systems.
● PID controller for advanced process control (Pre-PID, Dual-PID).
● Energy saving and high performance:
Sleep & Wake-up function (sleep and wake-up),
Flying Start function (start with the engine running),
automatic energy saving function,
Flux braking algorithm.
● Integrated protection functions:
Pre-heating function, PWM algorithm for reducing leakage,
● Controlled shutdown, automatic change of clock frequency.
MMC function (multi-motor control): up to 4 motors: 5.5- 90kW.
● V/f control, sensorless vector control selectable.
● Capacitors for long-term operation, easy to replace.
● Easy Start function (easy starting).
● Input signal PNP/NPN selectable.
● Connectable control terminals.
● Fan with on/off control.
● Integrated communication RS485 (LS Bus).
● Optional communication:
Modbus RTU, DeviceNet, Profibus-DP, LonWorks, BACnet, Modbus TCP *.
● Software (Drive View) for monitoring and parameterization on the PC.
