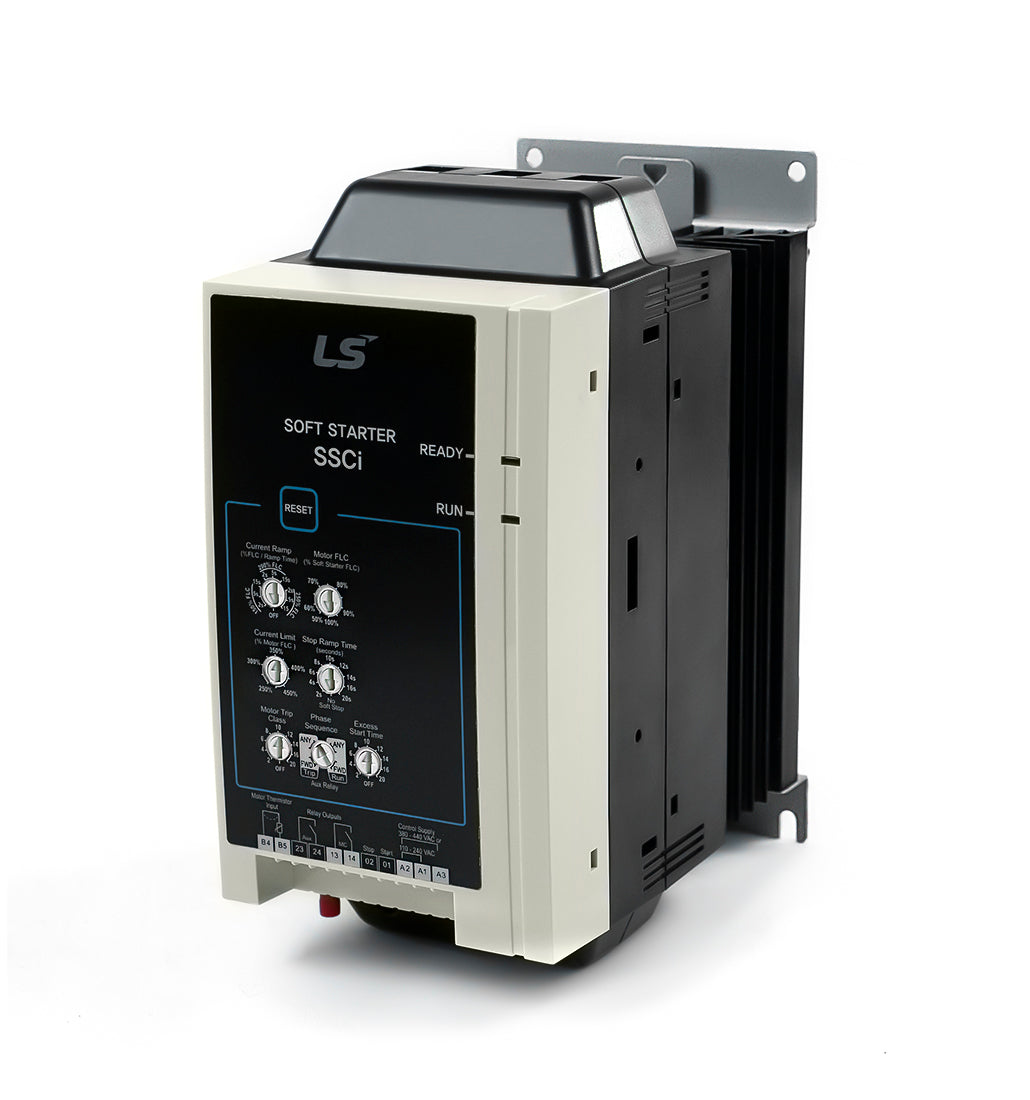

Soft starter 45 kW SSCi-085-V6-C1

Performance data

Rated current= 85 A, Input voltage= 200 - 575 VAC, Protection class= IP00, 45 kW,
Installation altitude = <1000 m, Dimensions (H x W x D) = 215 x 145 x 193 mm, Weight = 4.0 kg,

Settings

• Current ramp – current value and ramp time
• Current limitation of the electric motor
• Tripping time for overload protection
• Motor current FLC (full load current)
• Ramp stop time
• expected engine start time
• Auxiliary relay function

Basic advantages

• smooth voltage start
• slight voltage stop
• built-in bypass
• Current limitation for soft start
• Soft start plus (limit values ​​adjustable)
• thermal motor protection
• Connection of a motor sensor (thermistor).
• 2 relay outputs
• Protection against exceeding the start-up time

All product photos are non-binding examples! Technical changes reserved.
