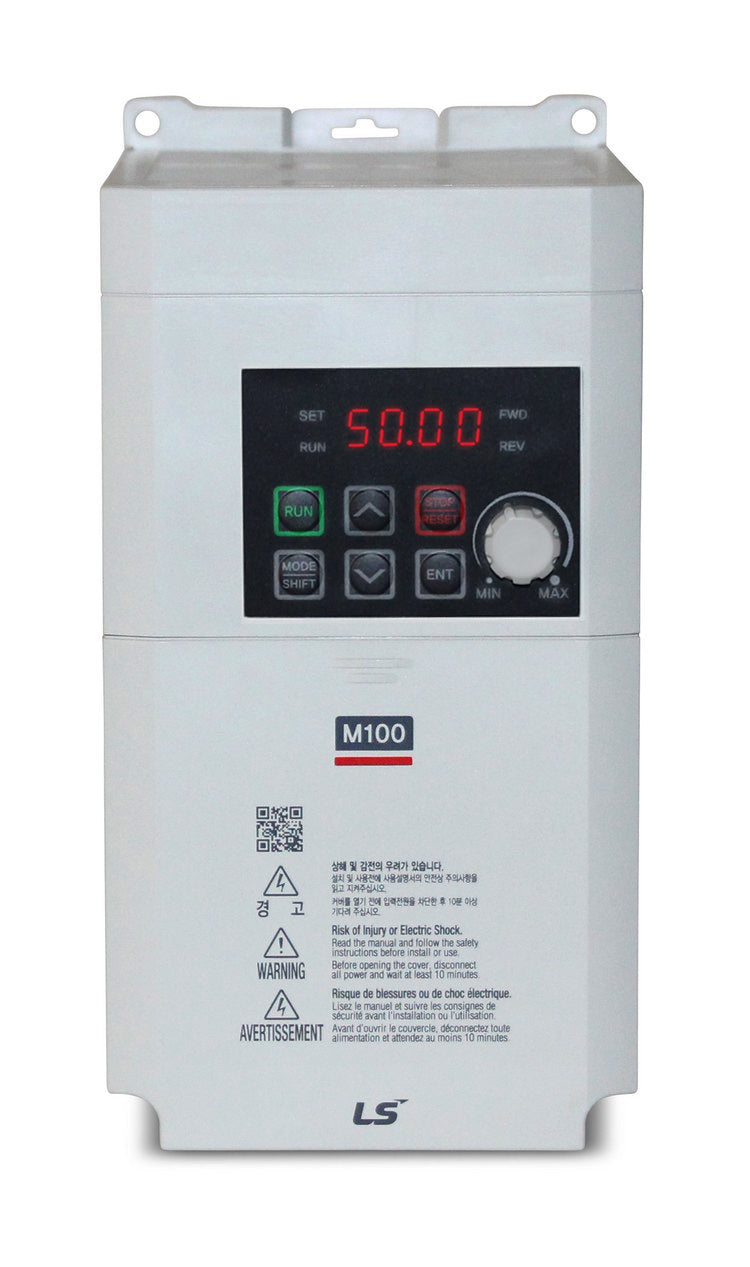

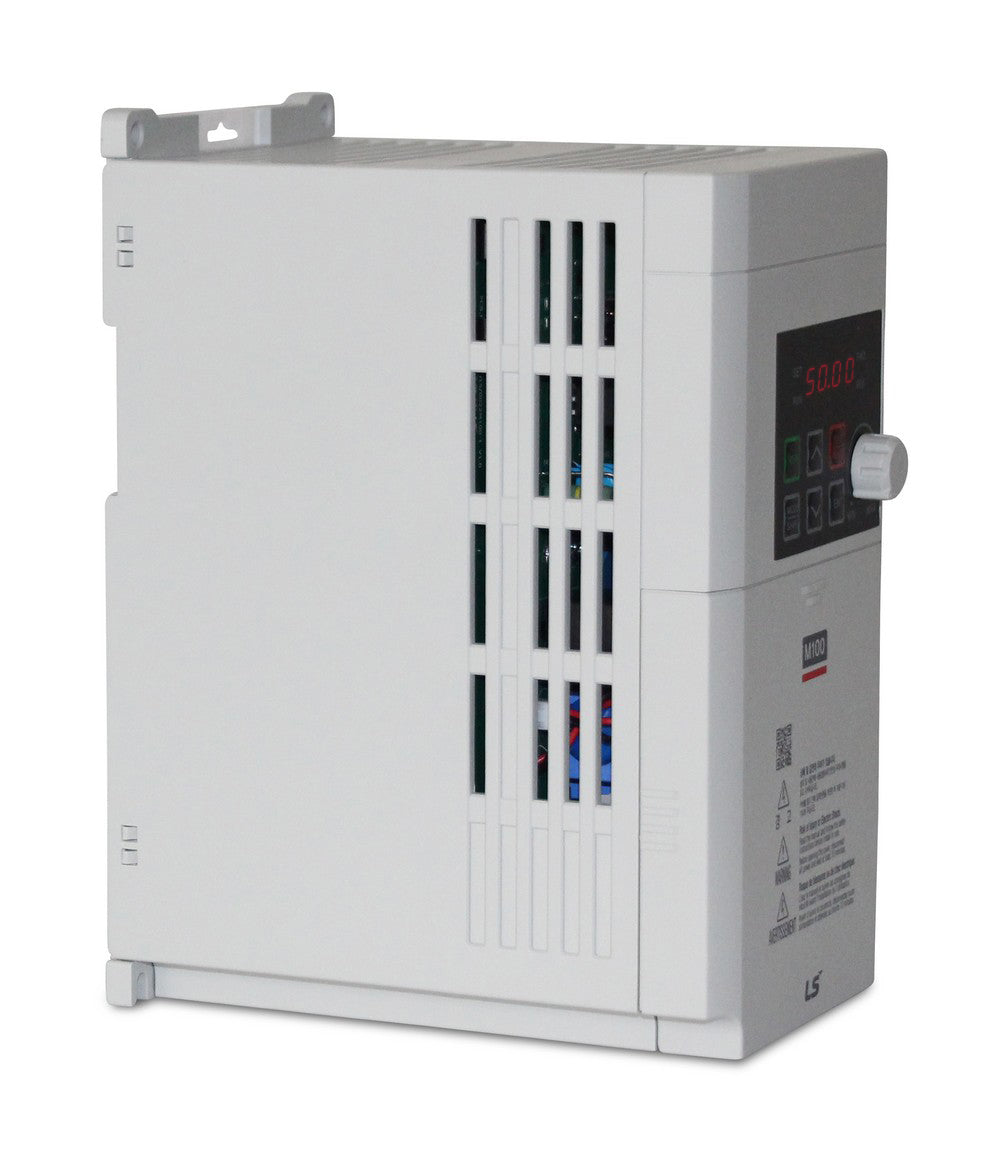

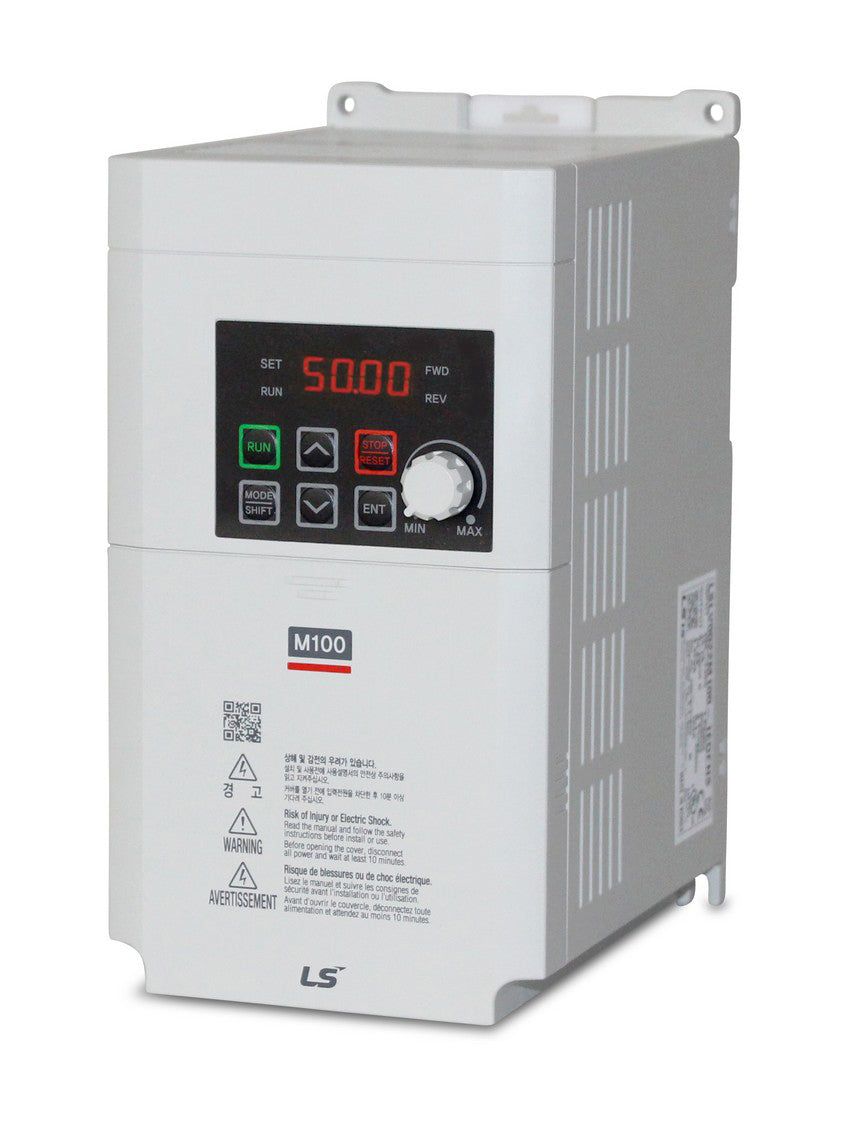

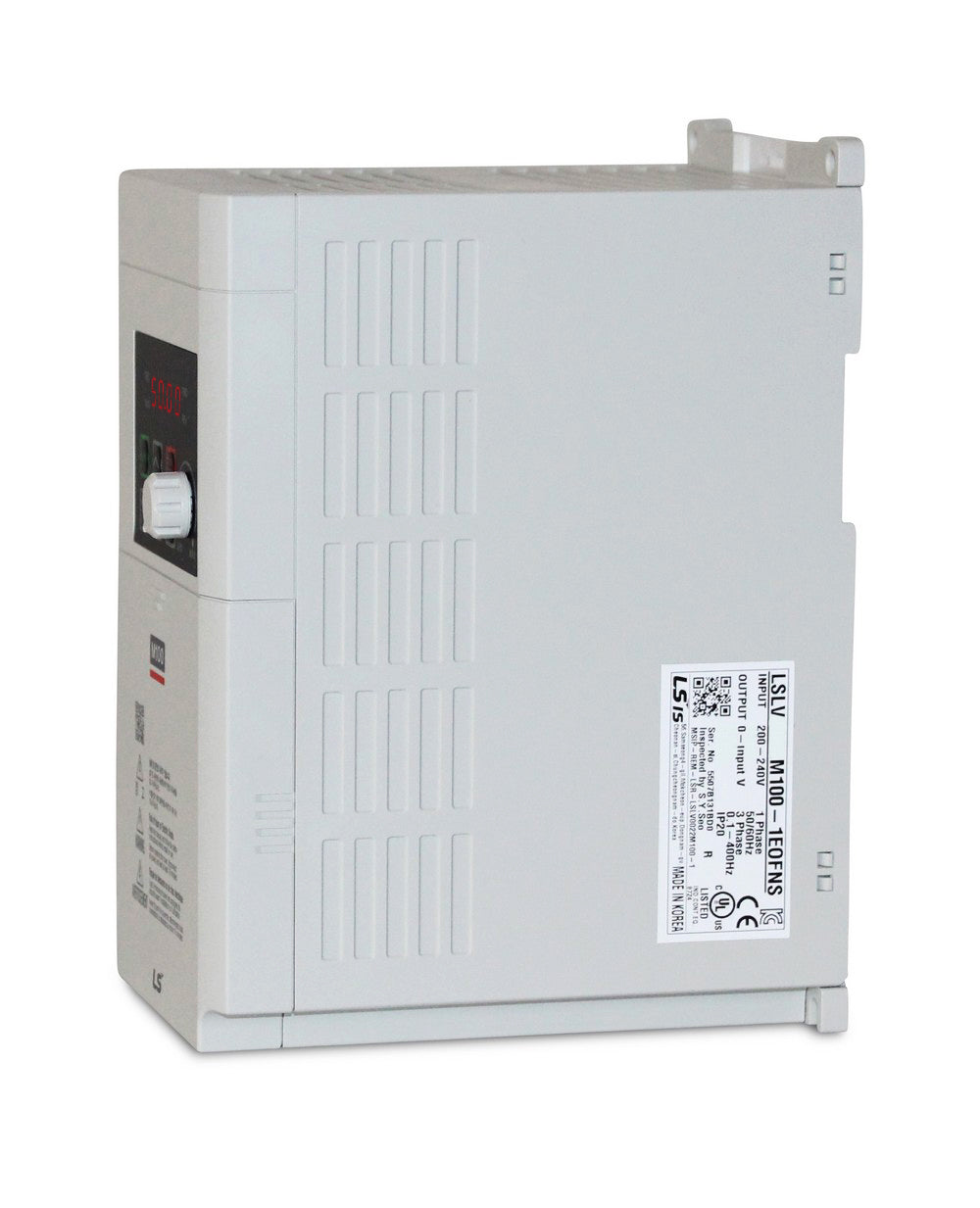

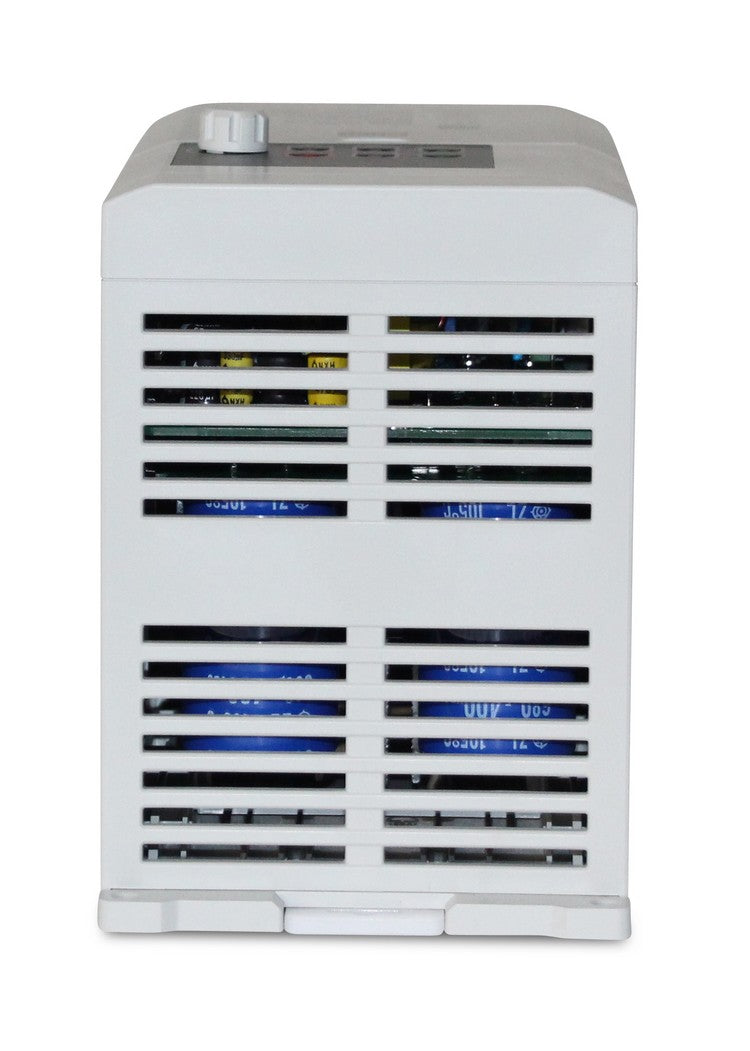

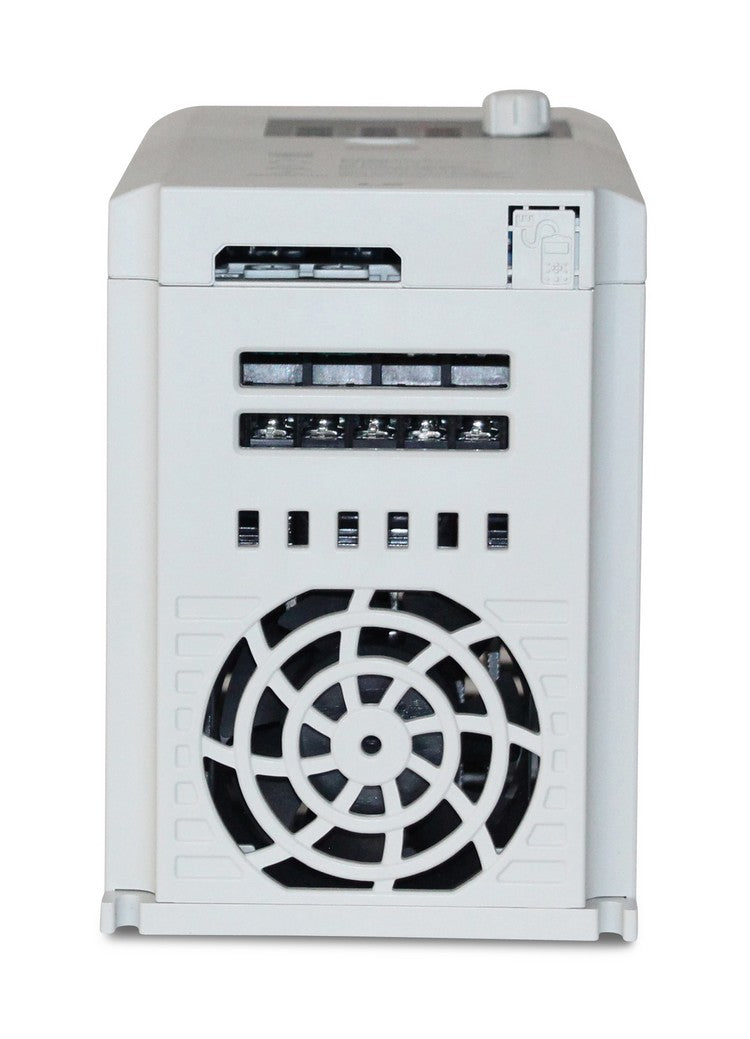

Frequency converter SEVA-LS 022M100

Key Features

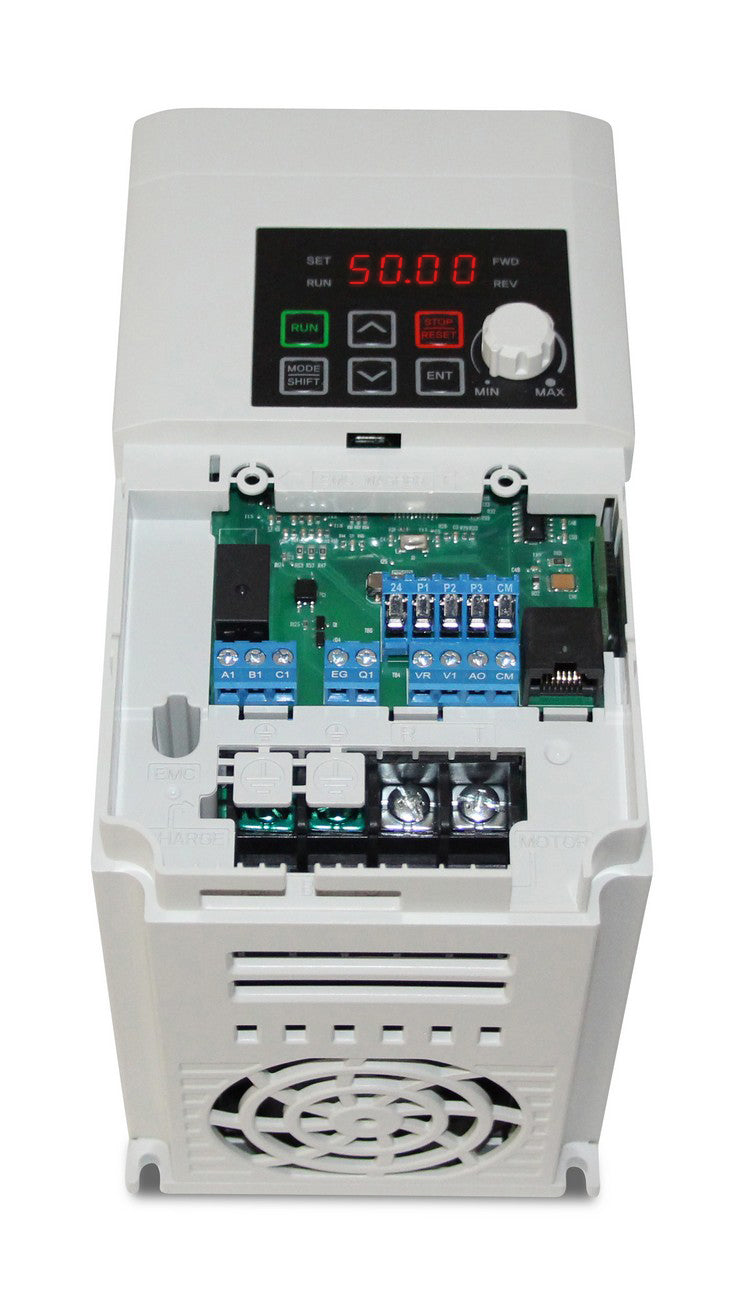

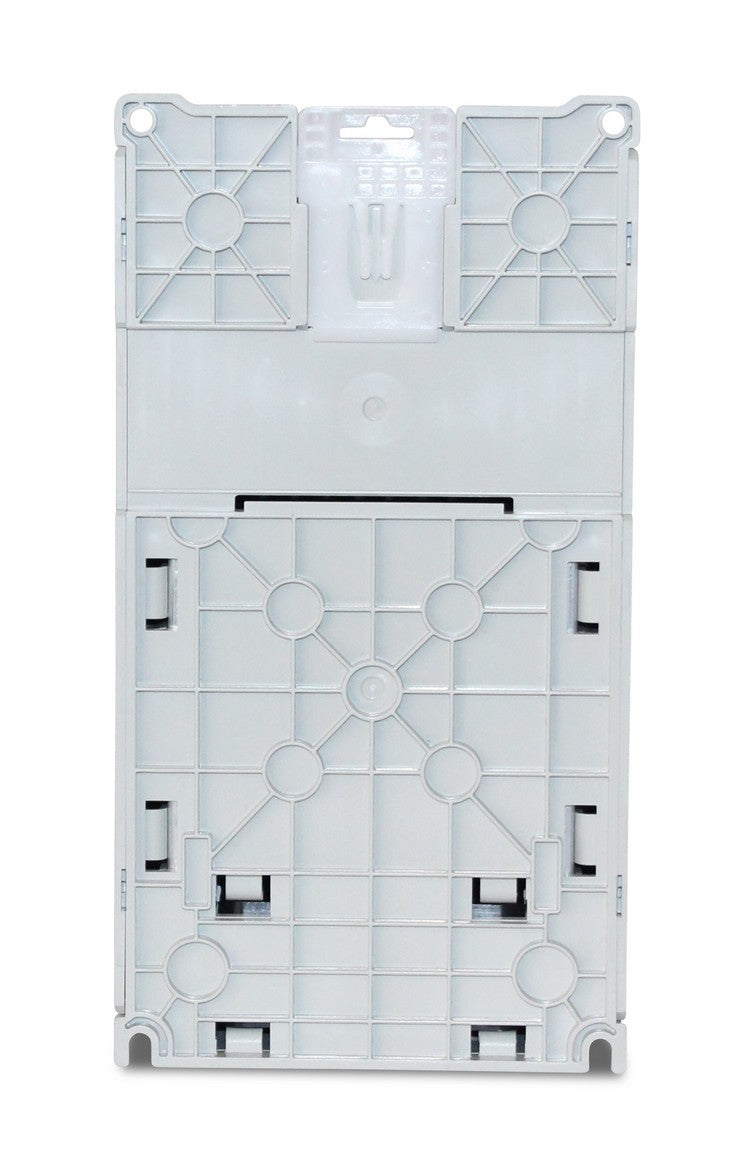

• Frequency converter, 2.2 kW, 230 V, 10.0 A, IP20, integrated EMC filter - EMC filter C2 - Potentiometer for speed control - Mounting on mounting plates or DIN rail - Side-by-side installation possible (2mm distance between the FU) - Easy connection via RJ45 port - Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V) - Brake chopper on 1.5kW and 2.2kW versions - Overload capacity 150% for 1 min - Programming with DriveView7 operating software via RJ45 connection on the M100 (Advanced only
• The standard version does not have an RJ45 interface
• Please select a version.)
• Extract from specific functions: - DC braking - Jog operation - 3-wire operation - Dwell operation - Slip compensation - PID control - Energy-saving mode - Speed ​​search - Automatic restart
