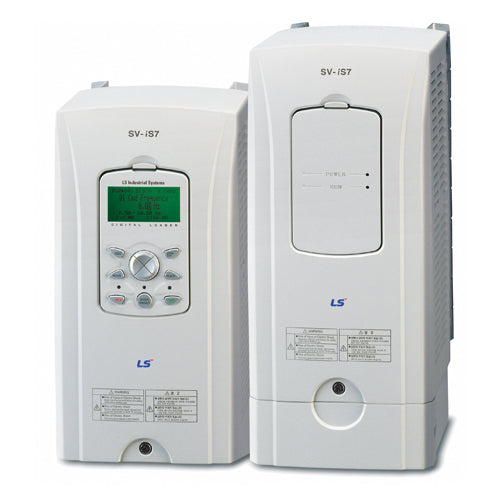

Frequency converter SEVA-LS 0008-IS7-4-SOFD high-performance device

IS7 – the all-rounder frequency converter, 0.8 kW, 3x400V, 2.5A, braking resistor,
EMC filter, IP21 , DC reactor, with control panel.

● Constant torque / Variable torque for normal load and heavy load operation
● U/f and U/f PG control, sensorless vector control, vector control with sensor selectable
● 150 MIPS high-speed DSP
● Excellent performance and advanced features:
Droop control (torque control)
KEB protection (Kinetic Energy Buffering) Ride Through protection
(Delay of undervoltage trip) Under Load Trip protection (underload trip)
PMSM (Permanent Magnet Synchronous Motor) function Open loop vector control
Power Braking & Flux Braking Function (Power and Flux Braking) Automatic Setting:
Autotuning of static engine parameters

● Easy to use:
simple start mode, user and macro group, multifunctional control panel
● Sensorless control and parameter setting of the second motor
● Available: IP54/UL Type 12 optional (0.75~22kW[1~30PS]) *
● Integrated communication RS485 (LS Bus / Modbus RTU)
● Integrated transistor for dynamic braking (0.75~22kW[1~30PS])
● Integrated EMC filter and DC reactor optional:
EMC filter (0.75~22kW[1~30HP]) / DC reactor (0.75~160kW[1~215HP])
● Wide, graphic LCD control panel (6 different languages)
● PLC PLC expansion card optional (Programmable Logic Control Card):
Master-K platform (max. 14 inputs and max. 7 outputs)
● Input/Output Expansion Card (Optional):
max. 11 inputs and max. 6 outputs
● Optional communication:
Profibus-DP, DeviceNet, Modbus TCP, Rnet, LonWorks, CANopen, EtherNet/IP *
● Software (Drive View) for monitoring and parameterization on the PC
